The air handling units listed here carries material Steel, type Heavy steel structure, documented exactly as the manufacturer publishes it. Made by Hangzhou BaishengJuhe Construction Co., Ltd. (1 year on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of These Air Handling Units

• Material: Steel
• Place Of Origin: Shandong, China
• Application: Steel Workshop, steel warehouse, Garage Shed, Warehouse, Workshop
• Application Fields: Workshop,warehouse,livestock shed,factory, building frame, etc.
• Product Type: Steel Structure
• Type: Heavy steel structure

Technical Specifications

Product Details

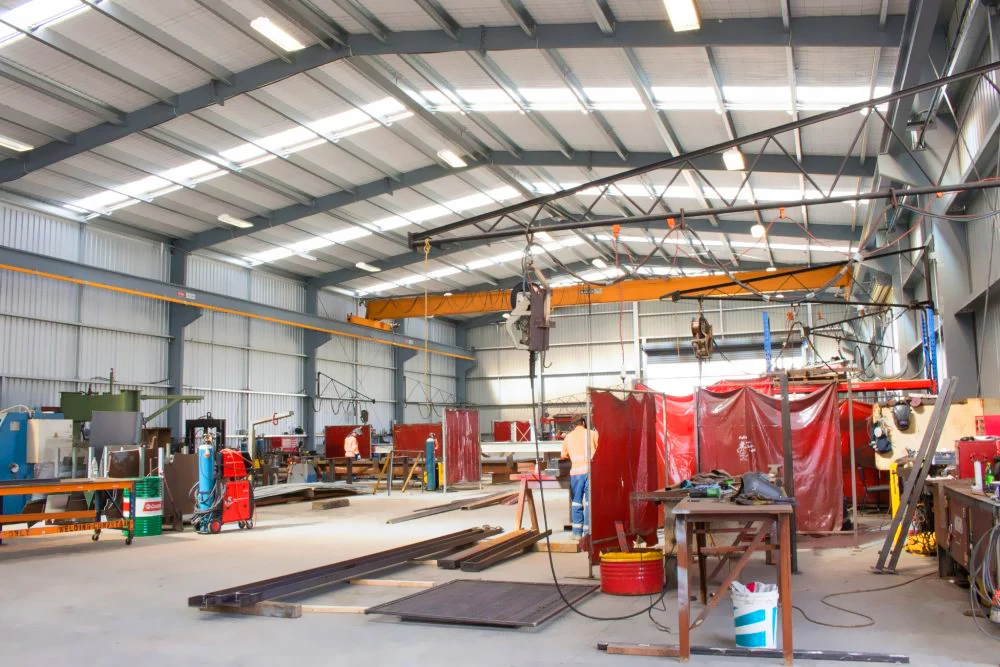

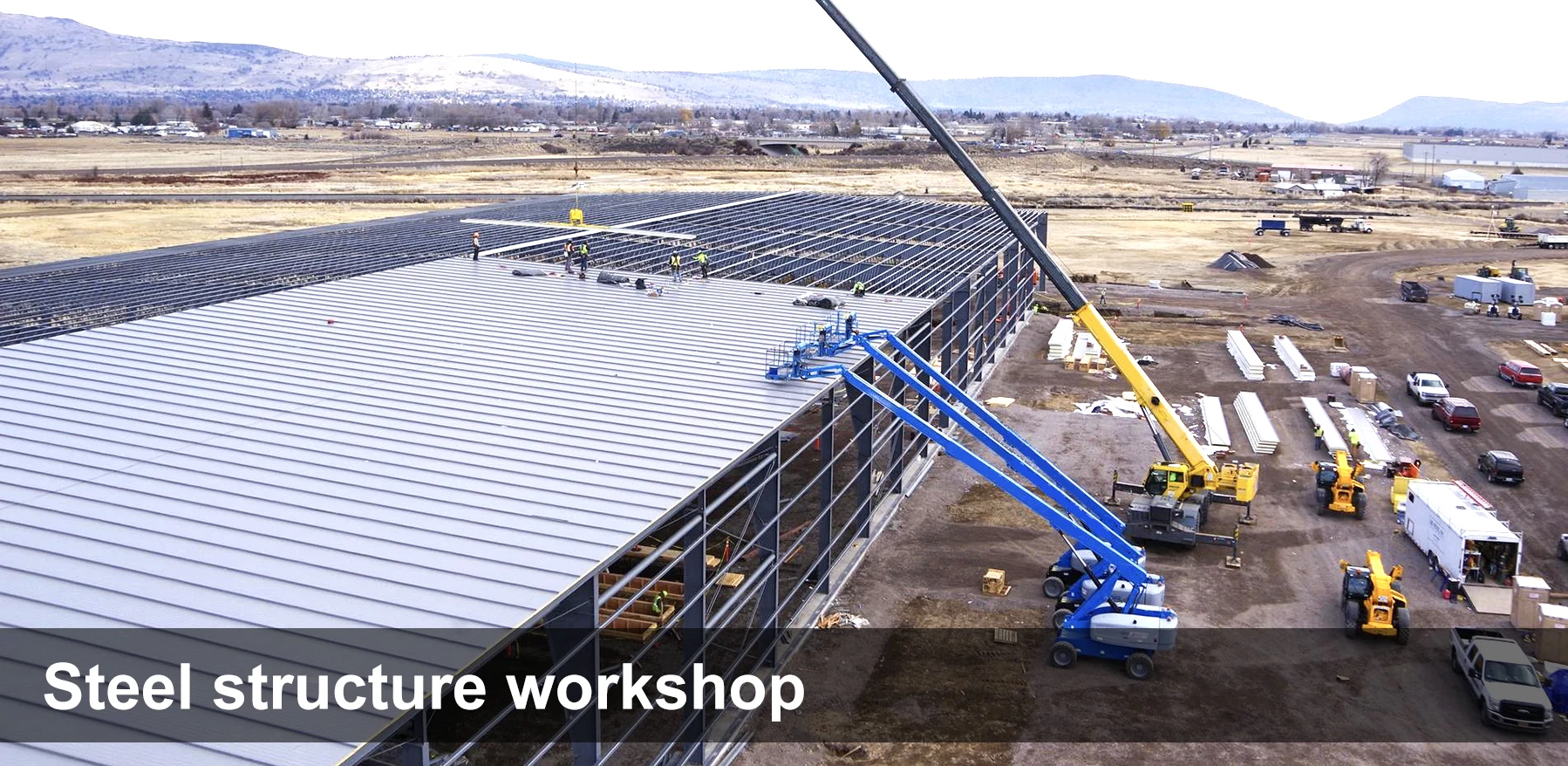

Steel structure workshop has features of high fire resistance, strong corrosion resistance. Steel structure plant is mainly refers to the main bearing component is composed of steel. Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect.The advantage of steel structure buildings is that the internal space is wide, large-scale production equipment can be used, and sufficient storage space for raw materials can be provided to ensure continuous production.

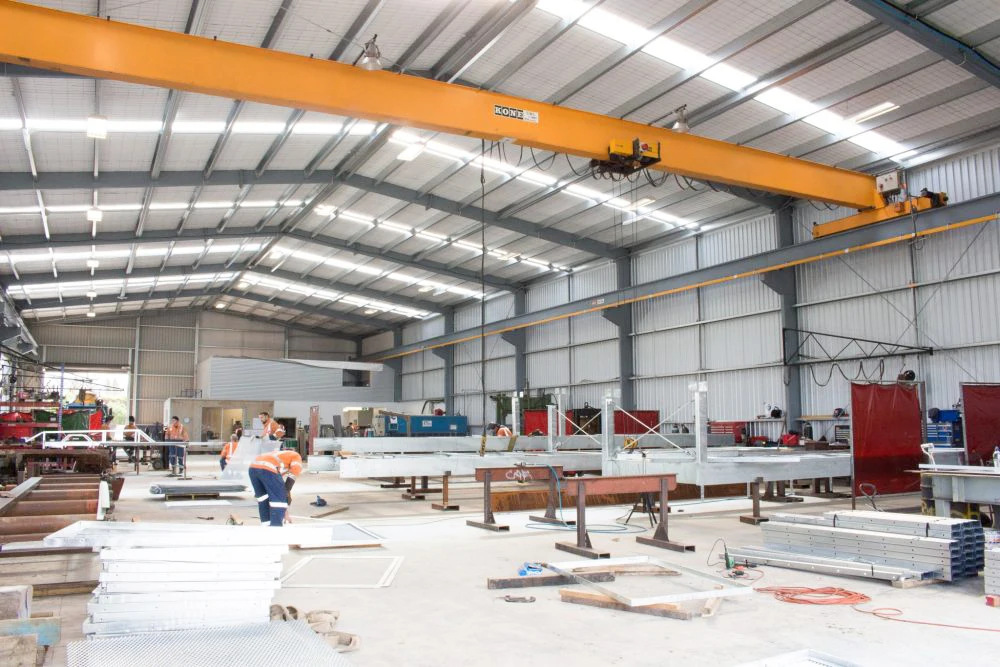

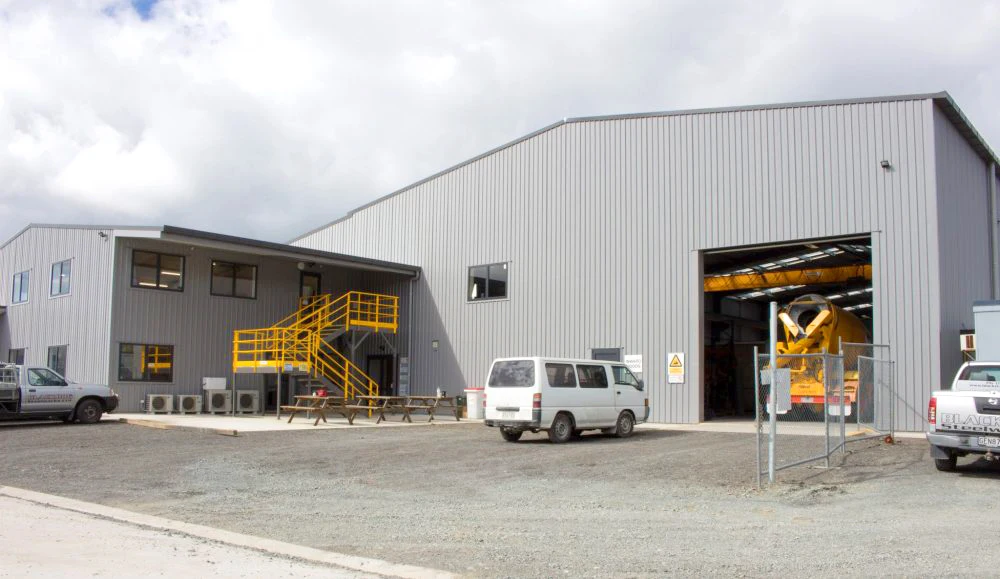

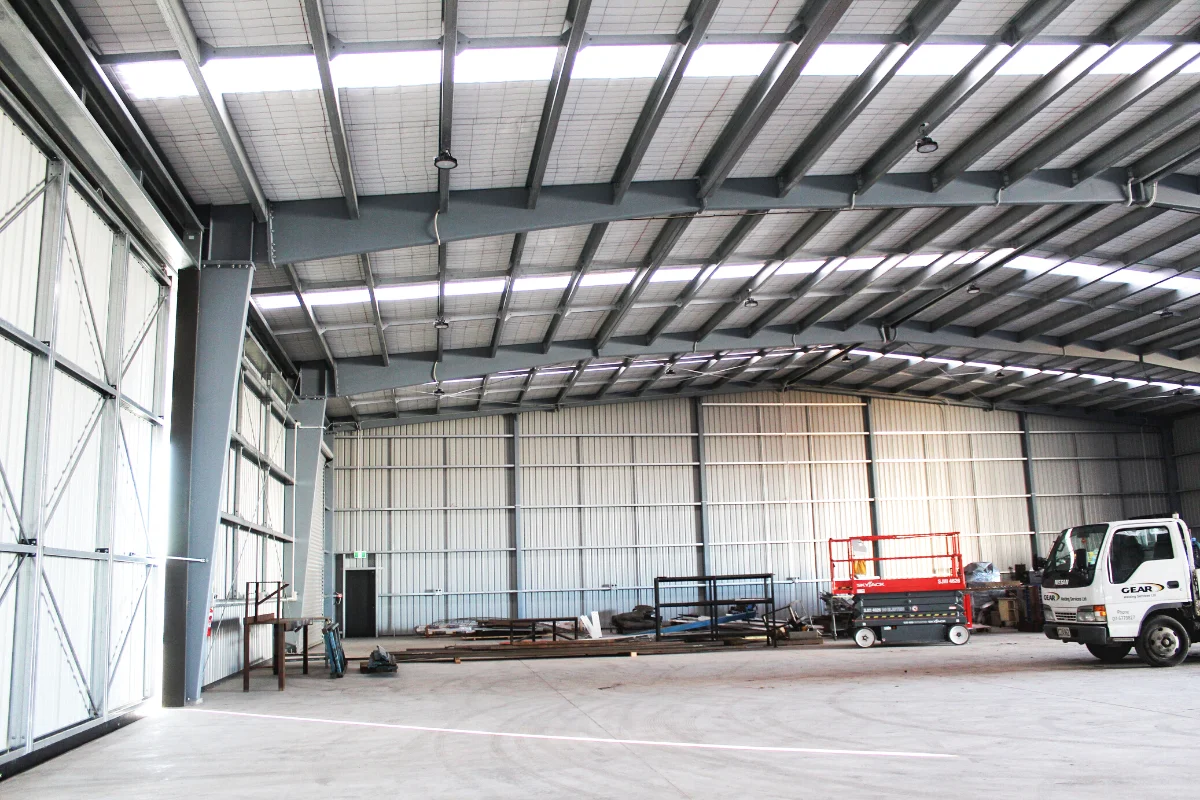

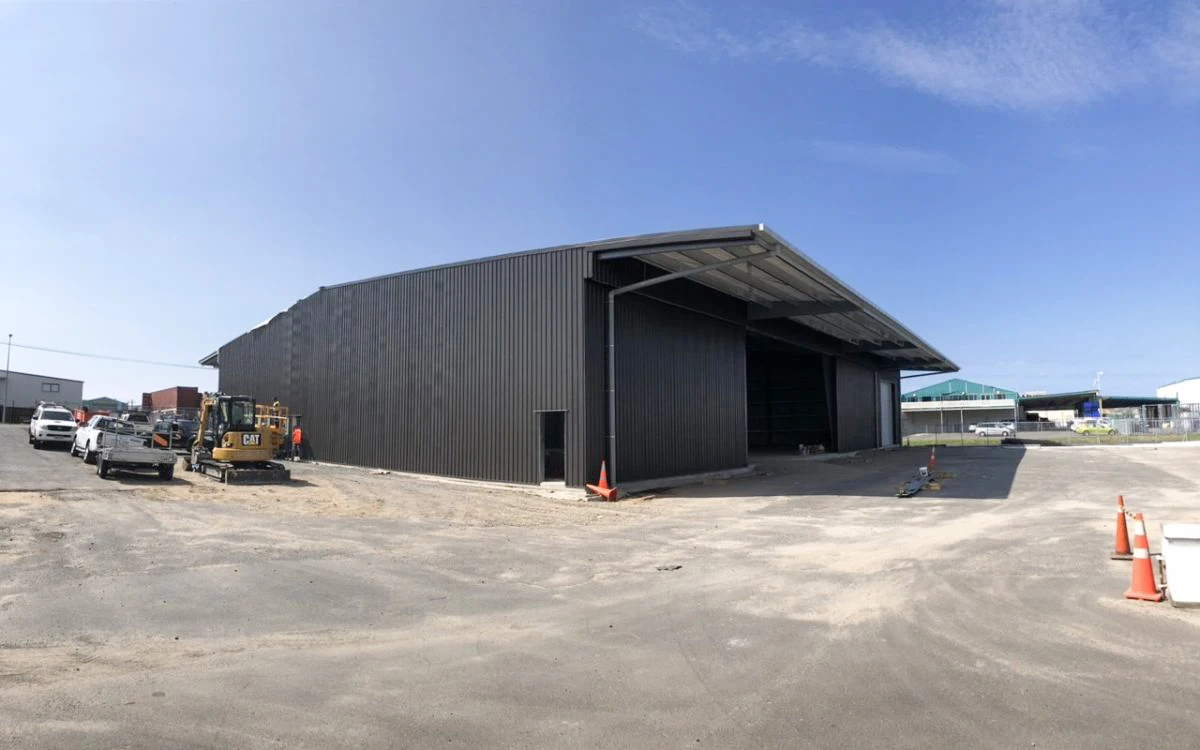

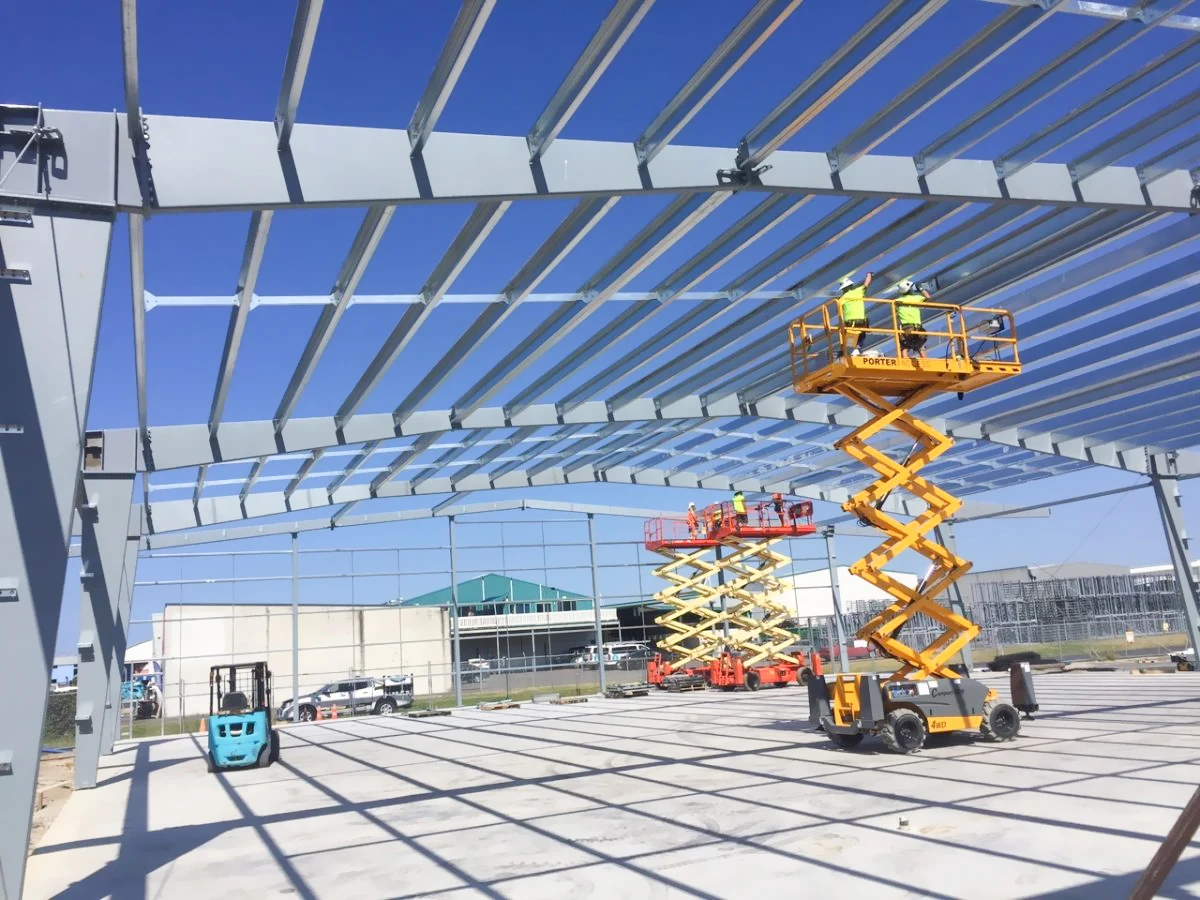

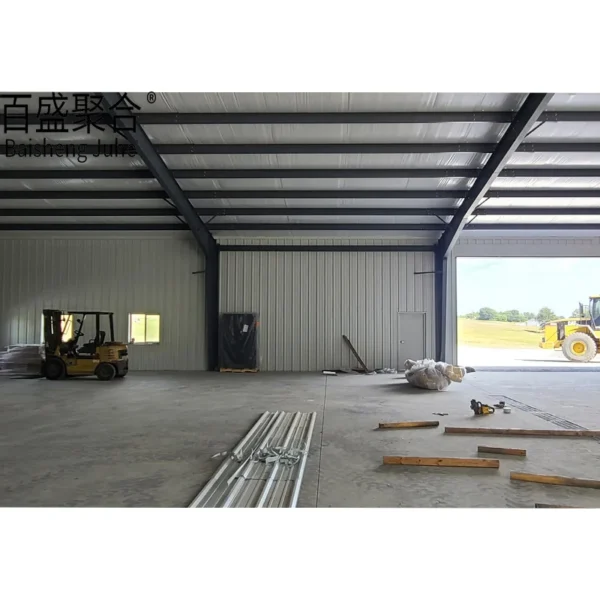

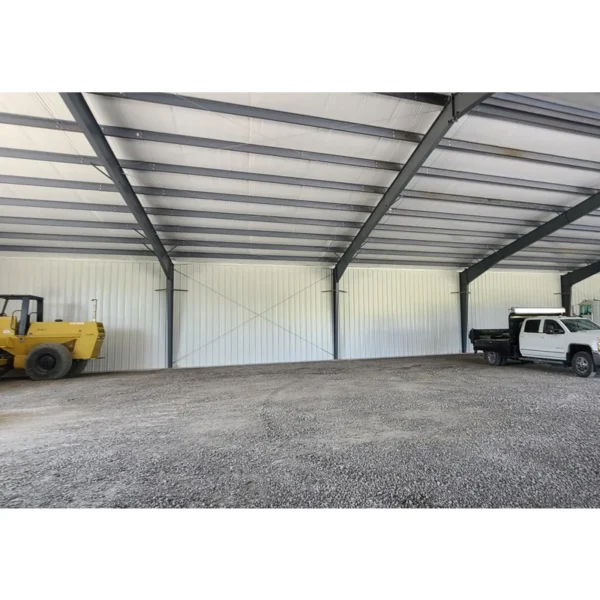

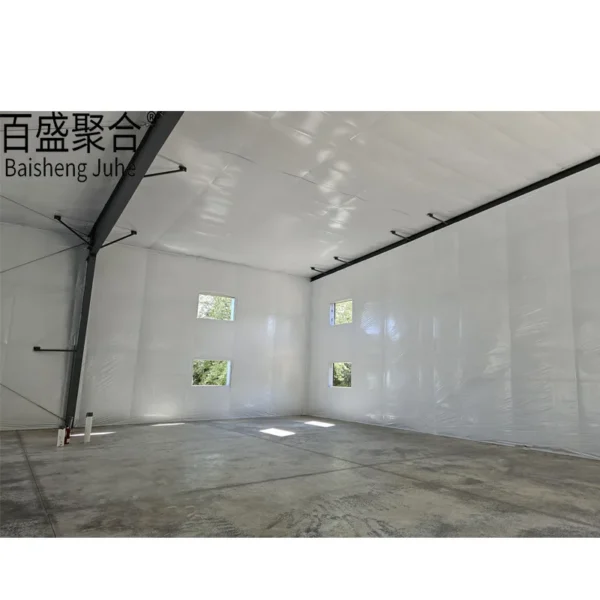

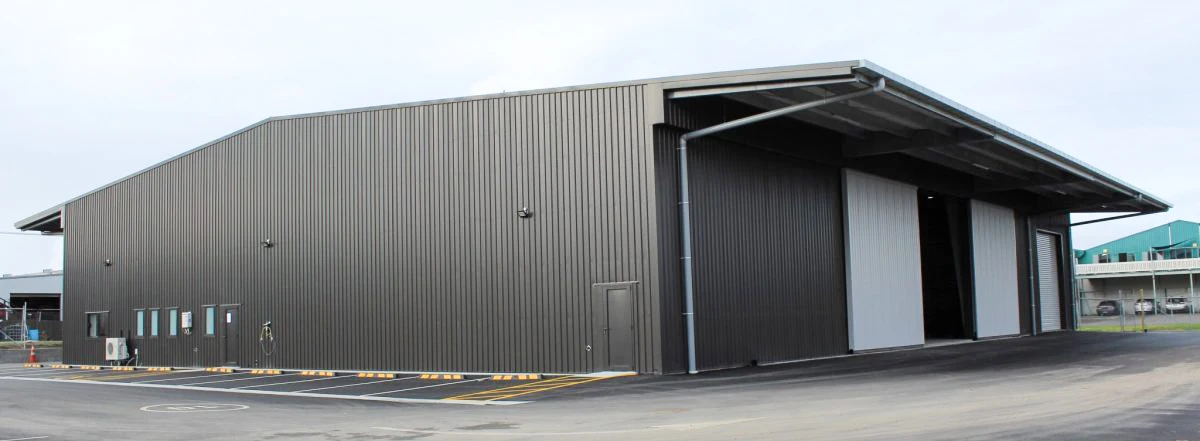

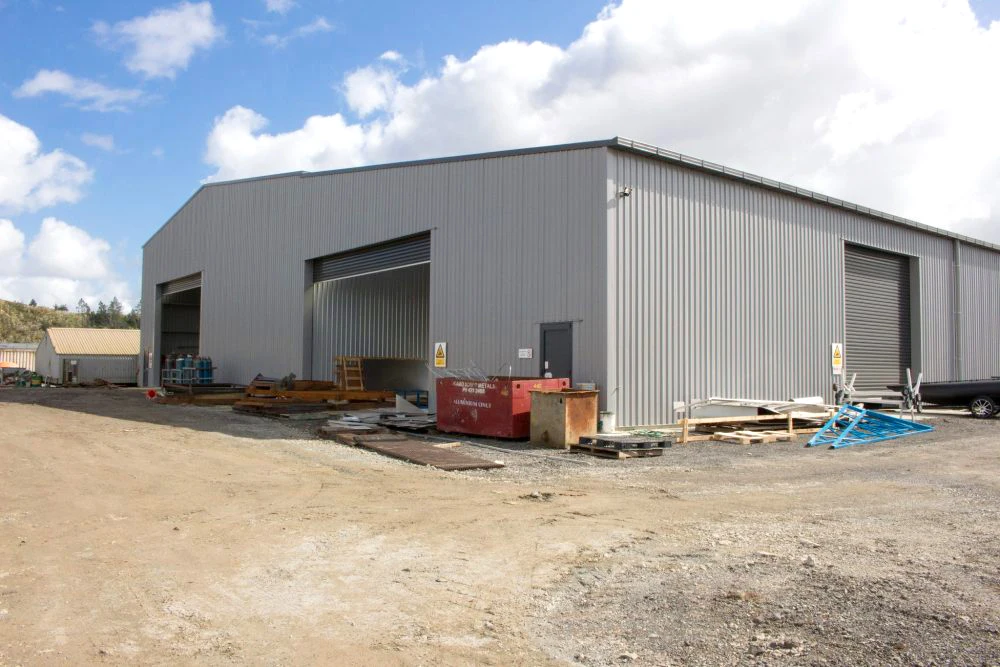

Project cases

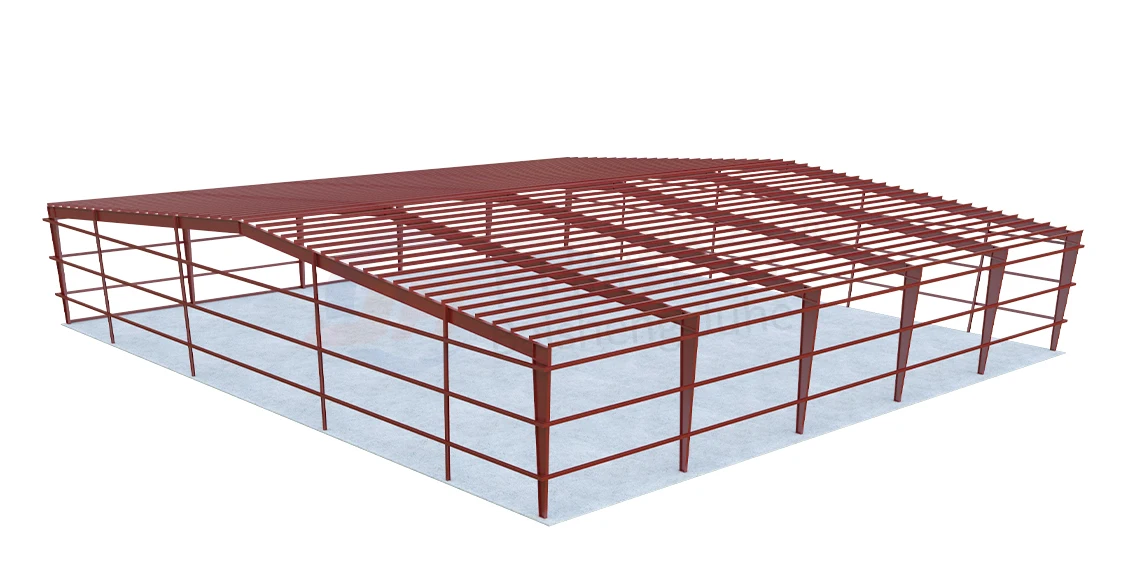

Frame System

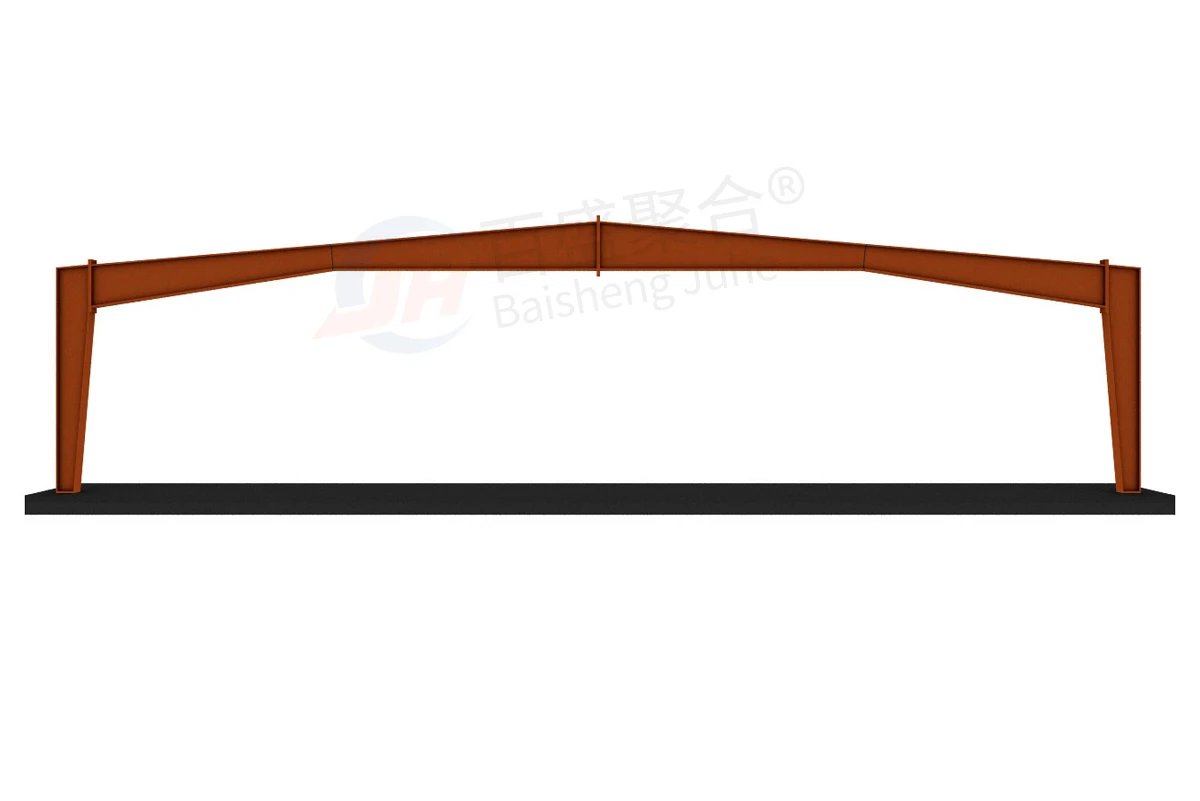

Primary Framing

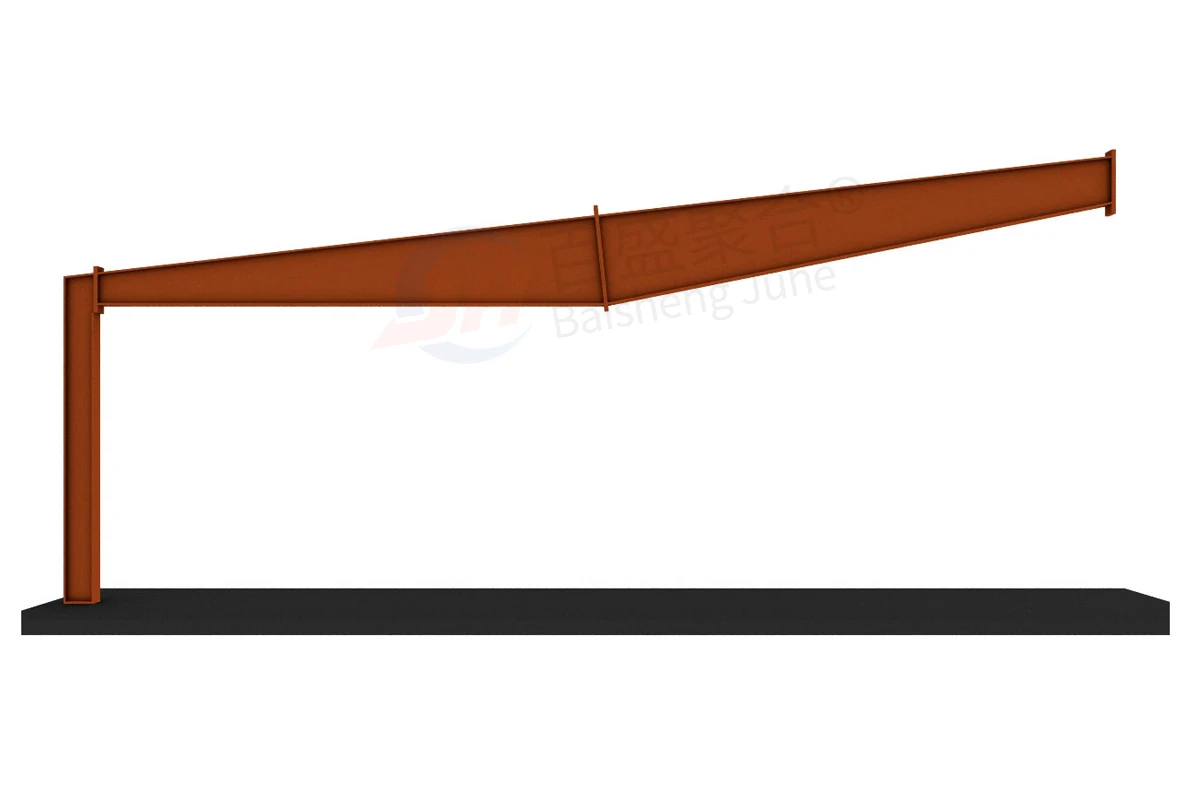

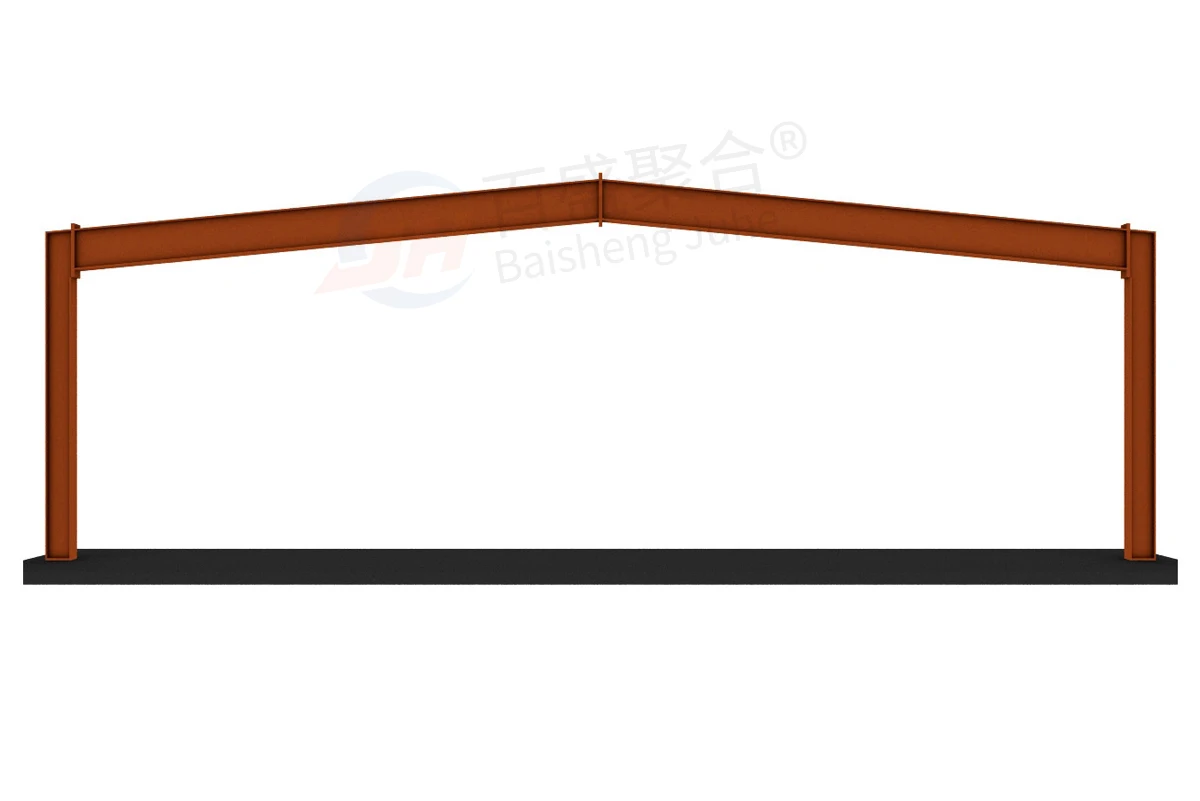

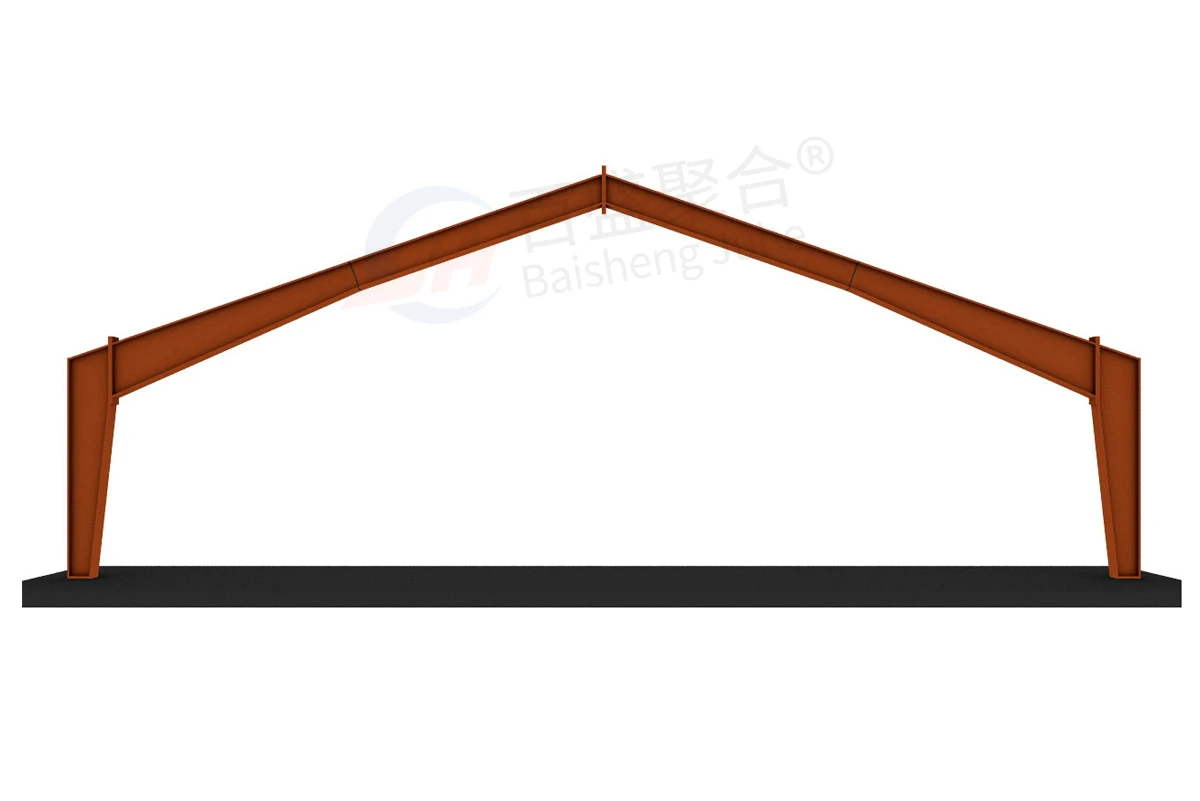

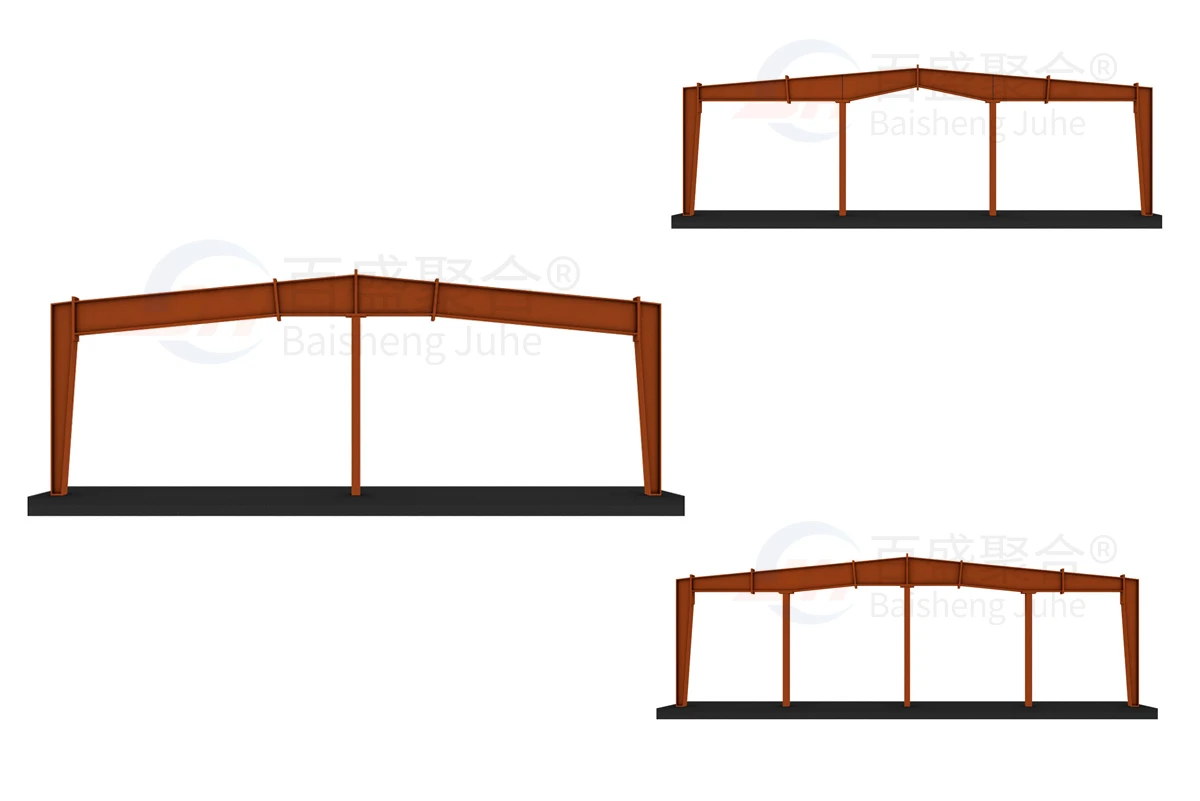

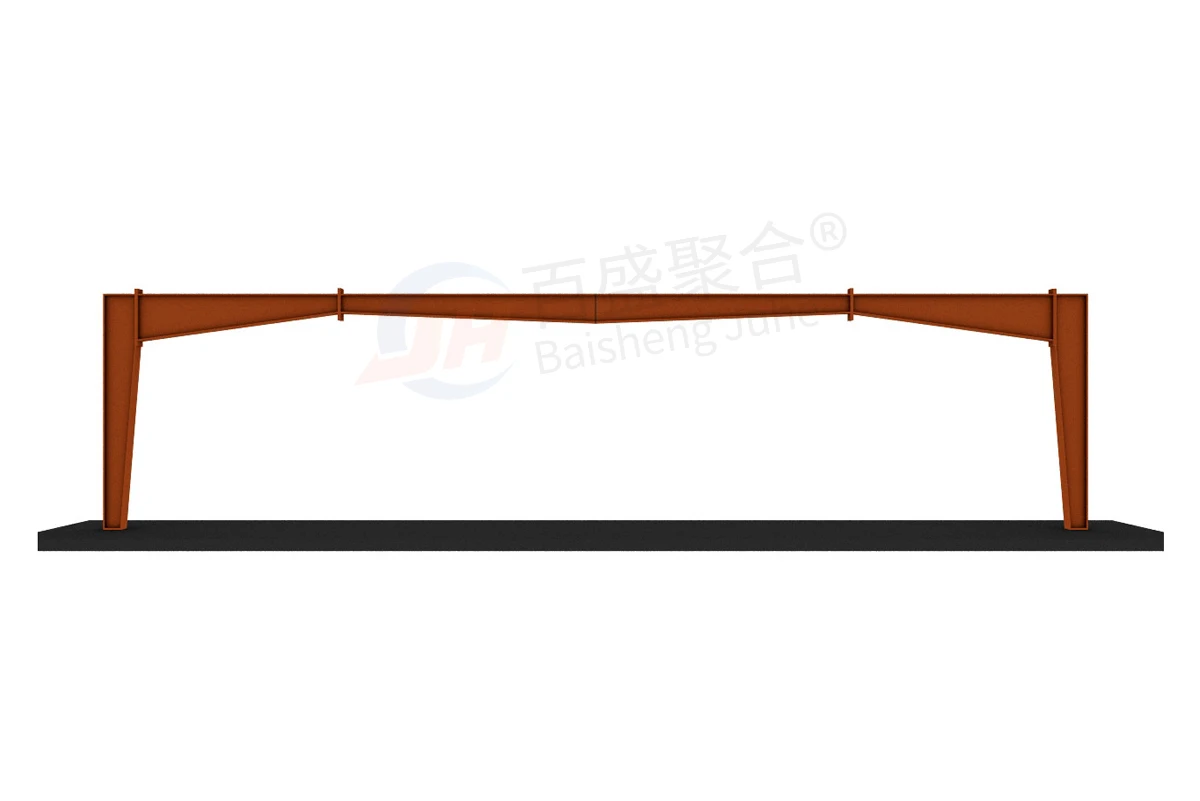

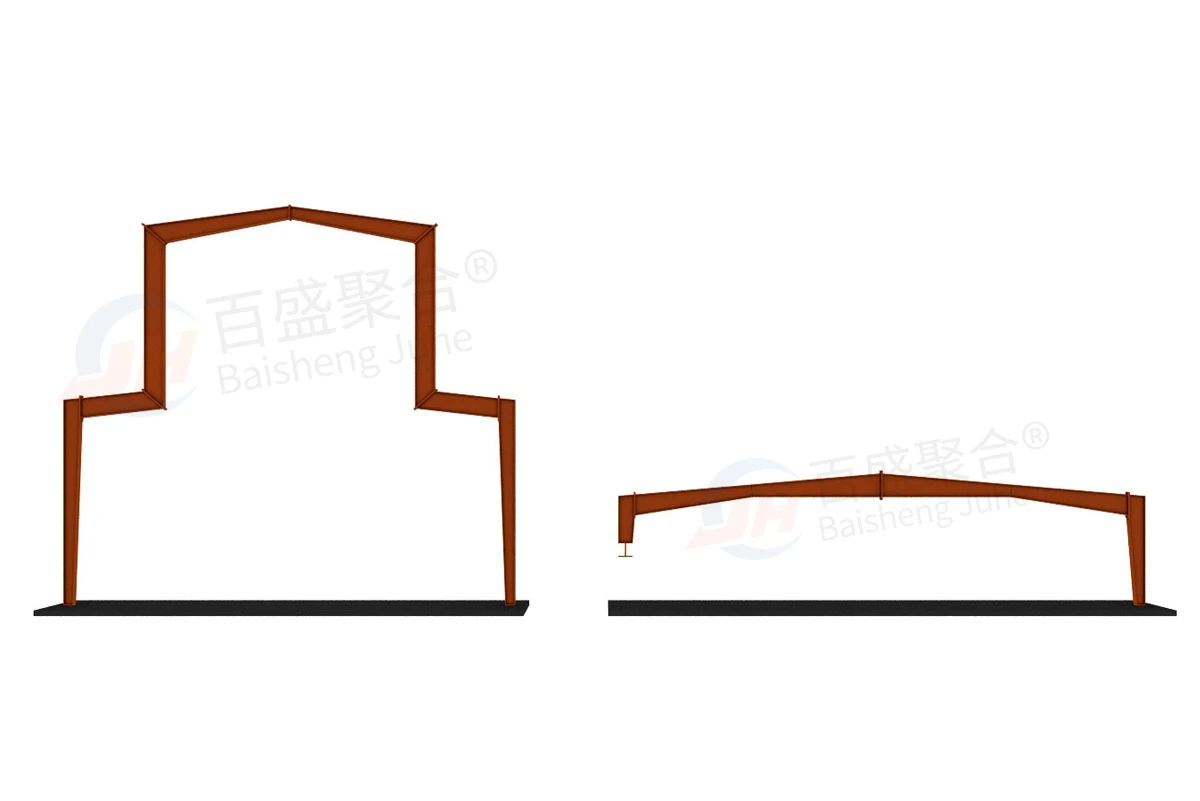

BaishengJuhe offers metal building frames main categories:CS Clear Span, MS Multi Span, CL Classic, HS High Span, SST Single Slope, SSS Single Slope, LT Lean-To, Customo Designs. Our primary framing acts as a single unit after assembly that will support the load of the finished structure while transferring the weight to the foundation.

1.Solid Built-up I-beam main frame construction;

2.high strength plate steel;

3.Submerged Arc/welded Frames.

Secondary Frame

BaishengJuhe has a generous selection of secondary structural shapes, sizes, and gauges to fit your every need. Secondary structural framing includes purlins and girts (cee and zee profiles), eave struts, base angles, clips, and other miscellaneous structural parts, which are the members that support the wall and roof panels.

Secondary Framing Systems (Roof Secondary Structural)

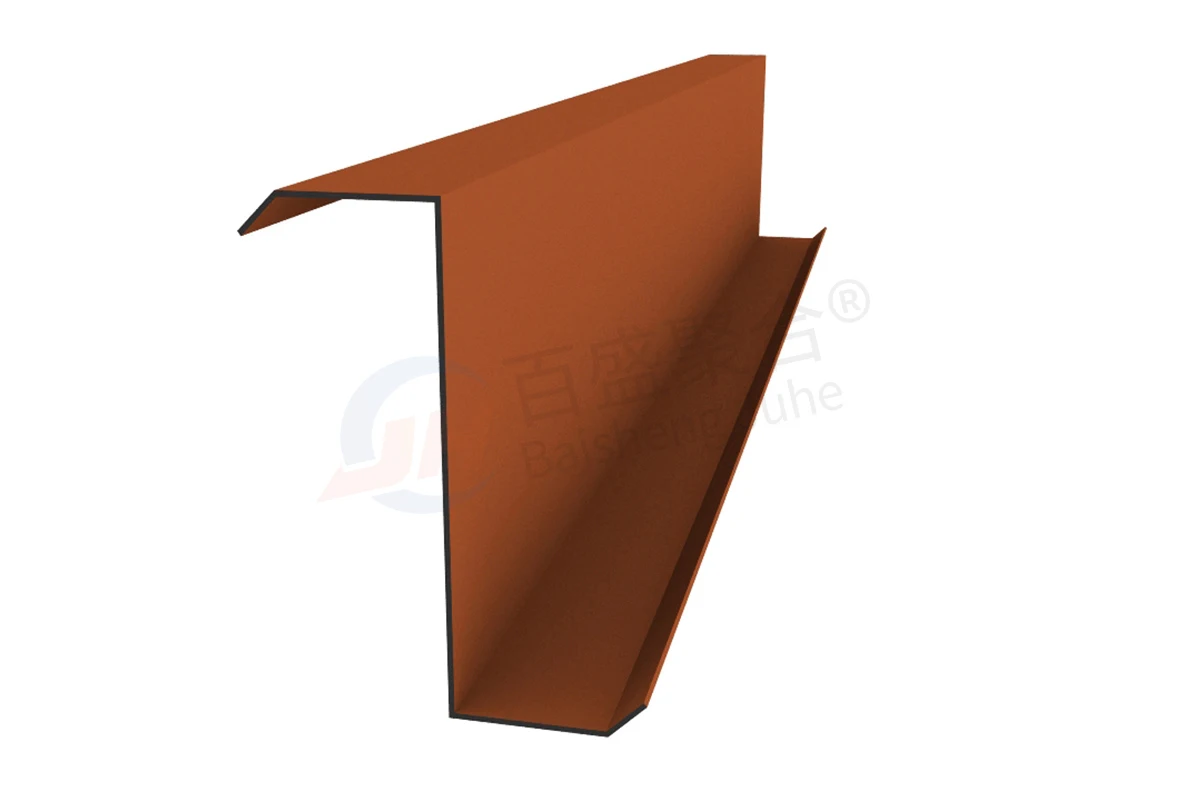

Zee Purlin

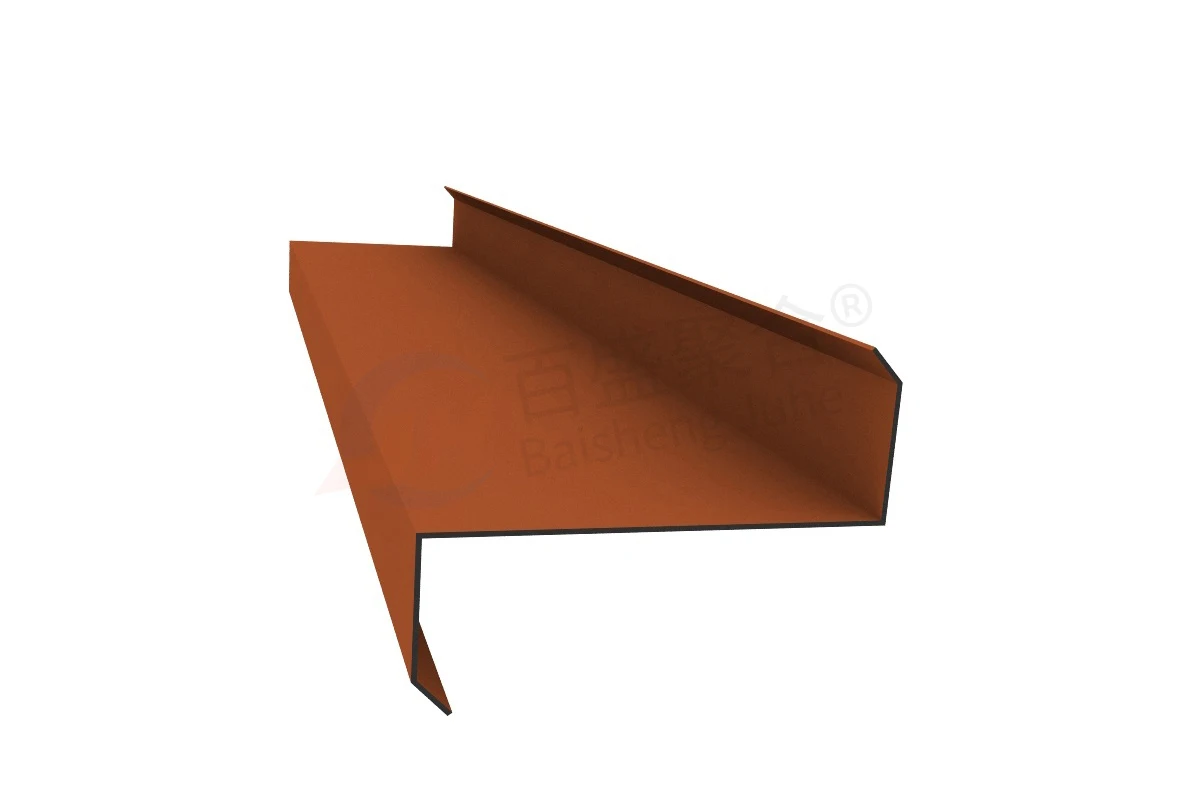

Eave Strut

(Wall Structural)

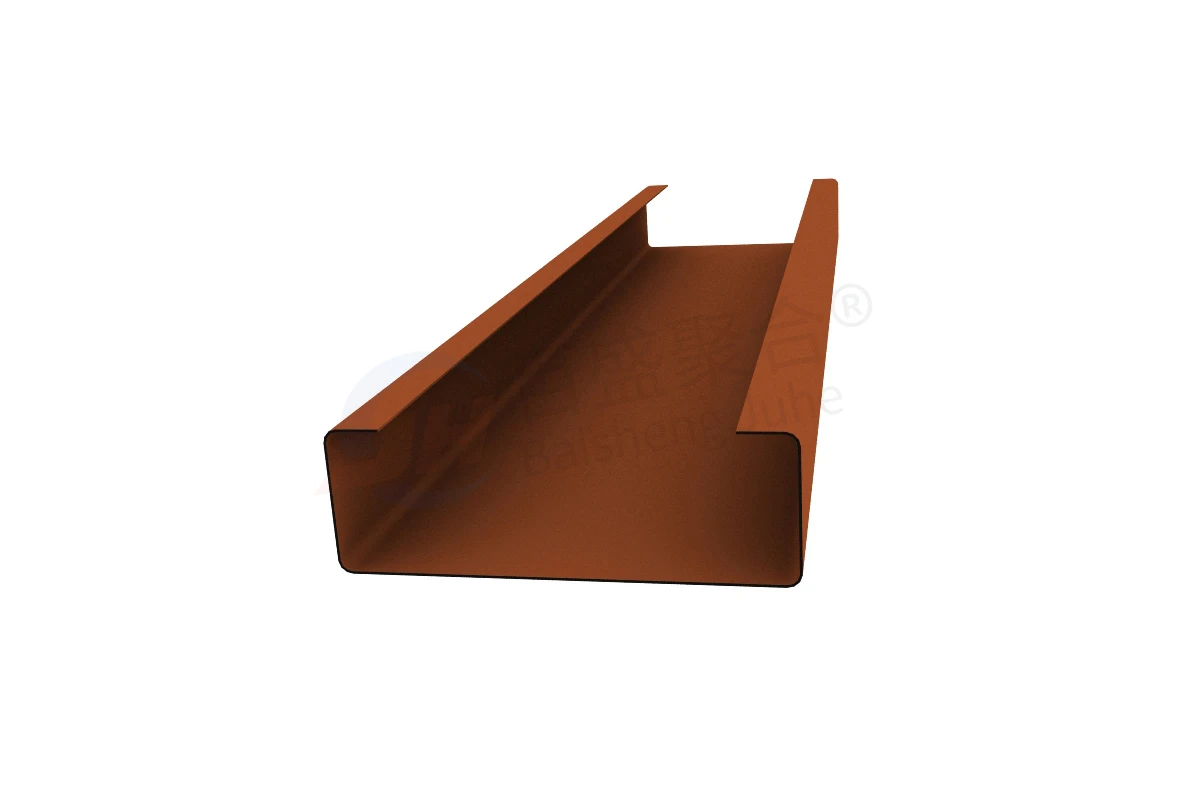

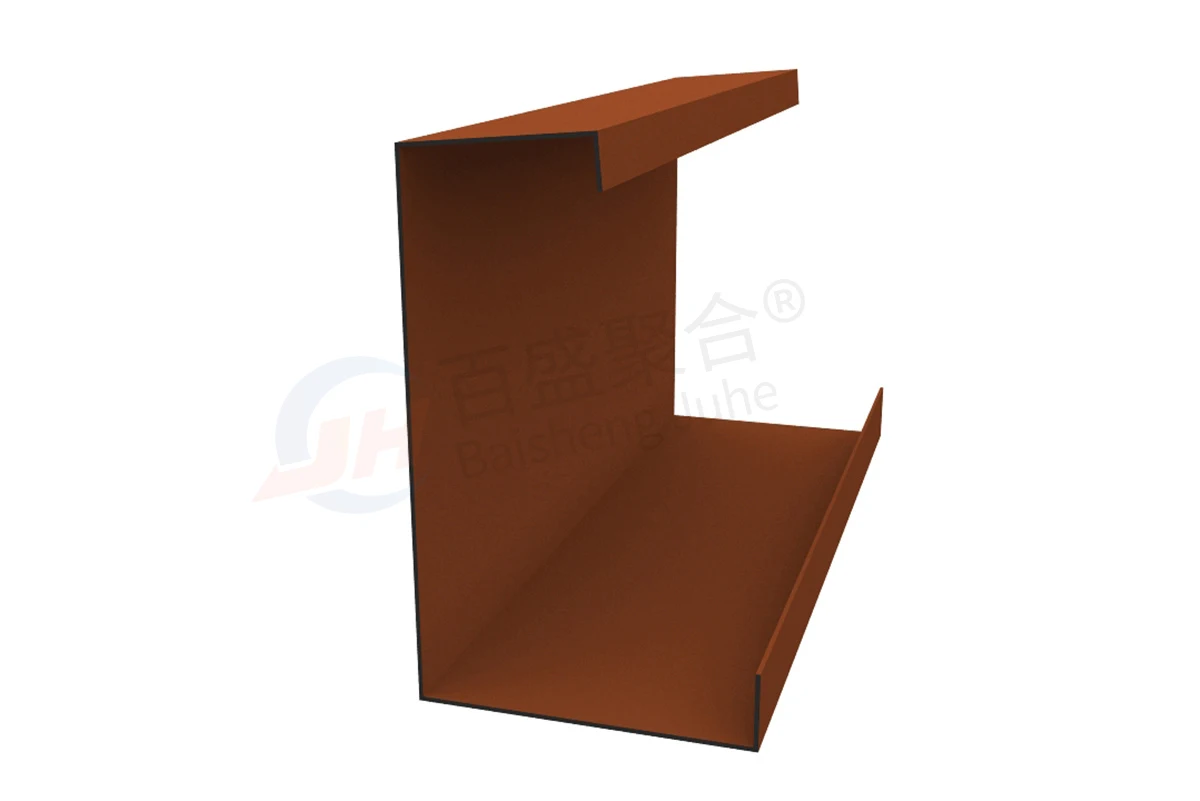

Cee Purlin

Z Girt

Wall Secondary Structural

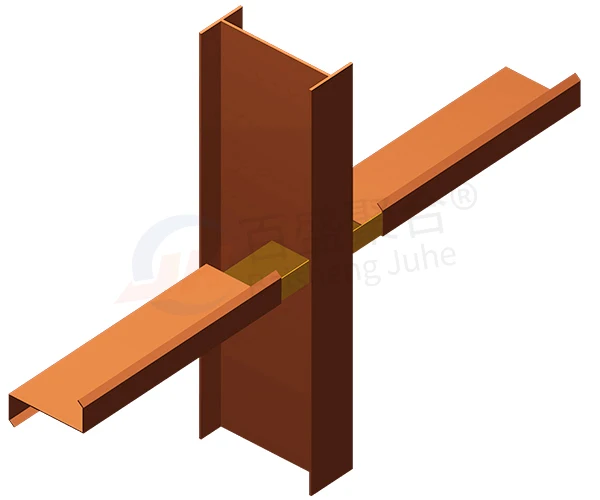

Girt conditions refer to the method in which horizontal girts are attached to the exterior columns of your building. The decision on which structural members to use will be based on the economy of each member, the wall system used, product application, or by customer choice.

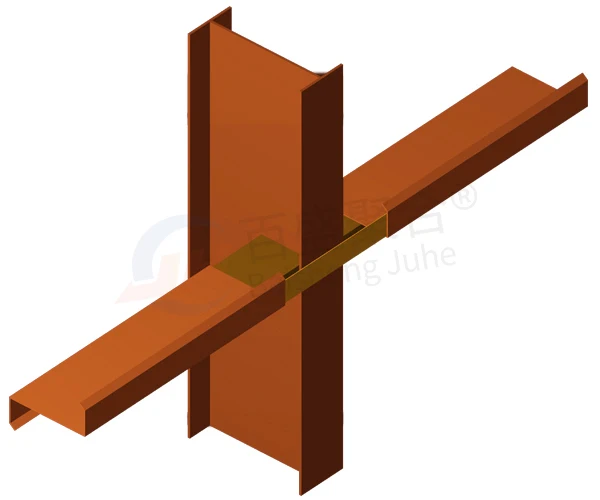

Flush Girt

Inset Girt

Bypass Girt

Bracing Methods

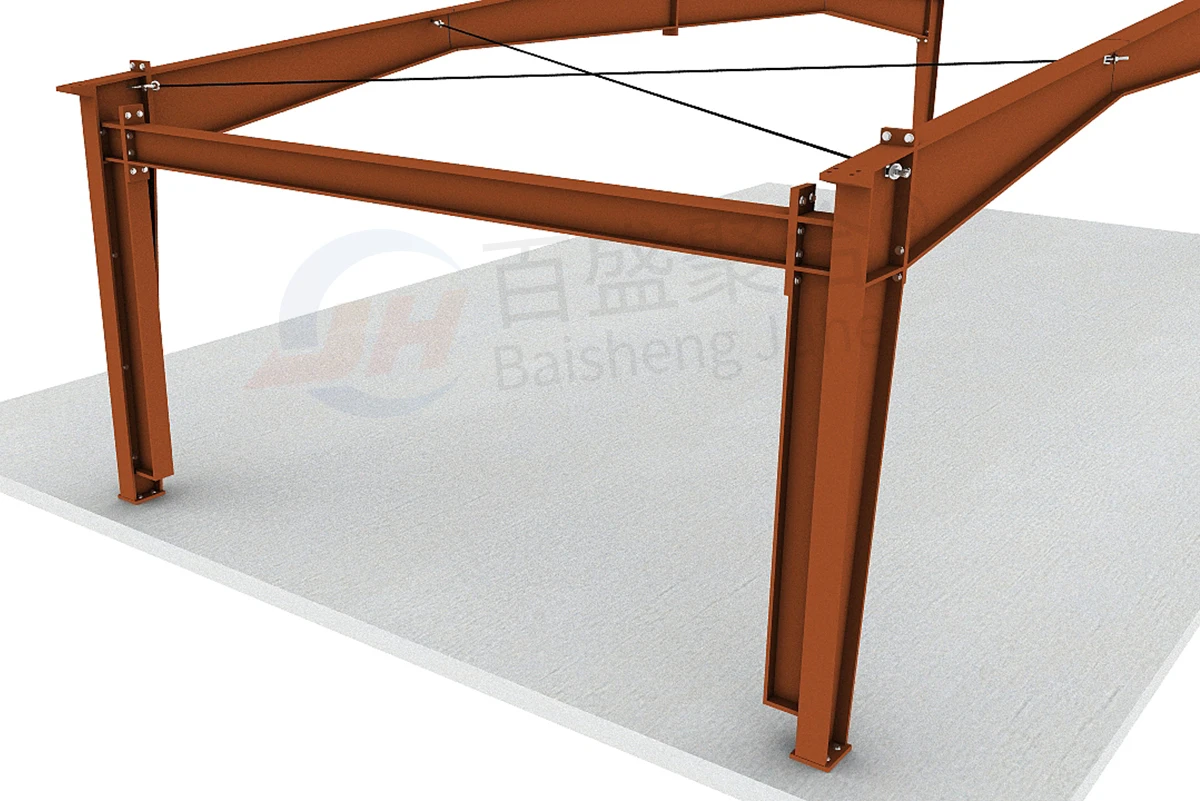

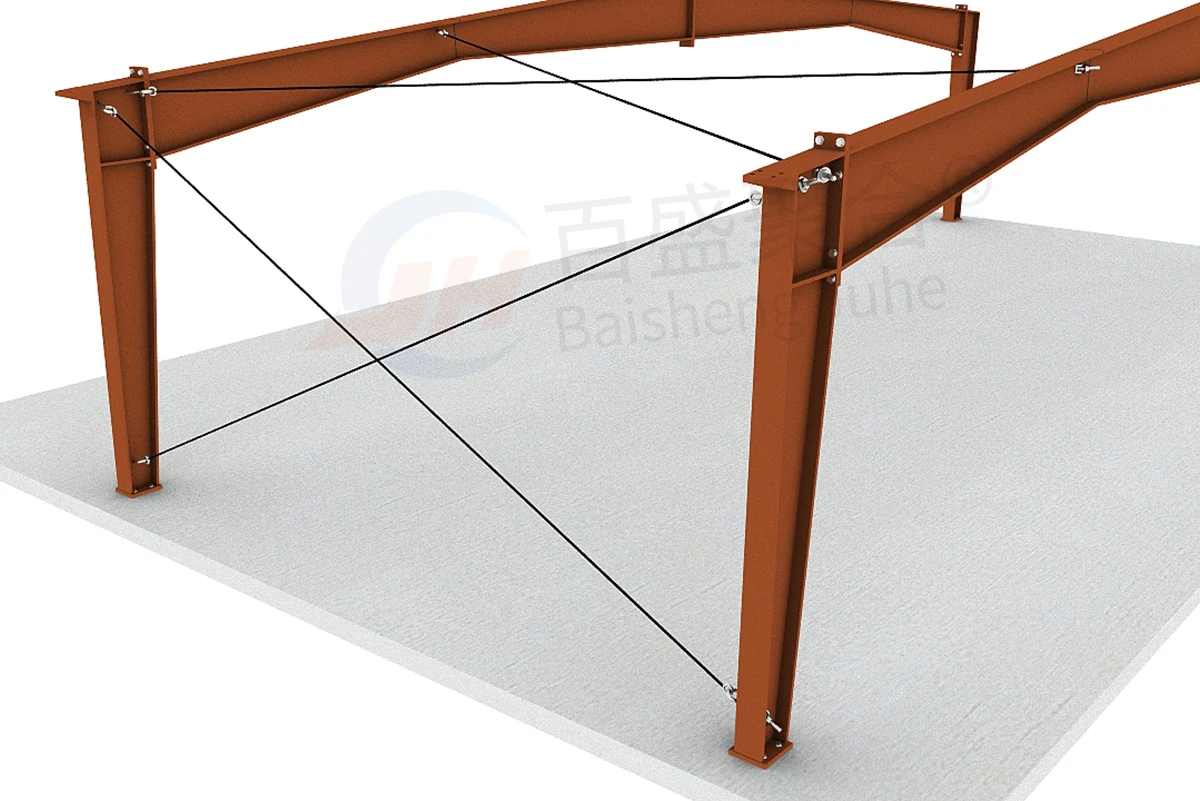

Cable X Bracing

Wind Column

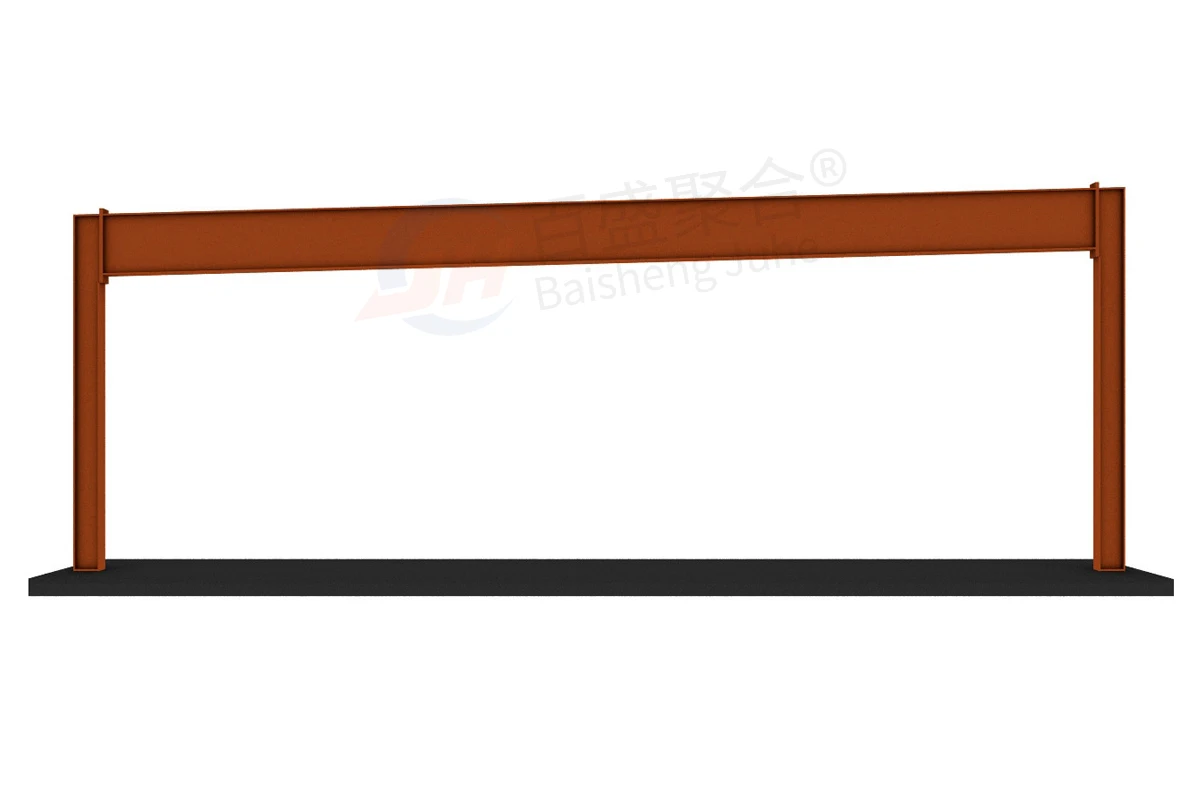

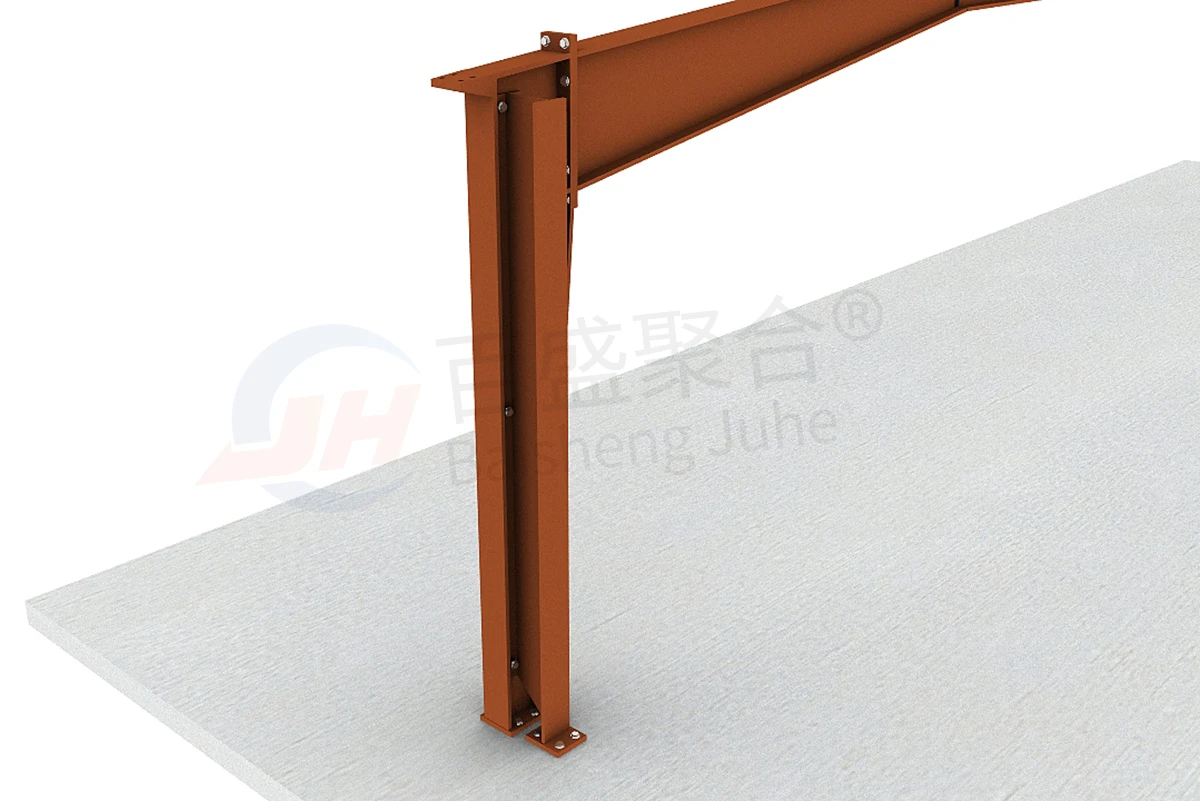

Portal Frame

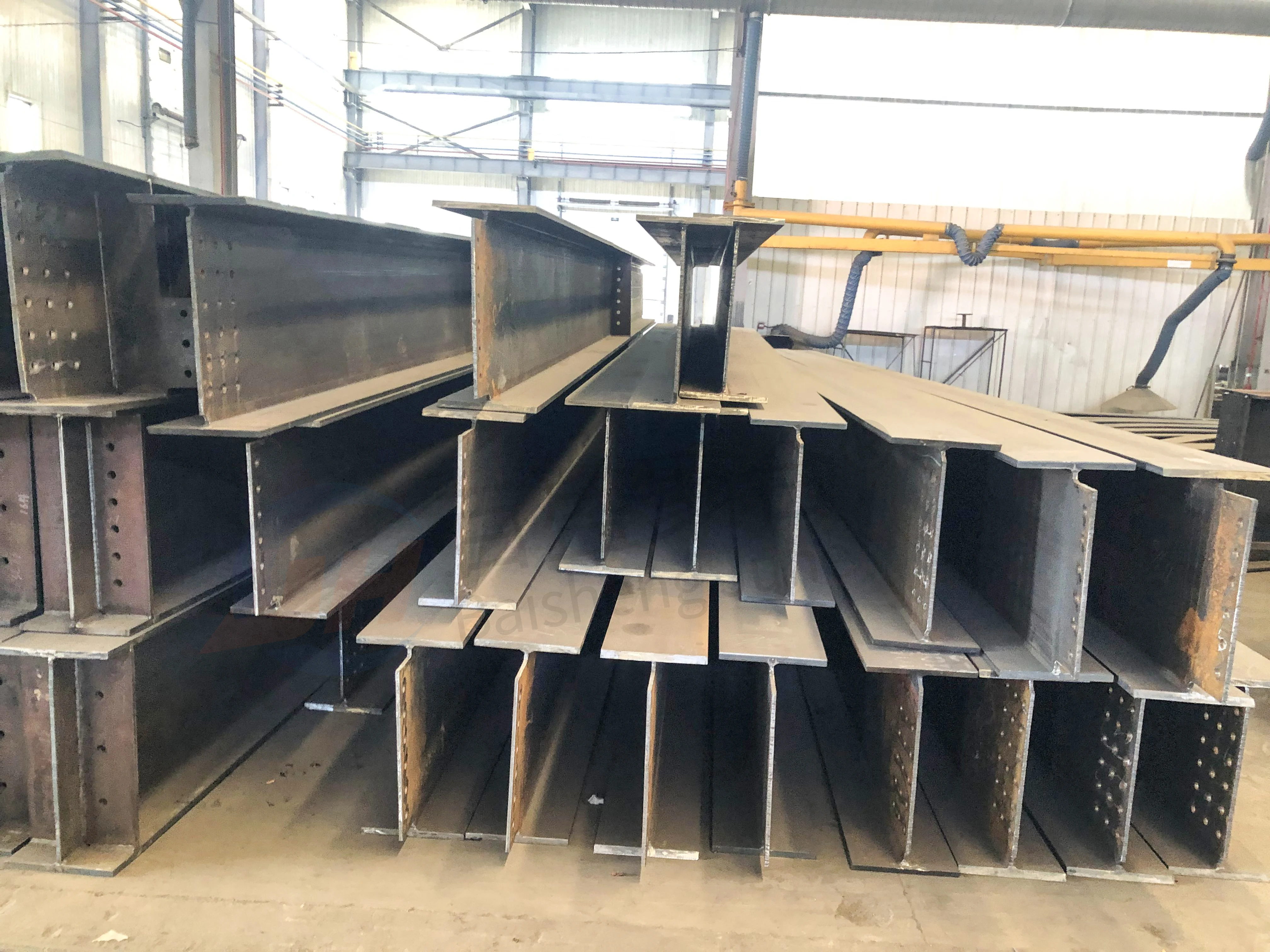

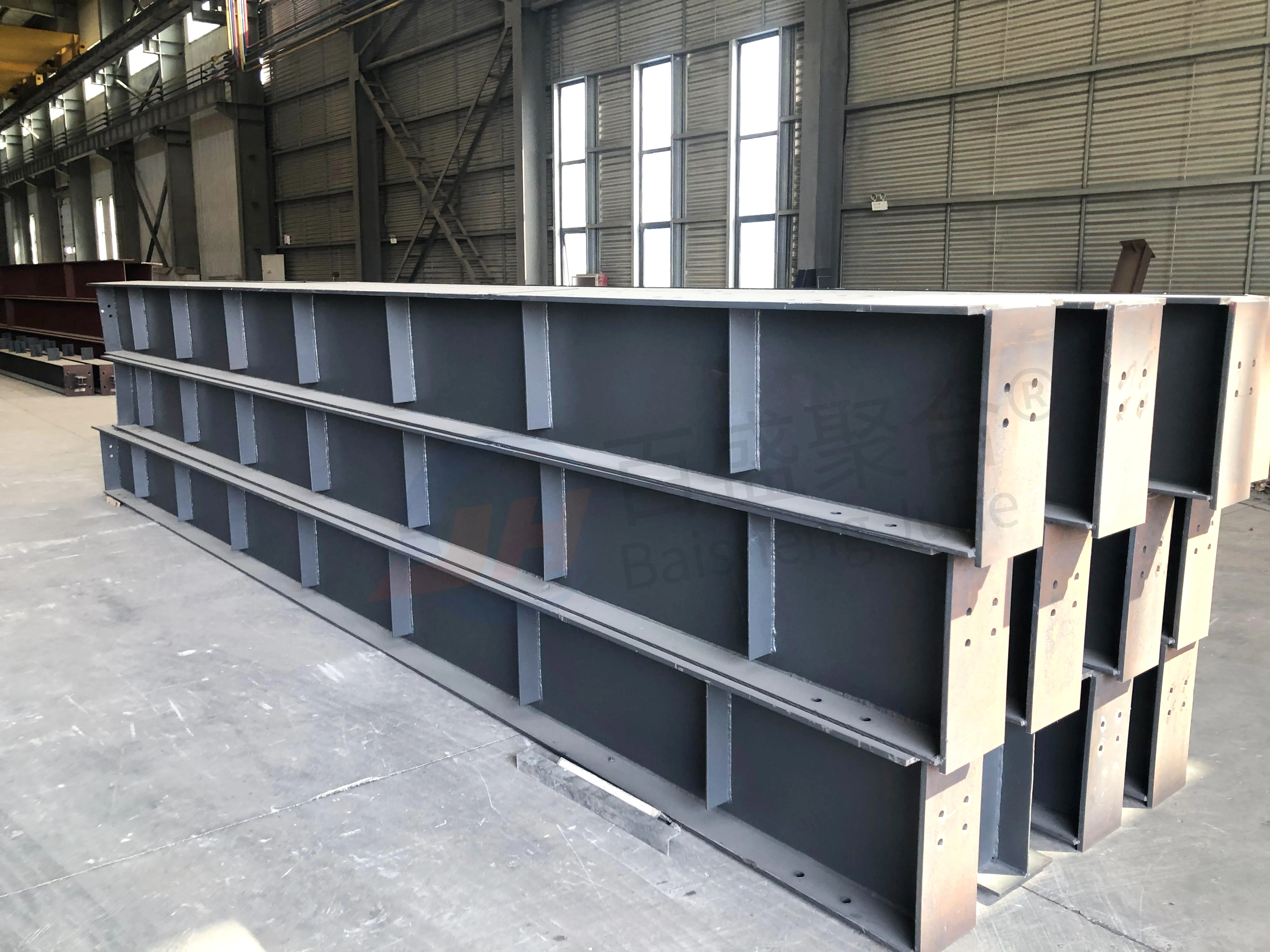

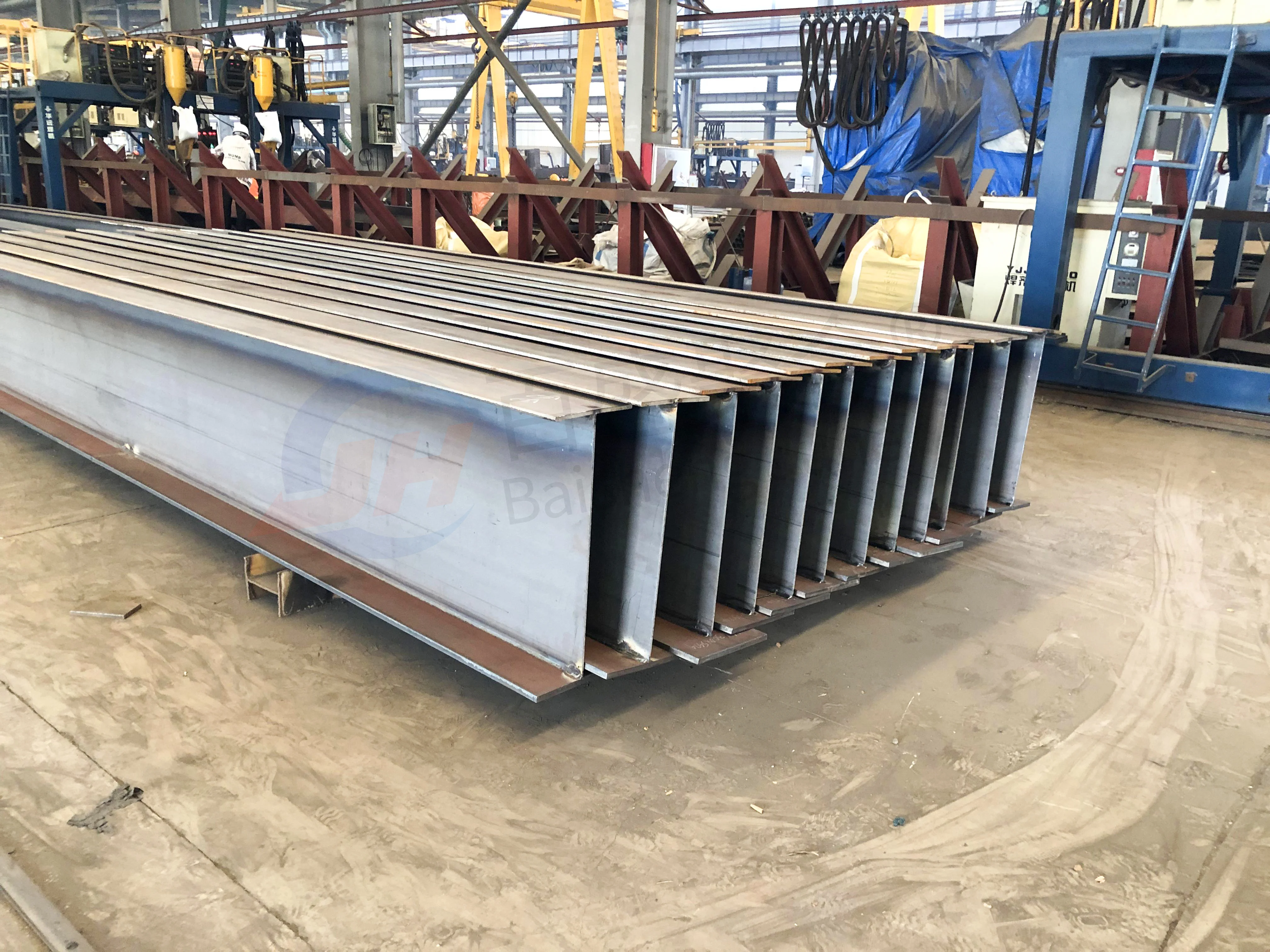

Introduction to l-beam

I-Beams, also known as H-Beams have and I or H cross-section. The horizontal elements of the “I” are flanges while the vertical element is the “web”. I-Beams are commonly made of structural steel but can be formed out of aluminum. I-beams are most widely used in construction and can have an application for use in both beams as well as columns. BaishengJuhe offers many different sizes, lengths, and specifications for I-beams.

Specification
Items			Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
		Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
		Knee brace	Q235 Angle Steel
		Tie Rod	Q235 Circular Steel Pipe
		Brace	Q235 Round Bar
		Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
		Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
		Door	Sliding Sandwich Panel Door / Rolling Metal Door
		Rainspout	PVC
Live load on Roof			In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade			12 Grades
Earthquake-resistance			8 Grades
Structure Usage			Up to 50 years
Finishing Options			Vast array of colors and textures available
Paint Options			Alkyd paiting, two primary painting, two finish painting (Primer 、Medium paint 、top coat, epoxy zinc etc.) Or Galvanized.

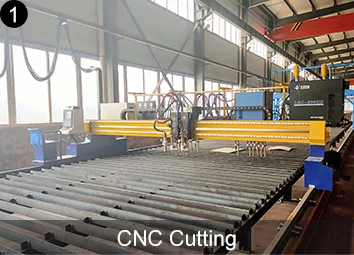

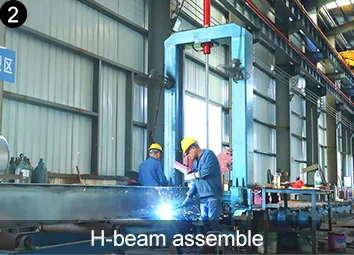

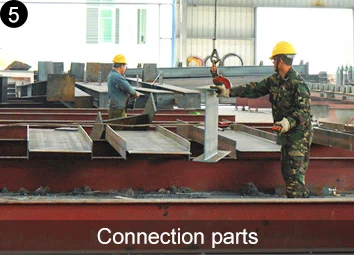

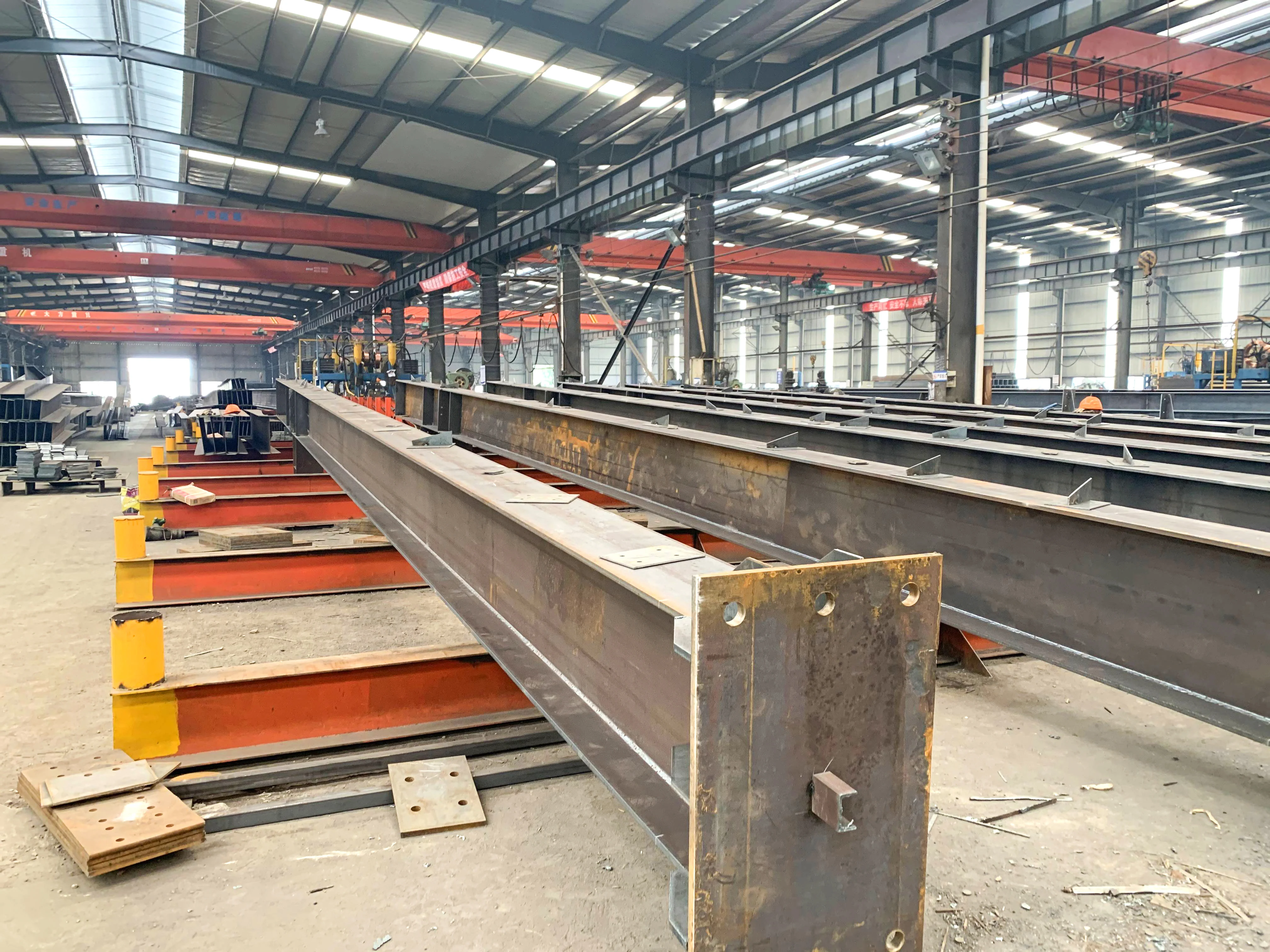

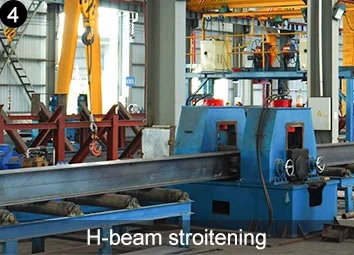

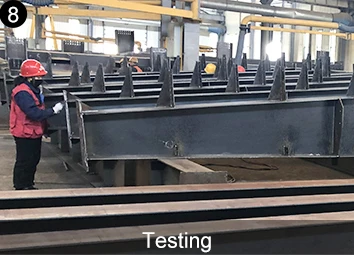

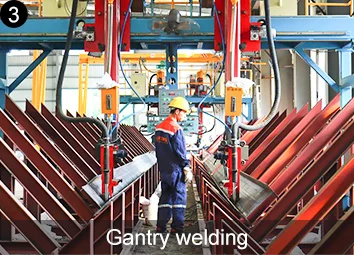

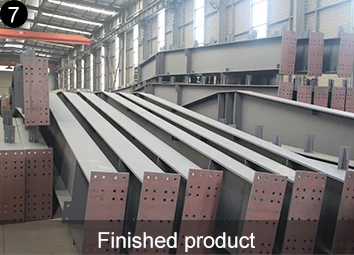

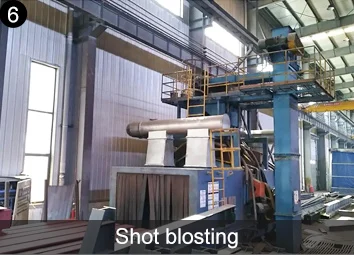

I-beam steel production process

Contact Us

Hangzhou BaishengJuhe Construction Co., Ltd.

Hangzhou BaishengJuhe Construction Co., Ltd. is dedicated to designing and manufacturing steel structure buildings(warehouse，garage，hangar，Livestock，workshop). After entering the international market for more than ten years, our products have been sold to North America, Asia, Africa, Europe, South America, Oceania.and sales amount continues to increase. Up to this year, the sales amount has reached to 2 billion with annual export volume of more than 20,000 tons steel .With good products and services, we have been unanimously recognized by customers so to grab a larger market share. At present, our production workshop covers an area of more than 40,000 square meters, with 8 designers, 16 technicians, more than 150 senior production technicians. Our company will provide regular training for them.And we also have a very strict seven systems, which are mainly divided into supply system, production management system, quality control system, packaging system, storage system, prefactory inspection system, and after-sales system. The improvement of the system is to ensure our production capacity and production the high quality and after-sales service are completed to better serve customers.

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process. (2) At the time of loading, there must be a special supervision, check car number and packing, the car pile up securely, and to increase the necessary binding component loosening, prevent the loss. (3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle. (4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents. (5) The member to the construction site, timely organization of unloading, stacking area. (6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.

FAQ

Steel Frame Construction Pole Barn Prefabricated Warehouse Metal Building Steel Structure Shed Workshop

Q1: How long does it take to get my building? A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity) Q2: What are the benefits of steel construction? A: 1-Durable and with long lifespan. 2-Short construction period than concrete and wooden building. 3-Low cost and reusable. 4-High strength and light weight, has good seismic performance. 5-Widely used for multi-purpose buildings. Q3: Why choose BaishengJuhe? A: At BaishengJuhe, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business. Q4: How can l get the quotation of the project? A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation. Q5: Do you offer designing service for us? A: Yes, we can provide full solution drawings as your requirements. Q6: Do you provide samples? A: Yes, we could offer the sample for free but do not pay for the cost of transportation. Q7: What is your terms of payment ? A: L/C, T/T Q8: How about your quality control? A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control. Q9: Can you provide the installation help? A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.

Ordering and Pricing

• Minimum order quantity: 300 square meter
• Volume pricing:
  • 300–999 square meter: US $37 / square meter
  • 1000–2999 square meter: US $32 / square meter
  • 3000+ square meter: US $26 / square meter
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling units?

The standard minimum order quantity is 300 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
