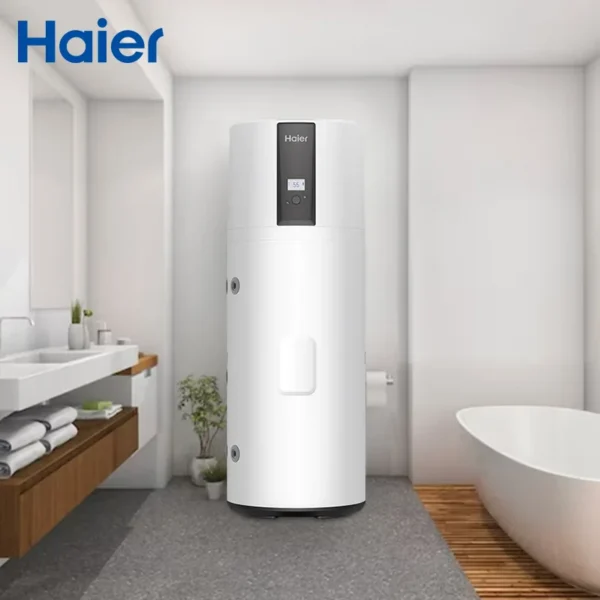

Air Source Heat Pump, 200l, 250l, 300l, R290

This air source heat pump is published with the manufacturer’s full specification — power supply 220~240v/50hz, 2 kW. Made by Qingdao Haier New Energy Electric Appliance Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Source Heat Pump

• Model Number: HPWH-M7
• Power Source: Electric
• Power Supply: 220~240v/50hz
• Heating Capacity: 2 kW
• Housing Material: Stainless Steel
• Refrigerant: R290

Technical Specifications

Product Details

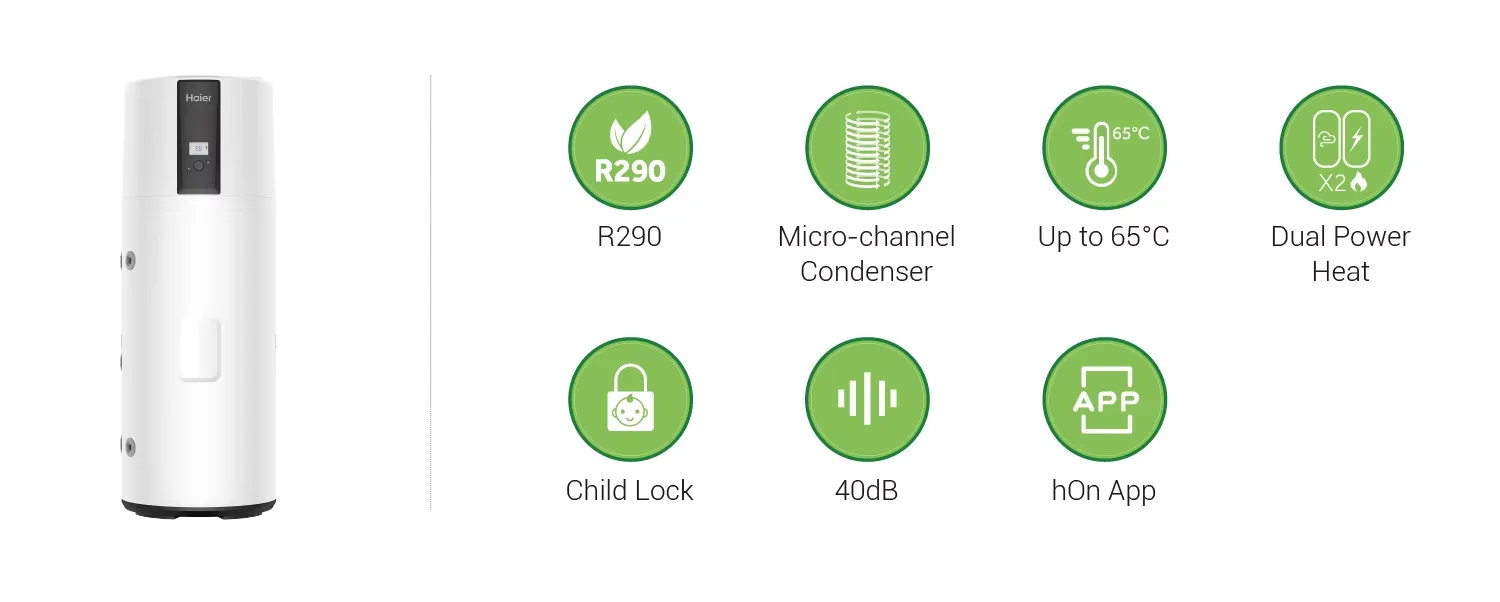

PRODUCT HIGHLIGHTS

• Class A+ High Efficiency: COP 3.55 and 78% for energy savings
• ECO R290 Refrigerant: Natural, non-toxic, zero ozone depletion, Up to 65°C water temperature

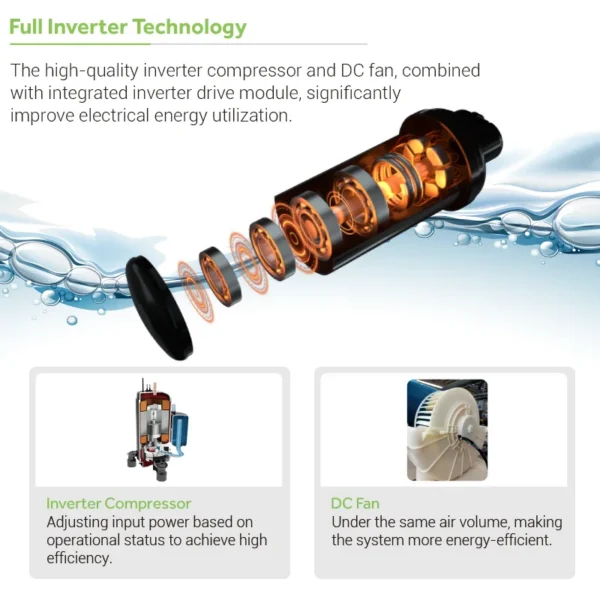

• Full Inverter Technology: Significantly improves energy-saving effect by 15%
• Micro-channel condenser: Improve performance and heat transfer efficiency
• Reduce power consumption Dual Power Heating: Rapid hot water supply, doubled heating efficiency
• Smart Defrost: Sufficient defrosting, frost-resistant in low temperatures
• Durable: High-quality enamel tank + IPX4 waterproof

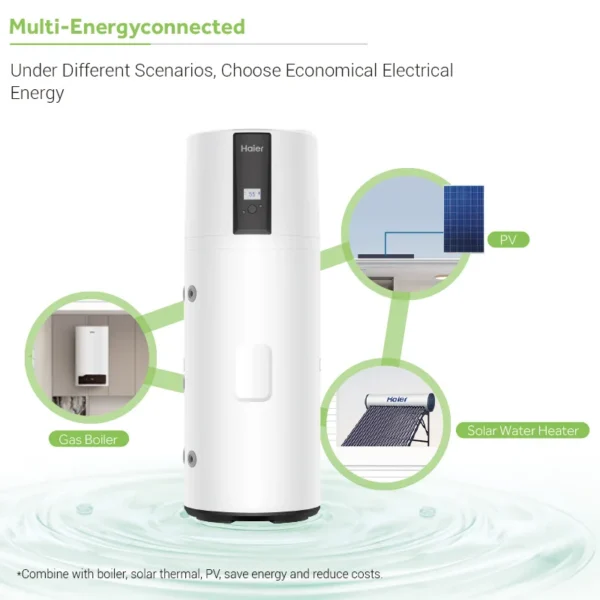

• Economical: Works with boiler, solar thermal & PV systems for energy/cost savings
• Comfortable and Low Noise: Full inverter system with soundproof enclosure & mute mode, min 40dB
• Smart Control: Remote access via hOn App, customize various water usage settings
• Multiple Models: 185L/194L/240L/250L tank capacities to meet diverse needs
• Easy Installation: Freestanding design ensuring convenient installation
• Child Lock: Lock the screen, providing added safety

PRODUCT CATEGORIES

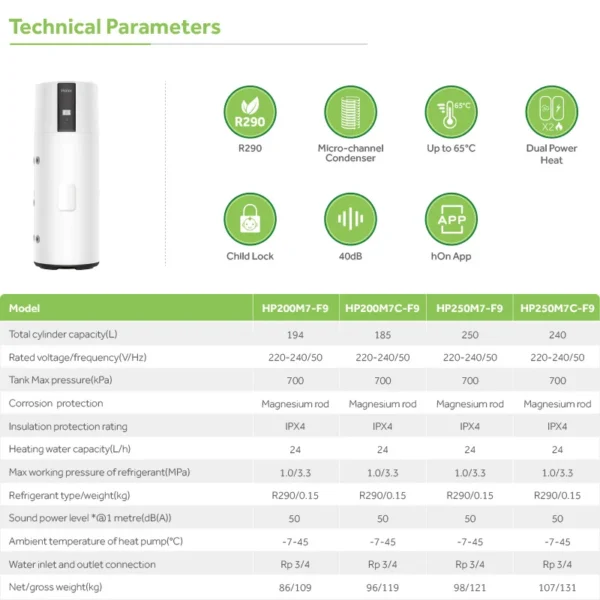

SPECIFICATIONS

Model	HP200M7	HP200M7C	HP250M7	HP250M7C
Tank
Total cylinder capacity(L)	194	185	250	240
Tank Max pressure(kPa)	700
Rated voltage/frequency(V/Hz)	220-240V/50Hz
Corrosion protection	Magnesium rod
Insulation protection rating	IPX4
Performance
COP@7°C(EN16147)	3.2	3.2	3.23	3.21
COP@14°C	3.6
Power input by electric backup(W)	1500
Rated power input by heat pump(W)	320
Maximum power input by heat pump(W)	535
Maximum power input(W)	2035
Heating water capacity(L/h)	24
Heating up time(10°C/55°C)@7°C(h)	7	6.8	10.5	10.3
Default temperature setting(°C)	65
Temperature setting range with heater(°C)	35-75
Maximum temperature output for the heat pump only(°C)	65
Max working pressure of refrigerant(MPa)	1.0/3.3
Refrigerant type/weight(kg)	R290/0.15
Sound power level *@1 metre(dB(A))	50
V40(L)	239	228	307	295
Ambient temperature of heat pump(°C)	-7~45
Dmensions and connections
Water inlet and outlet connection	Rp 3/4
TPR valve connection	Rp 3/4
Drain & water inlet connection	Rp 3/4

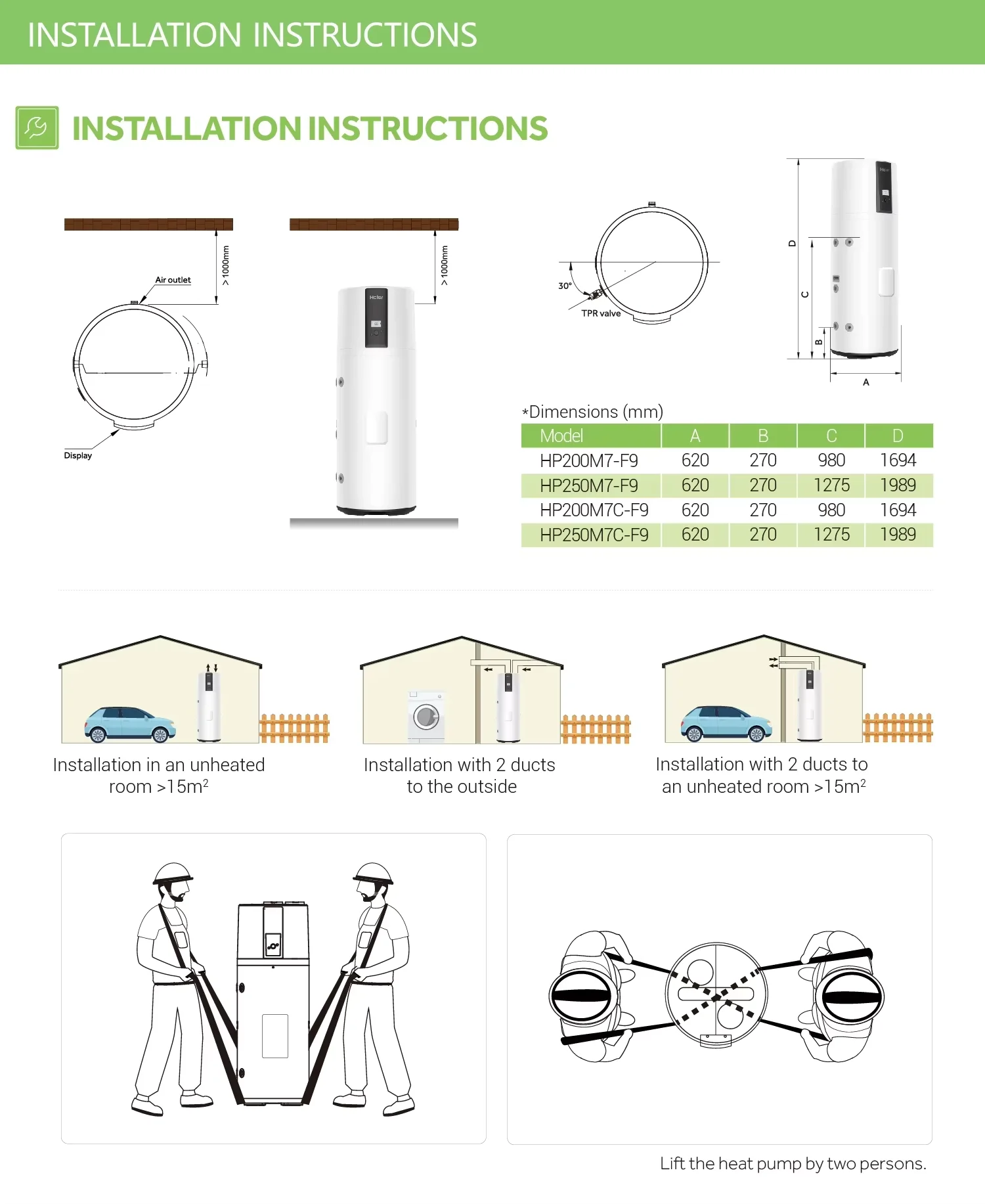

Product dimensions(mm)	600*620*1694	600*620*1694	600*620*1989	600*620*1989
Packing dimension with pallet(mm)	736*695*1940	736*695*1940	736*695*2250	736*695*2250
Net/gross weight(kg)	86/109	96/119	98/121	107/131
Filled weight of the appliance(kg)	281	282	347	349
*The COP and noise level data was tested in Haier lab.   The COP values obtained with external air temperature of 7°C and 14°C,inlet water temperature of 10°C and set temperature of 55°C   (according to EN 16147).

MORE

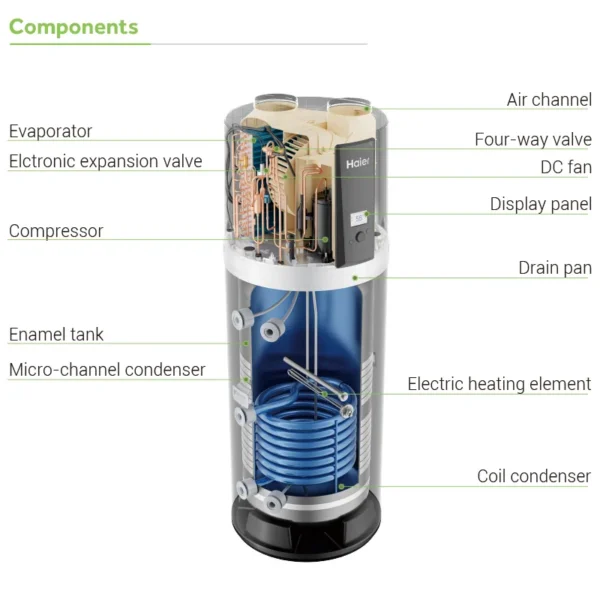

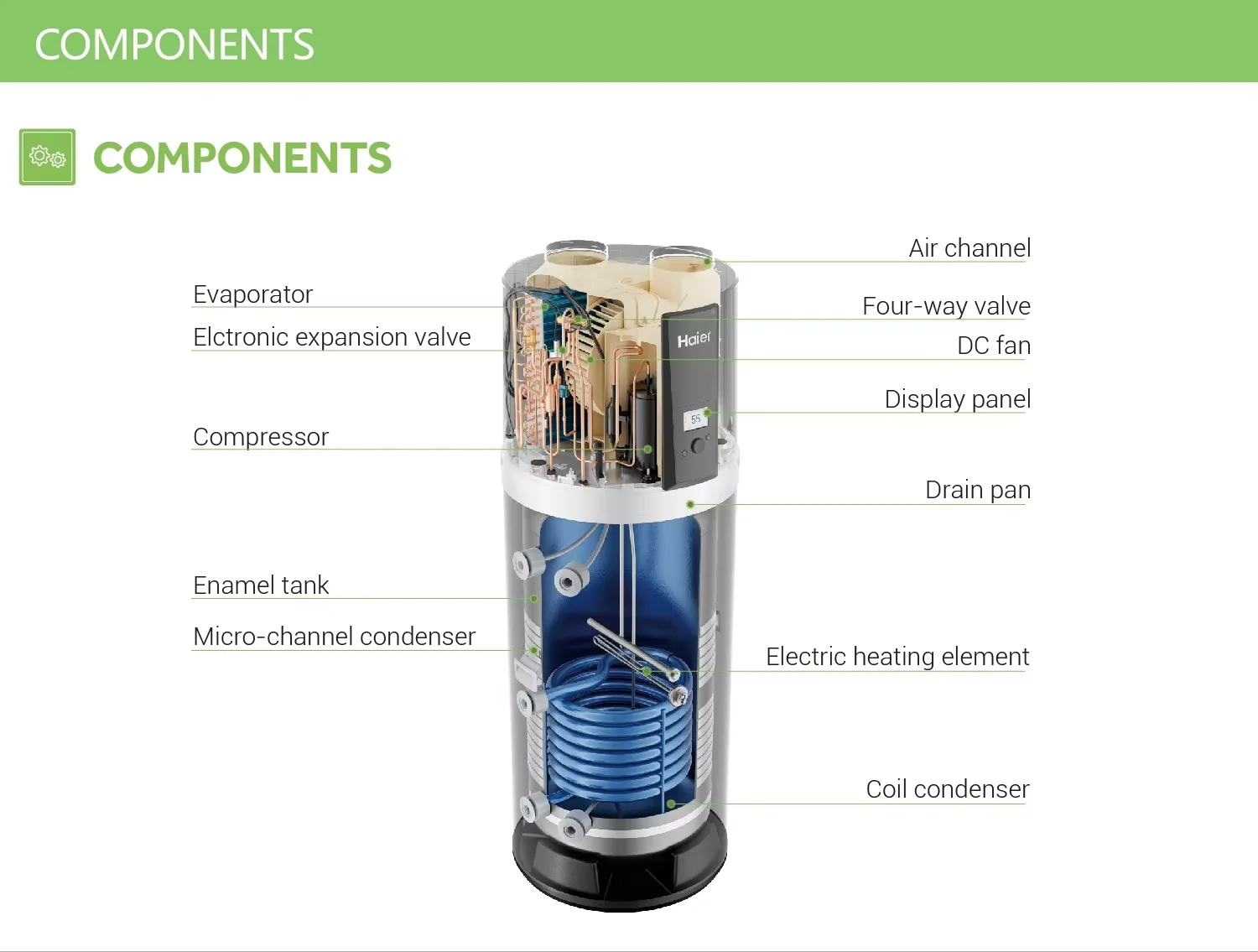

1. High-performance heat pump water heater, featuring a precise electronic expansion valve, efficient four-way valve, powerful compressor, and a well-designed enamel tank for durability.

2. Micro-channel condenser, electric heating element, DC fan, andmagnesium rod work together to enhance energy efficiency, extend the unit's lifespan, and deliver reliable performance for your home.

3. Intuitive display panel and control features make it easy to monitor and adjust settings.

ABOUT THE SUPPLIERQingdao Haier New Energy Electric Appliance Co., Ltd., a comprehensive enterprise based in Qingdao, Shandong, specializes in the research, development, and manufacturing of solar energy systems, heat pumps, and refrigeration equipment, providing innovative and energy-efficient solutions for both domestic and international markets.

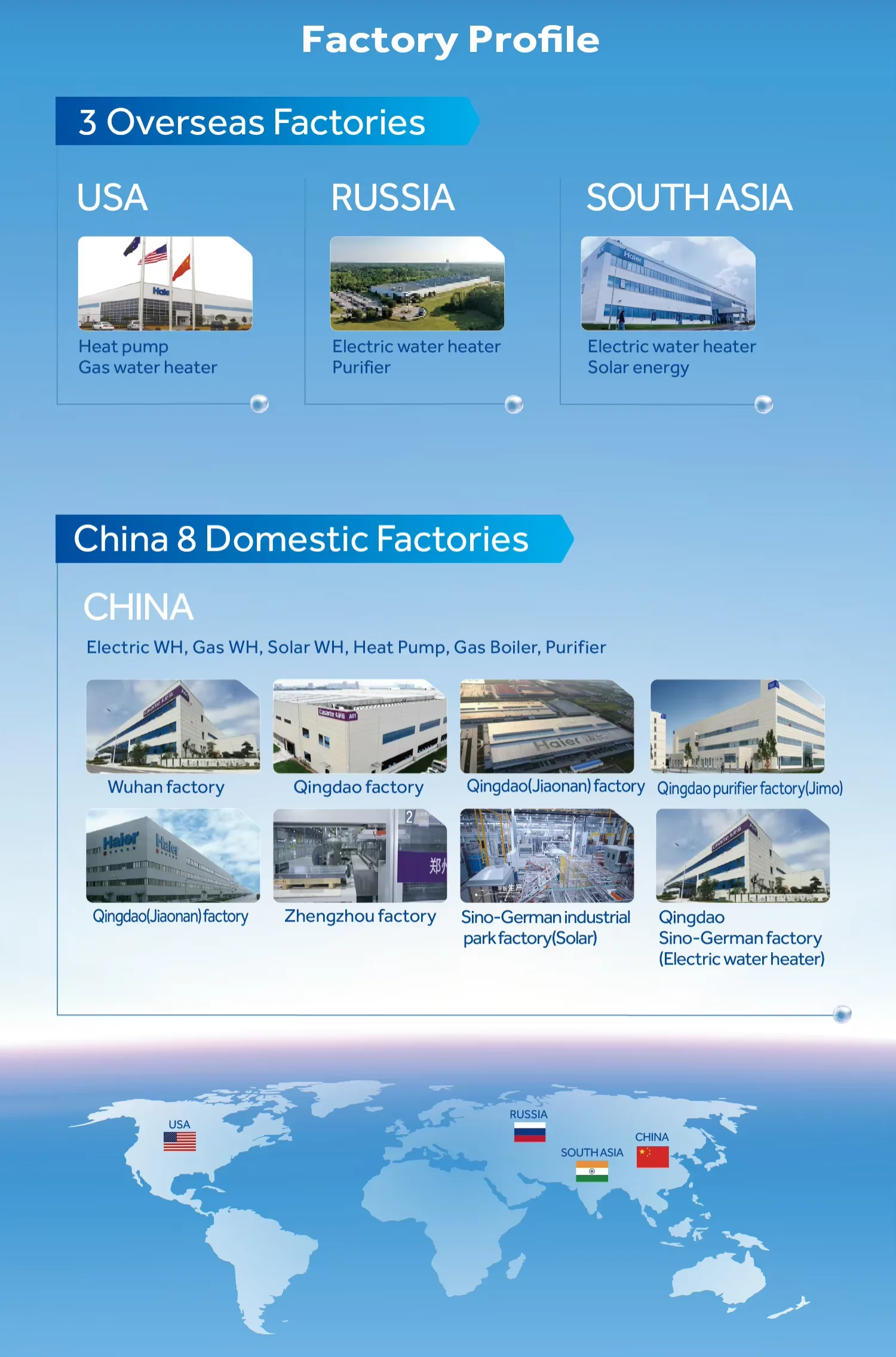

Our extensive production capabilities are supported by advanced facilities, including seven assembly lines and seven welding lines. Covering an area of 52,889 square meters, our factory employs 484 skilled professionals, among whom 40 are experienced R&D engineers holding postgraduate and undergraduate degrees, driving continuous innovation and technical excellence across all operations. We continuously drive innovation, introducing new products in just ten days to quickly meet evolving market demands. Our rigorous quality control system, carefully managed by a dedicated team of 10 experienced QA/QC inspectors, ensures every product meets the highest international standards.

Additionally, we offer comprehensive customization services, ranging from initial design to final packaging, which showcase our strong engineering expertise and commitment to providing flexible, tailored solutions that effectively cater to the diverse and specific needs of our global clients. Annually, we produce and sell large volumes of heat pump and refrigeration equipment, generating substantial revenue.

With over 11 years of export experience, we have successfully established a strong global presence, serving key markets in North America, Western Europe, and various other international regions worldwide. Our major clients consist of well-known retailers and leading brand businesses worldwide. We provide exceptional after-sales service to ensure complete customer satisfaction. Recognized for our excellence, we hold multiple prestigious certifications including CE, CB, NF, and SOLAR KEYMARK, demonstrating our strong commitment to quality and industry standards.

CUSTOMIZATION CAPABILITIES

MORE

Over 11 Years Of Export Experience | Support OEM/ODM | Compliance And Quality Assurance | One-stop Service

PRODUCTION WORKFLOW

TRADE SHOW PARTICIPATION

 PACKAGING & SHIPPING SPECIFICATIONS

CONTACT US

FAQs

Who are we?

Established in 1984, Haier is the world's NO.1 major appliance brand. Qingdao Haier New Energy Electric Appliance Co, Ltd, established in June 2013, is a professional engaged in the research, development, sale and service of electric water heater, overseas heat pump, commercial heat pump and GEA water heater etc.

How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment.

What can you buy from us?

Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, commercial heat pump water heater, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc.

Why should you buy from us not from other suppliers?

Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11global production base.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU;

Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;

Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, Western Union, Cash, Escrow;

Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Arabic, Russian, Korean, Italian.

Ordering and Pricing

• Minimum order quantity: 2 piece
• Volume pricing:
  • 2–49 piece: US $745.74 / piece
  • 50–199 piece: US $699.85 / piece
  • 200–499 piece: US $665.43 / piece
  • 500+ piece: US $631.02 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air source heat pump?

The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the air source heat pump be supplied for my local voltage?

The standard configuration is 220~240v/50hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
