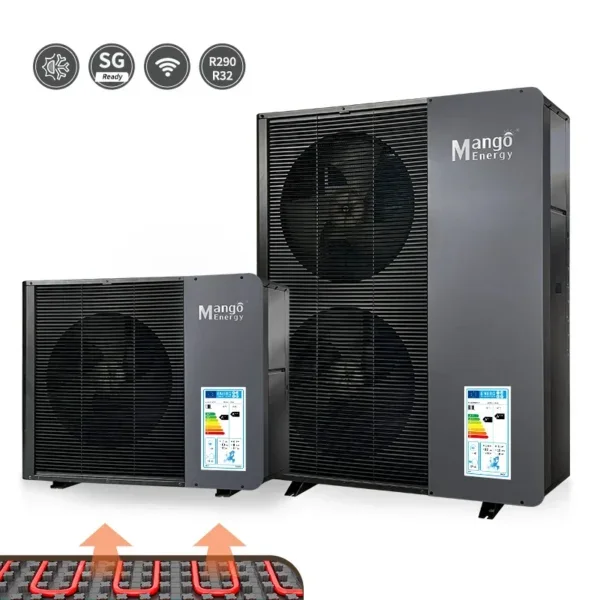

Inverter Heat Pump, 9kW, 13kW, 16kW, 20kW

The inverter heat pump listed here carries power supply 220-240V/50Hz/1ph or 380-415V/50/3ph, heating capacity 11-34kW, documented exactly as the manufacturer publishes it. Made by Guangdong Europe Mango New Energy Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Inverter Heat Pump

• Model Number: MG QII-Pro Series 050IIC
• Power Source: Electric, Solar
• Power Supply: 220-240V/50Hz/1ph or 380-415V/50/3ph
• Heating Capacity: 11-34kW
• Housing Material: Galvanized Sheet
• Refrigerant: R32

Technical Specifications

Product Details

Model

MGSDC-030IIC

MGSDC-050IIC

MGSDC-060IIC

MGSDC-080IIC

HP

3HP

5HP

6HP

8HP

Ambient

Outlet

Power Supply

220-240V / 50-60Hz / 1ph or 380-415V / 50-60Hz / 3ph

+7°C

35°C

Heating Capacity

kW

9.45

16.05

19.20

23.95

Power Input

kW

2.06

3.51

4.22

5.28

COP

4.59

4.57

4.55

4.54

+7°C

55℃

Heating Capacity

kW

9.76

16.49

19.98

24.98

Power Input

kW

3.03

5.12

6.24

7.71

COP

3.22

3.22

3.20

3.24

-10°C

35°C

Heating Capacity

kW

7.81

13.42

15.98

19.94

Power Input

kW

2.79

4.81

5.73

7.02

COP

2.80

2.79

2.79

2.84

-22°C

35℃

Heating Capacity

kW

5.88

9.71

11.88

14.82

Power Input

kW

2.70

4.47

5.47

6.86

COP

2.18

2.17

2.17

2.16

+35°C

7°C

Cooling outlet

kW

7.68

13.25

16.29

20.61

Power Input

kW

2.64

4.60

5.70

7.18

EER

2.91

2.88

2.86

2.87

Work Ambient

°C

-30°C – 43°C

Outlet Water Temperature

°C

30°C – 55°C

Control System

THETA

Compressor

Panasonic DC Inverter Compressor with EVI System

Refrigerant

R32

Fan Motor

DC Brushless Motor

Circulation Pump

Wilo or AWANT DC Variable Frequency Circulation Water Pump/AC water pump

3-Way Valve

Danfoss

Controller

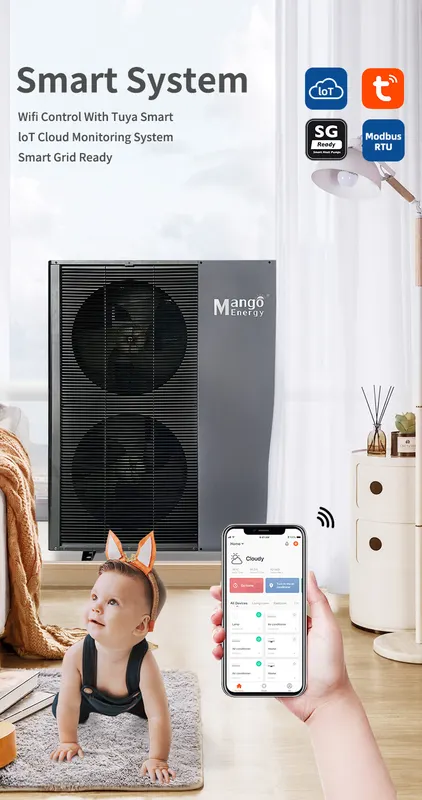

Wired Touchscreen Controller with WIFI and Custom Language

Water Heating Exchanger

Brazed Plate Heat Exchanger

External Cabinet Material

Galvanized Steel With Powder Coating

Electronic Expansion Valve

Dunan

Certificates

Rated Pressure Drop

kPa

≤40

≤50

≤60

≤65

Max Working Pressure

Refrigerant

Bar

44 Bar

Water

Bar

3 Bar

Water Flow

m³/h

1.68

2.84

3.44

4.30

Water Pipe

–

DN25

DN32

Noise in 1M

dB(A)

≤52

≤56

≤57

≤59

Unit size

mm

1058*462*751

1051*401*1338

1176*401*1480

Net Weight

kg

102

139

145

188

Model							MGSDC-100IIC	MGSDC-120IIC	MGSDC-150IIC
HP							10HP	12HP	15HP
Ambient	Outlet	Power Supply			380-415V / 50-60Hz / 3ph
+7°C	35°C	Heating Capacity	kW	30.90	36.42	44.91
				Power Input	kW	6.81	8.08	9.98
COP							4.54	4.51	4.50
+7°C	55℃	Heating Capacity	kW	31.61	36.96	45.94
				Power Input	kW	9.85	11.51	14.40
COP							3.21	3.21	3.19
-10°C	35°C	Heating Capacity	kW	26.61	34.53	40.94
				Power Input	kW	9.44	12.29	14.57
COP							2.82	2.81	2.81
-22°C	35℃	Heating Capacity	kW	17.64	25.09	29.84
				Power Input	kW	8.20	11.56	13.81
COP							2.15	2.17	2.16
+35°C	7°C	Cooling outlet	kW	23.95	29.33	35.61
				Power Input	kW	8.37	10.08	12.28
EER							2.86	2.91	2.90
Work Ambient					°C	-30°C – 43°C
Outlet Water Temperature					°C	30°C – 55°C
Control System							THETA
Compressor							Panasonic DC Inverter Compressor with EVI System
Refrigerant							R32
Fan Motor							DC Brushless Motor
Circulation Pump							Wilo or AWANT DC Variable Frequency Circulation Water Pump/AC water pump
3-Way Valve							Danfoss
Controller							Wired Touchscreen Controller with WIFI and Custom Language
Water Heating Exchanger							Brazed Plate Heat Exchanger
External Cabinet Material							Galvanized Steel With Powder Coating
Electronic Expansion Valve							Dunan
Certificates
Rated Pressure Drop					kPa	≤65	≤65	≤65
Max Working Pressure			Refrigerant	Bar	44 Bar
				Water	Bar	3 Bar
Water Flow					m³/h	5.44	6.36	7.90
Water Pipe					–	DN32	DN40
Noise in 1M					dB(A)	≤60	≤61	≤61
Unit size					mm	1176*401*1480	1181*451*1570
Net Weight					kg	198	219	234

FAQ

Q1> What does mango energy company do ?
A1:Our Company Professional Supply: Heating Cooling DHW DC Inverter Heat Pump 9-34kW Swimming Pool Heat Pump 11-192kW Commercial
Heating Cooling Heat Pump 9-180kW Commercial Hot Water Heat Pump 10-72kW Water / Ground Source Heat Pump 11-200kW Water Tank and
Other Components.

Q2> What is the daily production of Mango energy company ?
A2: Mango energy one day produce heat pump water heater around 200 PCS / day.

Q3> What is Mango heat pump certification ?
A3 : Mango energy have : SGS, CE,CB, IEC60335-2-40, EN14511 certificate from TUV Lab,, got ISO9001. ISO18001, ISO14001 and
CCCcertificate. Get Class A+, A as ErP EN14825 test report .
Q4> What Mango energy do for their agent / distributor /OEM ?
A4 : Mango energy offer sales training , heat pump & solar air conditioner product training,
After sales service training , maintenance machine training , big air chiller ,or heating
Project design case training , inside parts exchange training and test training.

Q5> What Mango energy offer to their business partner ?
A5: Mango energy offer 1%~2% free spare parts according to order quantity .
Offer whole this district market exclusive sales right .
Offer rebate as this district agent sales amount within one year .
Offer best competitive price & repair parts .
Offer 24 hours online service .

Q6> where is Mango energy heat pump using ?
A6: Because Air source heat pump save energy around 70% , ( EVI heat pump and central cooling & heating heat pump ) is Widely used
in home heating, hotels hot water & heating , restaurants, hospitals,schools,bath center, residential central heating and hot
water plants, etc.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–19 unit: US $2050 / unit
  • 20–49 unit: US $1960 / unit
  • 50+ unit: US $1845 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this inverter heat pump?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this inverter heat pump carry?

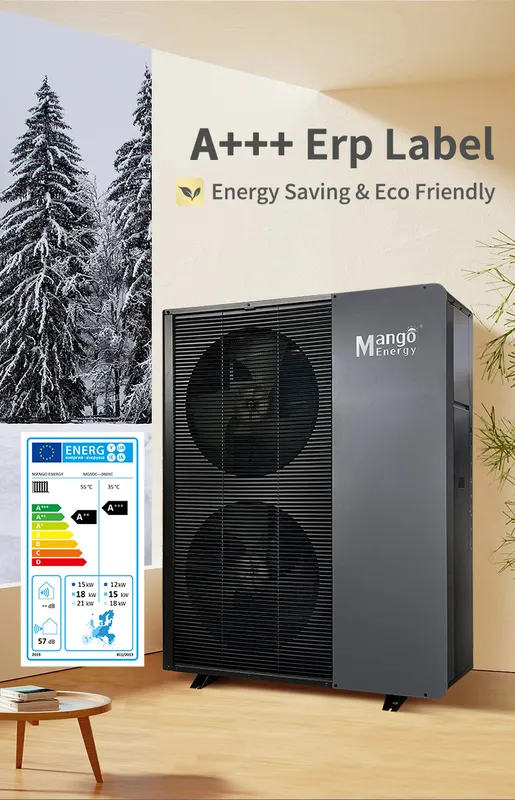

It is supplied with Ce, TUV, Erp.A+++ documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the inverter heat pump be supplied for my local voltage?

The standard configuration is 220-240V/50Hz/1ph or 380-415V/50/3ph. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangdong Europe Mango New Energy Technology Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Europe Mango New Energy Technology Co., Ltd. range on HVACR Nexus.
