Scroll Compressor, Plastic, 3PH~220V, 12814Kcal

Key specification for this scroll compressor: voltage 3PH~220V/380/415V~50HZ/60HZ, cooling capacity 12814Kcal/h. Everything below is reproduced from the factory data sheet. Made by Guangdong Xiecheng Intelligent Equipment Co.,Ltd. (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Scroll Compressor

• Model Number: XC-LF5A, Accessories
• Power: 4.5Kw
• Compressor Power: 3.75KW/5HP
• Pump Power: 0.75KW/1HP
• Voltage: 3PH~220V/380/415V~50HZ/60HZ
• Cooling Capacity: 12814Kcal/h

Technical Specifications

Product Details

Product Description

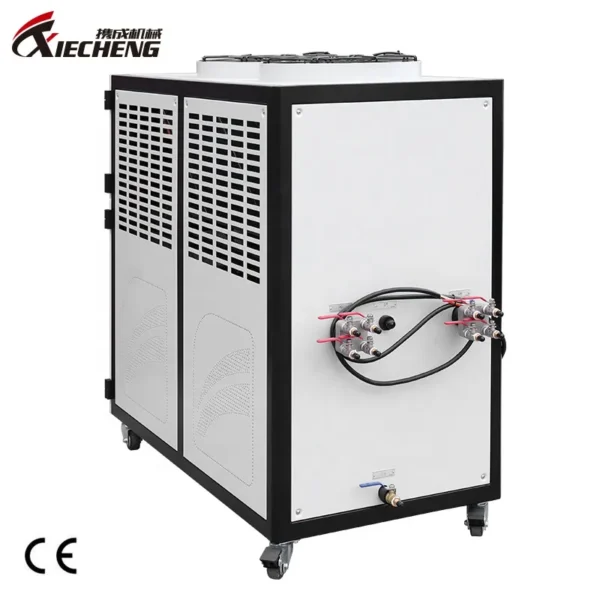

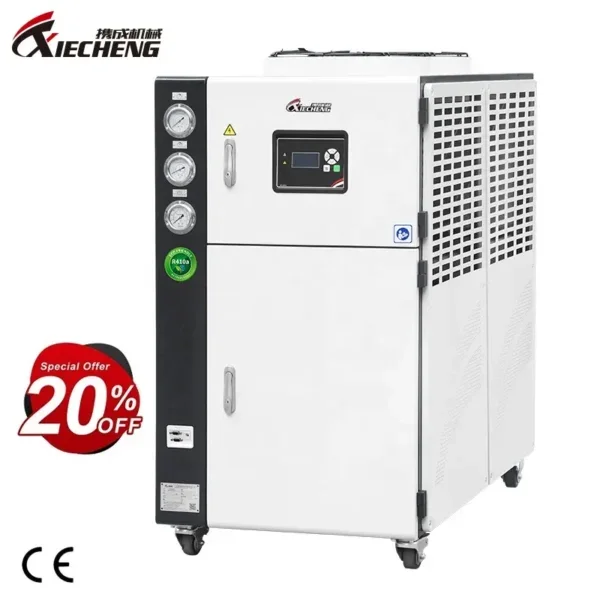

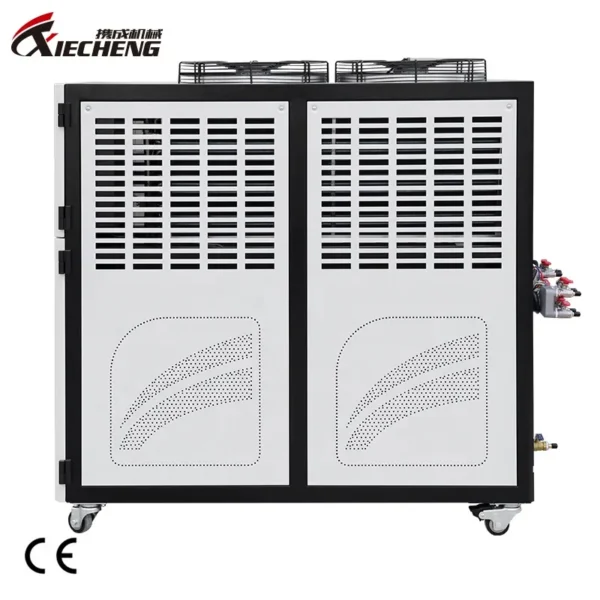

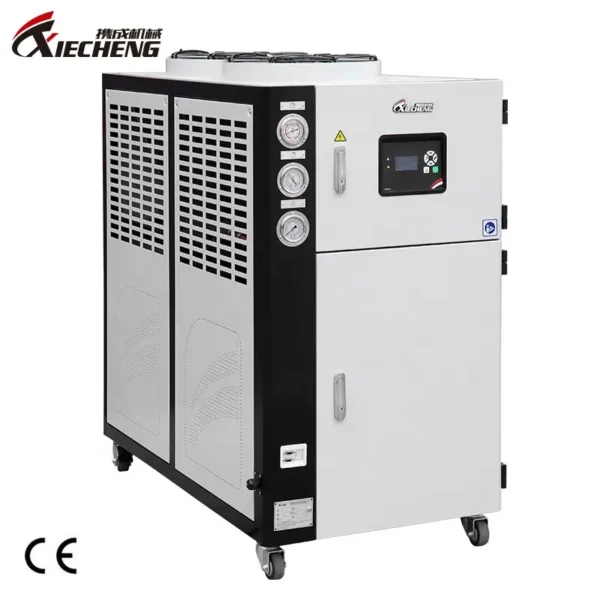

Air Cooled Water Chiller

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain. Air cooled chiller is suitable for places with limited space or where sufficient cooling water cannot be provided. However, the cooling efficiency is affected by ambient temperature and humidity, so it is typically used in applications with lower heat loads. Each model is equipped with a range of safety features, including motor overload protection, phase loss and phase reversal alarms, anti-freeze thermostats, pressure gauges, and more. These chiller units demonstrate excellent performance and have a longer lifespan. Throughout the entire operating cycle, a series of steps based on the fundamental principles of heat exchange are followed. They are particularly suitable for industries that require precise control and regulation of chilled water temperature, allowing for precise control within the range of 3°C to 50°C, making them an important player in the modern industrial sector.

Working Principle

When the air cooled chiller starts, the refrigerant absorbs the heat from the cooled object in the evaporator and vaporizes. The compressor continuously extracts the generated gas from the evaporator and compresses it into high-temperature, high-pressure vapor. The refrigerant vapor is then sent to the condenser, where it undergoes heat exchange with the air. After releasing heat, it condenses into a liquid. The liquid refrigerant, after being depressurized by the expansion valve, enters the evaporator where it vaporizes again, absorbing heat from the cooled object. This heat exchange process is repeated until the industrial water is cooled to the desired temperature.

①	Compressor	⑨	Temp. sensor
②	Condenser	⑩	Water tank
③	Dry filter	⑪	Pump pressure gauge
④	Expansion valve	⑫	Pump
⑤	Evaporator	⑬	By-pass valve
⑥	Ball valve	⑭	Low pressure switch
⑦	Anti-freezing switch	⑮	High pressure switch
⑧	Level sensor	⑯	Blower

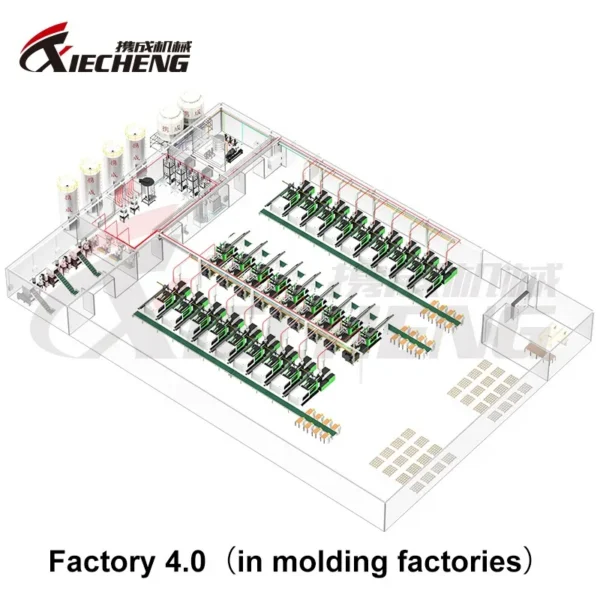

Application Scope in the Industry

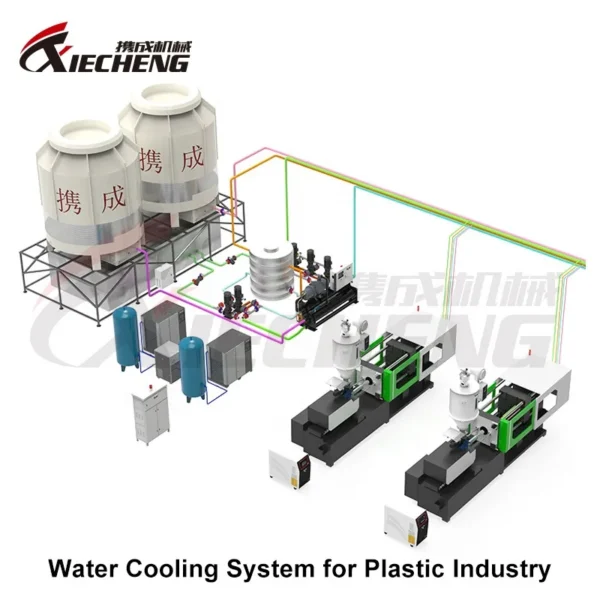

Chillers are widely used in various industrial productions such as plastics, electronics manufacturing, electroplating, chemical engineering, ultrasonic cooling, and printing. They are employed in the cooling of molds for plastic processing machinery, significantly improving the surface smoothness of plastic products, reducing surface flaws and internal stress, preventing shrinkage and deformation, facilitating mold release, accelerating product shaping, and thus greatly enhancing the production efficiency and product quality of plastic molding machines.

Injection Molding Industry

Extrusion Industry

Plastic Packaging Industry

Ultrasonic cooling

Automotive Manufacturing Industry

Chemical Engineering Industry

Electroplating Industry

Electronics Industry

Printing Industry

Highlights of the Product

Scroll Compressor

The entire range of Xiecheng air cooled chillers utilizes scroll compressors. The compressor serves as the heart of the entire refrigerant cycle system. The scroll compressor adopts a dual-flex design, ensuring tight sealing between the scroll discs. This design allows the scroll discs to separate radially and axially, allowing debris or liquid to pass through without damaging the compressor. This results in increased compressor lifespan, enhanced reliability, better liquid tolerance, and improved tolerance for impurities.

Shell and Tube Evaporator

The air cooled chiller utilizes a shell and tube evaporator. In this system, the refrigerant evaporates inside the heat exchange tubes, while water flows on the shell side. To enhance the heat exchange efficiency, a 2mm thick baffle plate is installed on the shell side, causing the water to flow back and forth to create ice brine. Additionally, to maintain a stable operating temperature, the exterior shell of the evaporator is covered with insulation material.

For the heat exchange tubes, we employ high-efficiency seamless copper tubes. These tubes undergo a grooving process to form internal thread fins, thereby increasing the heat exchange surface area with the refrigerant. With this technology, the heat transfer area is doubled, significantly improving the heat transfer efficiency.

Finned Type Condenser

By adopting a high-efficiency copper tube with aluminum finned type condenser, the air cooled chiller effectively dissipates heat. The finned structure increases the heat exchange surface area between the condenser and the surrounding environment, improving the heat dissipation efficiency. The excellent thermal conductivity of copper tubes, combined with the efficient heat dissipation characteristics of aluminum fins, ensures high efficiency during the cooling process

Additionally, the application of light water aluminum and blue aluminum foils provides an additional protective layer. They help prevent corrosion of the copper tubes in corrosive environments, thereby extending the lifespan of the condenser and maintaining optimal refrigeration performance.

Product Specifications

Air Cooled Chiller
Model			Unit	XC-LF3A	XC-LF5A	XC-LF8A	XC-LF10A	XC-LF15A	XC-LF20A	XC-LF25A
Cooling Capacity		KW	8.6	14.9	23	29.3	46.5	62	74.1
			Kcal/h	7396	12814	19780	25284	39990	53320	63726
Compressor	Input Power	KW	2.8	4.5	3*2	4.5*2	4.5*3	9*2	10*2
		Rated Power	HP	3	5	8	10	5*3	10*2	12*2
Power		1PH-220V/50HZ		1PH-220V/50HZ	3PH-380V/50HZ
Evaporator	Type	Shell and Tube
		Pie Diameter	inch	1”	1”	2”	2”	2.5”	2.5”	3”
Refrigerant	Type	R410A/R407C/R22
		Quantity	KG	2	2	4	5	7.5	11	11
Condenser(air chiller)	Type	Finned Copper Tube + Low Noise Outer Rotor Fan
		Fan Power	W	190*1	190*2	420*2	420*2	800*2	420*3	800*3
Water Tank Capacity		Liter	40	45	80	80	100	150	210
Pump	Power	KW	0.37	0.75	1.5	1.5	2.2	2.2	4
				HP	0.5	1	2	2	3	3	5
		Distance	m	23	35	15	15	16	16	16
		Flow Rate	L/min	100	110	360	360	650	650	700
Safety Protection	High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.									High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
Dimensions	L	mm	1010	1350	1600	1600	1950	2250	2660
		W	mm	670	720	900	900	1040	1050	1150
		H	mm	1130	1310	1550	1550	1665	1855	1970

Water Cooled Chiller
Model			Unit	XC-L3W	XC-L5W	XC-L8W	XC-L10W	XC-L15W	XC-L20W	XC-L25W
Cooling Capacity		KW	10.5	16	26.5	32.1	51.7	66.3	81.2
			Kcal/h	9030	13760	22790	27606	44462	57018	69832
Compressor	Input Power	KW	2.8	4.5	3*2	4.5*2	4.5*3	9*2	10*2
		Rated Power	HP	3	5	8	10	5*3	10*2	12*2
Power		3PH-380V/50HZ								3PH-380V/50HZ
Evaporator	Type	Shell and Tube
		Pie Diameter	inch	1”	1”	2”	2”	2.5”	2.5”	3”
Refrigerant	Type	R410A/R407C/R22
		Quantity	KG	2	2	4	5	7.5	11	11
Condenser(water chiller)	Type	Shell and Tube Condenser
		Pie Diameter	Inch	1”	1”	1.5”	1.5”	2”	2”	2.5”
Water Tank Capacity		Liter	40	45	80	80	100	150	210
Pump	Power	KW	0.37	0.75	1.5	1.5	2.2	2.2	4
				HP	0.5	1	2	2	3	3	5
		Distance	m	23	35	15	15	16	16	16
		Flow Rate	L/min	100	110	360	360	650	650	700
Safety Protection	High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.									High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc.
Dimensions	L	mm	1150	1150	1320	1320	1570	1930	1930
		W	mm	680	680	690	690	750	880	880
		H	mm	990	990	1380	1380	1380	1650	1650

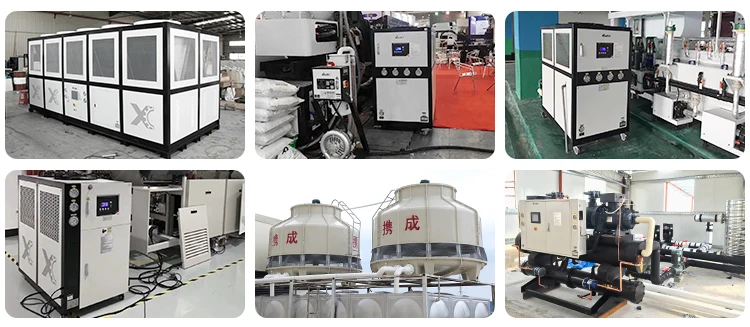

Product Actual Shooting

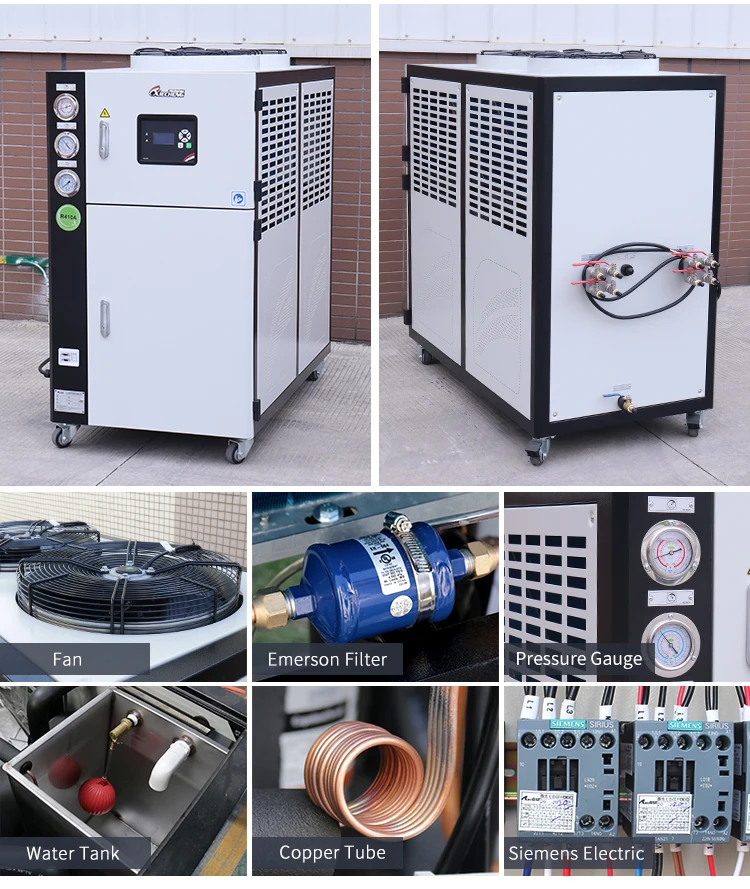

Product Details

 01  Microcomputer Controller

The air cooled chiller features an industry-leading LCD display microcomputer controller. This controller provides simultaneous display of the chiller's outlet temperature and the set temperature for precise temperature control. The user-friendly interface allows for easy operation and adjustment. With this controller, the water temperature can be precisely controlled within a range of 3°C to 50°C, ensuring optimal cooling performance.

 02  Drying Filter System

The air cooled chiller is equipped with Emerson filters, which effectively remove impurities from the refrigerant and absorb free moisture in fluorocarbons. This system prevents the formation of ice blockages, particularly in narrow sections of pipelines (especially the valve ports of thermal expansion valves). It ensures the purity of the refrigerant and protects the compressor from potential damage.

 03  Efficient Cooling System

The air-cooled chiller is equipped with a high-efficiency cooling system that includes low-noise external rotor fans. These fans are specifically designed to accelerate heat dissipation and enhance the overall cooling efficiency of the system. By improving airflow and maximizing heat transfer, this system ensures optimal cooling performance while operating with minimal noise levels.

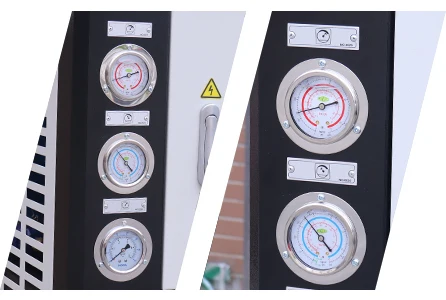

 04   High and Low Pressure Protection System

The high and low pressure protection system is designed to enhance the safety and efficiency of water pump operations. It involves the installation of high and low pressure gauges as well as a pump pressure gauge to continuously monitor the pressure of the water pump during operation.

 05  Water Pumps

For chiller models ranging from 1 to 6HP, Orank stainless steel pump heads are used. For models with 8HP or higher, Taiwan Yuanli pipeline pumps are employed. These water pumps are known for their low noise operation, leak-free performance, and maintenance-free characteristics. They ensure reliable and efficient water circulation within the chiller system.

Application Range

About Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this scroll compressor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the scroll compressor be supplied for my local voltage?

The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
