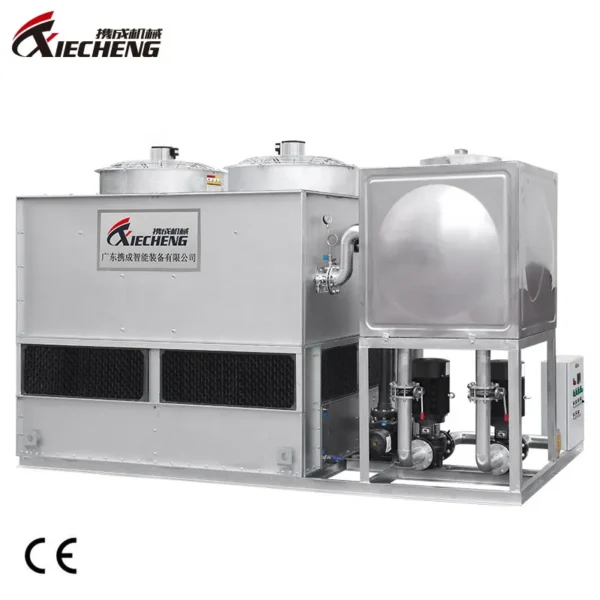

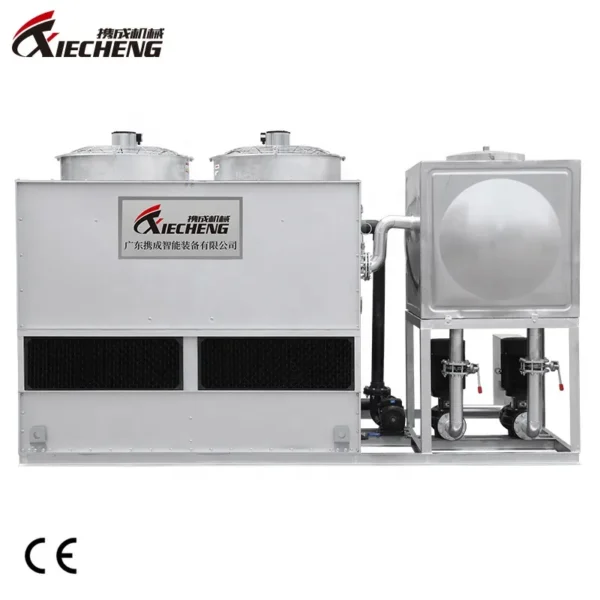

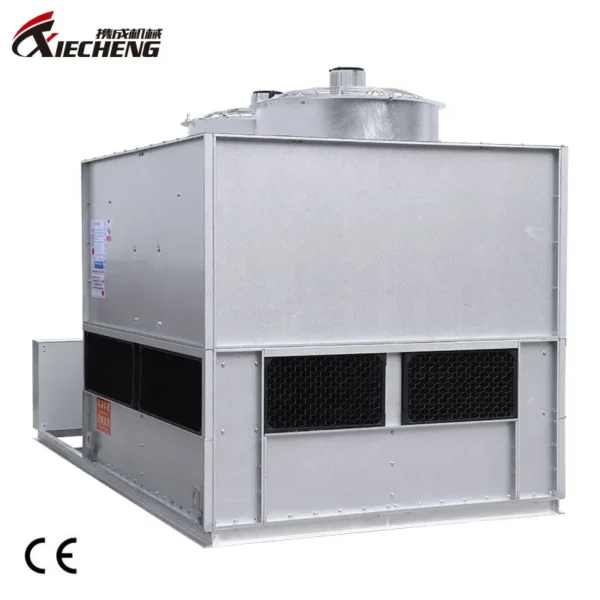

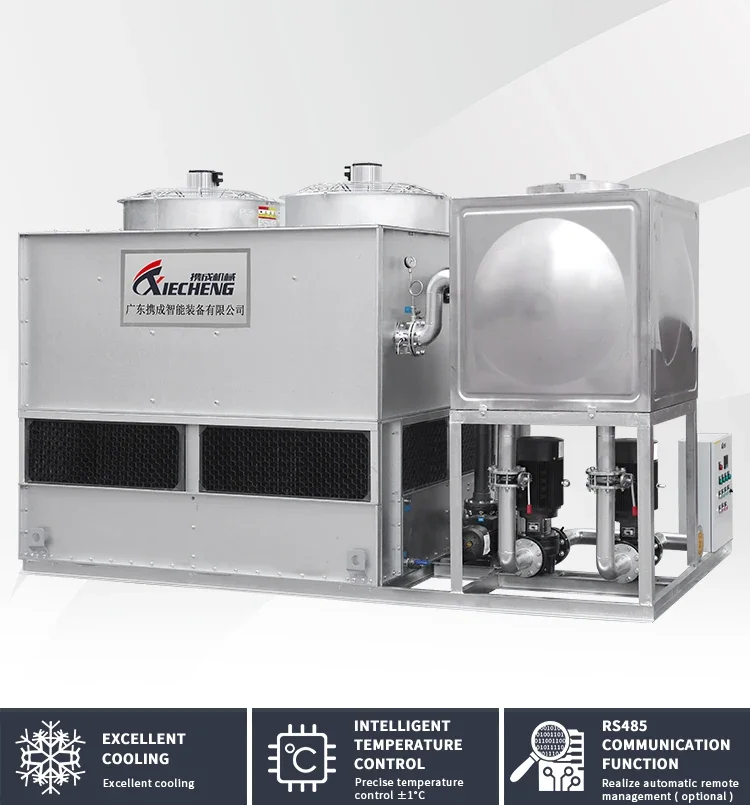

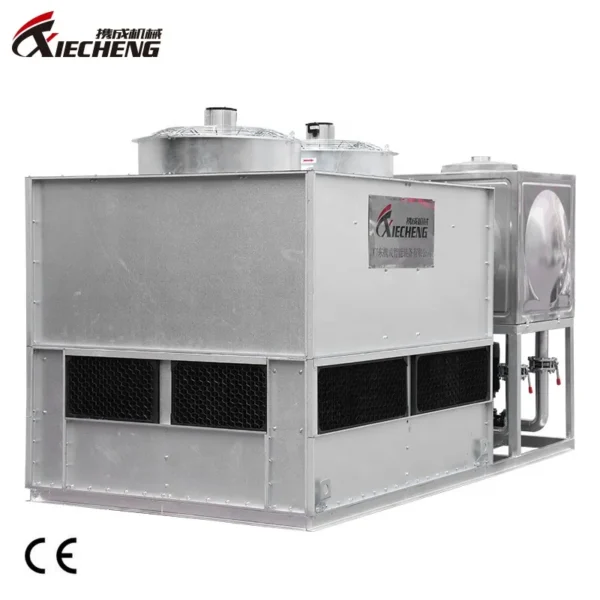

Cooling Tower, 380 V, 50000kcal

Cooling tower — 380 V, 380v/50hz/3p, cooling capacity 50000kcal/h. The complete factory specification follows. Made by Guangdong Xiecheng Intelligent Equipment Co.,Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Cooling Tower

• Power(W): 2250
• Voltage: 380 V, 380v/50hz/3p
• Cooling Capacity: 50000kcal/h
• Material: FRP
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

FEATURE:

1. The cooling medium has a closed cycle and no impurities enter, ensuring the purity of the medium; 2. The cooling tower uses magnesium-aluminum-zinc plate material as the base steel of the tower body, and there are coil coolers with a variety of materials to choose from; 3. The spray water completely wets the outer wall of the condenser, avoiding the formation of scale in dry spots and maximizing systemefficiency; 4. Special three-proof fan for outdoor environment, the motor adopts a protection grade of lP55, an insulation grade of F, and axial flow fan with aluminum alloy blades; 5. Small size, can be moved and placed as needed, and has low maintenance costs.

Product Specifications

Model			XC-ST10B	XC-ST15B	XC-ST20B	XC-ST30B	XC-ST40B	XC-ST50B	XC-ST60B
Cooling Capacity	kcal/h	50000	75000	100000	150000	200000	250000	300000
Cooling Water Volume	m³/h	10	15	20	30	40	50	60
Exhaust Fan	Fan Diameter (mm)	700	700	700	750	800	800	900
		Air Volume(m³/h)	10*10³	20*10³	20*10³	39*10³	40*10³	40*10³	62*10³
		Motor Power (kw)	0.75	0.75*2	0.75*2	1.1*2	1.5*2	1.5*2	2.2*2
Spray Pump	Spray volume(m³/h)	11	16	20	22.3	55	70	65
		Distance	10	7.5	7	10	4.5	4	5
		Power(kw)	0.55	0.75	0.75	1.1	1.5	1.5	1.5
Pipe size	Inlet/outlet diameter	50	65	65	65	80	80	80
		Sewage Discharge	25	25	25	32	32	32	32
		Refilling Water	25	25	25	25	25	25	25
Dimensions	L (mm)	1600	2300	2300	2800	2800	2800	2800
		W (mm)	880	1020	1020	1170	1170	1170	1170
		H (mm)	1950	2150	2150	2320	2420	2600	2600
Weight	Operating Weight (KG)	400	520	550	580	900	1050	1150

Model			XC-ST70B	XC-ST80B	XC-ST100B	XC-ST125B	XC-ST150B	XC-ST175B	XC-ST200B
Cooling Capacity	kcal/h	350000	400000	500000	625000	750000	875000	1000000
Cooling Water Volume	m³/h	70	80	100	125	150	175	200
Exhaust Fan	Fan Diameter (mm)	900	900	1000	1000	1300	1300	1600
		Air Volume(m³/h)	62*10³	62*10³	80*10³	80*10³	110*10³	130*10³	180*10³
		Motor Power (kw)	2.2*2	2.2*2	3*2	3*2	4*2	4*2	5.5*2
Spray Pump	Spray volume(m³/h)	80	90	110	120	150	170	200
		Distance	4	5	5	5	5	5	6
		Power(kw)	2.2	2.2	2.2	3	3	4	5.5
Pipe size	Inlet/outlet diameter	100	100	125	125	125	125*2	150*2
		Sewage Discharge	32	32	40	40	40	40	40
		Refilling Water	25	25	25	25	25	25	25
Dimensions	L (mm)	2800	2800	3400	3400	3400	4000	4200
		W (mm)	1600	1600	1800	1800	1800	2000	2200
		H (mm)	2800	2800	2960	3200	3450	3750	3850
Weight	Operating Weight (KG)	1400	1450	1800	2250	2700	3150	3600

If you want more sizes, please contact us for details

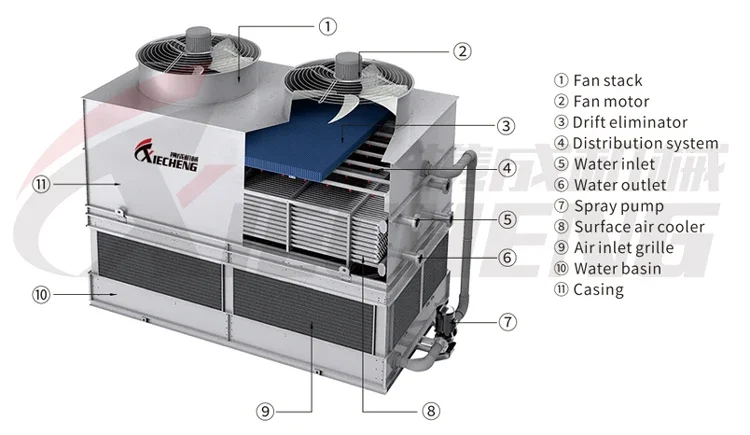

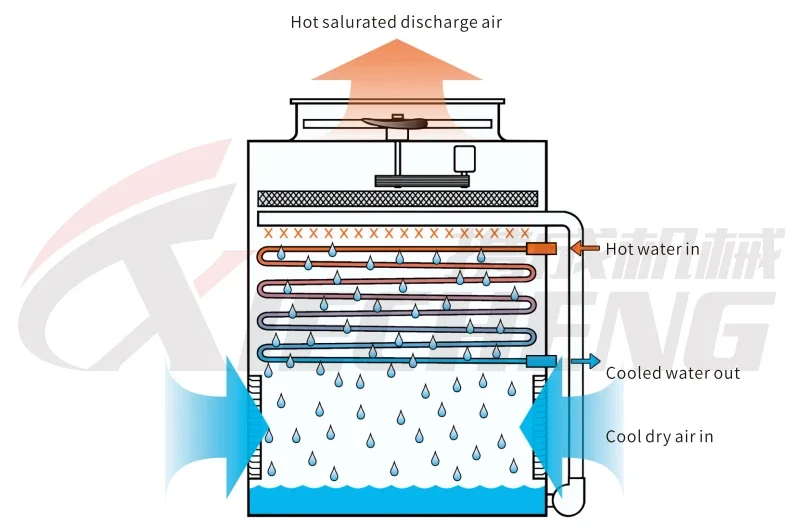

Working Principle

The workingfluid (pure water orother liquid) circulates inside the coil of the closed cooling tower and is indirectly cooled with the radiating water. The heat of the working fluid is dispersed into the water flowing through the coil through the coil. At the same time, the air outside the unit enters from the air inlet at the bottom, crosses the flow direction of the water, and flowsin the opposite direction through the coil. A small part of the water evaporates and absorbs the heat. The hot and humid air is discharged into the atmosphere by the ventilator at the top ofthe cooling tower. The remaining water falls into the bottom water pan, is recirculated by the water pump to the water distribution system, passes through the pre-coolingfiller, and is poured back onto the coil.

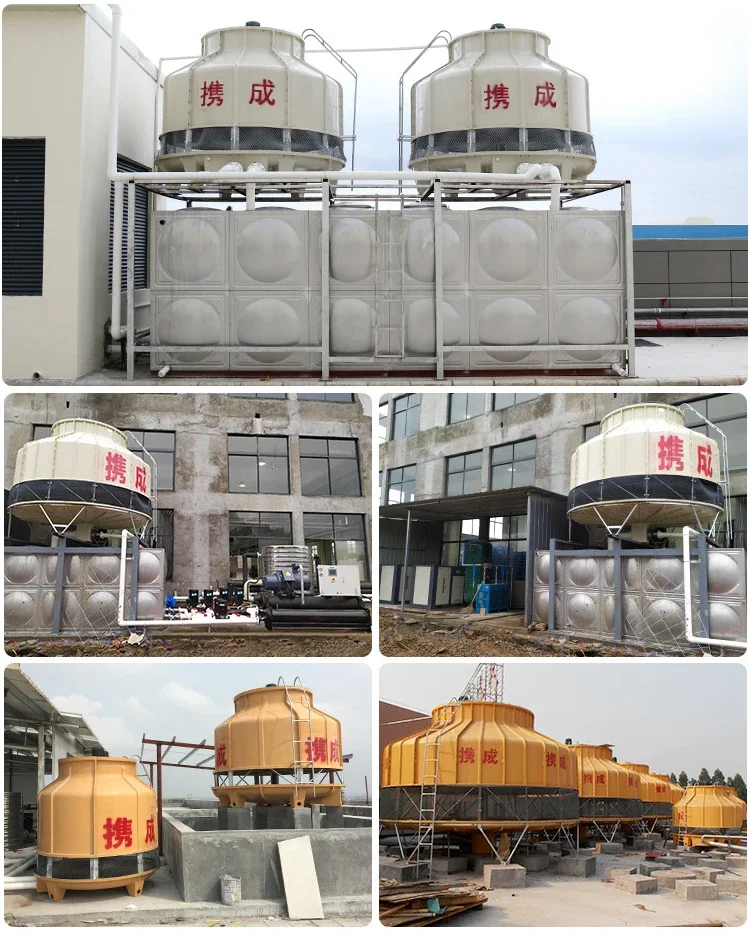

Customer Case

Best Selling

About Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling tower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooling tower be supplied for my local voltage?

The standard configuration is 380 V, 380v/50hz/3p. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
