Key specification for this air to water heat pump: 380V, 150kw. Everything below is reproduced from the factory data sheet. Made by Foshan Yini Technology Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air To Water Heat Pump
- Model Number: YINI-500S-DCN
- Power Source: Electric, Solar
- Power Supply: 380V
- Heating Capacity: 150kw
- Cooling Capacity: 130kw
- Housing Material: Metal
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R410a/R32/R290 |
| Storage / Tankless | Storage |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Metal |
| Feature | Eco-Friendly, Easy Installation, Easy Operation, Energy-Saving, Safe, High Efficiency |
| Power Source | Electric, Solar |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, French, German, Dutch, Spanish |
| Private Mold | Yes |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand | AIRYINI |
| Model Number | YINI-500S-DCN |
| OEM/ODM | Available |
| Function | Commercial Heating Cooling Hot Water |
| Heating Capacity | 150kw |
| Cooling Capacity | 130kw |
| Power Supply | 380V |
| Max Hot Water Temperature | 60 degrees |
| Controller | Wifi Smart Control |
| Compressor Type | Scroll compressor |
| Fan Motor | External rotor large air volume fan |
| Selling Units | Single item |
| Single Package Size | 236X136X247 cm |
| Single Gross Weight | 1080.0 kg |
Product Details

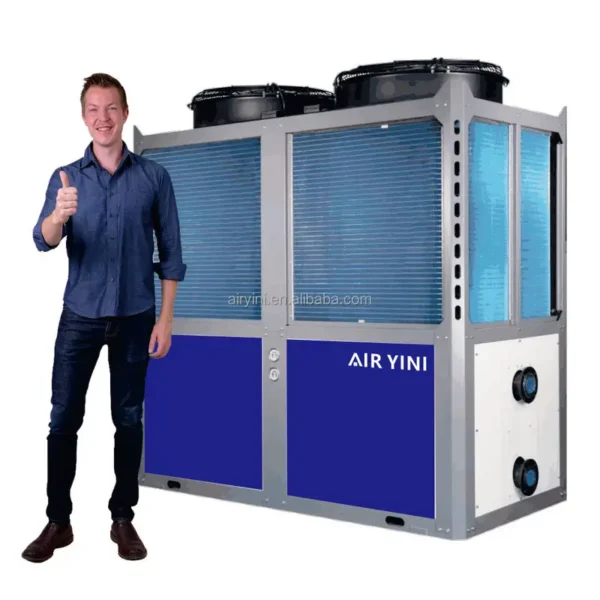

High Efficiency Air Source EVI Heatpump -35C Degree Low Temperature Air to Water Heat Pump for Commercial Heating Cooling Supply.
This series Commercial EVI heat pump can work in very low climate area down to -35℃. The heat pump is equipped with EVI compressor and high efficiency in low temperature conditions, its heating performance is higher by 50%-80% than normal heat pump. It is widely used in cold area and even work well at -35℃, can be matched with fan coil, floor radiator heating, it is suitable for villa, hotel, office, etc.
Main Features
1) Heating Capacity range: 65kW, 92kW, 150kW, 180kW

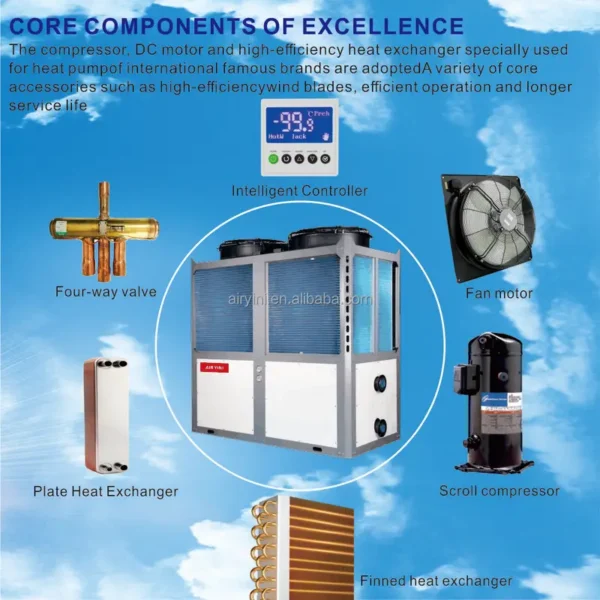

2) EVI compressor and Schneider electrical components.

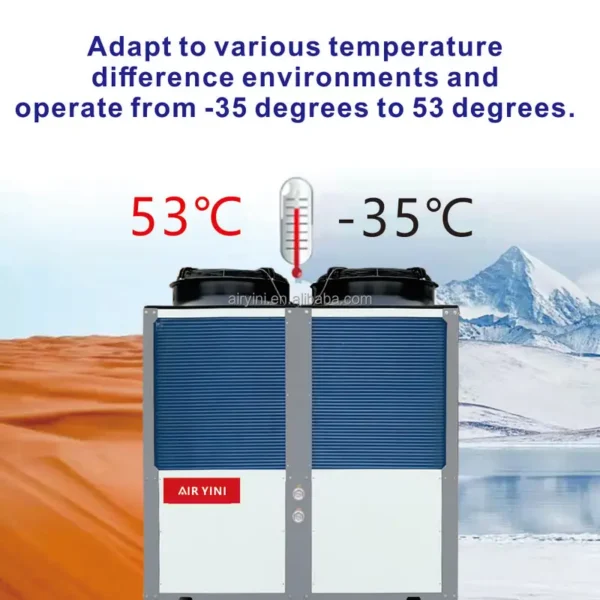

3) Working ambient temperature down to -35℃.
4) Automatically defrosting.

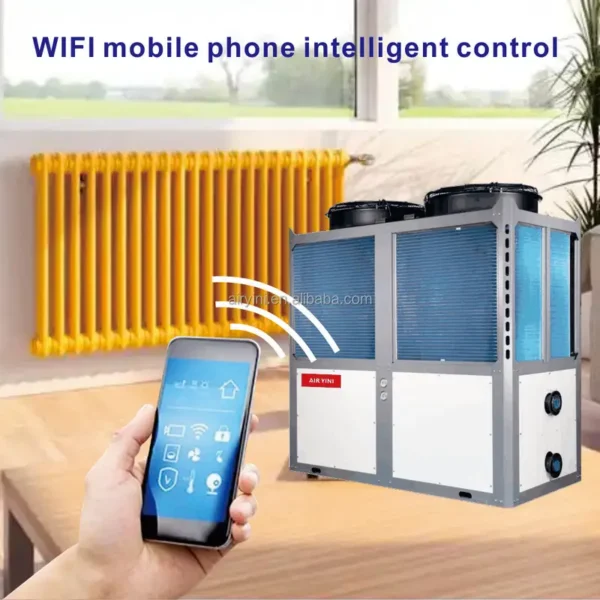

5) Intelligent controller and adjustment by microprocessor.
6) High efficiency heat exchanger.
7) Match with floor heating, fan coils, and Central AC function.
OPTIONAL:
Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R32 and R290 and R410a is possible.
| MODEL | YINI-200S-DCN | YINI-250S-DCN | YINI-300S-DCN | YINI-500S-DCN | YINI-600S-DCN | ||
| Power supply | / | 380V/3N/50Hz-60Hz | |||||
| Electric shock proof grade | / | Class I | |||||
| Protection grade | / | IPX4 | |||||
| Heating capacity | A7W35/COP | kw | 52.0/4.5 | 65.0/4.5 | 92.0/4.3 | 150.0/4.5 | 180.0/4.5 |
| A7W45/COP | kw | 46.0/3.6 | 58.0/3.6 | 82.0/3.3 | 136.0/3.6 | 164.0/3.6 | |
| A-7W45/COP | kw | 32.8/2.6 | 41.0/2.6 | 62.0/2.6 | 90.0/2.6 | 124.0/2.6 | |
| A-15W45/COP | kw | 27.0/2.2 | 34.0/2.2 | 50.0/2.2 | 76.0/2.2 | 100.0/2.2 | |
| A-20W45/COP | kw | 24.0/2.0 | 30.2/2.0 | 43.0/2.0 | 66.0/2.0 | 86.0/2.0 | |
| Cooling capacity/COP | kw | 42.0/3.0 | 53.0/3.0 | 70.0/2.8 | 130.0/2.8 | 140.0/2.8 | |
| Heating input power (A7W45) | kw | 12.8 | 16.1 | 24.8 | 37.8 | 45.6 | |
| Heating input power (A-7W45) | kw | 12.6 | 15.7 | 23.1 | 34.6 | 47.7 | |
| Rated cooling input power | kw | 14 | 17.7 | 25 | 46.4 | 50 | |
| Max working current | A | 31.8 | 40 | 56.8 | 105 | 114 | |
| Compressor | Type | / | Scroll | ||||
| Quantity | PCS | 2 | 2 | 2 | 2 | 2 | |
| Fan motor | Quantity | PCS | 2 | 2 | 2 | 2 | 2 |
| Max. water temperature | ℃ | 60 | |||||
| Water flow | m³/h | 8.9 | 11.2 | 15.8 | 25.8 | 31 | |
| Refrigerant type/Weight | / | R410a/R32/R290 | |||||
| Circulating pipe diameter | inch | G2.0" | G2.5" | G2.5" | G3.0" | G3.0" | |
| Noise | dB(A) | 65 | 68 | 68 | 72 | 75 | |
| Dimension (W×D×H) | cm | 210×110×200 | 210×110×200 | 210×110×200 | 220×113×227 | 220×113×227 | |
| Packing dimension (W×D×H) | cm | 226×136×227 | 226×136×227 | 226×136×227 | 236×136×247 | 236×136×247 | |
| Net weight | kg | 750 | 850 | 950 | 1080 | 1150 | |
| Gross weight | kg | 800 | 900 | 1000 | 1150 | 1270 | |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–17 piece: US $10007.8 / piece
- 18–99 piece: US $9500 / piece
- 100+ piece: US $9000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air to water heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the air to water heat pump be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Yini Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yini Technology Co., Ltd. range on HVACR Nexus.
