Automatic Fire Tube, STEEL, Natural Circulation

Key specification for this automatic fire tube: material STEEL, type Natural Circulation. Everything below is reproduced from the factory data sheet. Made by Henan Taiguo Boiler Group Co., Ltd. (2 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Automatic Fire Tube

• Material: STEEL
• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application Field: School.Hotel.Home
• Type: Natural Circulation
• Single Package Size: 200X160X230 cm

Technical Specifications

Product Details

Product Paramenters

Model speci fications	DZZQ-36	DZZQ-72	DZZQ-144	DZZQ-216	DZZQ-360	DZZQ-504	DZZQ-720	DZZQ-1080	DZZQ-1400
Rated power (kW)	36	72	144	216	360	504	720	1080	1400
Rated current (A)	54	108	216	324	540	756	1080	1620	2160
Voltage frequency (V/HZ)	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Electric heating efficiency (%)	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95	≥95
Number of heating tube groups (group))	2	2	4	6	10	14	20	30	40
Working pressure (Mpa)	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0	0.1-1.0
Evaporation (kg/h)	50	100	200	300	500	700	1000	1500	2000
Air outlet/ sewage outlet (DN)	25/40	25/40	25/40	25/40	40/40	50/50	50/50	65/50	65/50
Auxiliary control function	Automatic control + remote control
Product weight (kg)	85	150	318	450	750	1000	1300	2100	2600
Appearance size (m)	0.8*1.0*1.6	0.8*1.0*1.7	1.4*1.4*1.7	2.0*1.6*1.7	1.4*1.4*1.7	1.6*1.6*1.7	2.6*1.6*1.7	3.7*1.6*1.8	4.5*1.6*1.8

Applications:

textile factory, food and beverage, chemical industry, light industry, rubber, printing and dyeing factory, paper factory, wood
processing, clothing, laundry, etc.

Henan Taiguo Boiler Products Co., Ltd., With more than 50 years of manufacturing experience, is A professional
manufacturer,engaged in the research, development, production, sales and service of steam boiler, hot water boiler, hot oil
boiler, and hot air boiler.
Product production adopts technologies such as cutting, rolling plates, drilling, and cylindrical welding. We obtained ISO9 0 01, ISO 1 4 0 0 0 1, C E, SGS, EAC certification. Our boilers are sold to 108 countries around the world, and I sincerely hope to cooperate with you!

Q1:How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model. 2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2：Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

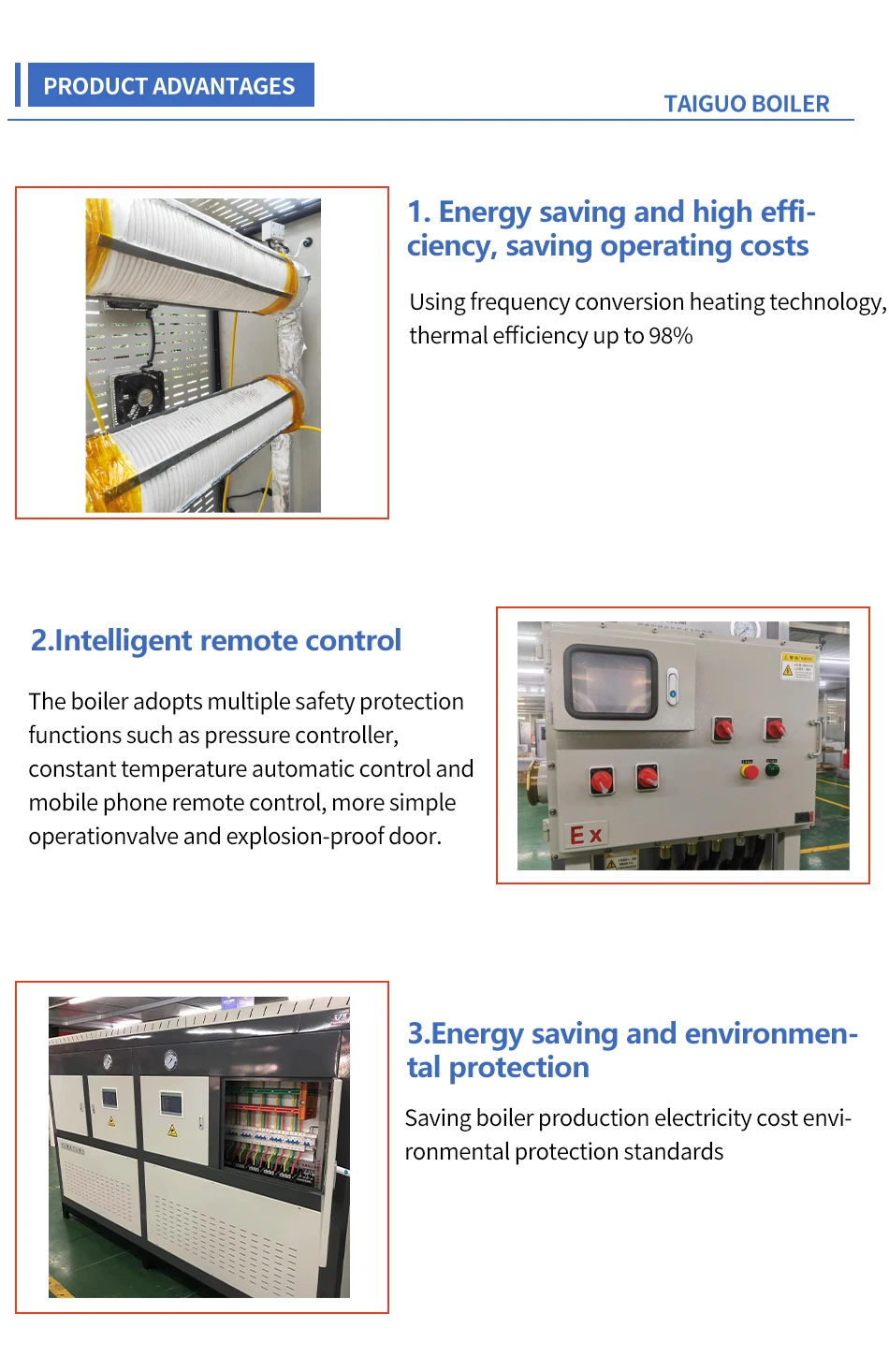

1.Electric control cabinet adopts PLC touch screen, display in English.2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.
3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $6500 / set
  • 2+ set: US $6250 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this automatic fire tube?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this automatic fire tube carry?

It is supplied with CE,EAC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Taiguo Boiler Group Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Taiguo Boiler Group Co., Ltd. range on HVACR Nexus.
