Automatic tube — 380v, capacity 2 Ton. The complete factory specification follows. Made by Changzhou Aidear Refrigeration Technology Co., Ltd. (10 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Automatic Tube
- Voltage: 380v
- Ice Storage Capacity: 1000 kg
- Capacity: 2 Ton
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Place Of Origin: Jiangsu, China
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Storage Capacity | 1000 kg |
| Voltage | 380v |
| Compressor Brand | Other |
| Key Selling Points | High Productivity |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | Motor, Pump |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | Aidear |
| Dimension(L*W*H) | 1100x900x1780 |
| Product Name | Tube Ice Machine |
| Name | Ice Tube Making Machine |
| Capacity | 2 Ton |
| Ice Type | Flake Shape |
| Product | 1-20tons |
| After Warranty Service | Video technical support |
| Marketing Type | New Product 2021 |
| Selling Units | Single item |
| Single Package Size | 1100X900X1780 cm |
| Single Gross Weight | 100.000 kg |
Product Details
Product Overview

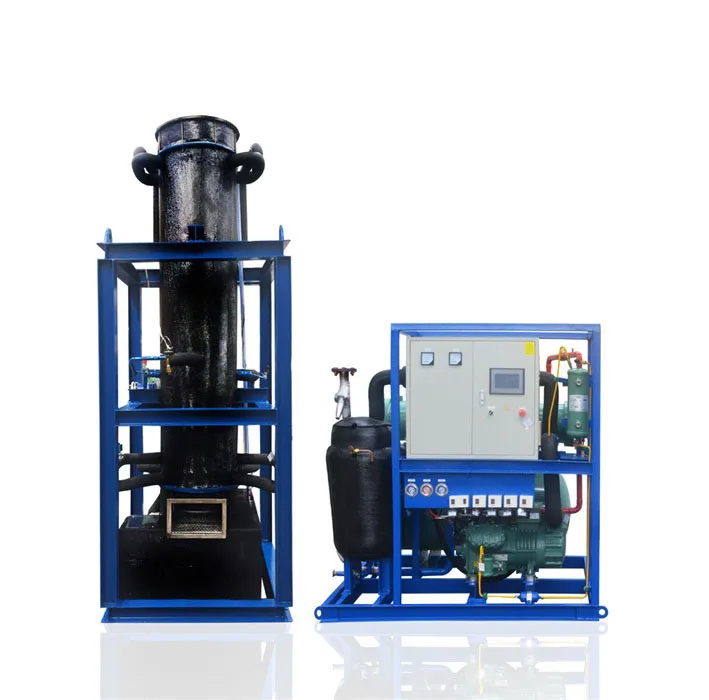

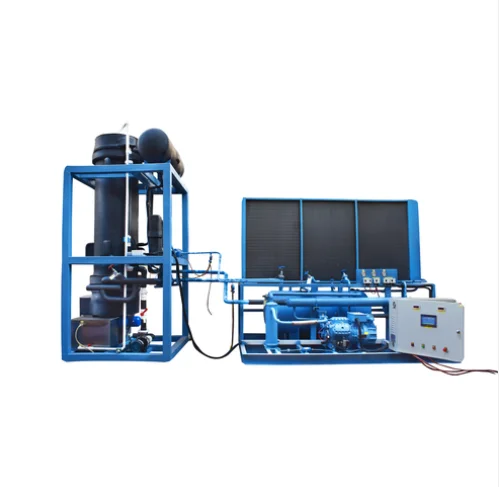

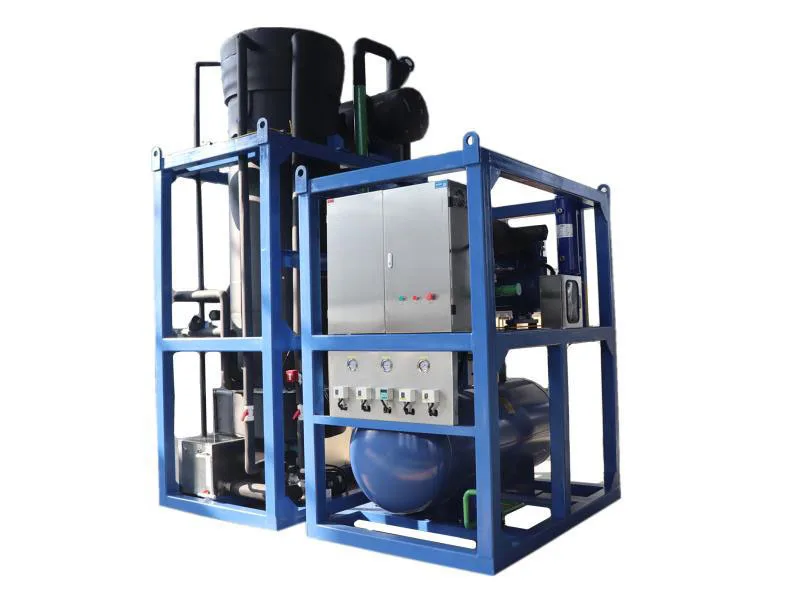

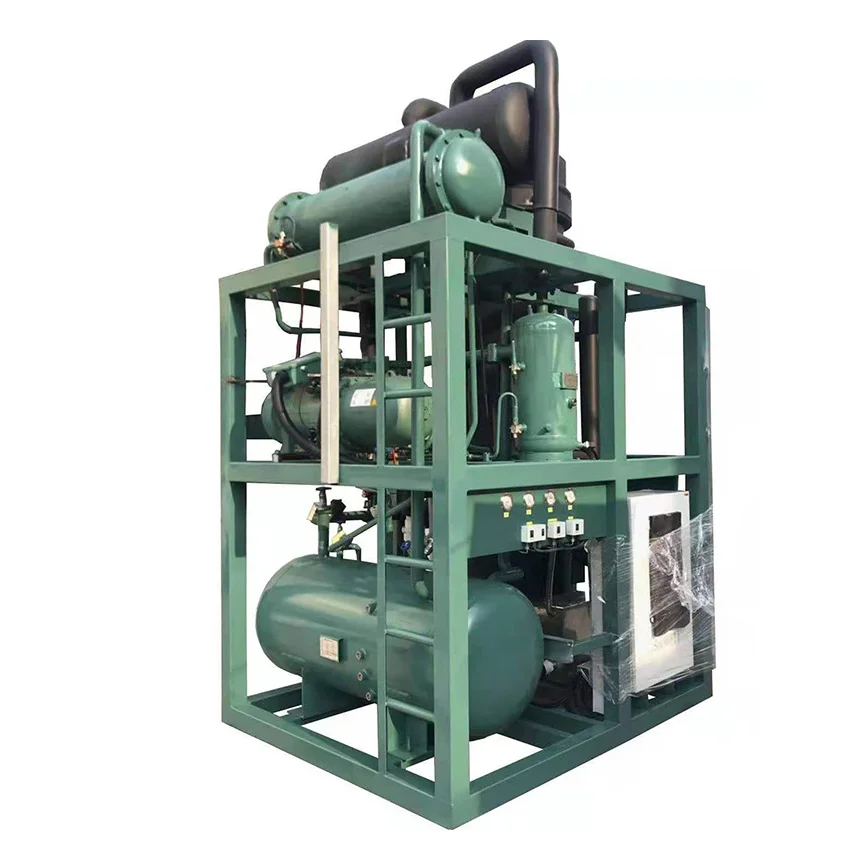

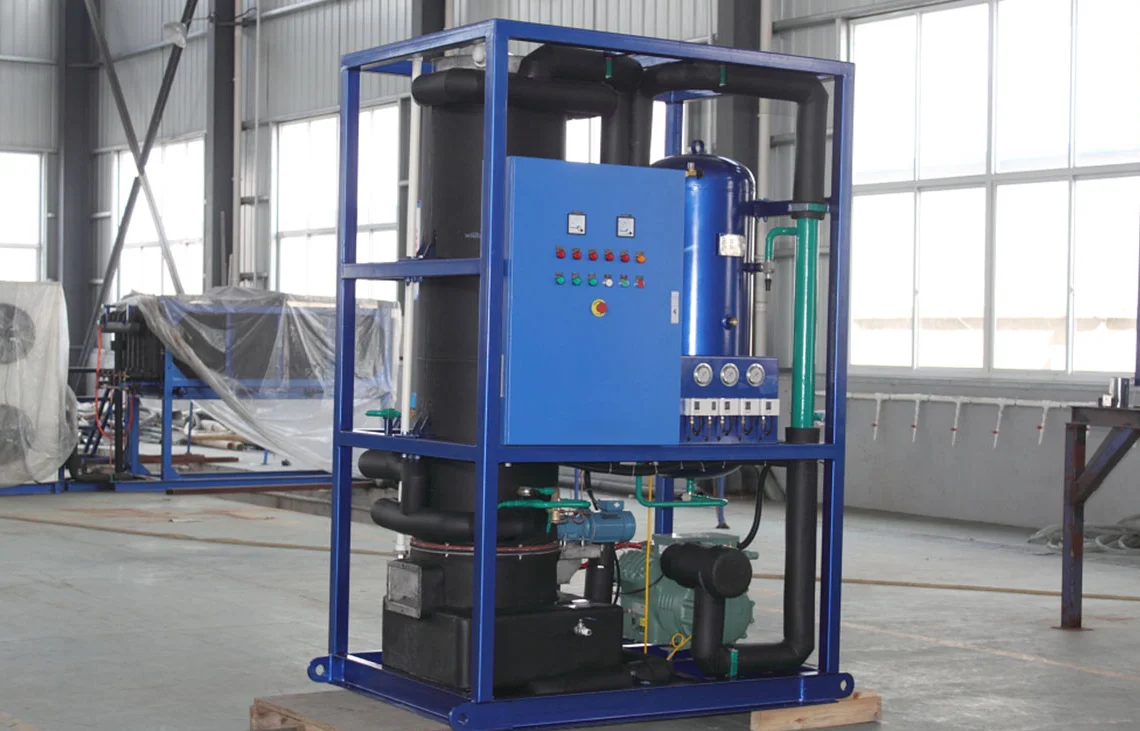

Tube Ice Machine
Applications of tube ice.
(1) Food ice plants
(2) Coffee stores, bars, hotels, etc. where ice is used
(3) Aquatic products and food preservation
(4) Ice making plants in ports and terminals
(5) Supermarkets, convenience stores, restaurants and other commercial use
(6) Logistics preservation
(7) Medical and chemical ice
(1) Food ice plants
(2) Coffee stores, bars, hotels, etc. where ice is used
(3) Aquatic products and food preservation
(4) Ice making plants in ports and terminals
(5) Supermarkets, convenience stores, restaurants and other commercial use
(6) Logistics preservation
(7) Medical and chemical ice
FEATURES AT A GLANCE
Tube ice machine features.
1.Special ice production method can remove impurities in the water, ice hard, no powder.
2.body using 304 stainless steel outer sealing plate, can be directly into the food production plant use, small footprint, low production costs, good freezing effect, save energy, short installation cycle, easy to operate.
3.The ice is thicker and transparent, with long storage period and not easy to melt.

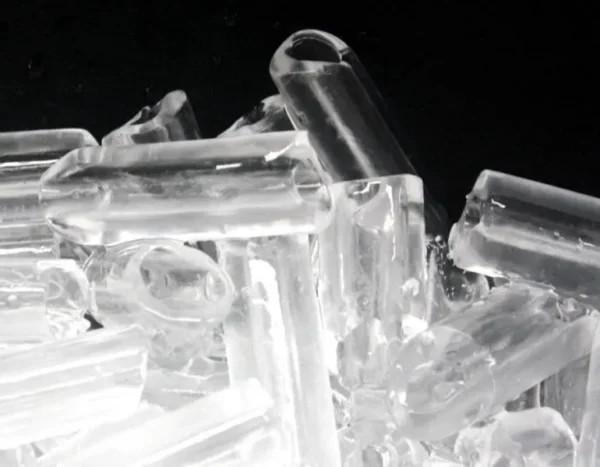

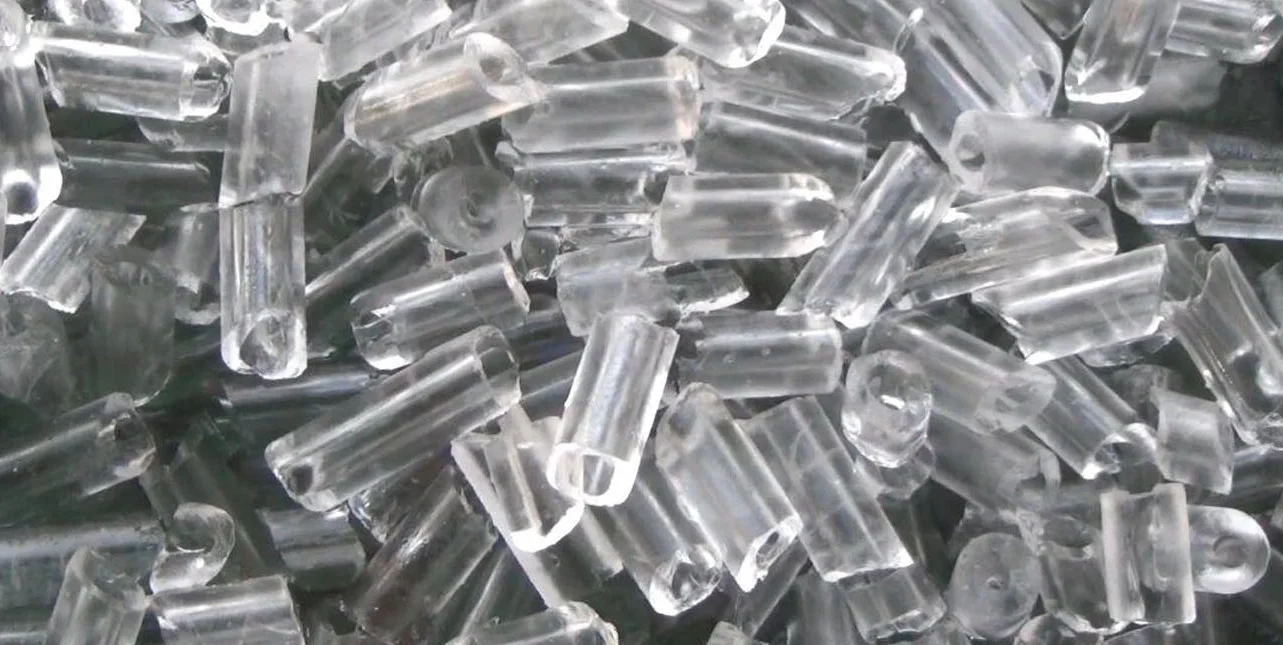

4.The tube ice is hollow cylindrical shape, the outer diameter size is φ26mm, φ28mm, φ32mm, φ34mm and other specifications, the
length is 27~50mm
2.body using 304 stainless steel outer sealing plate, can be directly into the food production plant use, small footprint, low production costs, good freezing effect, save energy, short installation cycle, easy to operate.
3.The ice is thicker and transparent, with long storage period and not easy to melt.
4.The tube ice is hollow cylindrical shape, the outer diameter size is φ26mm, φ28mm, φ32mm, φ34mm and other specifications, the
length is 27~50mm
Tube ice machine ice principle: after the normal operation of the refrigeration system, the water in the lower tank from the
outlet is pumped to the inlet of the upper tank, through the water distributor, the spiral flow down the inner wall of the heat
exchanger tube, and heat exchange with the refrigerant outside the heat exchanger tube, the temperature decreases, part of the water in the inner wall of the heat exchanger tube to form a tubular ice strip, no ice water and back to the lower tank, the water continues to circulate, the ice thickens. The water keeps circulating, the ice keeps thickening, and the inner hole of the tubular ice is getting smaller and smaller. After a certain period of time, the water stops circulating and the ice making system turns into deicing mode, the ice cutting structure is running, the outer surface of the heat exchanger tube becomes high pressure refrigerant hot gas, the hot gas exchanges heat with the tube ice on the inner wall of the tube, the hot gas makes the tube ice melt in contact with the inner wall of the heat exchanger tube, the tube ice loses its adhesive force and falls into the ice cutting structure due to gravity and is cut into one tube ice.
outlet is pumped to the inlet of the upper tank, through the water distributor, the spiral flow down the inner wall of the heat
exchanger tube, and heat exchange with the refrigerant outside the heat exchanger tube, the temperature decreases, part of the water in the inner wall of the heat exchanger tube to form a tubular ice strip, no ice water and back to the lower tank, the water continues to circulate, the ice thickens. The water keeps circulating, the ice keeps thickening, and the inner hole of the tubular ice is getting smaller and smaller. After a certain period of time, the water stops circulating and the ice making system turns into deicing mode, the ice cutting structure is running, the outer surface of the heat exchanger tube becomes high pressure refrigerant hot gas, the hot gas exchanges heat with the tube ice on the inner wall of the tube, the hot gas makes the tube ice melt in contact with the inner wall of the heat exchanger tube, the tube ice loses its adhesive force and falls into the ice cutting structure due to gravity and is cut into one tube ice.
tube ice machine all components contact with ice are made of high-quaity stainless steel to meet safety and hygiene standards. Our tube ice machine, also knowns as tube ice maker, is designed according to pressure vessel standard and CE(PED)ASME certificated. All ice touched parts are made of stainless steel, guaranteeing the sturdiness and sanitation.
PRODUCT SPECIFICATIONS
Ice Output | 1T/2T/5T/10T/15T/20T/40T/24hrs |
Input power | 380v/3P/50Hz |
Condition | New |
Warranty | 1 Year |
Refrigerant | R22/R404A |
About Aidear
Aidear
An excellent, specialized refrigeration system solutions provider.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.
Aidear
Based on Honesty, Responsible, Technology and continuous Innovation.
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer
Aidear, your idea!

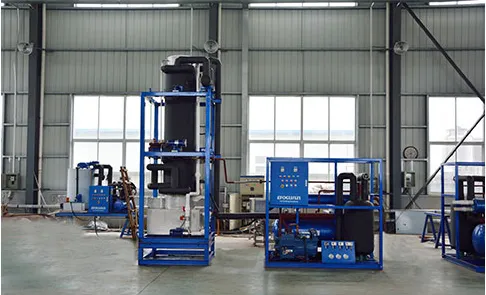

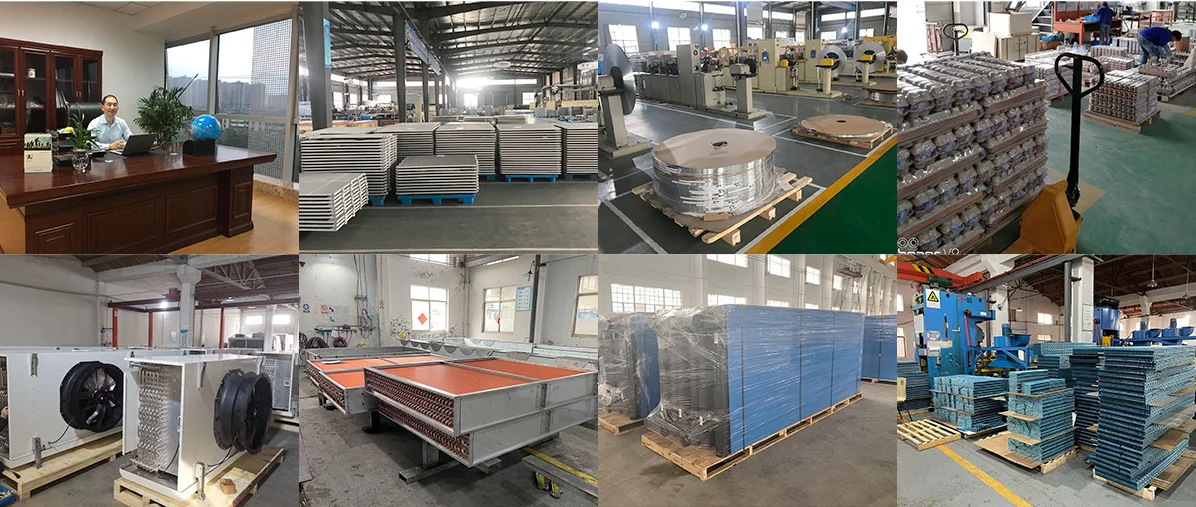

Factory Tour
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.

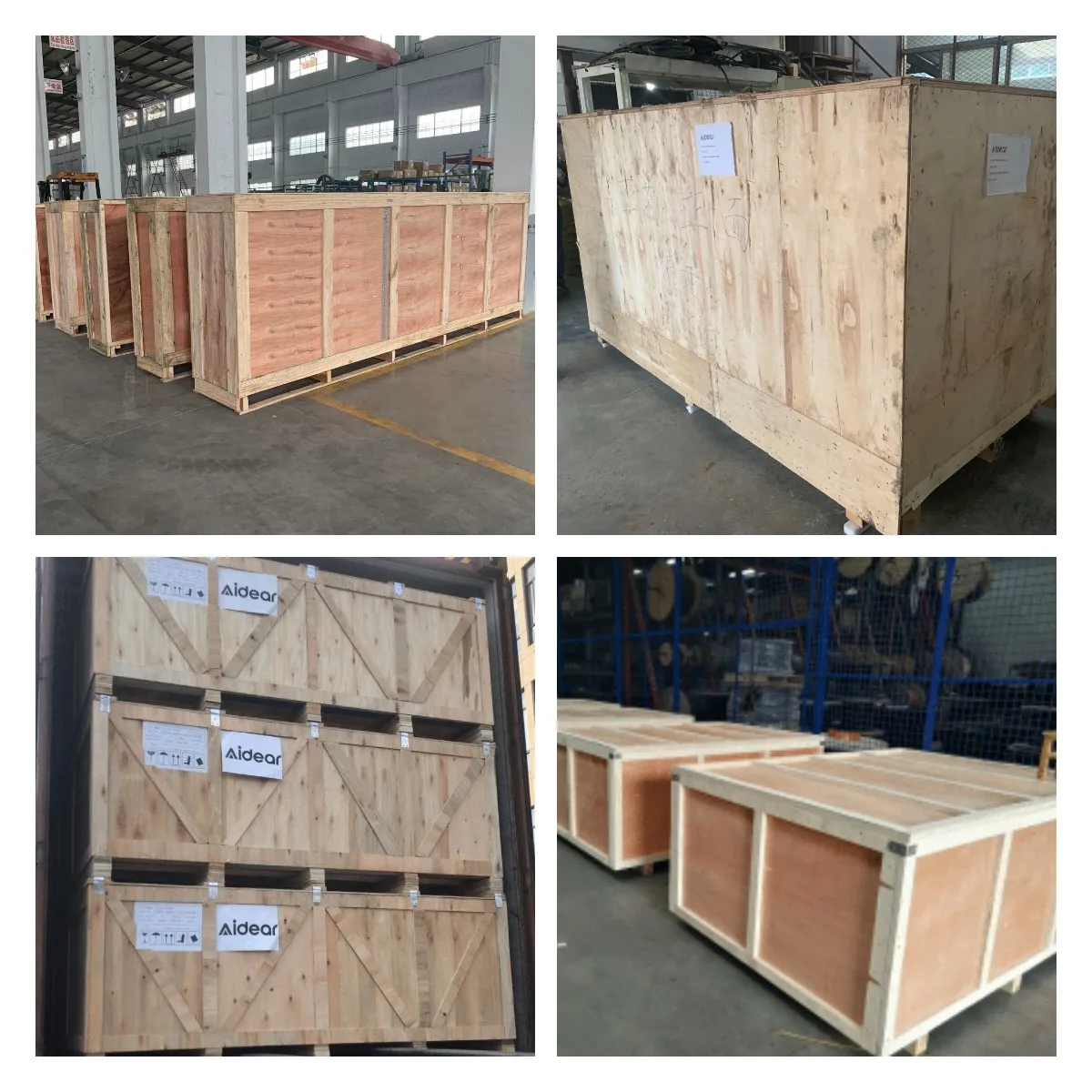

Product packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–5 set: US $50000 / set
- 6–10 set: US $30000 / set
- 11+ set: US $20000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this automatic tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the automatic tube be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Aidear Refrigeration Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Changzhou Aidear Refrigeration Technology Co., Ltd. range on HVACR Nexus.
