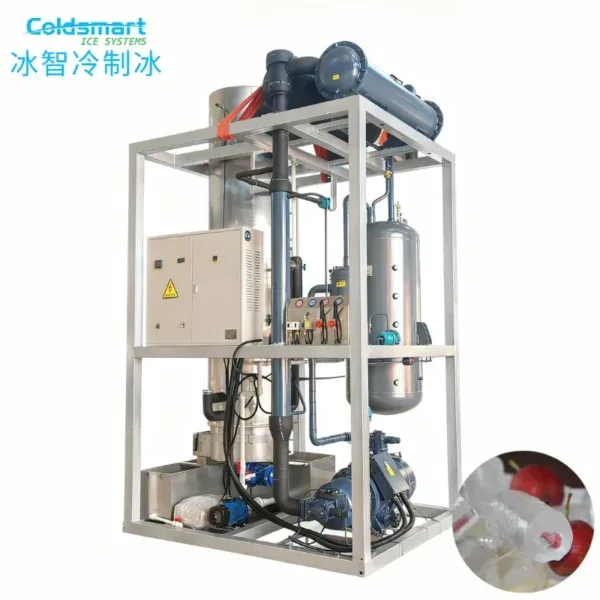

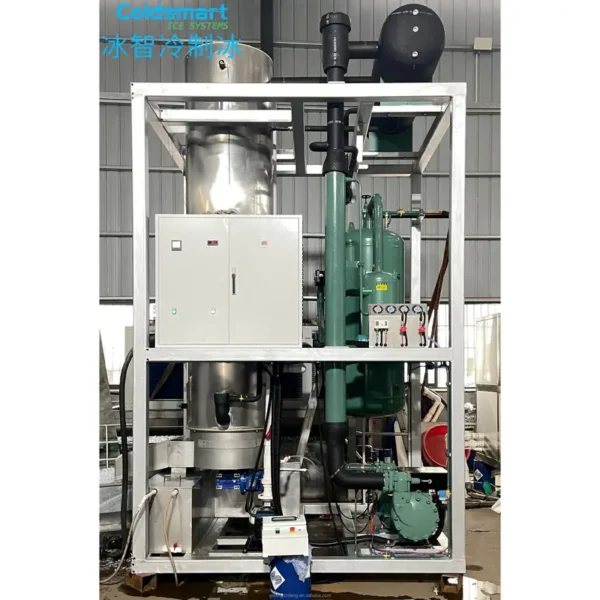

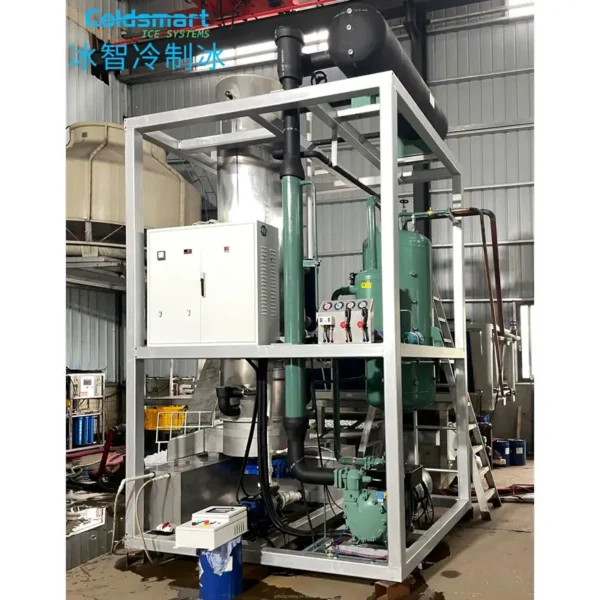

The ice machine listed here carries 380V/50Hz/3P or customized, 15.5kW, documented exactly as the manufacturer publishes it. Made by Guangdong Coldsmart Ice Systems Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ice Machine
- Power: 15.5kW
- Voltage: 380V/50Hz/3P or customized
- Ice Storage Capacity: 5ton
- Refrigerant: R404A
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Ice Shape | tube ice |
|---|---|
| Ice Size(Kg) | 22mm, 29mm, 35mm |
| Ice Storage Capacity | 5ton |
| Voltage | 380V/50Hz/3P or customized |
| Power | 15.5kW |
| Refrigerant | R404A |
| Compressor Brand | Bitzer, Copeland, Hanbell, Danfoss, Refcomp |
| Key Selling Points | Automatic, Easy to Operate, Competitive Price, High Productivity, Energy Saving |
| Application | Industrial |
| Warranty | 1 Year |
| Core Components | Bearing, PLC, Motor, Pump, Compressor, Water Cooling System, Engine |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 800 |
| Brand Name | Coldsmart |
| Dimension(L*W*H) | 4300X2200X2550mm |
| Selling Units | Single item |
Product Details
Model | CST1T | CST2T | CST3T | CST5T | CST10T | |||||
Capacity | 1ton/24h | 2ton/24h | 3ton/24h | 5ton/24h | 10ton/24h | |||||
Running Power | 5.1KW(single) 4.5KW(three) | 7.7KW | 10.35KW | 18.15KW | 34.5KW | |||||
Standard tube ice outer diameter | 22/28/35mm | 22/28/35mm | 22/28/35mm | 22/28/35mm | 22/28/35mm | |||||
Total power | 4.81KW | 7.2KW | 11.8KW | 17.09KW | 34.9KW | |||||
Compressor input power | 3.66KW | 6.3KW | 9.3KW | 13.6KW | 27.9KW | |||||
Dimension of the Machine (mm) | 1350*1360*2120 | 1600*1500*2350 | 1700*1600*2380 | 1900*1800*2400 | 2100*1600*3150 | |||||
Net Weight | 800KG | 1000KG | 1100KG | 1650KG | 2750KG | |||||
Support customized the cooling method, compressor, power supply, and your own logo | ||||||||||
We also have other larger model for your choice,such as 15T model,20T model,25T model,30T model….. | ||||||||||
* The evaporating / condensing temp.:-15°C/40°C(Air-cooled) 38°C(Water cooled)
* Power supply: 3P/380V/50Hz(3P/220/60Hz,3P/380V/60Hz,1P/220V/50Hz optional)
* Refrigerant: R404A/R22

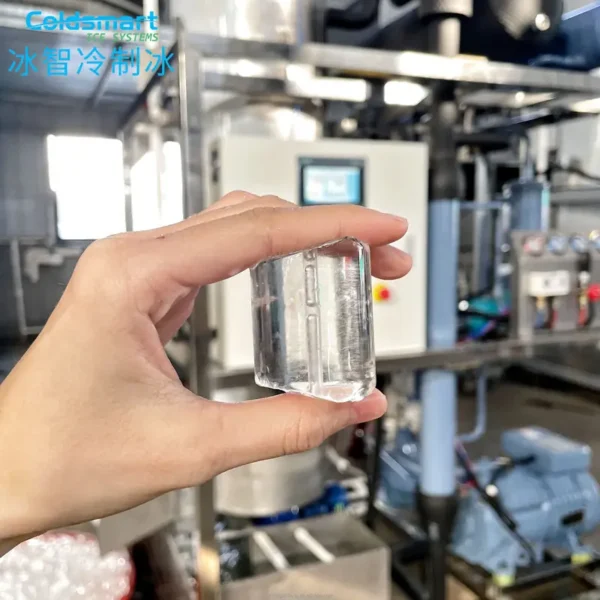

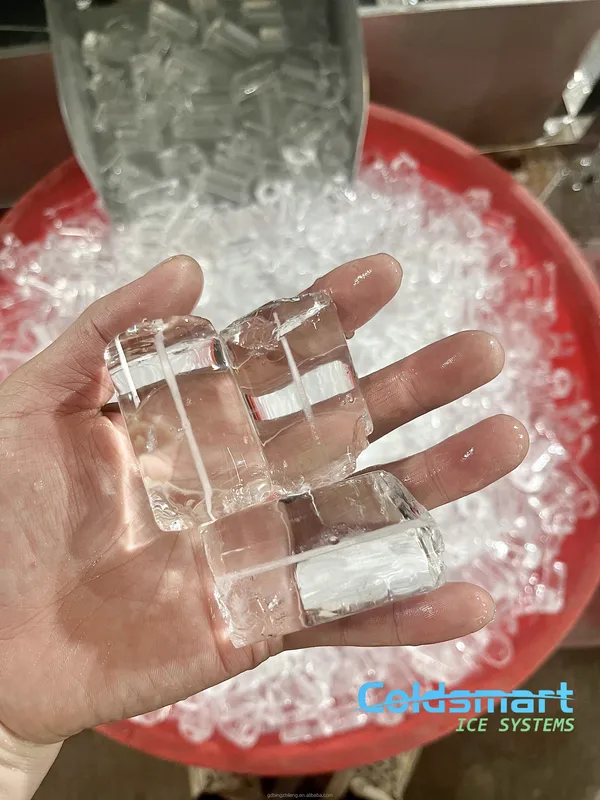

* Ice tube diameter: Φ22,Φ29,Φ35 is optional
We are based in Guangdong, China, start from 2010,sell to Southeast Asia(30.00%),South Asia(25.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Tube Ice Machine,Cube Ice Machine,Flake Ice Machine,Cold room,semi-packing machine
4. why should you buy from us not from other suppliers?
we're an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales service of a large-scale industrial ice making equipments.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $6900 / set
- 10+ set: US $5900 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice machine?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice machine be supplied for my local voltage?
The standard configuration is 380V/50Hz/3P or customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Coldsmart Ice Systems Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangdong Coldsmart Ice Systems Co., Ltd. range on HVACR Nexus.
