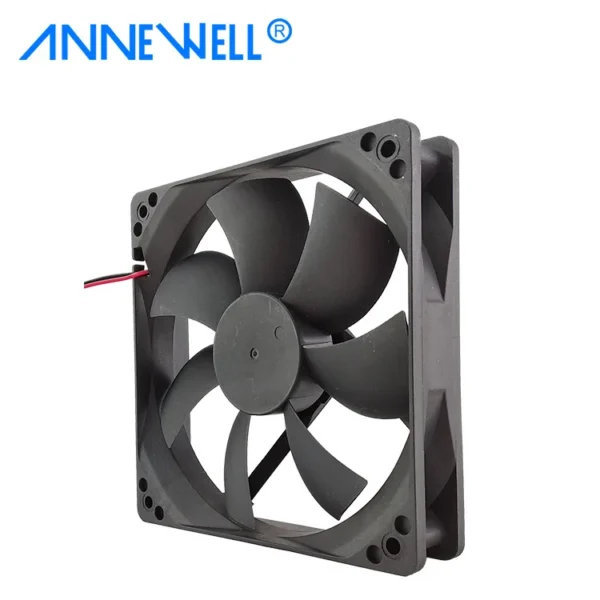

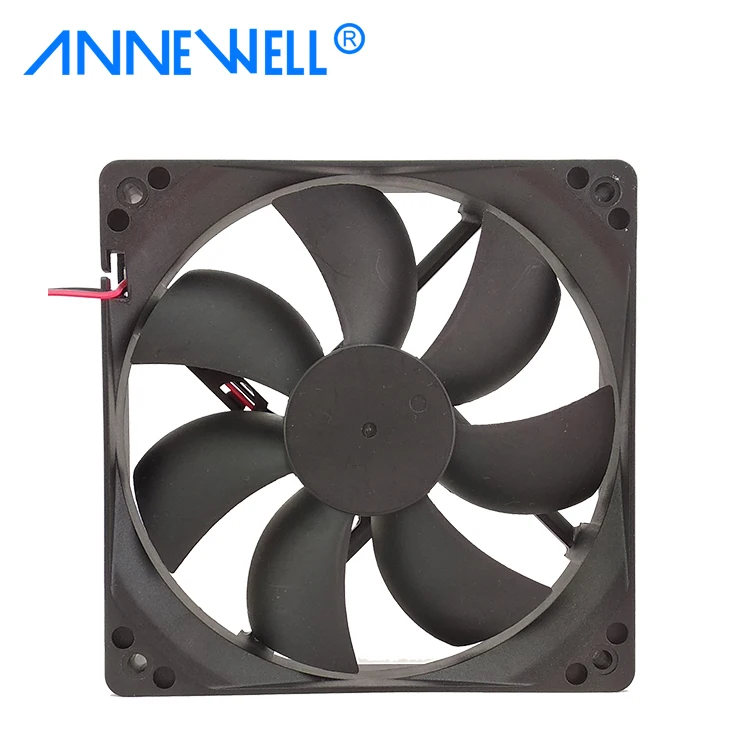

The axail fan listed here carries 24 V, 48 V, 5V/12V, power source Electric, documented exactly as the manufacturer publishes it. Made by Xuchang Wonderful Electric Co., Ltd. (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axail Fan
- Model Number: WDF12025SL 5V, WDF12025SL 12V, WDF12025SL 24V
- Power Source: Electric
- Voltage: 24 V, 48 V, 5V/12V
- Material: Plastic
- Blade Material: Plastic
- Warranty: Other
Technical Specifications
| Voltage | 24 V, 48 V, 5V/12V |
|---|---|
| Type | High-Temperature Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | Other |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Henan, China |
| Brand Name | ANNEWELL |

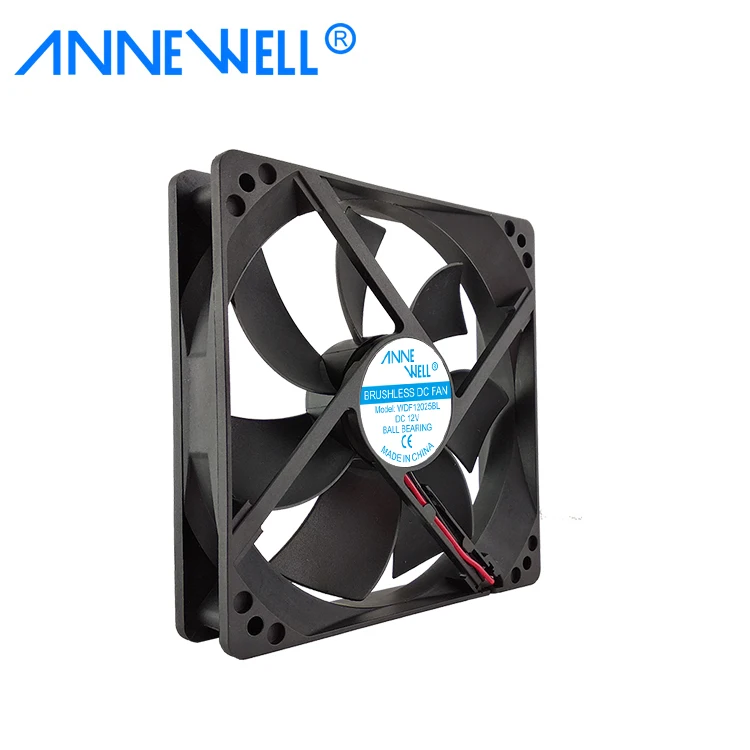

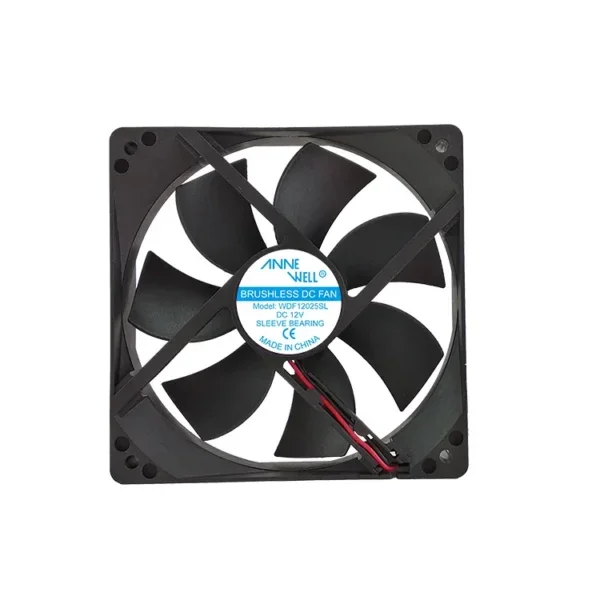

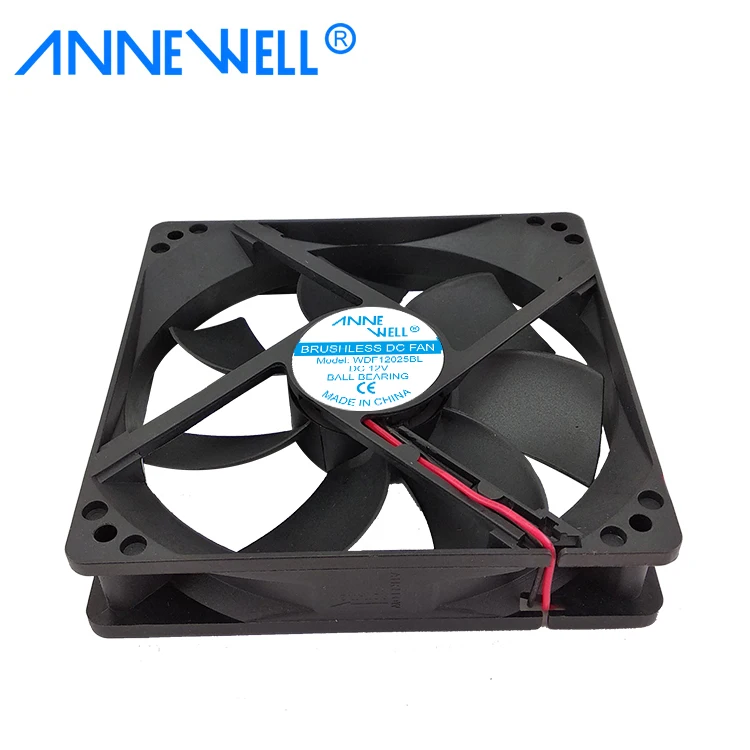

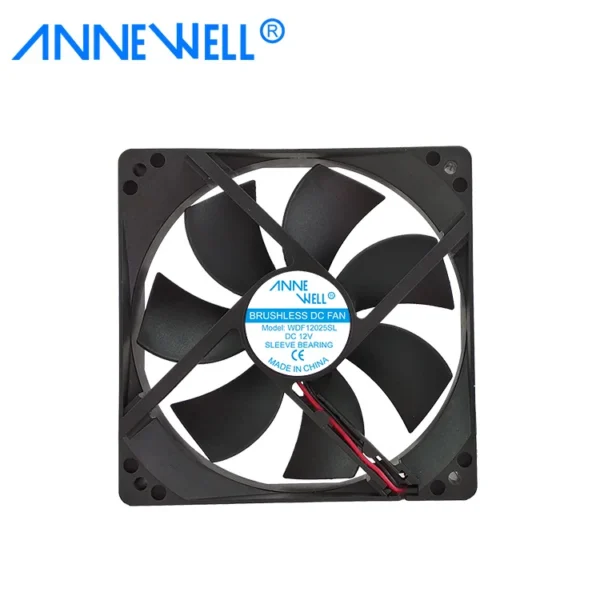

| Model Number | WDF12025SL 5V, WDF12025SL 12V, WDF12025SL 24V |
| Product Name | DC Brussless Fan |
| Size | 120x120x25mm |
| Operation Temperature | -10℃~70℃ |
| Motor | Copper Motor |
| Air Pressure | 1.25/2.78mmH2O |
| Noise | 20.8/30.9dBA |
| Weight | 135g |
| Current | 0.08/0.26A |
| Selling Units | Single item |
| Single Package Size | 15X15X5 cm |
| Single Gross Weight | 0.2 kg |
Product Details

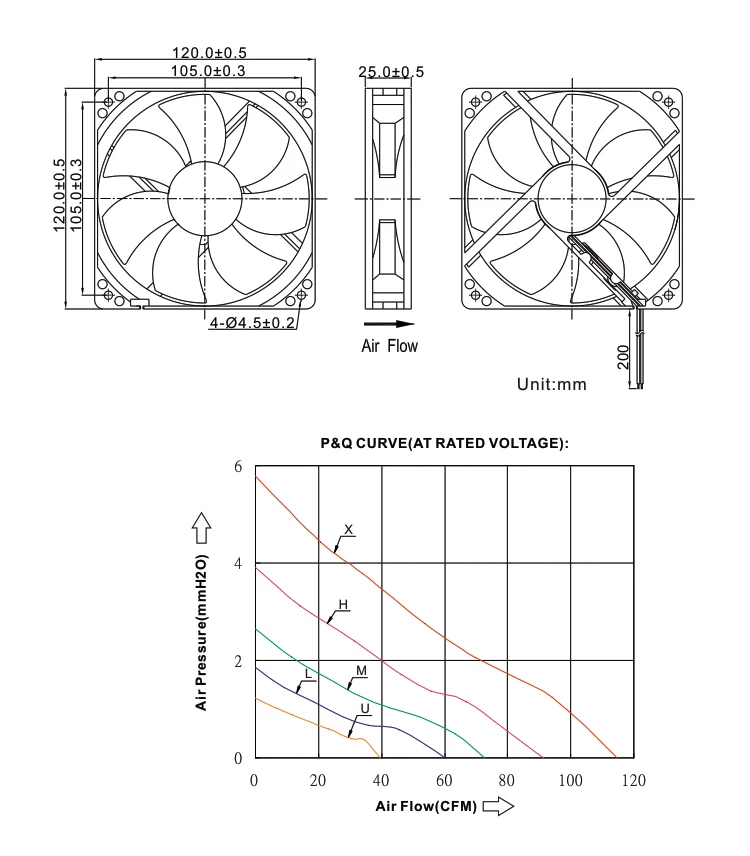

| Model | WDF12025 | Size | 120x120x25mm |

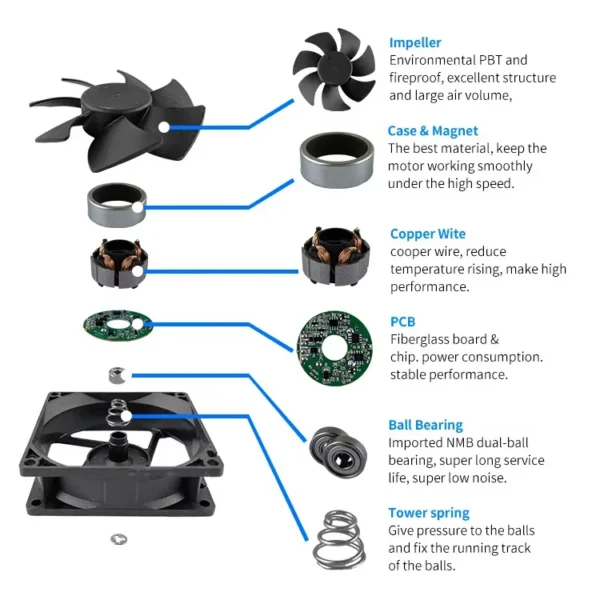

| Frame | Thermal Plastic,UL 94V-0 | Impeller | Thermal Plastic,UL 94V-0 |
| Bearing Type | Sleeve/Ball | Lead Wire | UL Type |
| Motor | Copper Motor | Insulation | Above 10M Between Lead wire and Frame DC500V |
| Weight | 135g | Rated Voltage | 12v |
| Application | 3D printers,Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer.Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine.CPU cooler,Case. | ||
| Listed Model | Bearing System | Rated Voltage | Operation Voltage | Rated Current | Rated Power | Speed | Air Flow | Static Pressure | Noise Level | Available Features(Optional) | Weight | |||
| VDC | VDC | AMP | W | RPM | CFM | mmH2O | dBA | FG | RD | Thermal Control | PWM | G | ||
| WDF12025XS/B | Sleeve/ Ball | 12 | 5.0~14.0 | 0.50 | 6.00 | 3,000 | 114.72 | 5.78 | 45.9 | * | * | * | * | 135 |
| WDF12025DS/B | 5.0~14.0 | 0.26 | 3.12 | 2,500 | 91.43 | 3.91 | 41.0 | * | * | * | * | |||
| WDF12025HS/B | 5.0~14.0 | 0.20 | 2.40 | 2,000 | 72.75 | 2.65 | 35.6 | * | * | * | * | |||
| WDF12025MS/B | 5.0~14.0 | 0.15 | 1.80 | 1,700 | 60.17 | 1.85 | 30.3 | * | * | * | * | |||
| WDF12025LS/B | 5.0~14.0 | 0.10 | 1.20 | 1,400 | 39.48 | 1.23 | 25.1 | * | * | * | * | |||
| WDF12025XS/B | Sleeve/ Ball | 24 | 12.0~26.0 | 0.30 | 7.20 | 3,000 | 114.72 | 5.78 | 45.9 | * | * | * | * | |
| WDF12025DS/B | 12.0~26.0 | 0.20 | 4.80 | 2,500 | 91.43 | 3.91 | 41.0 | * | * | * | * | |||
| WDF12025HS/B | 12.0~26.0 | 0.14 | 3.36 | 2,000 | 72.75 | 2.65 | 35.6 | * | * | * | * | |||
| WDF12025MS/B | 12.0~26.0 | 0.09 | 2.16 | 1,700 | 60.17 | 1.85 | 30.3 | * | * | * | * | |||
| WDF12025LS/B | 12.0~26.0 | 0.06 | 1.44 | 1,400 | 39.48 | 1.23 | 25.1 | * | * | * | * | |||
| Q:Are you a factory or trading company? |
| A:We are a factory. |
| Q:What is the products of our factory ? |
| A: The products are Dc cooling fans , Ac cooling fans, Blower cooling fans, Cpu cooling fan, VGA cooling fan.Our fans from 20mm-220mm . We can also do cooling fans as customers' requirement. |
| Q: Do you provide samples ? is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: It needs to be decided on the basis of the situation. |
| Q: How long is your delivery time? |
| A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. |

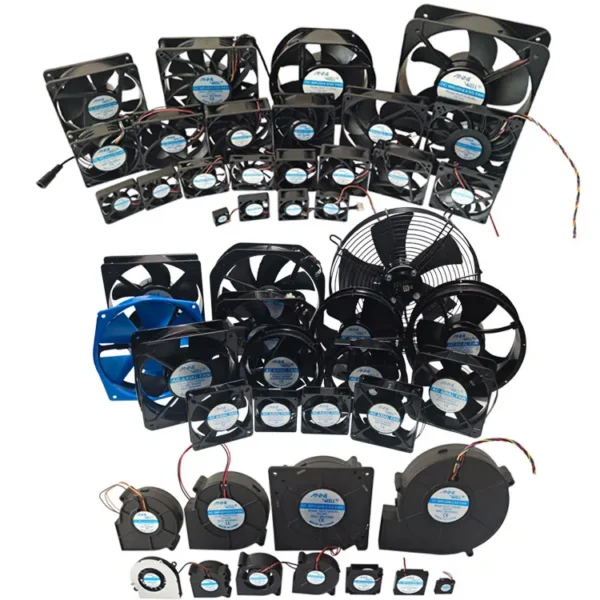

| Other Dimension | |||||
| 20*20*6mm | 20*20*10mm | 25*25*7mm | 25*25*10mm | 35*35*10mm | 40*40*10mm |
| 40*40*10mm | 40*40*20mm | 40*40*28mm | 50*50*10mm | 50*50*15mm | 60*60*15mm |
| 60*60*20mm | 60*60*25mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*25mm |
| 90*90*25mm | 92*92*38mm | 120*120*25mm | 120*120*38mm | 135*135*38mm | 140*140*25mm |
| 140*140*38mm | 150*150*50mm | 172*150*38mm | 170*152*51.5mm | 180*180*60mm | 200*200*60mm |
| 220*220*60mm | 225*255*80mm | 280*280*80mm | |||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–999 piece: US $0.85 / piece
- 1000–1999 piece: US $0.78 / piece
- 2000–2999 piece: US $0.71 / piece
- 3000+ piece: US $0.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axail fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Other warranty. Spare parts and technical support remain available after the warranty period.
Can the axail fan be supplied for my local voltage?
The standard configuration is 24 V, 48 V, 5V/12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xuchang Wonderful Electric Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Xuchang Wonderful Electric Co., Ltd. range on HVACR Nexus.
