The axial exhaust turbo ventilator listed here carries 0v, power source Wind energy, documented exactly as the manufacturer publishes it. Made by Hangzhou Ocean Industry Co., Ltd. (20 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Exhaust Turbo Ventilator
- Model Number: 100mm,150m,200mm,300mm,400m,500mm
- Power Source: Wind energy
- Voltage: 0v
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Warranty: 1 Year
Technical Specifications
| Voltage | 0v |
|---|---|
| Type | Roof Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Roof Fan |
| Bearing Type | Ball Bearing |
| Power Source | Wind energy |
| Warranty | 1 Year |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China (Mainland) |
| Brand Name | MW |
| Model Number | 100mm,150m,200mm,300mm,400m,500mm |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Application | Industry |
| Size | 100mm~1200mm |
| Color | Slive |
| Usage | Fresh Air |
| Product Name | Air Exhaust Fan |
| Feature | Low Noise Power Saving |
| Certification | ce |
| Selling Units | Single item |
| Single Package Size | 68X68X20 cm |
| Single Gross Weight | 5.0 kg |
Product Details

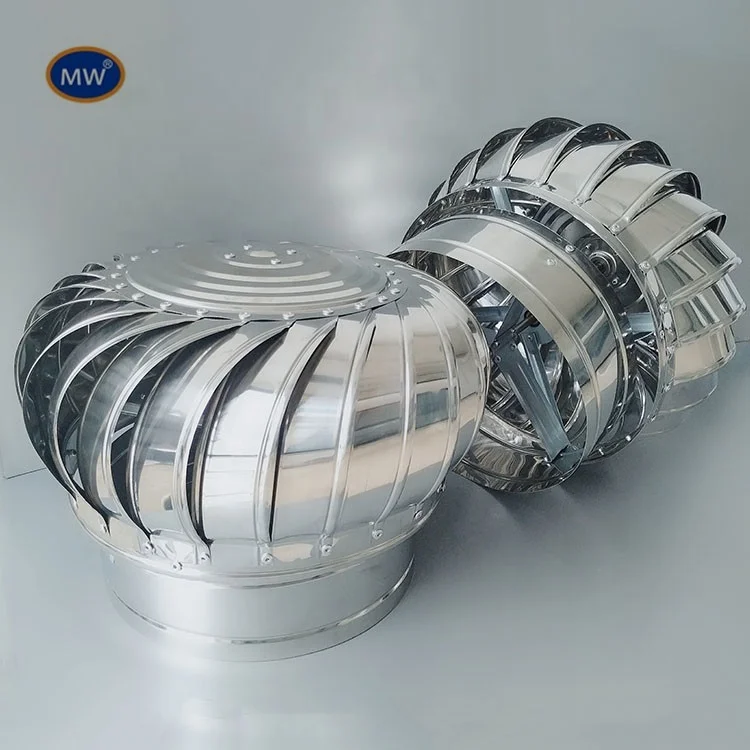

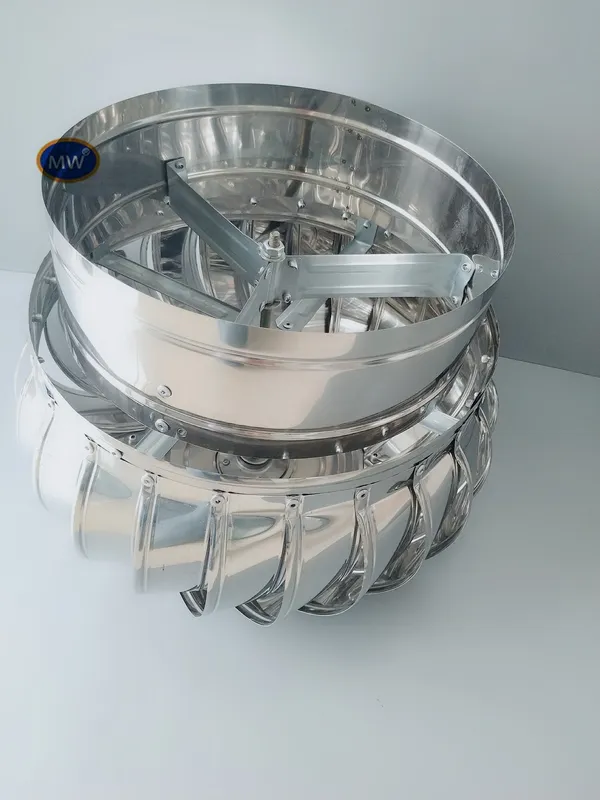

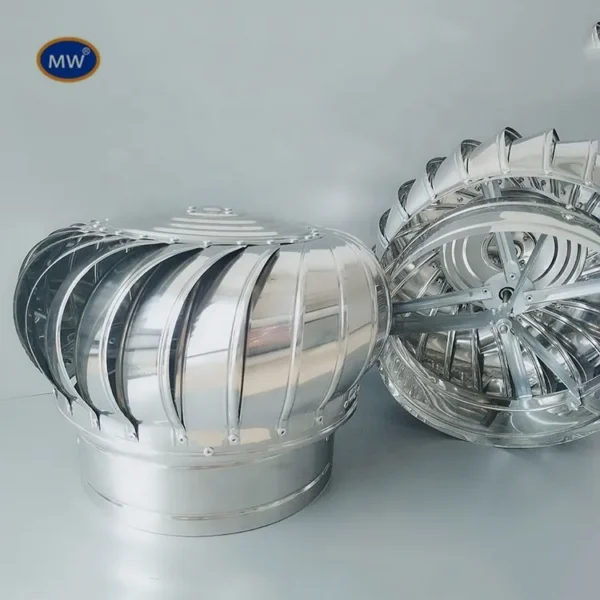

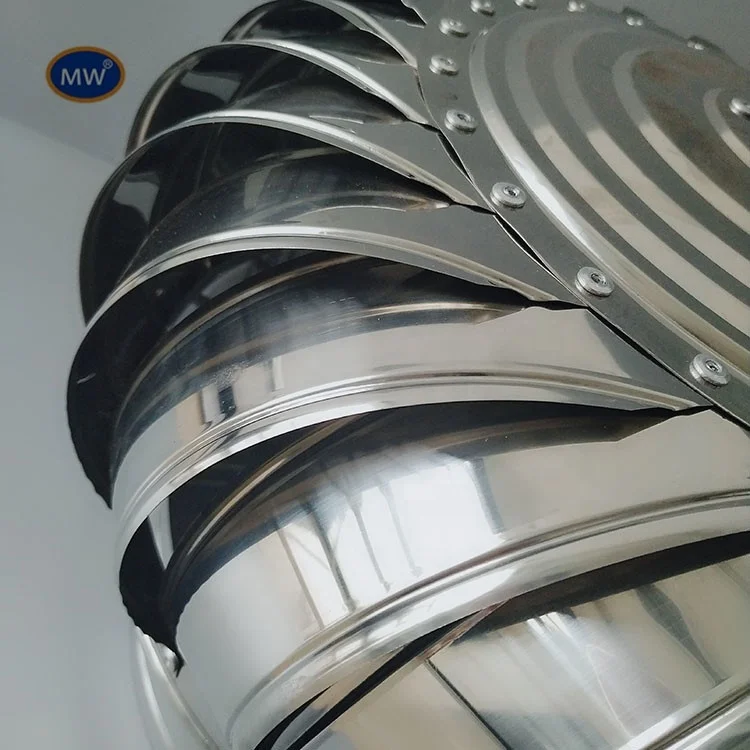

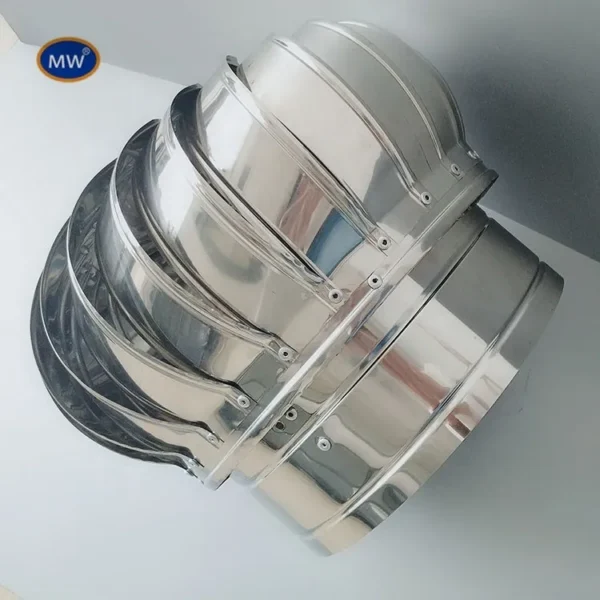

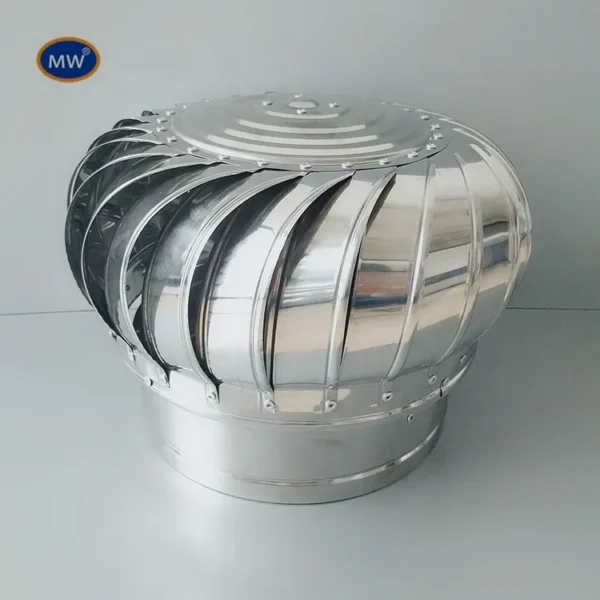

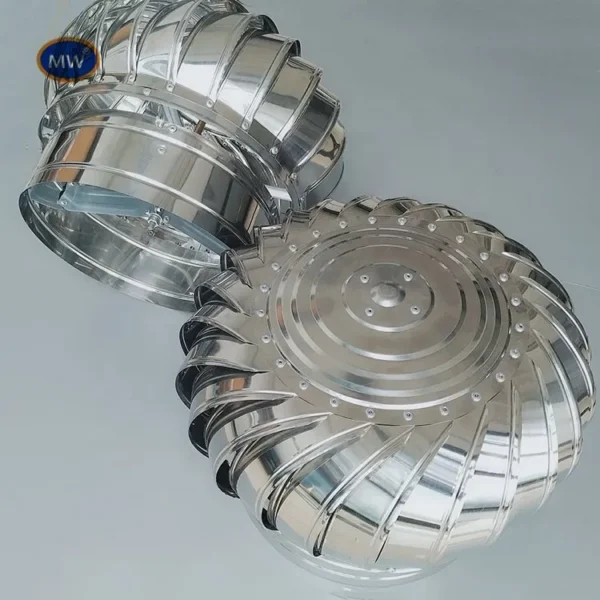

High Performance 500mm Centrifugal Roof Exhaust Turbo Ventilator Fan Tornado Wind Power for Home with OEM Support
UNCTIONS &FEATURE:
1,It can absorb the hot air, moisture, dust, foul smell, smoke from residence and from kitchen chimneys of workshops
automatically, also it can decrease indoor noise, increase light.
2,It runs automatically all the time and no stop according to natural weather; It doesn't need any power, saving energy and cost.
3, It is installed on the top of buildings or on the wall with good appearance.
4, Simple and convenient installation, No Operational and Maintenance Cost.
5, No roof leaking, 100% waterproof result with raining or snowing weather.
6,Enhances the architectural and aesthetic appearance of buildings.
7, It suits all roof types with slopes from zero to 22.5degree.

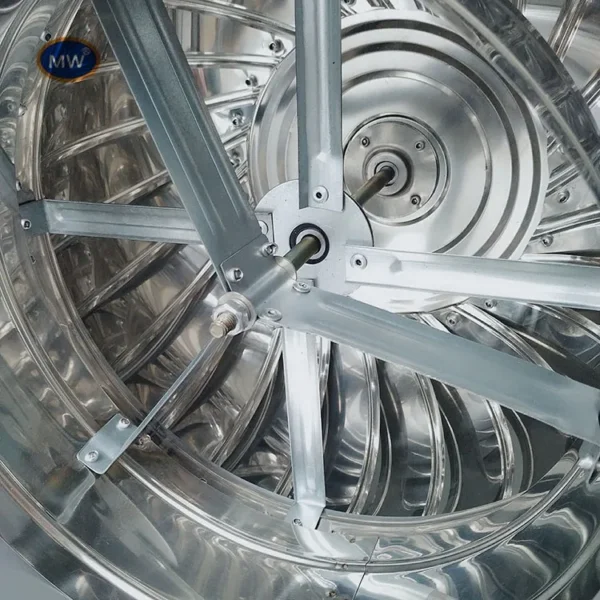

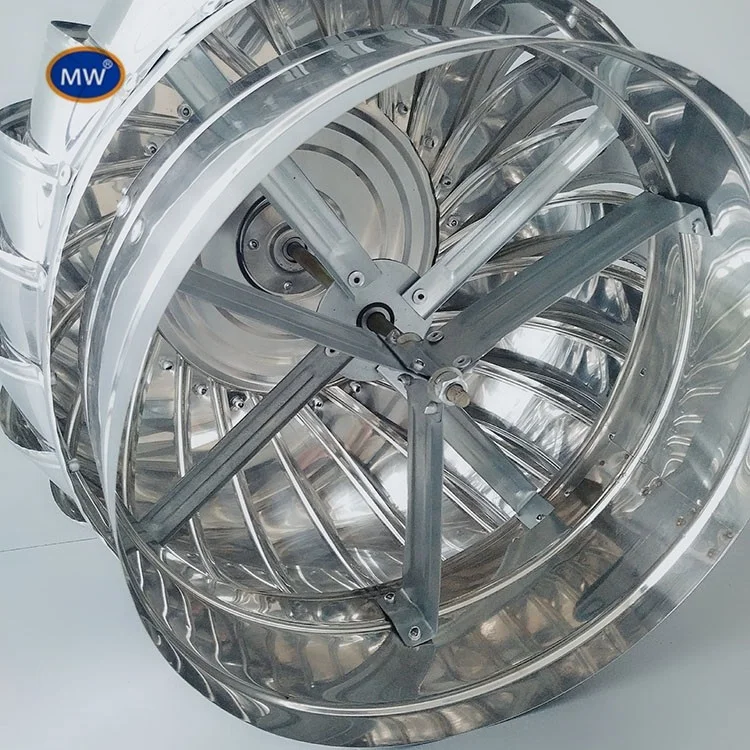

8, Precision steel bearings imported from abroad.
9, Improves efficiency of air conditioning. Where ducted air conditioning is installed at home. It will lower roof space temperatures, thereby reducing the level of heat exchange occurring between air in the attic and the cool air carried within the ducting system. This in turn causes less strain on the air-conditioner unit
1,It can absorb the hot air, moisture, dust, foul smell, smoke from residence and from kitchen chimneys of workshops
automatically, also it can decrease indoor noise, increase light.
2,It runs automatically all the time and no stop according to natural weather; It doesn't need any power, saving energy and cost.
3, It is installed on the top of buildings or on the wall with good appearance.
4, Simple and convenient installation, No Operational and Maintenance Cost.
5, No roof leaking, 100% waterproof result with raining or snowing weather.
6,Enhances the architectural and aesthetic appearance of buildings.
7, It suits all roof types with slopes from zero to 22.5degree.
8, Precision steel bearings imported from abroad.
9, Improves efficiency of air conditioning. Where ducted air conditioning is installed at home. It will lower roof space temperatures, thereby reducing the level of heat exchange occurring between air in the attic and the cool air carried within the ducting system. This in turn causes less strain on the air-conditioner unit
How to calculate and determine the number of ventilators 1. Determine the indoor volume of the building vol (length x width x height) 2. According to the type of building, the air rate required per hour is determined by table 1 a/c 3. Determine standard wind speeds based on local meteorological records (6, 8, 10, 12, and 16 km/h) 4. Calculation formula for the number of ventilators: number of ventilators =volxma/c / the ventilation capacity (m3/h) is determined by table 2
No power ventilator specification model:
MODEL | BLADE | HEIGHT (MM) | VENTILATION DIAMETER (MM) |
OIC-100 | 12 | 200 | 100 |
OIC-160 | 16 | 250 | 160 |
OIC-200 | 20 | 250 | 200 |
OIC-300 | 24 | 330 | 300 |
OIC-360 | 24 | 400 | 360 |
OIC-400 | 26 | 390 | 400 |
OIC-450 | 32 | 500 | 450 |
OIC-A500 | 25 | 500 | 500 |
OIC-500 | 32 | 480 | 500 |
OIC-600 | 32 | 600 | 600 |
OIC-680 | 32 | 610 | 680 |
OIC-800 | 42 | 660 | 800 |
OIC-900 | 48 | 700 | 900 |
OIC-1000 | 48 | 700 | 1000 |
Ventilators used in different states reference value summary table. Different types of building air changes recommended ualue （a/c)
BUILDING TYPE | SQUARE | SELECT MODEL | BUILDING TYPE | HOURLY EXHAUSTS |
STEAM WORKSHOP | 20-40M2/SET | MAIN OIC-500-1000 | WAREHOUSE | 4-8 |
CHEMICAL ODOR WORKSHOP | 30-80M2/SET | MAIN OIC-600-1000 | GARAGE | 4-10 |
DUST WORKSHOP | 40-80M2/SET | MAIN OIC-500-1000 | PRINTING HOUSE | 5-12 |
BREEDING WORKSHOP | 60-100M2/SET | MAIN OIC-400-1000 | ASSEMBLY HALL | 6-12 |
VENTILATION VENTILATION WORKSHOP | 50-100M2/SET | MAIN OIC-500-1000 | CHEMICAL WORKSHOP | 8-14 |
PUBLIC BUILDINGS, RESIDENTIAL BUILDINGS | 40-100M2/SET | MAIN OIC-600-1000 | HIGH TEMPERATURE WORKSHOP | 10-16 |
OTHER | 80-120M2/SET | GENERAL PURPOSE | GYMNASIUM, TENNIS HALL | 3-10 |
Hangzhou Ocean Industry Co., Ltd.
Our ventilator factory is the professional suppliers for solutions to skylight, ventilation and firefighting smoke ventilation for different kinds of construction buildings. We have a great team that own leading and professional technique, standard management and perfect service. We have built long-term and steady business relationship with hundreds of customers all over the world.
With spirit of Honest, Specialty, High quality and Efficiency, we always developing advantages of technology, innovation, energy saving and environmental protection to make sure high quality of products, to enlarge scale, and to actively improving product core competitiveness and persisting in specialty, branding and internationalization.
With spirit of Honest, Specialty, High quality and Efficiency, we always developing advantages of technology, innovation, energy saving and environmental protection to make sure high quality of products, to enlarge scale, and to actively improving product core competitiveness and persisting in specialty, branding and internationalization.
Powerless roof ventilator,roof turbine ventilator , roof smoke ventilator, roof mount ventilator, roof ventilator for factory, roof wind ventilator, wind driven roof ventilator, roof turbo ventilator, industrial roof ventilations, roof centrifugal ventilator, powerless roof ventilator, automatic roof ventilator, roof ridge ventilator, roof ventilation.roof exhaust fan, city roof fan wind ventilator, roof fan fan part ventilation fan, powerless roof ventilator,garage ventilation operate use the slight energy of the wind, so it save power cost.
It work without the electricity power,they can change our air condition indoor,leave us a comfortable environment.
The turbine alway rotate in the same direction no matter of the wind strength or its direction.
It is to be mounted on gravitation based ventilation chimney duct ending.Roof turbine ventilator can exhaust the hot air, waste gas, dust and other harmful gas; meanwhile Beautify our living and surrounding.
It is widely used in home and factory.
Material: steel, aluminium, stainless steel available
You can let me know your warehouse area and temperature and so on and then we can help you to choose the right item and quantity
wind-driven ventilator that is installed on the roof top or on the wall to provide effective ventilation for all kinds of
building. A good choice to get clean air, to increase working effect and to get good working environment.
It work without the electricity power,they can change our air condition indoor,leave us a comfortable environment.
The turbine alway rotate in the same direction no matter of the wind strength or its direction.
It is to be mounted on gravitation based ventilation chimney duct ending.Roof turbine ventilator can exhaust the hot air, waste gas, dust and other harmful gas; meanwhile Beautify our living and surrounding.
It is widely used in home and factory.
Material: steel, aluminium, stainless steel available
You can let me know your warehouse area and temperature and so on and then we can help you to choose the right item and quantity
wind-driven ventilator that is installed on the roof top or on the wall to provide effective ventilation for all kinds of
building. A good choice to get clean air, to increase working effect and to get good working environment.
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $34 / piece
- 100+ piece: US $29 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial exhaust turbo ventilator?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial exhaust turbo ventilator carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial exhaust turbo ventilator be supplied for my local voltage?
The standard configuration is 0v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Ocean Industry Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Hangzhou Ocean Industry Co., Ltd. range on HVACR Nexus.
