Key specification for this axial fan: voltage 230, power source Electric. Everything below is reproduced from the factory data sheet. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (7 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Fan
- Model Number: BL-A250C-EC-00
- Power Source: Electric
- Voltage: 230
- Blade Material: Cast Iron
- Warranty: 2 Years
- Certification: RoHS,CCC,CE
Technical Specifications
| Voltage | 230 |
|---|---|
| Type | Duct Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | China |
| Brand Name | Blauberg |
| Model Number | BL-A250C-EC-00 |
| Product Name | FAN MOTOR |
| Application | General Machinery |
| Color | Picture |
| Usage | Electric Tool |
| Housing | Iron |
| Protection Class | IP55 |
| Certification | RoHS,CCC,CE |
| Size | 250*250*75.4 mm |
| Selling Units | Single item |
| Single Package Size | 45X45X35 cm |
| Single Gross Weight | 5.0 kg |

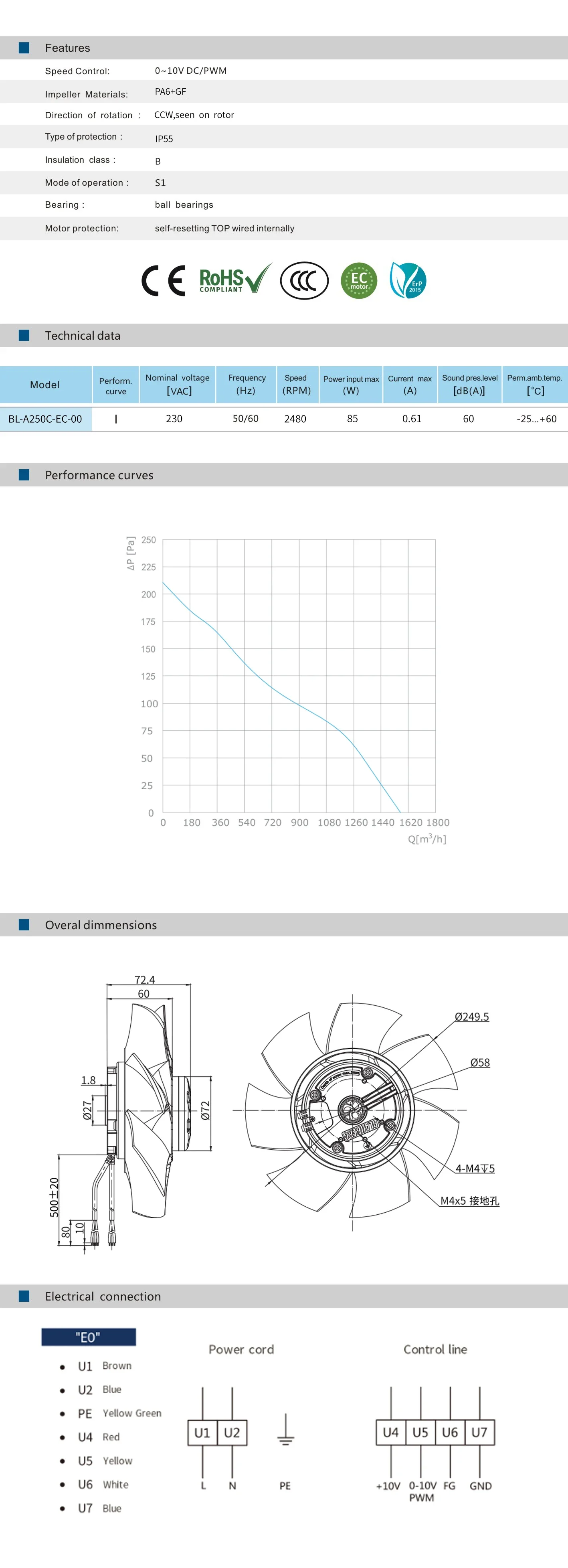

Product Details
Dimension: | 250*250*75.4 mm | Mode of operation: | S1 |
Materials Impeller: | PA6+GF | Bearing: | ball bearings |
Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
Direction of rotation : | clockwise,seen on rotor | Air Flow: | 1580M³/H |
Number of Blades: | 7 | Static Pressure: | 205 Pa |
Speed Control: | 0~10VDC / PWM | Life Expectance: | 50,000 Hours(L10) |
Operating Voltage: | 230VAC | Operating Humidity: | 5%-90% RH |
Type of protection: | IP55 | Signal Output: | FG (Frequency Generator) |
Insulation class: | B | Authentication: | UL,CE,ROHS,CCC,ISO |
Model | Nominal voltage[VDC] | Speed (RPM) | Power input max(W) | Current max(A) | Sound pres level[dB(A)] | Perm amb temp[*c) | Electrical connection |
BL-A200C-EC-02S | 230 | 3600 | 115 | 0.85 | 64 | -25 ºC ~ +60 ºC | E0 |
BL-A400C-EC-07S | 230 | 1180 | 170 | 1.3 | 68 | -25 ºC ~ +60 ºC | E0 |
BL-A250C-EC-02S | 230 | 2950 | 115 | 0.85 | 60 | -25 ºC ~ +60 ºC | E0 |
BL-A350C-EC-05S | 230 | 2500 | 700 | 3.1 | 80 | -25 ºC ~ +60 ºC | E0 |
BL-A400C-EC-05S | 230 | 1800 | 700 | 3.1 | 62 | -25 ºC ~ +60 ºC | E0 |
1 | Ventilation & Purification | 7 | Automobile Industry |
2 | Air Conditioning | 8 | Household Electric Appliances |
3 | Cold Storage and Cold Chain | 9 | Cloud Date Center |
4 | IT & Electronic Industry | 10 | Mechanical Equipment and Systems |
5 | Medical Industry | 11 | Energy-saving & Intelligent Retrofitting |
6 | Heating |
1 | Charging Column | 9 | Equipments Cooling Project |
2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
3 | FFU Project | 11 | AHU（Air Handing Unit）Project |
4 | Computer room cooling | 12 | Air Purifier Project |
5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
6 | Electrical appliances | 14 | Telecom Container Project |
7 | FanGrid Project | 15 | Data Center Cooling Project |
8 | Ventilation Equipments Project |
Our Certificate | ||||||||||
RoHS | ISO 9001 | ISO 45001 | CCC | CE | CB | |||||
Title goes here.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $43.26 / piece
- 100–999 piece: US $38.41 / piece
- 1000+ piece: US $31.03 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial fan carry?
It is supplied with RoHS,CCC,CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial fan be supplied for my local voltage?
The standard configuration is 230. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Blauberg Motoren Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Blauberg Motoren Technology Co., Ltd. range on HVACR Nexus.
