This axial fan is published with the manufacturer’s full specification — 12V, maximum air flow 29.7-48.3CFM. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Fan
- Model Number: 9232
- Power Source: Electric
- Rated Input Power: 0.72-1.56W
- Voltage: 12V
- Rated Voltage: 12V
- Maximum Air Flow: 29.7-48.3CFM
Technical Specifications
| Blade Diameter | 3.346 in |
|---|---|
| Voltage | 12V |
| Speed | 2400RPM – 3350RPM |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | screw mounting |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | mega |
| Model Number | 9232 |
| Rated Voltage | 12V |
| Rated Current | 0.06-0.13Amp |
| Rated Input Power | 0.72-1.56W |
| Color: | Black |
| Maximum Air Flow | 29.7-48.3CFM |
| Speed: | 2400RPM – 3350RPM |
| MaximumAir Pressure | 0.09-0.19mmH2o |
| Bearing Type: | Dual Ball Bearing |
| Certification | ce |
| Selling Units | Single item |
| Single Package Size | 9.2X9.2X3.2 cm |
| Single Gross Weight | 1.125 kg |
Product Details
Mega Customizable Efficient 92x92x32mm DC Axial Fan for Electronics and Computers
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
Product Description
Product Overview

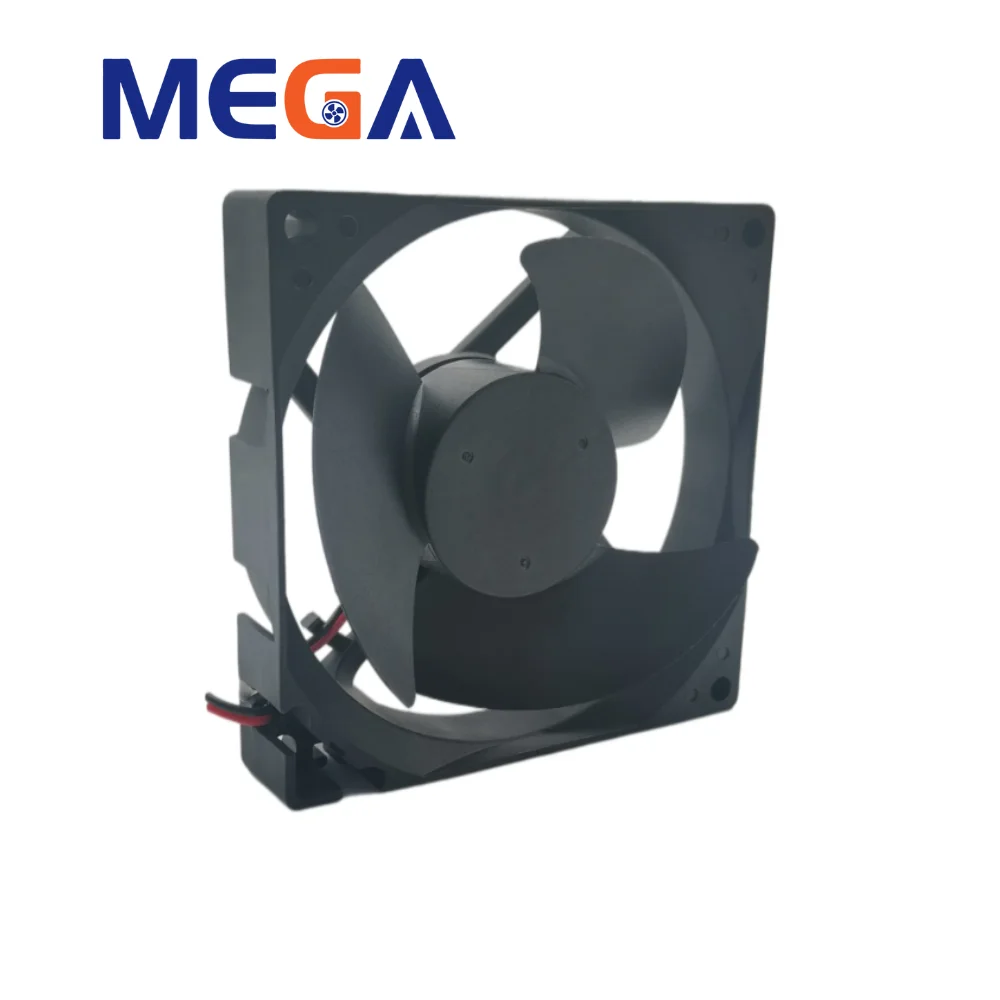

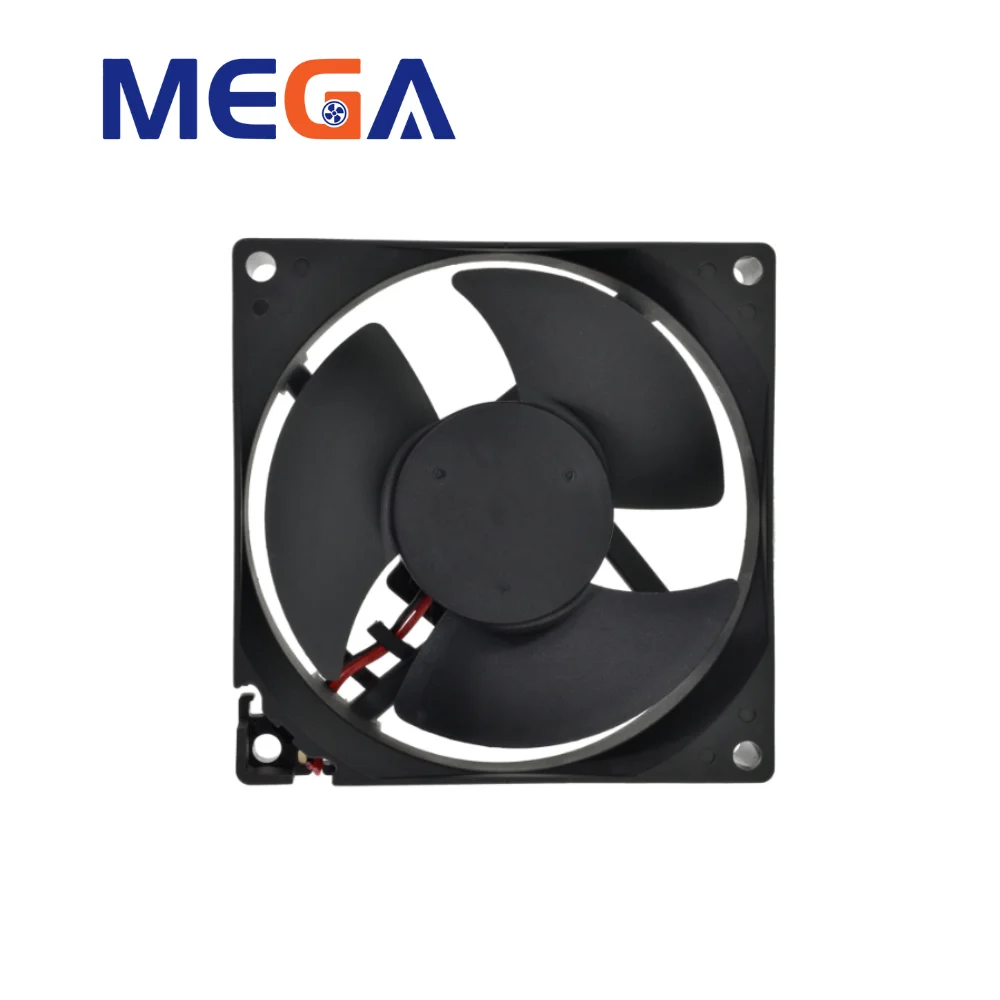

The product shows a DC brushless fan model MG9232H12X manufactured by Guangzhou Mega Technology Co., Ltd. It is a 92x92x32mm fan with a rated voltage of 12V DC and a rated current of 0.13A. It has a maximum air flow of 43.8 CFM (0.73 m³/min) and a maximum wind pressure of 0.19 inches of water column (49.3 Pa). The fan has a noise level of 34.5 dB-A.
The product shows a DC brushless fan model MG9232H12X manufactured by Guangzhou Mega Technology Co., Ltd. It is a 92x92x32mm fan with a rated voltage of 12V DC and a rated current of 0.13A. It has a maximum air flow of 43.8 CFM (0.73 m³/min) and a maximum wind pressure of 0.19 inches of water column (49.3 Pa). The fan has a noise level of 34.5 dB-A.

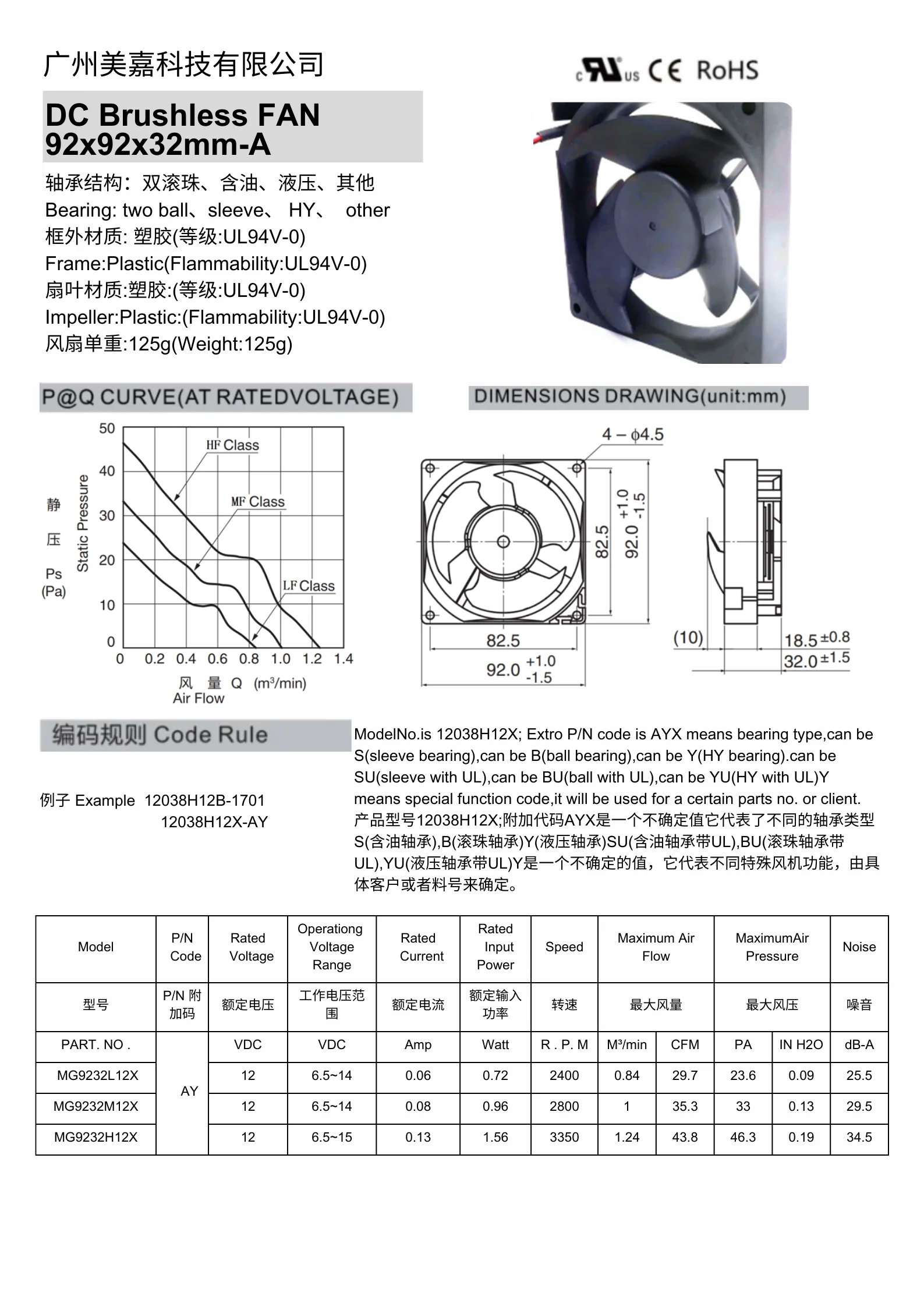

Specification Value Model MG9232H12X Size 92x92x32mm Rated voltage 12V DC Rated current 0.13A Maximum air flow 43.8 CFM (0.73 m³/min) Maximum wind pressure 0.19 inches of water column (49.3 Pa) Noise level 34.5 dB-A Material Plastic Bearing Double ball bearing
Product Parameters
Model | Rated Voltage | Operationg Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | MaximumAir Pressure | Noise |
PART. NO . | VDC | VDC | Amp | Watt | R . P. M | CFM | mmH2O | dB-A |
MG9232L12X | 12 | 6.5~14 | 0.06 | 0.72 | 2400 | 29.7 | 0.024 | 25.5 |
MG9232M12X | 12 | 6.5~14 | 0.08 | 0.96 | 2800 | 35.3 | 0.033 | 29.5 |
MG9232H12X | 12 | 6.5~15 | 0.13 | 1.56 | 3350 | 43.8 | 0.046 | 34.5 |
Product Advantages
Key Features
* Brushless Motor: The fan utilizes a brushless motor design, eliminating the need for brushes and commutators, which can wear out and cause noise over time. This results in a quieter operation, longer lifespan, and improved efficiency compared to traditional brushed fans.
* High Airflow and Pressure: Despite its compact size, the fan delivers a remarkable airflow of up to 43.8 CFM (0.73 m³/min) and generates a maximum wind pressure of 0.19 inches of water column (49.3 Pa). This makes it suitable for applications requiring effective cooling and ventilation, even in restricted spaces.
* Low Noise Level: The fan operates at a noise level of 34.5 dB-A, making it ideal for use in noise-sensitive environments such as offices, homes, and medical facilities.
* Durable Construction: The fan is constructed from high-quality plastic and features a double ball bearing design for enhanced durability and smooth operation. This ensures long-lasting performance and resistance to wear and tear.
* Wide Operating Voltage Range: The fan operates on a wide voltage range of 6.5 to 15V DC, making it compatible with various power supplies and applications.
* IP65 Protection: The fan boasts an IP65 rating, indicating its resistance to dust and water ingress. This makes it suitable for use in harsh environments where exposure to dust and moisture is a concern.
* UL94V-0 Flammability Rating: The fan's plastic housing meets the UL94V-0 flammability standard, ensuring safety in case of potential fire hazards.
* Standard 2-Pin Molex Connector: The fan comes equipped with a standard 2-pin Molex connector for easy connection to power sources and control systems.
Key Features
* Brushless Motor: The fan utilizes a brushless motor design, eliminating the need for brushes and commutators, which can wear out and cause noise over time. This results in a quieter operation, longer lifespan, and improved efficiency compared to traditional brushed fans.
* High Airflow and Pressure: Despite its compact size, the fan delivers a remarkable airflow of up to 43.8 CFM (0.73 m³/min) and generates a maximum wind pressure of 0.19 inches of water column (49.3 Pa). This makes it suitable for applications requiring effective cooling and ventilation, even in restricted spaces.
* Low Noise Level: The fan operates at a noise level of 34.5 dB-A, making it ideal for use in noise-sensitive environments such as offices, homes, and medical facilities.
* Durable Construction: The fan is constructed from high-quality plastic and features a double ball bearing design for enhanced durability and smooth operation. This ensures long-lasting performance and resistance to wear and tear.
* Wide Operating Voltage Range: The fan operates on a wide voltage range of 6.5 to 15V DC, making it compatible with various power supplies and applications.
* IP65 Protection: The fan boasts an IP65 rating, indicating its resistance to dust and water ingress. This makes it suitable for use in harsh environments where exposure to dust and moisture is a concern.
* UL94V-0 Flammability Rating: The fan's plastic housing meets the UL94V-0 flammability standard, ensuring safety in case of potential fire hazards.
* Standard 2-Pin Molex Connector: The fan comes equipped with a standard 2-pin Molex connector for easy connection to power sources and control systems.
Product Applications
1.Electronics Cooling:
* Computers and Servers: The fan's compact size and high airflow make it ideal for cooling CPUs, GPUs, and other heat-generating components in computers and servers.
* Telecommunications Equipment: The fan's quiet operation and durability ensure reliable cooling in telecommunications equipment, such as routers, switches, and base stations.
* Industrial Automation: The fan's wide operating voltage range and IP65 protection make it suitable for cooling industrial
automation equipment, including PLCs, drives, and controllers.
2.HVAC Systems:
* Air Conditioners: The fan's high airflow and pressure contribute to efficient cooling and ventilation in air conditioners,
enhancing overall system performance.
* Heat Pumps: The fan's ability to handle both hot and cold air makes it suitable for use in heat pumps, ensuring effective
heating and cooling throughout the year.
* Ventilation Systems: The fan's compact size and low noise level make it ideal for use in ventilation systems, providing fresh air circulation and removing stale air.
3.Medical Equipment:
* Medical Devices: The fan's quiet operation and durability make it suitable for cooling medical devices, such as MRI machines, X-ray machines, and medical lasers.
* Laboratory Equipment: The fan's precise airflow control and wide operating voltage range make it ideal for use in laboratory equipment, ensuring consistent temperature and humidity conditions.
* Medical Incubators: The fan's ability to maintain a stable environment makes it suitable for use in medical incubators,
ensuring optimal conditions for cell cultures and tissue samples.
4.Home Appliances:
* Refrigerators and Freezers: The fan's compact size and low noise level make it ideal for cooling compartments in refrigerators and freezers, maintaining consistent temperatures and preventing food spoilage.
* Projectors: The fan's quiet operation and ability to handle high temperatures make it suitable for cooling projectors, ensuring extended lifespan and optimal performance.
* 3D Printers: The fan's precise airflow control and wide operating voltage range make it ideal for use in 3D printers, ensuring consistent printing quality and preventing overheating.
5.Other Applications:
* Automotive Electronics: The fan's durability and ability to withstand vibrations make it suitable for cooling automotive
electronics, such as power modules and control units.
* LED Lighting: The fan's high airflow and low noise level make it ideal for cooling high-power LED lights, ensuring efficient heat dissipation and extending LED lifespan.
* Battery Chargers: The fan's ability to handle high temperatures makes it suitable for cooling battery chargers, preventing
overheating and ensuring safe charging operations.
1.Electronics Cooling:
* Computers and Servers: The fan's compact size and high airflow make it ideal for cooling CPUs, GPUs, and other heat-generating components in computers and servers.
* Telecommunications Equipment: The fan's quiet operation and durability ensure reliable cooling in telecommunications equipment, such as routers, switches, and base stations.
* Industrial Automation: The fan's wide operating voltage range and IP65 protection make it suitable for cooling industrial
automation equipment, including PLCs, drives, and controllers.
2.HVAC Systems:
* Air Conditioners: The fan's high airflow and pressure contribute to efficient cooling and ventilation in air conditioners,
enhancing overall system performance.
* Heat Pumps: The fan's ability to handle both hot and cold air makes it suitable for use in heat pumps, ensuring effective
heating and cooling throughout the year.
* Ventilation Systems: The fan's compact size and low noise level make it ideal for use in ventilation systems, providing fresh air circulation and removing stale air.
3.Medical Equipment:
* Medical Devices: The fan's quiet operation and durability make it suitable for cooling medical devices, such as MRI machines, X-ray machines, and medical lasers.
* Laboratory Equipment: The fan's precise airflow control and wide operating voltage range make it ideal for use in laboratory equipment, ensuring consistent temperature and humidity conditions.
* Medical Incubators: The fan's ability to maintain a stable environment makes it suitable for use in medical incubators,
ensuring optimal conditions for cell cultures and tissue samples.
4.Home Appliances:
* Refrigerators and Freezers: The fan's compact size and low noise level make it ideal for cooling compartments in refrigerators and freezers, maintaining consistent temperatures and preventing food spoilage.
* Projectors: The fan's quiet operation and ability to handle high temperatures make it suitable for cooling projectors, ensuring extended lifespan and optimal performance.
* 3D Printers: The fan's precise airflow control and wide operating voltage range make it ideal for use in 3D printers, ensuring consistent printing quality and preventing overheating.
5.Other Applications:
* Automotive Electronics: The fan's durability and ability to withstand vibrations make it suitable for cooling automotive
electronics, such as power modules and control units.
* LED Lighting: The fan's high airflow and low noise level make it ideal for cooling high-power LED lights, ensuring efficient heat dissipation and extending LED lifespan.
* Battery Chargers: The fan's ability to handle high temperatures makes it suitable for cooling battery chargers, preventing
overheating and ensuring safe charging operations.
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients' application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !
Product packaging
Packing And Deliver are all according to Client's requirement
Why Choose Us
Always Give Customer Best
* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
Customer Satisfaction
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Application
Home
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–999 piece: US $4 / piece
- 1000–4999 piece: US $3.55 / piece
- 5000+ piece: US $2.95 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mega Technology Limited Company, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Mega Technology Limited Company range on HVACR Nexus.
