The axial flow fan listed here carries 5V, 12V, blade material Plastic, documented exactly as the manufacturer publishes it. Made by Shenzhen Kunpeng Electromechanical Industry Co Ltd (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Model Number: KP5010HDB(S)05, KP5010MDB(S)1
- Voltage: 5V, 12V
- Blade Material: Plastic
- Noise Level: 27~35dBA
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 5V, 12V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | KunPeng |
| Model Number | KP5010HDB(S)05, KP5010MDB(S)1 |
| Product Name | kp5010 dc axial fan |

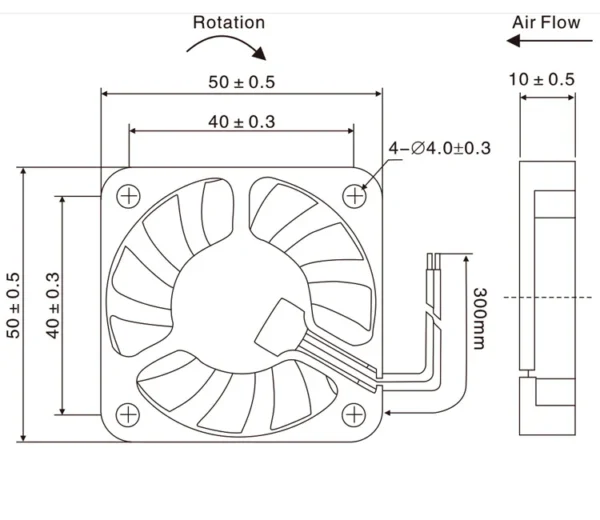

| Size | 50x50x10mm |
| Rated Current | 0.03~0.25A |
| Frame/Impeller | Thermal Plastic UL 94v-0 |
| Bearing Type | Sleeve Bearing |
| Motor | Copper Motor |
| Air Pressure | 1.93~5.10mm-H2O |
| Noise Level | 27~35dBA |
| Weight | 18g |
| Life | ≥50000hrs |
| Type | Axial Flow Fan |
| Core Components | Motor, Bearing |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining, Advertising Company, Other |
| Selling Units | Single item |
| Single Package Size | 10X10X5 cm |
| Single Gross Weight | 0.1 kg |
Product Details
Electric Current Type | DC |
Mounting | FREE STANDING |
Blade Material | Plastic |
Brand Name | KunPeng |
Model Number | KP5010HDB(S)05, KP5010MDB(S)1, KP5010LDB(S)2 |
Voltage | 5V, 12V, 24V |
Product name | kp5010 dc axial fan |
Size | 50x50x10mm |
Rated Current | 0.03~0.25A |
Frame/Impeller | Thermal Plastic UL 94v-0 |
Bearing Type | Sleeve / Dual Ball Bearing |
Motor | Copper Motor |
Air Pressure | 1.93~5.10mm-H2O |
Noise Level | 27~35dBA |
Weight | 18g |
Life | ≥50000hrs |
Customize waterproof
Customize wire length
Bearing Type
Connector Choice
List of Optional Fan Functions | ||||||||
Motor Protection | SS | soft start functiom | ||||||
LP | start with lock protection and limited current | |||||||
CL | built-in, no lead indication | |||||||
Signal Output | FG | frequency generator or output tachometer | ||||||
RD | rotation detection function | |||||||
RDB | supplementary rotation detection signal | |||||||
LD | yellow power cord | |||||||
PWM | pulse width modulation signal control | |||||||
TC | automatic temperature control | |||||||
VC | DC voltage signal control | |||||||
CC | current source signal control | |||||||
CS | fixed constant speed function(constant speed built-in, no lead indication) | |||||||
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–1999 piece: US $0.7 / piece
- 2000–4999 piece: US $0.6 / piece
- 5000+ piece: US $0.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 5V, 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Kunpeng Electromechanical Industry Co Ltd, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Kunpeng Electromechanical Industry Co Ltd range on HVACR Nexus.
