This axis metal tube is published with the manufacturer’s full specification — 220V 1PH/380V 3PH 50/60HZ, model number CA-1530. Made by Jinan Camel CNC Machinery Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axis Metal Tube
- Model Number: CA-1530
- Rated Power: 6.5kw
- Plasma Power: 60A/100A/120A/160A/200A Power
- Voltage: 220V 1PH/380V 3PH 50/60HZ
- Warranty: 3 Years
- Place Of Origin: Shandong, China
Technical Specifications
| Voltage | 220V 1PH/380V 3PH 50/60HZ |
|---|---|
| Motor Type | Stepper Motor |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 3 Years |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine |
| Key Selling Points | High Productivity |
| Rated Power | 6.5kw |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 1500 |
| Brand Name | CAMEL CNC |
| Model Number | CA-1530 |
| Dimension(L*W*H) | 3000x1850x1650mm |
| Weight | 1500kg |
| Cutting Mode | Plasma |
| Name | Plasma Cutting Machine |
| Software | Fastcam Software |
| Working Area | 1500mm*3000mm |
| Motor | Stepper/Servo |
| Control System | Starfire |
| Cutting Thickness | 0-30mm |
| Application | Steel Cutting Construction Projects |
| Plasma Power | 60A/100A/120A/160A/200A Power |
| Selling Units | Single item |
| Single Package Size | 11X11X11 cm |
| Single Gross Weight | 11.000 kg |
Product Details
Product Description

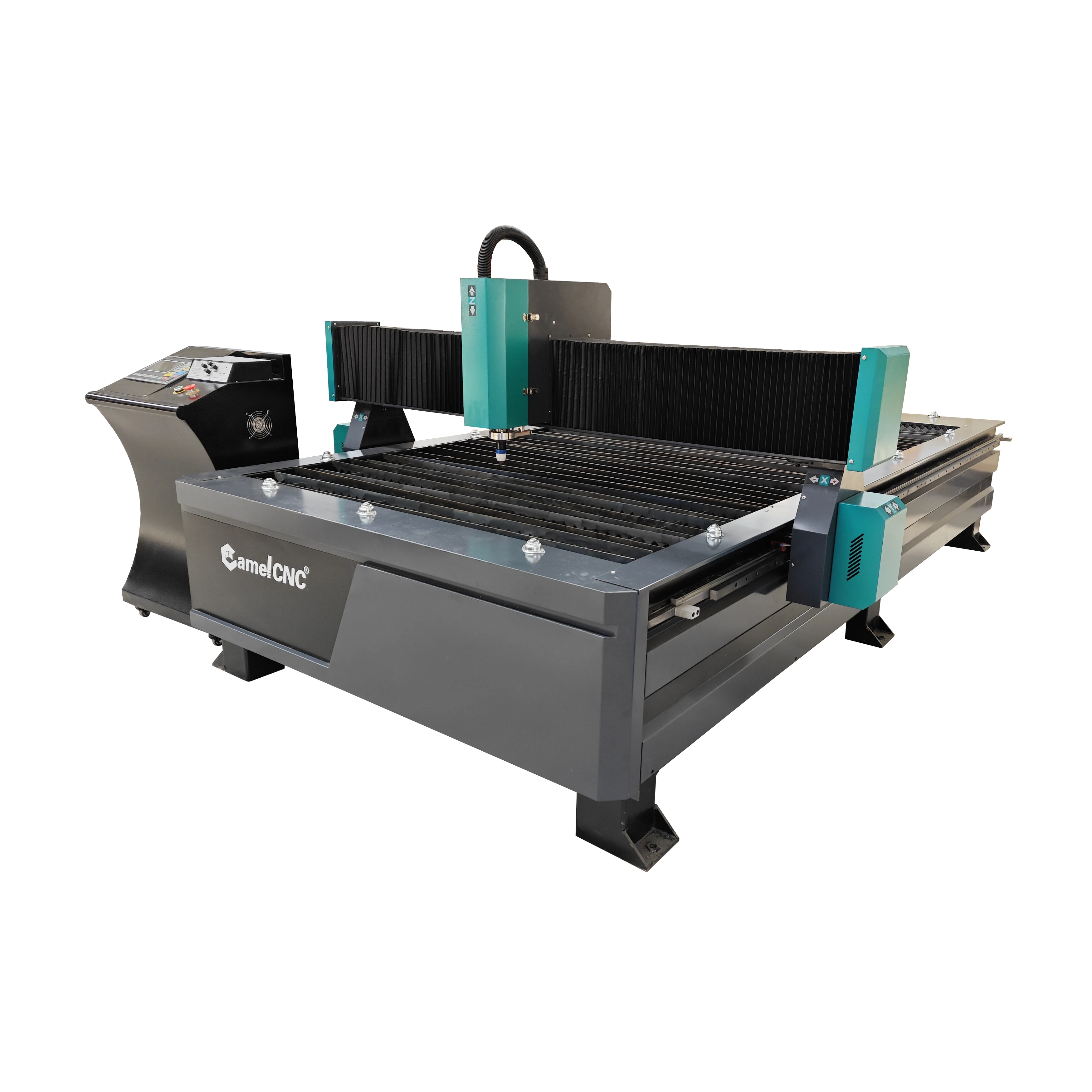

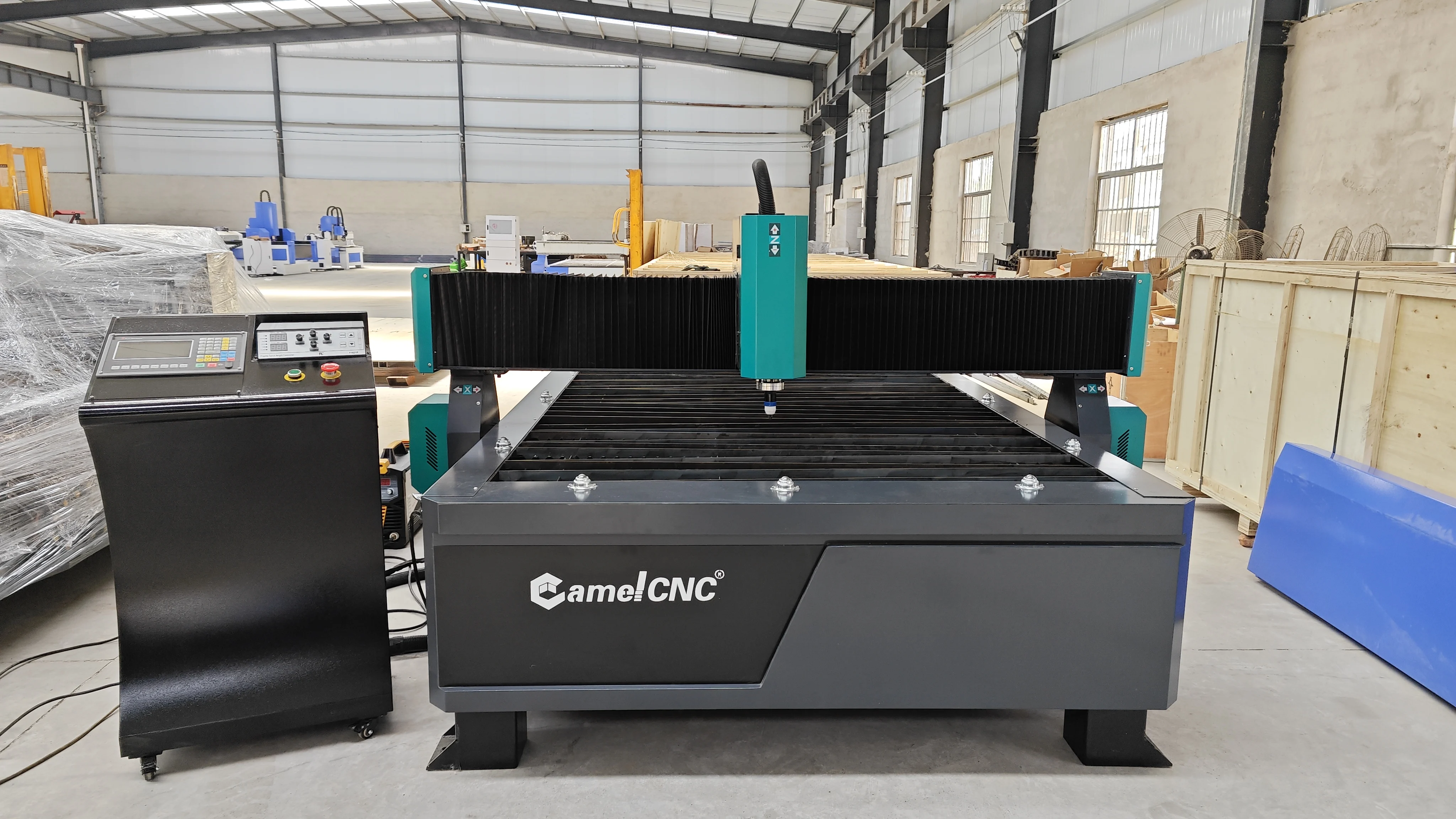

Metal Sheet Cnc Plasma Cutter 4 Axis Metal Tube CNC Plasma Cutting Machine Factory
Specification
Specification of plasma cutting machine:
1.Welded lathe bed of thick-wall profiled steel, more solid and stable. 2.Reasonable lathe table design, thicker steel plates fixed on lathe table covered by cast sheath with spikes. Steel plates will not be damaged even under raging flame. 3.The level difference of whole double-deck platform remains in 0-1.5mm. 4.Advanced material inclined discharging design. All finished work pieces and fragments slide into both sides of tunnel for safe and convenient collection. 5.High accuracy and speed rack transmission,Lower noise, stable and accurate coordinates movement. 6.power supply together with high sensitive Touch Height Controller. Self-adjusting to choose the best distance between plasma head and work piece automatically in order to ensure cutting accuracy.
7.Best choice for all kind of different thickness material and heterotypic sheet cutting.
Detailed Imagines

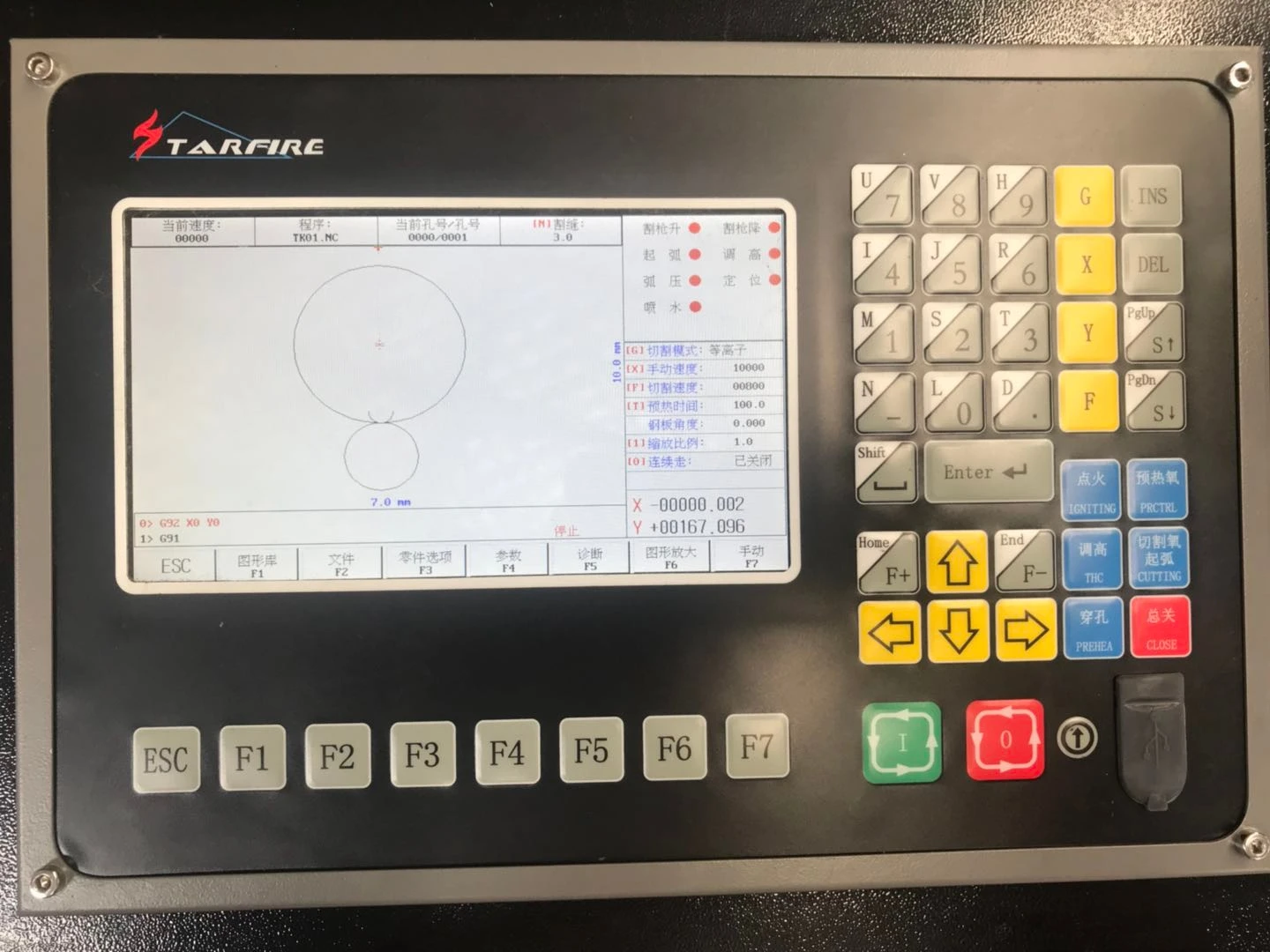

Starfire controller

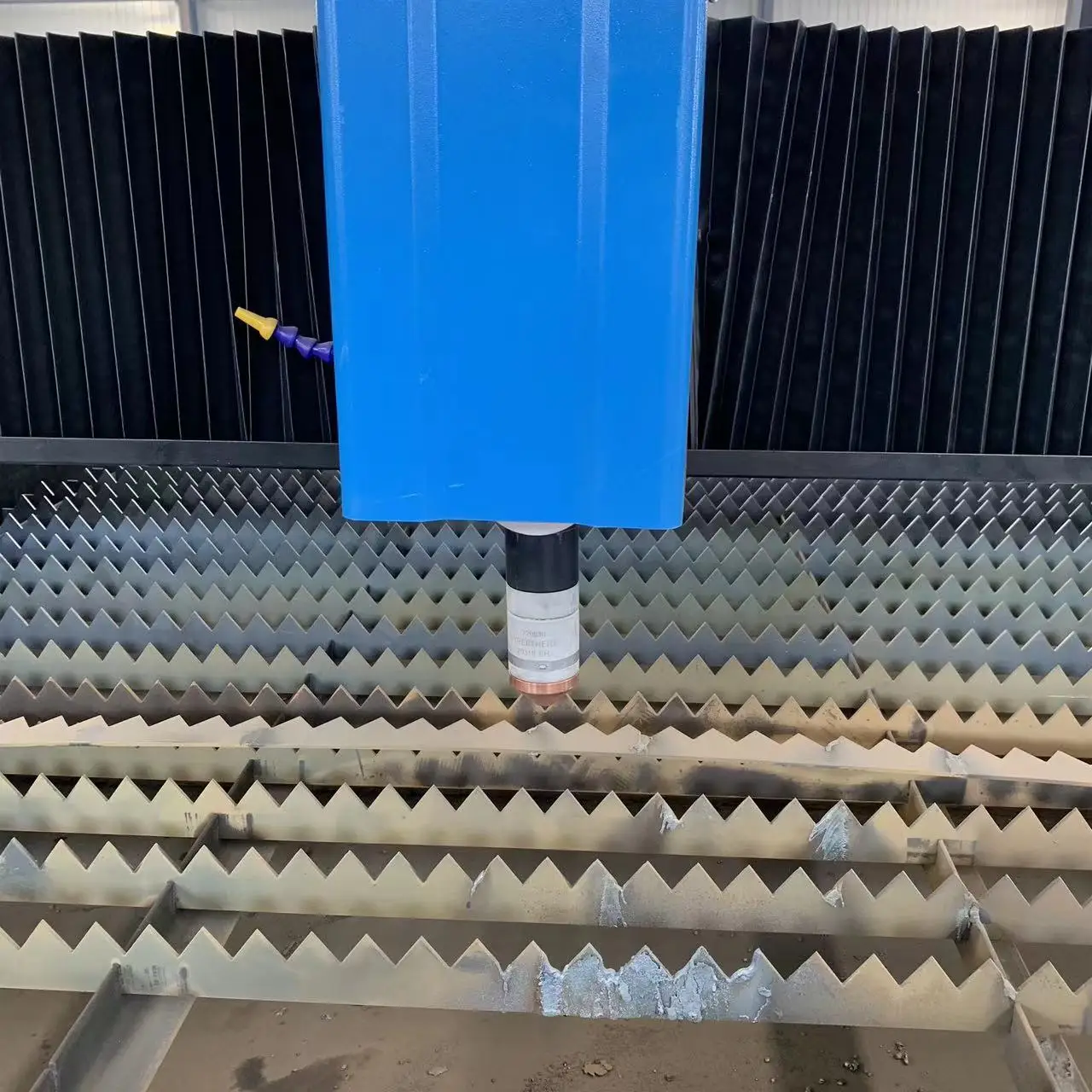

Plasma cutting torch

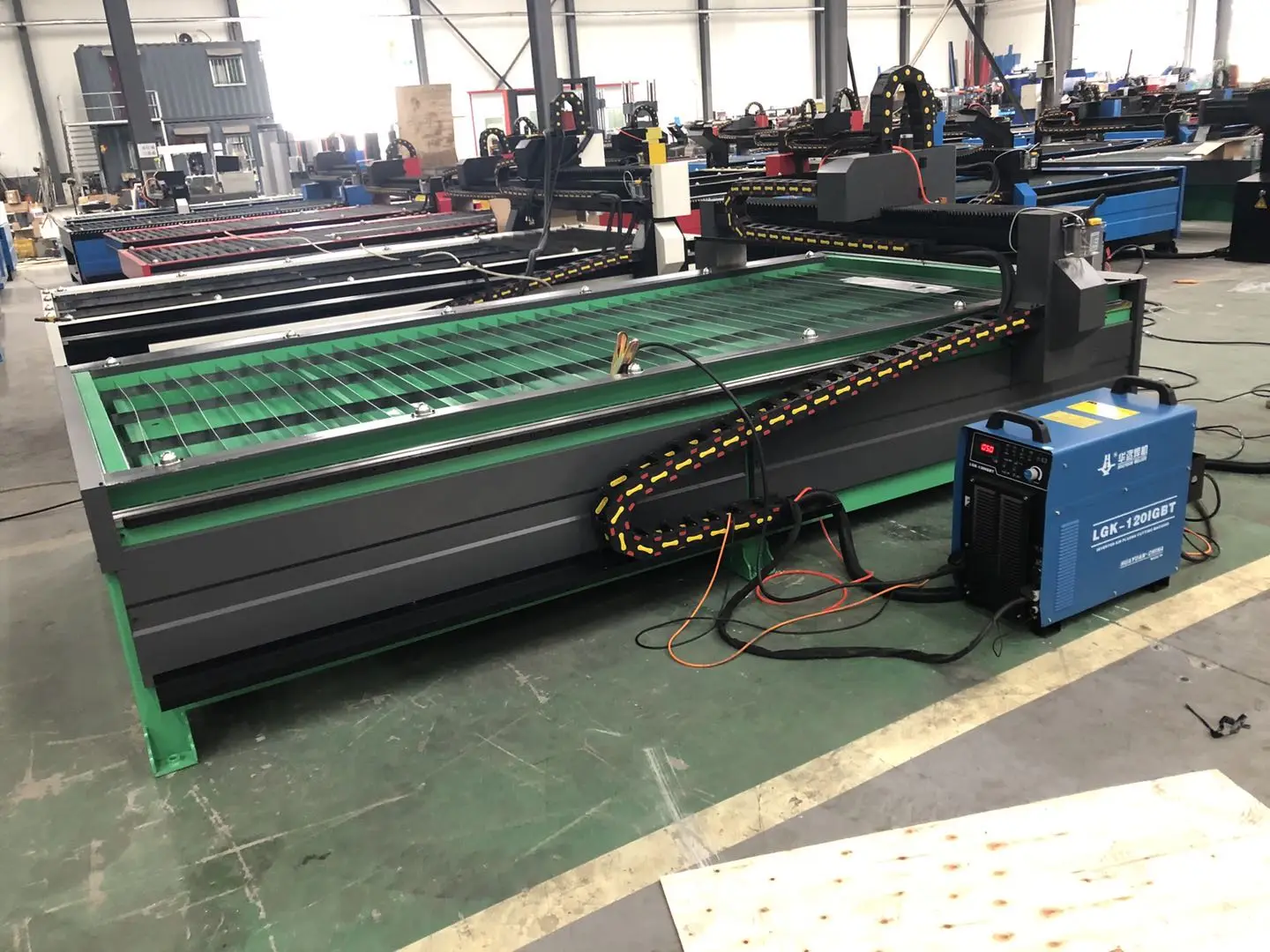

Heavy machine frame

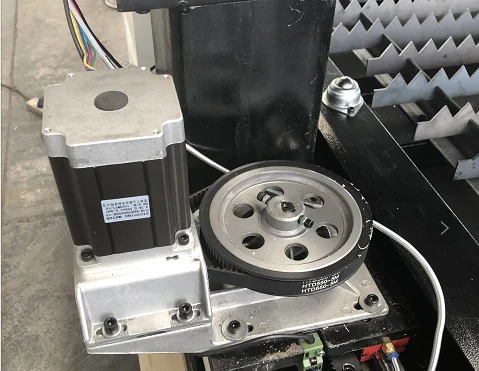

Big power stepper motor

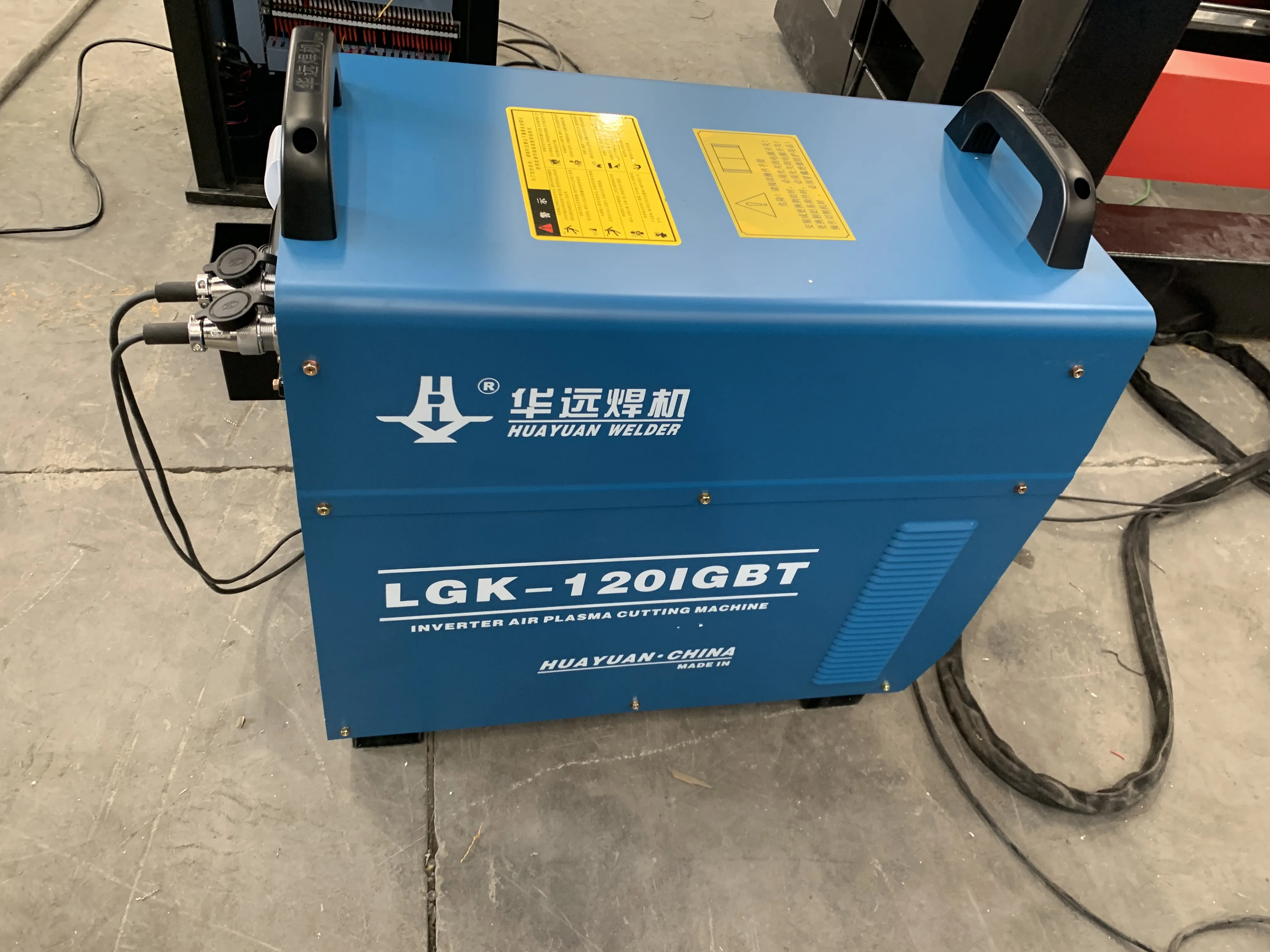

Huayuan LGK plasma source

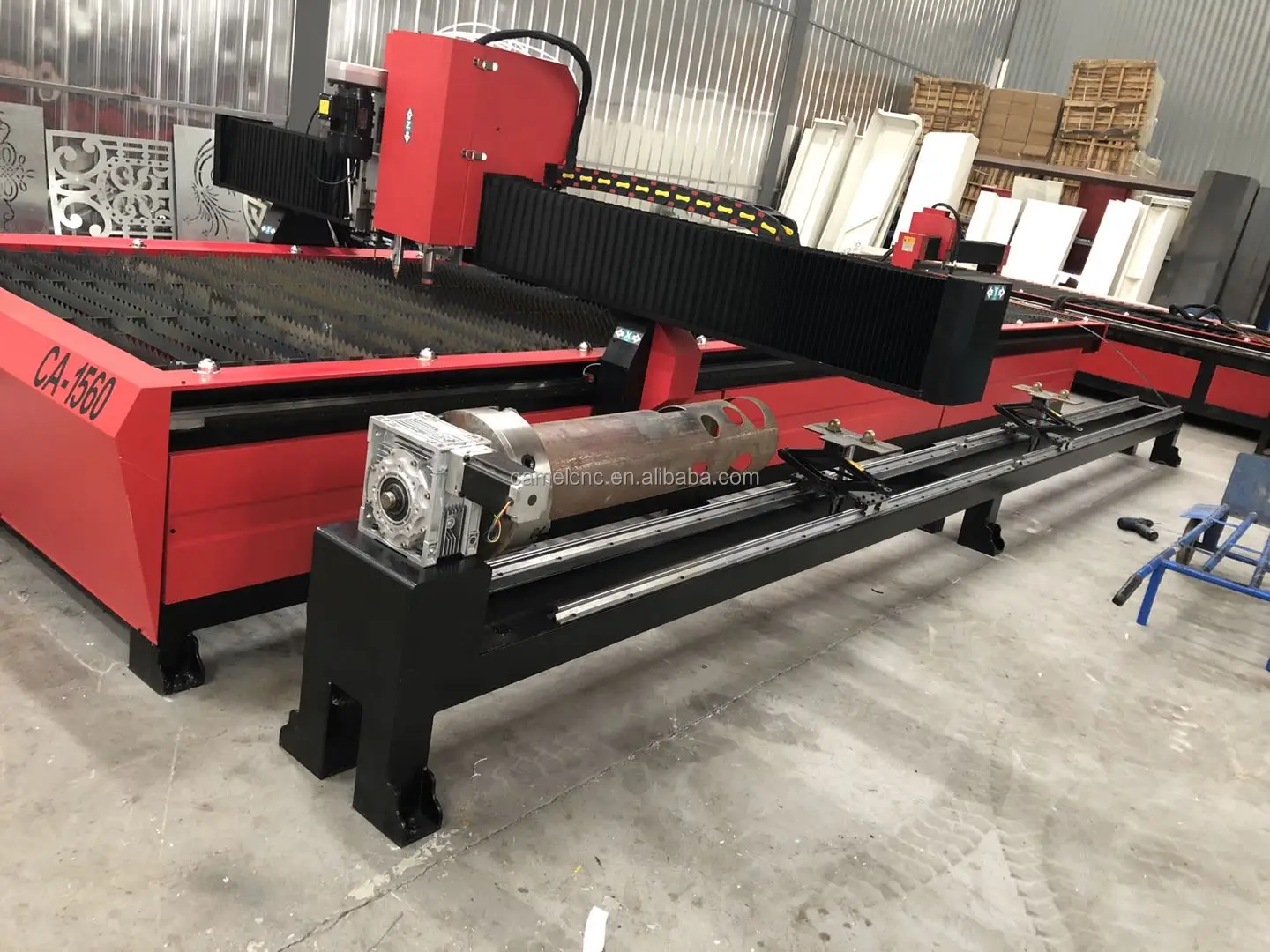

Rotary axis for round pipe
Technical Parameter
Parameters: | CA-1325 | CA-1530 | CA-2030 | ||
Working material | Stainless steel/Iron sheets, Aluminum sheets, Galvanized sheets, Titanium Plates | ||||
Working Area | 1300x2500mm | 1500x3000mm | 2000*3000mm | ||
Cutting Thickness | (45A)0.3-8mm | (45A)0.3-8mm | (45A)0.3-8mm | ||
Brand: LGK/US-Cutmaster/US Hypertherm (optional) | (65A)0.5-12mm | (65A)0.5-12mm | (65A)0.5-12mm | ||
(85A)0.5-15mm | (85A)0.5-15mm | (85A)0.5-15mm | |||
(105A)0.5-18mm | (105A)0.5-18mm | (105A)0.5-18mm | |||
(125A)0.5-25mm | (125A)0.5-25mm | (125A)0.5-25mm | |||
(200A)0.5-30mm | (200A)0.5-30mm | (200A)0.5-30mm | |||
Cutting Speed | 0-6000mm/min | 0-6000mm/min | 0-6000mm/min | ||
Moving Speed | 0-12000mm/min | 0-12000mm/min | 0-12000mm/min | ||
Power | 8.5KW-10.5KW | 8.5KW-10.5KW | 8.5KW-10.5KW | ||
Input Voltage | 3 phase 220/380V | 3 phase 220/380V | 3 phase 220/380V | ||
Power Frequency | 50/60Hz | 50/60Hz | 50/60Hz | ||
Files Transfer | USB Interface | USB Interface | USB Interface | ||
Arc | Untouched Arc Striking | Untouched Arc Striking | Untouched Arc Striking | ||
Torch Height Controller | Torch Height Controller | Torch Height Controller | |||
Application
Application of plasma cutting machine:
Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and
other metal plate and tube.
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver, Titanium and
other metal plate and tube.

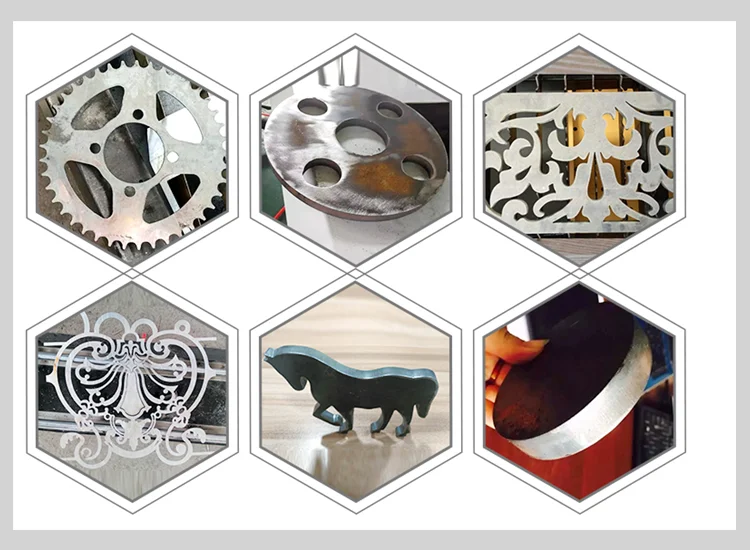

Samples:
Packing & Delivery
Step1: water proof wrapping film with foam protection in each corner.

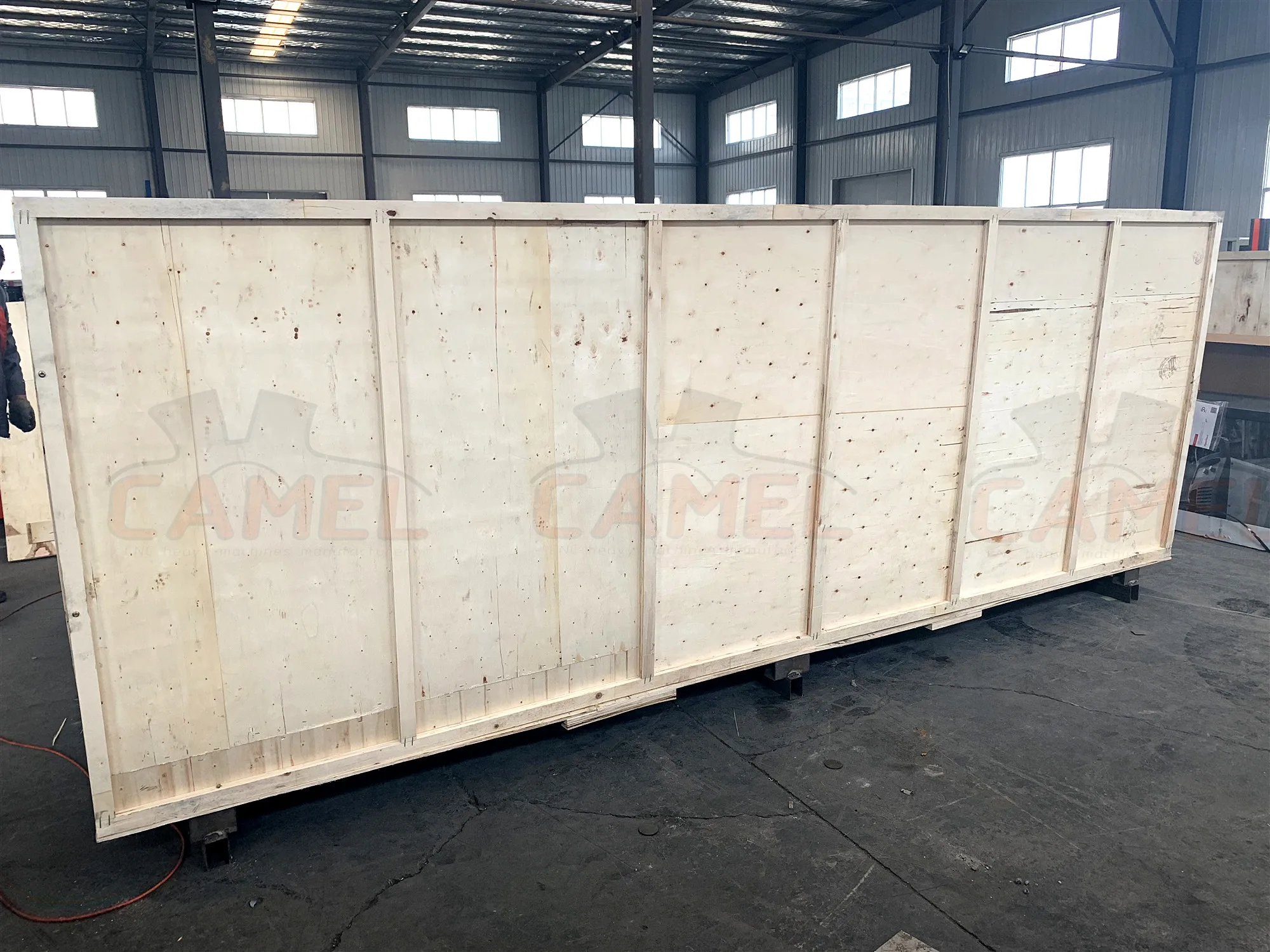

Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Company Profile
FAQ
Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team
viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 years guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 – 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team
viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 3 years guarantee, fail parts will be replaced for free if the machine under "normal operation".
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates
required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 – 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $4580 / set
- 10+ set: US $3980 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axis metal tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the axis metal tube be supplied for my local voltage?
The standard configuration is 220V 1PH/380V 3PH 50/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Camel CNC Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jinan Camel CNC Machinery Co., Ltd. range on HVACR Nexus.
