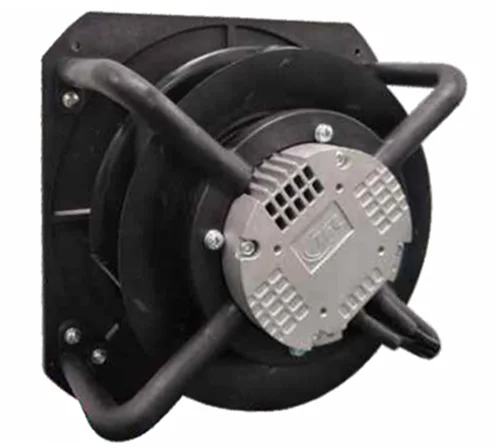

Backward Curved Fan, 230V, 225mm, Centrifugal

Key specification for this backward curved fan: 230V, blade material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Pbm Motor And Fan (suzhou) Co., Ltd. (8 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Backward Curved Fan

• Model Number: PK3N225B2E-SG0
• Voltage: 230V
• Blade Material: Stainless Steel
• Speed Control: 0-10VDC/PWM
• Warranty: 2 Years
• Certification: CE RoHS ErP

Technical Specifications

Product Details

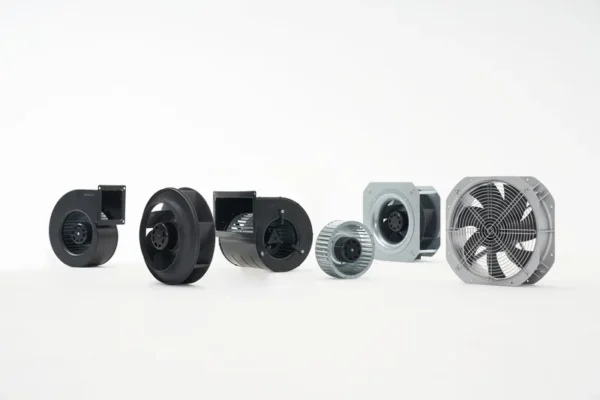

Products Description

One-plug Easy-mounting with Higher Efficiency

PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.

Product Specification

1. General Characters

Model	PK3N225B2E-SG0
Rated Voltage	230 VAC
Operating Voltage	184~270 VAC
Rated Speed	2600 RPM
Input Current	0.8 A
Input Power	110 W
Air Flow	1150 m3/H
Static Pressure	750 Pa
Sound Level	68 dB(A)
Protection Type	IP55

2. Mechanical

Dimension	270mm X270mm X115.3 mm (see dimension drawing)
Material of Impeller	Propylene with glass-fiber reinforced
Mounting Position	Any
Surface of Rotor	Coated in black
Bearing System	NMB ball bearing
Lead Wire	AC(AWG20#)，DC(AWG24 #)
Weight	1650g
Package	Standard

3. Electrical Protection

Locked-rotor Protection	Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage.
Maximum Current under Locked Rotor	A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current.
Reverse Polarity Protection	No damage if the positive and negative leads are reversed under maximum operation voltage conditions.
Over Voltage Protection	The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below.
Soft Start	In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above.

4. Outline Drawing

5. Performance Curve
