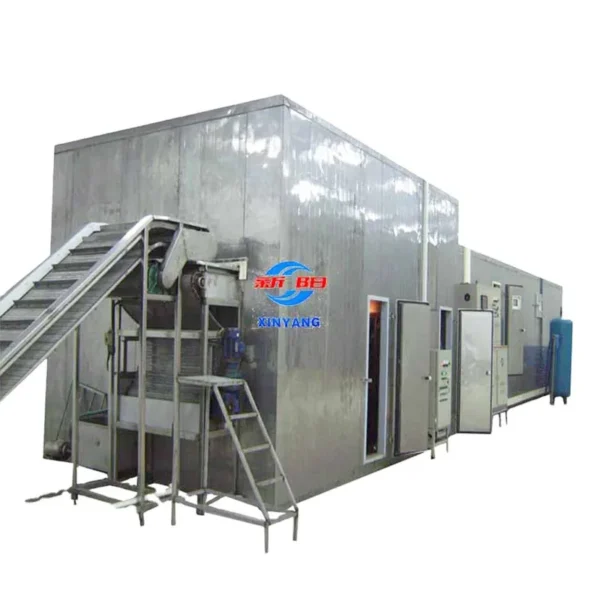

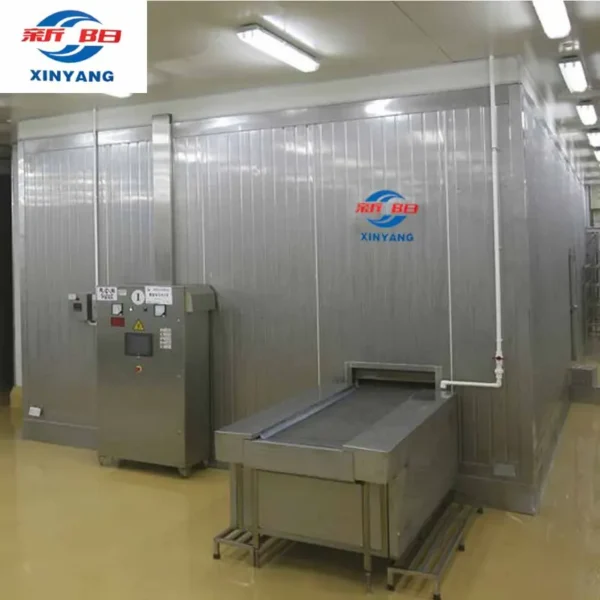

The belt tunnel quick freezer listed here carries 380V~460V, 1000kg/h, documented exactly as the manufacturer publishes it. Made by Shenyang Aero Space Xinyang Quick Freezing Equip. Manuf. Co., Ltd. (12 years on the platform, typical reply ≤9h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Belt Tunnel Quick Freezer
- Power(W): 28.6kw
- Voltage: 380V~460V
- Cooling Capacity: 1000kg/h
- Capacity: 1000kg/hr
- Material: Stainless steel
- Warranty: 12 months
Technical Specifications
| Type | Freezer |
|---|---|
| Voltage | 380V~460V |
| Warranty | 12 months |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Key Selling Points | High Productivity |
| Power(W) | 28.6kw |
| Place Of Origin | Liaoning, China |
| Cooling Capacity | 1000kg/h |
| Brand Name | Xinyang |
| Dimension(L*W*H) | 21.6×3.2x2m |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Material | Stainless steel |
| Capacity | 1000kg/hr |
| Freezing Time | 20-120min adjustable |
| Refriegerant | Ammonia or Freon |
| Defrost Mode | Water deforst |
| Thickness Of Sandwich Panel | 150mm |
| Product Name | Fish freezing machine |
| Advantage | High capacity and low energy consumption |
| Function | Fast freezing speed |
| Packaging Details | Packaging Details: Wood case |
| Port Of Dispatch | Dalian port |
| Selling Units | Single item |
| Single Package Size | 1100X220X240 cm |
| Single Gross Weight | 5000.0 kg |
| Supply Ability | 90 sets per Year |
Product Details
Description
This device has a wide and various range of applications, low energy consumption, reasonable structure, low failure rate advantages. It can be suitable for prepared food, small packing or packed food, division meat and others very well, especially single quick freezing process. When material placed in between the transmission network to bring into the frozen, in the strong cold air conditions, products will be frozen rapidly, Taking into account the material weight and volume changes, the device uses inverter to adjust motor speed to achieve continuously variable, so that the conveyor belt speed can be controlled by inverter setting, normal setting figure is between 225r/min to 1500r/min.
Model & Specification
|
Model and Specification |
TS-150 |
TS-300 |
TS-500 |
TS-600 |
TS-1000 |
|
Output kg/h |
150dumplings, spring roll |
300dumplings, spring roll |
500dumplings, spring roll |
600dumplings, spring roll |
1000dumplings, spring roll |
|
Feeding temp.℃ |
25 |
25 |
25 |
25 |
25 |
|
Outfeeding temp.℃ |
-18 |
-18 |
-18 |
-18 |
-18 |
|
Cycle cold air tem when no loading.℃ |
-35±2 |
-35±2 |
-35±2 |
-35±2 |
-35±2 |
|
Installed power(kw) |
6 |
6 |
11 |
16 |
28.6 |
|
Dimension of quick freezing room(LxWxH)m |
8.1*2.5*2.2 |
12.6*2.5*2.2 |
16.2*2.5*2.2 |
16.2*2.8*2 |
21.6*3.2*2 |
|
Overall length for quick freezing device(m) |
10.1 |
14.6 |
18.2 |
18.2 |
23.6 |
|
Refrigerate capacity(t.=-40℃)kw |
58 |
85 |
122 |
132 |
185 |
|
Features |
Carbon steel hot deep galvanized evaporator, stainless steel mesh belt, additional thermal insulation foundation is unnecessary. |
Aluminium evaporator, stainless steel mesh belt transfer, additional themal insulation foundatior is unneceesary. |
|||
What we can process?
1. Prepared foods: dumplings, spring rolls, steamed dumplings with openings at the top, meat ball and other.
2. Seafood: shrimp, headless shrimp, scallop, fish etc.
3. Segmentation of meat: pork, chicken etc.
Training plan: We will provide training for those who operate and maintain the freeze-drying machines. Trained by supplier of the equipment in the process of installation and debugging, people can operate and solve the basic mechnical problems independently. In addition, the persons who work in general engineering such as refrigeration, boiler, and transformer substation shall be undertaken by skilled workers.
1. We guarantee that the commodity hereof is made of the best materials and new brand with top workmanship, and in accordance with quality specification stipulated in product Contract and Appendix.
2. Guarantee period shall be within 12 months from the date of acceptance. During this period, if there are quality problems, we will provide solution by verbal or written communication. If the problem is unsolved, our engineers will repair for you on site as soon as possible. The maintenance is free when there are non-operation errors; otherwise it is for the buyer’s account.
Shenyang Aerospace Xinyang Quick freezing Equip. Manuf. Co., Ltd was founded in 1985, a leading enterprise incorporating the research, manufacturing, sales and services of food processing equipment and freezing technology. Freeze drying equipment and IQF freezing equipment are widely used around the world.
Xinyang Company closely cooperated with Atlas Company in Denmark, Harbin Commerce University, Zhejiang University and Northeastern University, etc., supporting over 1,000 food engineering projects both domestically and abroad.
It is one of the earliest, largest and most influential professional manufacturers in China. Our products have been exported to USA, Canada, Germany, Netherland, Singapore, Thailand, Malaysia, Indonesia, Korea, Myanmar, Chile, Nigeria etc. The company pays highly attention to food quick freezing, vacuum freeze drying, vacuum frying solution and pre-processing system.
Now Xinyang Company aims to give all of our customers best products and services.
How to contact us?
Send your inquiry details in the below, Click ” Send” now!!!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $86000 / set
- 2+ set: US $78000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this belt tunnel quick freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.
Can the belt tunnel quick freezer be supplied for my local voltage?
The standard configuration is 380V~460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
