Blade Radial Duct Fan, Stainless, Steel

The blade radial duct fan listed here carries 380 V, airflow 3890-978500m3/H, documented exactly as the manufacturer publishes it. Made by Jiangsu Gmusem Ventilation System Manufacture Co., Ltd. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Blade Radial Duct Fan

• Voltage: 380 V
• Airflow: 3890-978500m3/H
• Blade Material: Stainless Steel
• Speed: 960/1450rpm
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

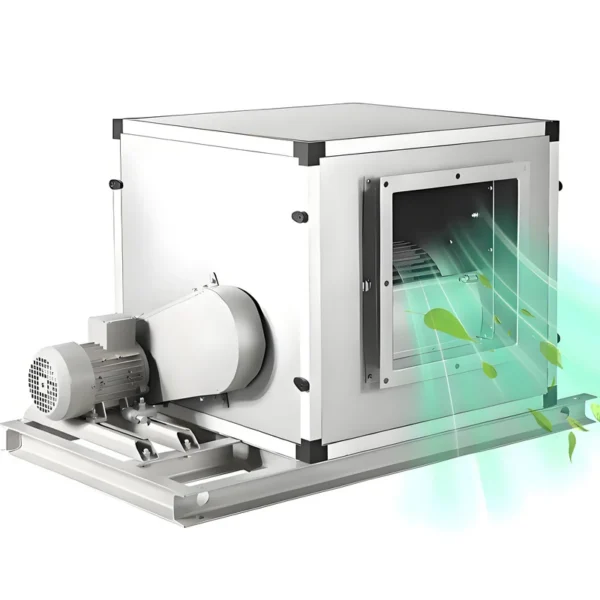

HTFC Cabinet Centrifugal Fan

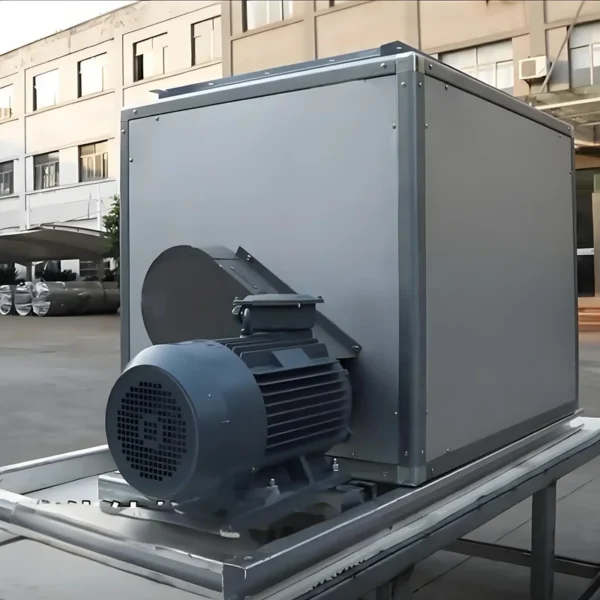

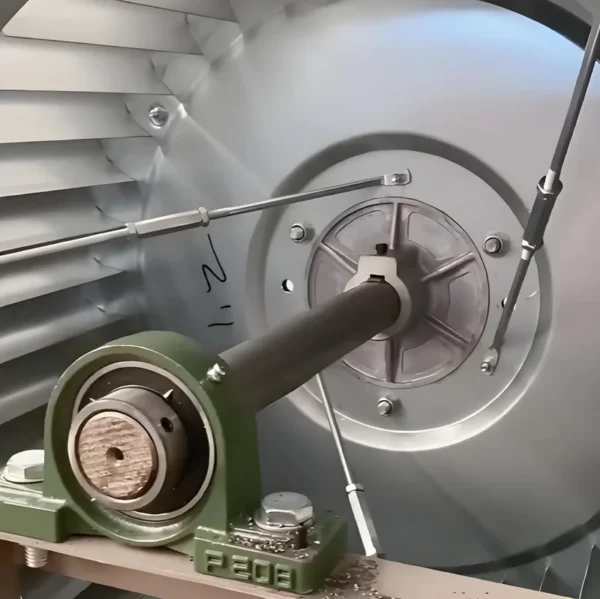

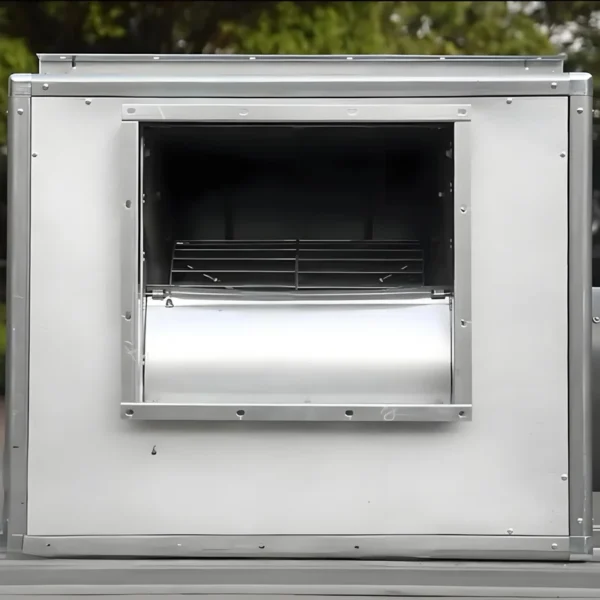

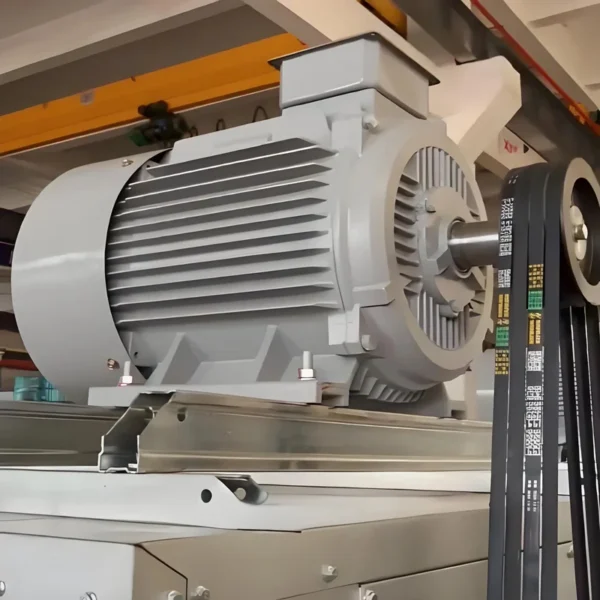

HTFC cabinet centrifugal fan is a kind of backward tilting box-type centrifugal fan with blades. The product is composed of low noise backward tilting centrifugal fan, motor, bearing, transmission parts, anechoic box, etc. According to the different installation positions, 12 air inlet and outlet positions with different angles are provided to meet the different installation needs of users.

Product application Fans can be widely used in hotels, restaurants, auditoriums, cinemas, basements, factories, mines, enterprises, office buildings and other places for ventilation and smoke exhaust, especially for places requiring low noise and large air volume ventilation and smoke exhaust.

The fan is divided into 15 specifications according to the diameter of 250~1250mm, the series air volume is 3890-978500m3/h, and the total pressure is 345~2322Pa. The fan is divided into single-speed and double-speed. The two-speed fan is equipped with a two-speed motor to achieve two-speed speed regulation, which can meet the needs of users for performance regulation at different operating points. The fan can also be equipped with a variable-frequency motor and a variable-frequency controller to achieve variable-frequency speed regulation. It is recommended to lock the regulation frequency at 25Hz~50Hz

Product working conditions
Working temperature	High temperature resistance	Humidity	Medium conditions	Working power supply
-20~ +40℃(Continuous operation)	100℃(20 consecutive hours) 280℃(Can last for 30 minutes)	<90%	air	three-phase380V/50Hz

all but instead by smoke inhalation. Smoke can be quite hazardous, and its effects stretch far beyond just being toxic. Smoke obstructs light and limits occupant visibility. This in turn diminishes travel speed so it takes longer for occupants to get to safety. Smoke can also be very hot, burning the interior of your lungs.
In an emergency, it's important to have mechanical smoke removal systems you can depend on.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $176 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blade radial duct fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the blade radial duct fan be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangsu Gmusem Ventilation System Manufacture Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Gmusem Ventilation System Manufacture Co., Ltd. range on HVACR Nexus.
