Blast Freezer, 100, 380V, 138.2kw

Key specification for this blast freezer: 380V, 138.2kw. Everything below is reproduced from the factory data sheet. Made by Henan Gondor Intelligent Equipment Manufacturing Co., Ltd. (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Blast Freezer

• Power(W): 138.2kw
• Voltage: 380V
• Refrigerant: R507A
• Conveyor Belt Running Speed: Continuously adjustable
• Warranty: 1 Year
• Certification: ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL

Technical Specifications

Product Details

   Introduction:

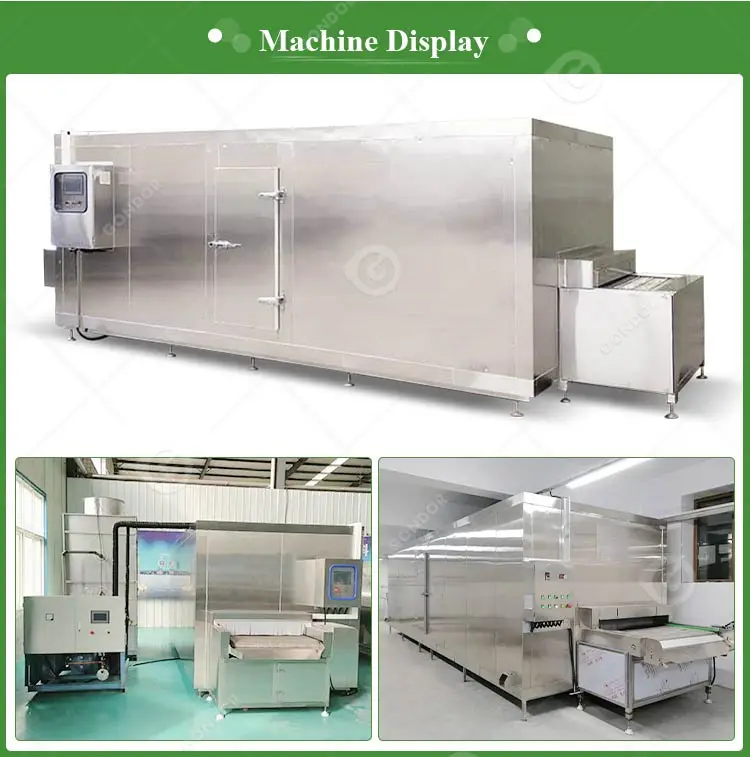

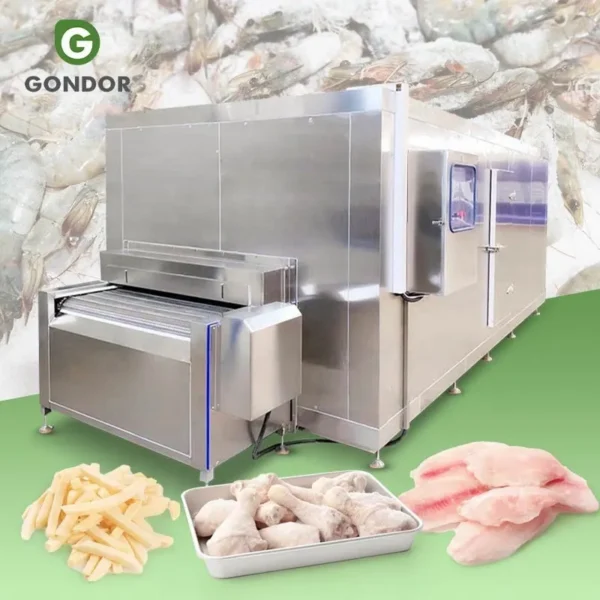

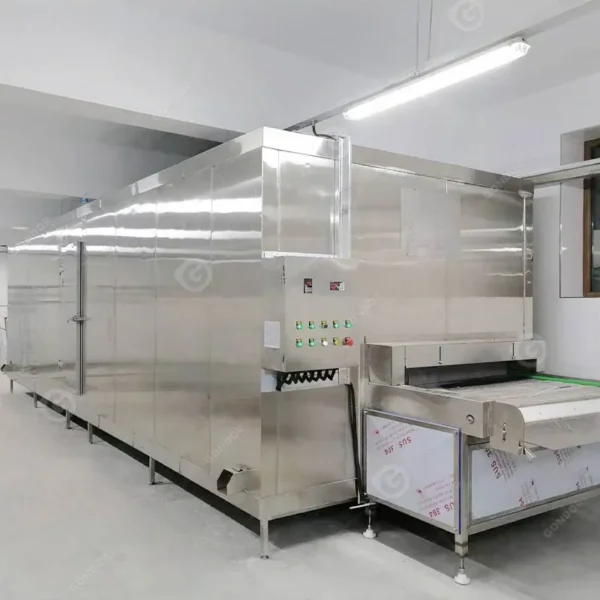

The tunnel quick freezing machine is an advanced equipment designed for efficient and rapid freezing of various products. A low-temperature environment is generated through the refrigeration system, and a powerful cold air circulation system is used to blow the cold air evenly on the surface of the product on the conveyor belt. When the product passes through the tunnel at a constant speed, it quickly releases heat and quickly cools down to the required freezing temperature to achieve rapid freezing and maintain product quality to the greatest extent. This machine has the advantages of efficient rapid freezing, excellent freshness preservation effect, uninterrupted production, and effective energy saving and consumption reduction.

   Application:

* Tunnel quick freezing machines are widely used in meat products, aquatic products, fruit and vegetable products, cold drink products, dairy products, prepared foods, etc.
* Tunnel quick freezing machines are widely used in food processing industry, catering industry, industrial fields and other units.

   Features:

(1) The tunnel design ensures that food is cooled evenly, avoiding the formation of ice crystals and reducing cell rupture.

(2) Optimized cooling system and energy-saving design reduce energy consumption and save costs.

(3) Using high-precision temperature sensors and intelligent control systems, it is suitable for quick freezing of various foods.

(4) The equipment design is easy to clean and the operation interface is simple and intuitive to improve usage efficiency.

   Paramater:

Model	Freeze time	Freezing temperature	Size	Frozen product discharging temperature
GD-TFZM	15-45 Minutes	-35℃	15500*2700*2500mm	-18℃



 Q1:  What is the working principle of tunnel quick freezer?

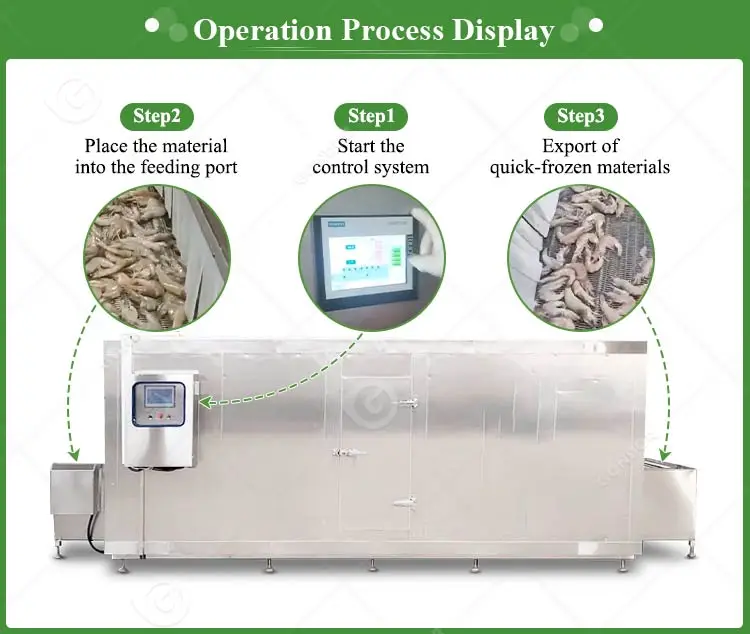

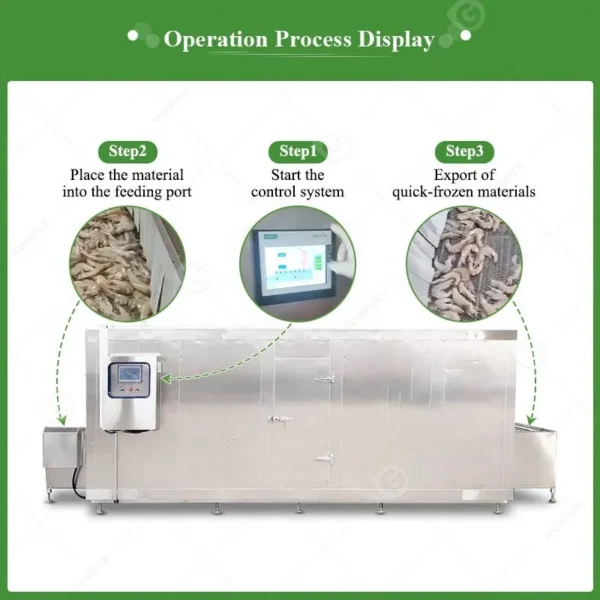

After the refrigerant is compressed, condensed, throttled and decompressed through the refrigeration system, it vaporizes and absorbs heat in the evaporator, cooling the air around the evaporator. A fan is used to circulate cold air in the tunnel, and the product passes through the tunnel at a constant speed on the conveyor belt and fully contacts the cold air to achieve rapid freezing.



 Q2:  What types of products can this device be suitable for?

It can be widely used in various foods such as meat, seafood, fruits and vegetables, pasta, prepared foods, cold drinks, etc. It is also suitable for quick freezing of non-food products such as chemical raw materials and electronic components.



 Q3:  If you want to change to a different type of product for quick freezing, what adjustments need to be made to the equipment?

It may be necessary to adjust conveyor belt speed, temperature settings, wind speed and other parameters. At the same time, the conveyor or air duct needs to be appropriately adjusted according to the shape and size of the product.



 Q4:  Is it difficult to clean the equipment? Do I need to use special cleaners?

Cleaning is not difficult, and the convenience of cleaning is usually considered when designing the equipment. For equipment used in the food processing industry, generally use mild food-grade detergent and clean water to rinse. When cleaning, care should be taken to prevent water from entering the electrical components.



 Q5:  What is the production efficiency of the equipment? Can the output be customized?

Production efficiency varies depending on the equipment model. Generally, it can process hundreds of kilograms to several tons of products per hour. The output can be customized according to the needs of the enterprise by adjusting the conveyor belt speed, optimizing the refrigeration system, etc.

   Installing waterproof membrane to reduce dust and water pollution

   Standard wooden boxes are used as outer packaging to reduce bumps in international transportation

   Delivery Time

For stock type, we can send within 48hrs after confirming order.

For customized type , delivery date need to be negotiated before taking order.



 1.  24 hour communication service.

 2.  Fast logistics will provide you a smooth delivery service.

 3.  One-year warranty and lifetime technical support.

 4.  New design or product recommendation.

 5.  Attend international Fair to negotiate with customer face to face.

 6.  Offer official invitation if you come to China.

 7.  Reception service will help you book good hotel.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $45999 / set
  • 5–29 set: US $42999 / set
  • 30+ set: US $17999 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this blast freezer carry?

It is supplied with ISO 9001, ISO 14001, ISO 45001, CE, BSCI, ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the blast freezer be supplied for my local voltage?

The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Gondor Intelligent Equipment Manufacturing Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Gondor Intelligent Equipment Manufacturing Co., Ltd. range on HVACR Nexus.
