Key specification for this blast freezer: 220V/380V, capacity 178L. Everything below is reproduced from the factory data sheet. Made by Kellen Industrial Group Limited (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Blast Freezer
- Power(W): 1750W
- Voltage: 220V/380V
- Capacity: 178L
- Material: Stainless Steel 304
- Refrigerant: R-404A
- Warranty: More Than 5 Years
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Temperature Control | -45-0°c |
| Refrigerant | R-404A |
| Voltage | 220V/380V |
| Warranty | More Than 5 Years |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Key Selling Points | High Productivity |
| Power(W) | 1750W |
| Place Of Origin | Henan, China |
| Weight (Kg) | 80 |
| Brand Name | KELLEN |
| Dimension(L*W*H) | 993*895*1400mm |
| Name | small plate blast freezer machine |
| Model | KLSD-178L |
| Capacity | 178L |
| Efficiency | 40-80kg/h |
| Layers | 4-6 Size:400*600mm |
| Compressor | 1.5P |
| Temperature Limitation | -45℃ |
| Freezer Interior Size | 720*400*600mm |
| Material | Stainless Steel 304 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Quick Fast Instant Shock Freezer Machine Blast Chiller Shock Freezer
▶Product Description
The quick-freezing machine is to freeze the center temperature of the quick-frozen goods to -45℃ in a short time, and quickly pass through the ice crystal production zone (0 to -5℃ range) within 30 minutes to slow down the loss of less nutrients and achieve the purpose of original flavor.
▶Specifications
Feature:
1. The all-304stainless steel shell and inner tank have good corrosion resistance, durability and easy cleaning.
2. Using pure copper tube evaporator, the indoor temperature is balanced, and the food is kept fresh for a long time.
3. Original imported Taikang compressor, quick freezing, lower limit temperature, high efficiency, energy saving and low noise.
4. Automatic defrost system, frost water evaporates automatically.
5. One-button switch design, detachable integrated unit, easy to move and use.
6. The whole machine adopts high-pressure and high-density foaming, which greatly improves the insulation performance of the cabinet and realizes the purpose of energy saving.
7. Intelligent temperature control system to realize precise temperature adjustment.
8. The temperature can be as low as -45℃, or it can be customized to -80℃.
9. It can effectively reduce the loss of food juice, while inhibiting the growth of bacteria, ensuring the taste, hygiene and freshness of the food.
10. The product has passed CE certification.
Model | KLSD-178L | KLSD-300L | KLSD-650L | KLSD-1100L |
Capacity | 178L | 300L | 650L | 1100L |
Efficiency | 40-80kg/h | 80-150kg/h | 150-250kg/h | 250-500kg/h |
Layers | 4-6 Size:400*600mm | 10-11 Size:400*600mm | 20-24 Size:400*600mm | 30-40 Size:400*600mm |
Voltage | 220V/50Hz | 220V/380v/50Hz | 380V/50Hz | 380V/50Hz |
Power | 1.7kw | 2.3kw | 4.4kw | 4.8kw |
Compressor | 1.5P | 3P | 6P | 6.5P |
Temperature limitation | -45℃ | -45℃ | -45℃ | -45℃ |
Refrigerant | R404A | R404A | R404A | R404A |
Freezer interior size | 720*400*600mm | 570*600*810mm | 1170*615*1019mm | 900*630*1735mm |
▶Product Disply

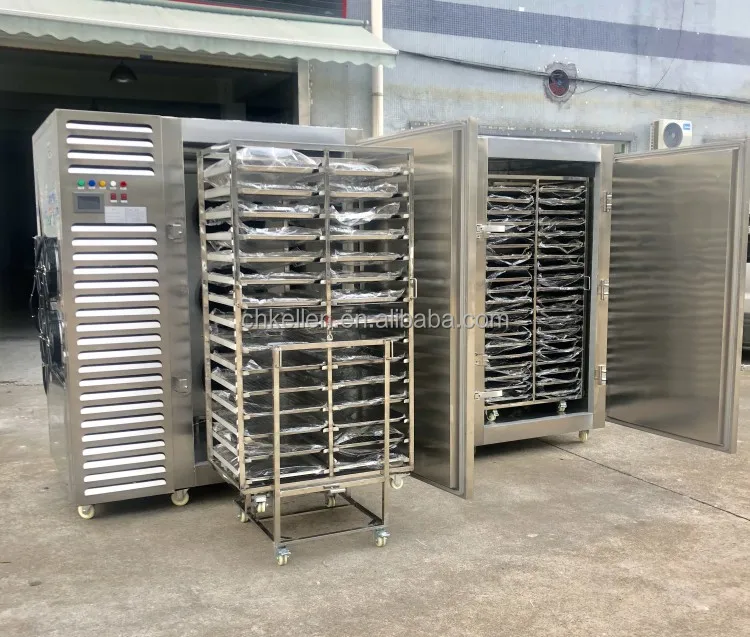

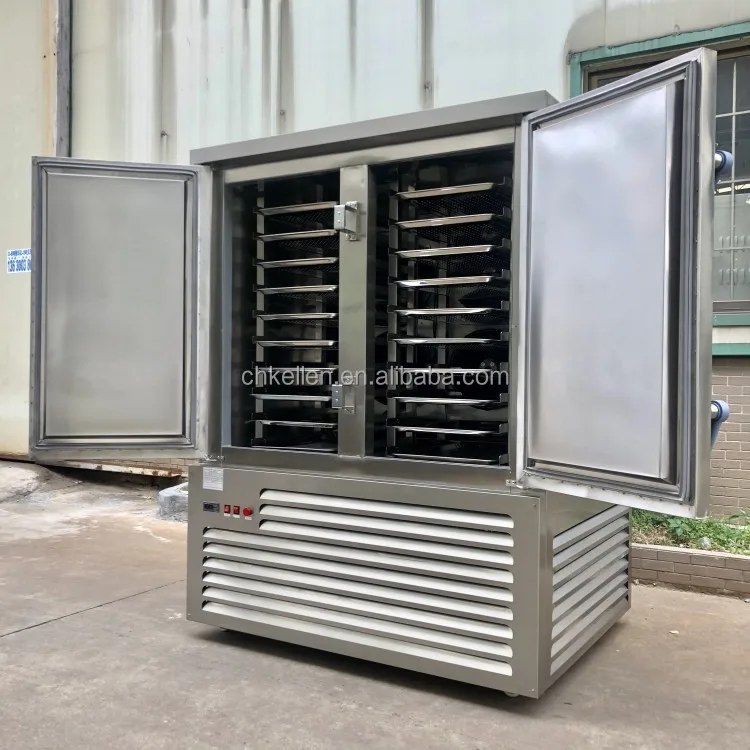

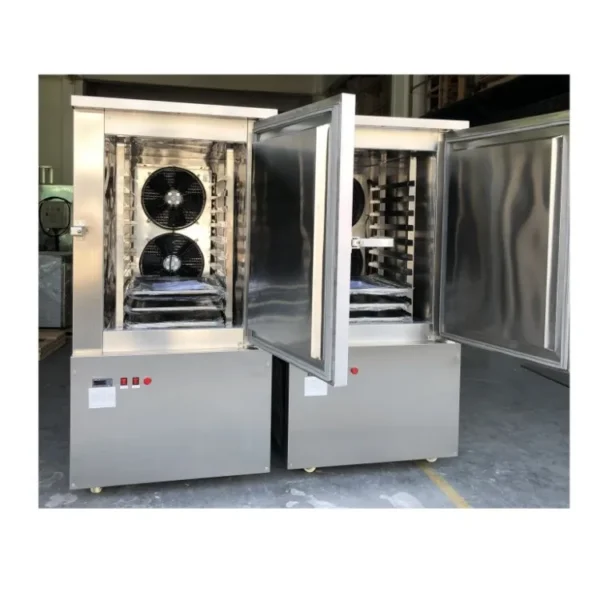

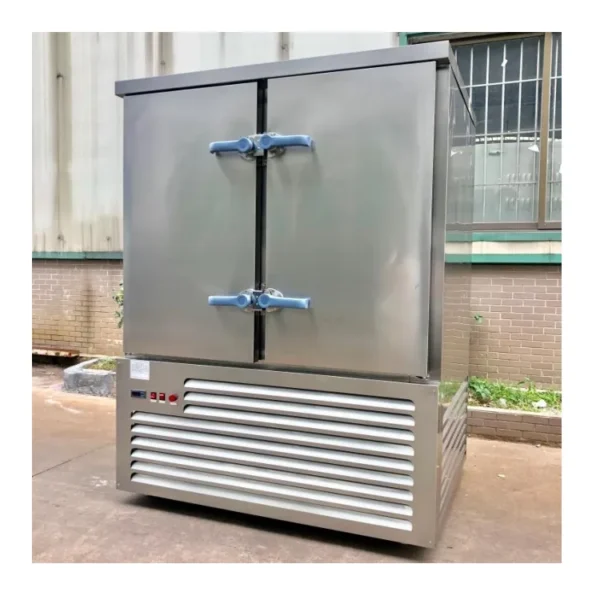

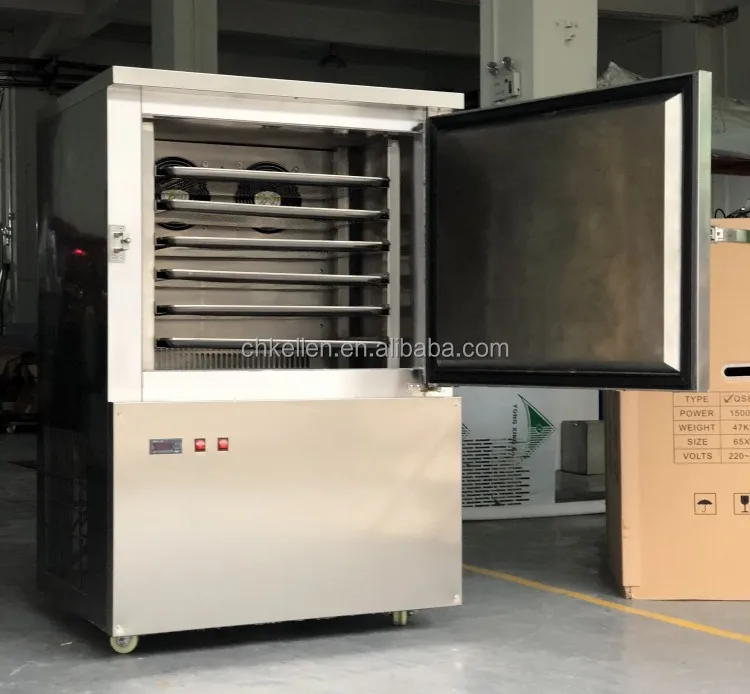

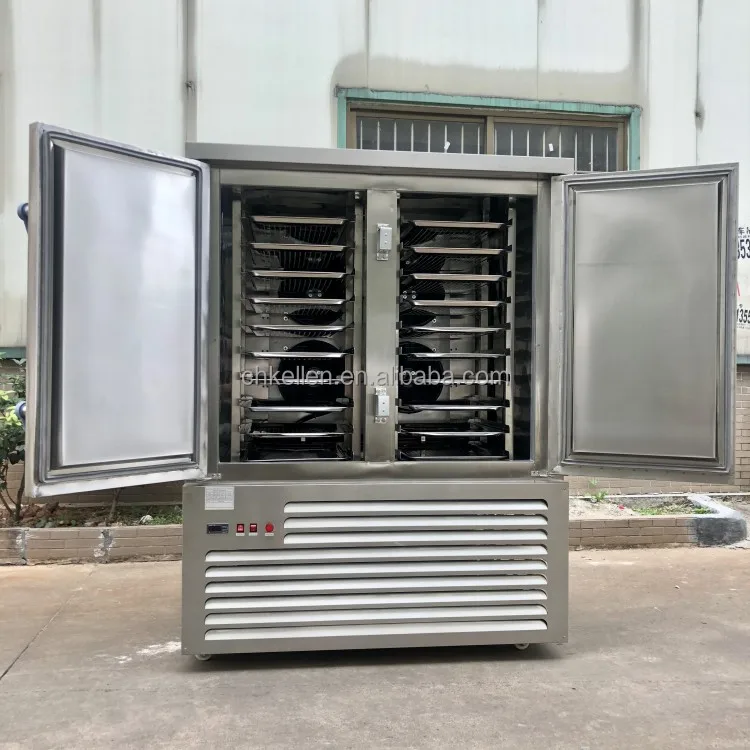

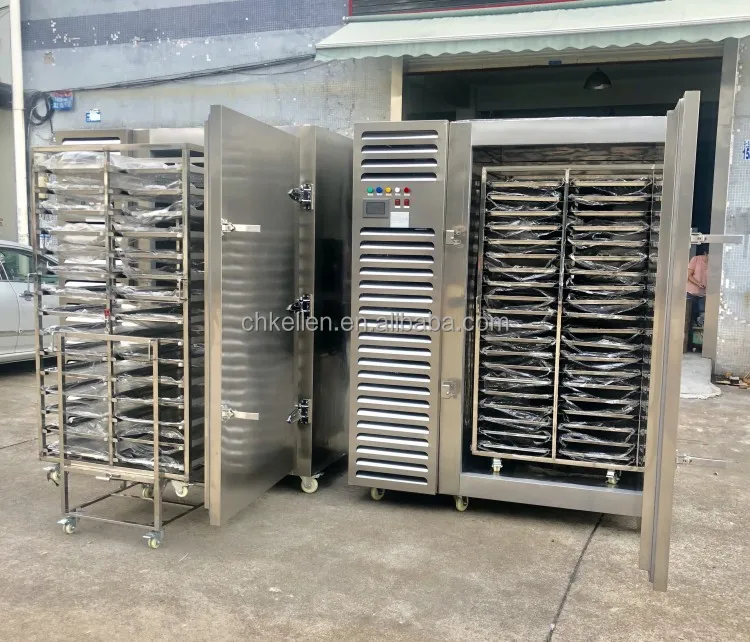

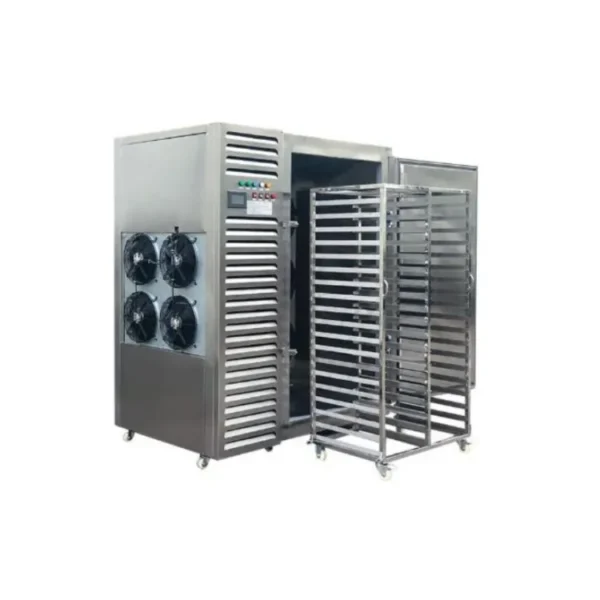

Overall picture display of products

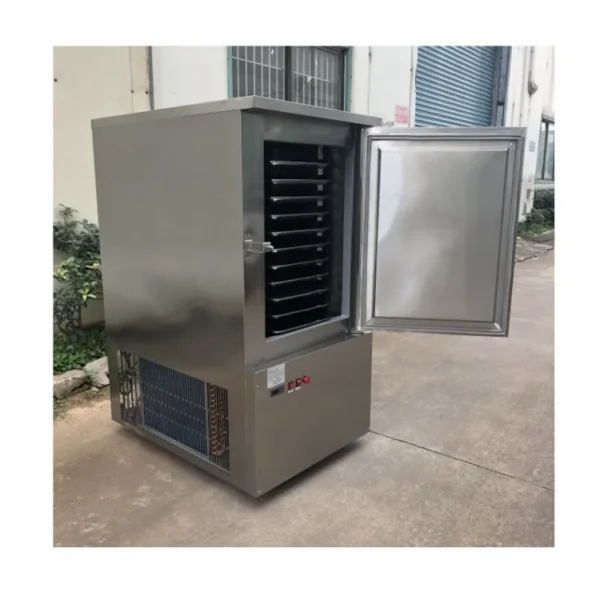

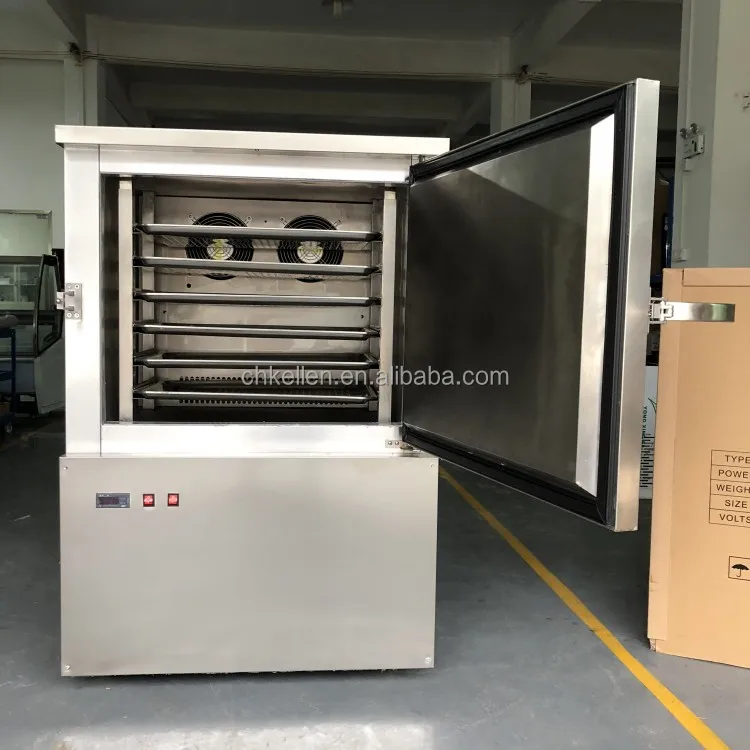

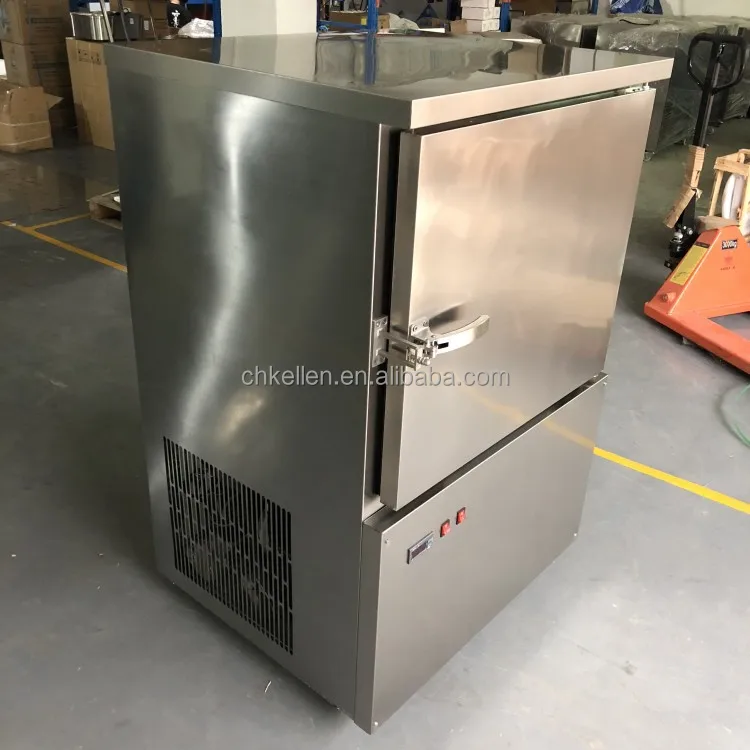

178L

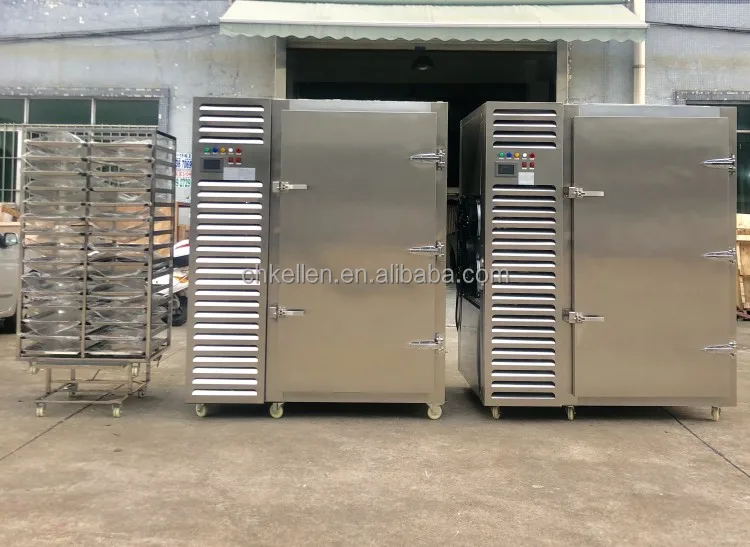

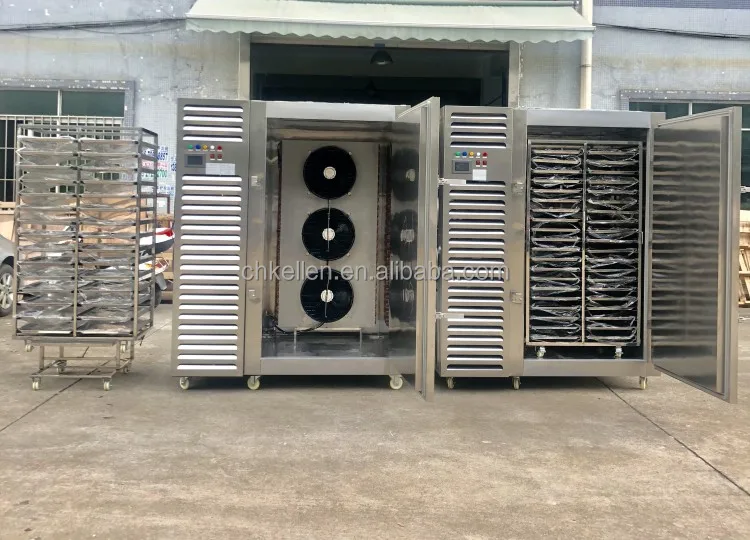

650L

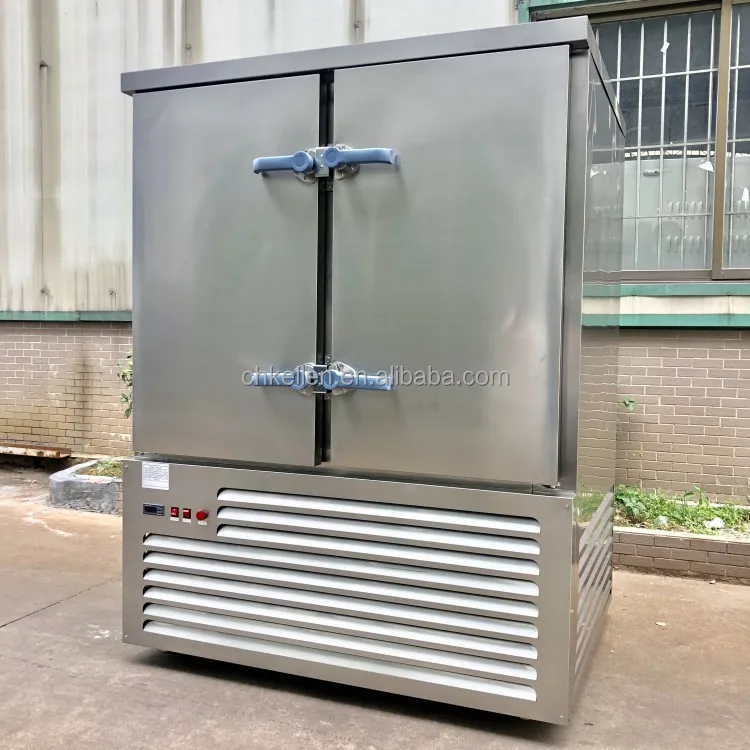

1100L
▶Detailed Images
Product details are shown

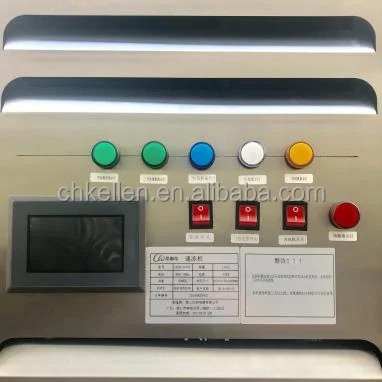

Control Panel

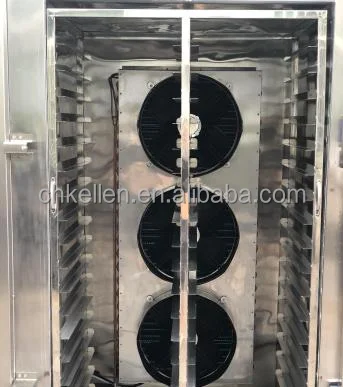

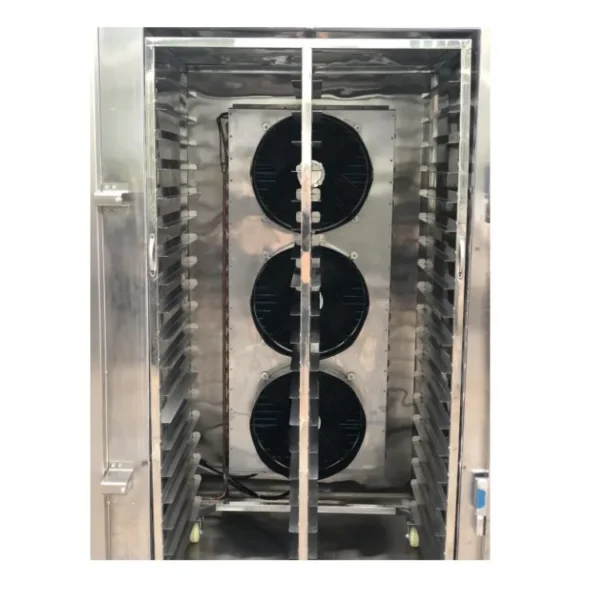

Fan

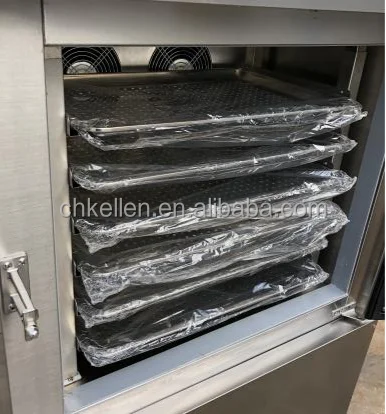

Built-in tray

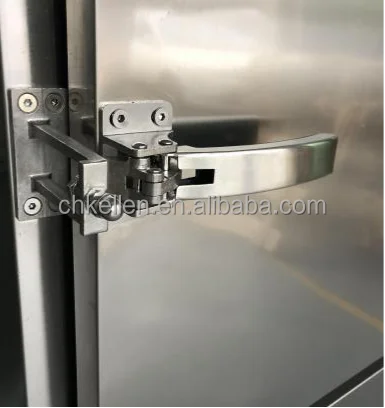

Door Licking Handle

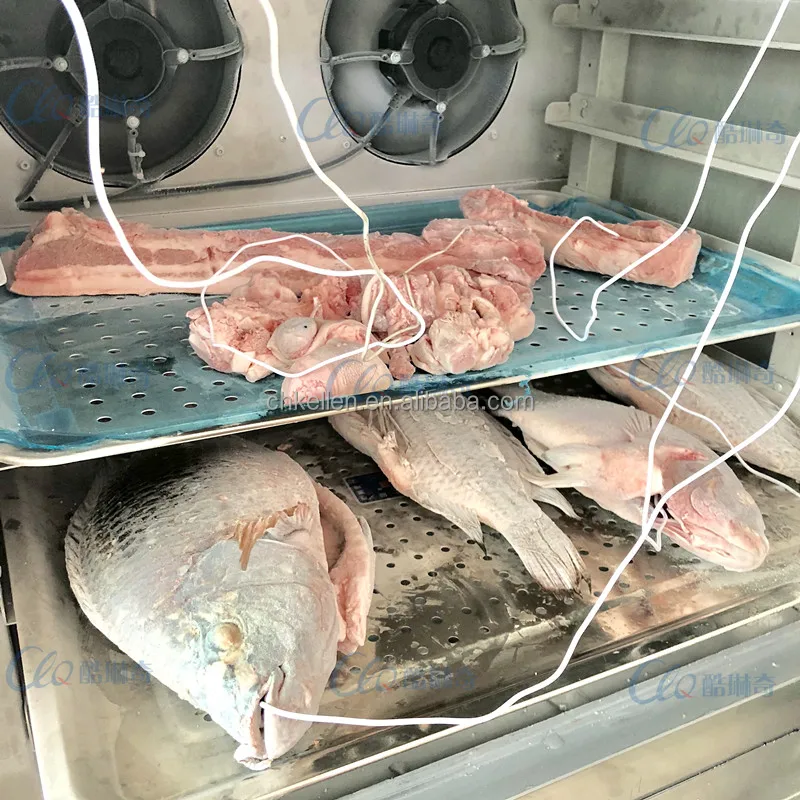

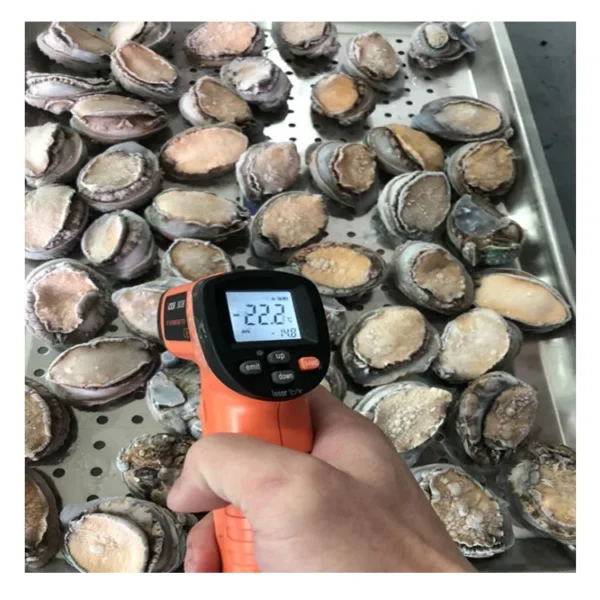

▶Freezing effect display
Food freezing is to use modern freezing technology to reduce the temperature of the food to the expected freezing temperature below its freezing point in the shortest possible time, so that all or most of the water contained in it will increase with the heat inside the food. It forms ice crystals to reduce the liquid water necessary for life activities and biochemical reactions, inhibit microbial activities, and highly slow down the biochemical changes of food, thereby ensuring the stability of vegetables during cold storage by the quick freezing machine.
▶Packing & Delivery
▶Company introduction
Henan Kellen Machinery Equipment Co.,Ltd
Our company mainly manufactures the fruit and vegetable juice machine, vegetable dicing machine, ice cube making machine, popcorn machine, dumpling maker machine, straw crushers, peanut shellers, dryer machine, flower refrigerator displayer, oil fryer and so on. We adopt the advanced technology and our machines are complied with international standard. These machines are made of high quality stainless steel with competitive price.
Many products are exported to America, Australia, France, Netherlands, Ireland and other 20 countries and regions. We have gotten a lot of good feedbacks from clients. Our principle is "High Reputation, Competitive Price, Efficient Delivery Speed and Good After-sell Service".
We are looking forward to cooperating with friends from all over the word. Welcome to contact us at any time! We will be here all the time!

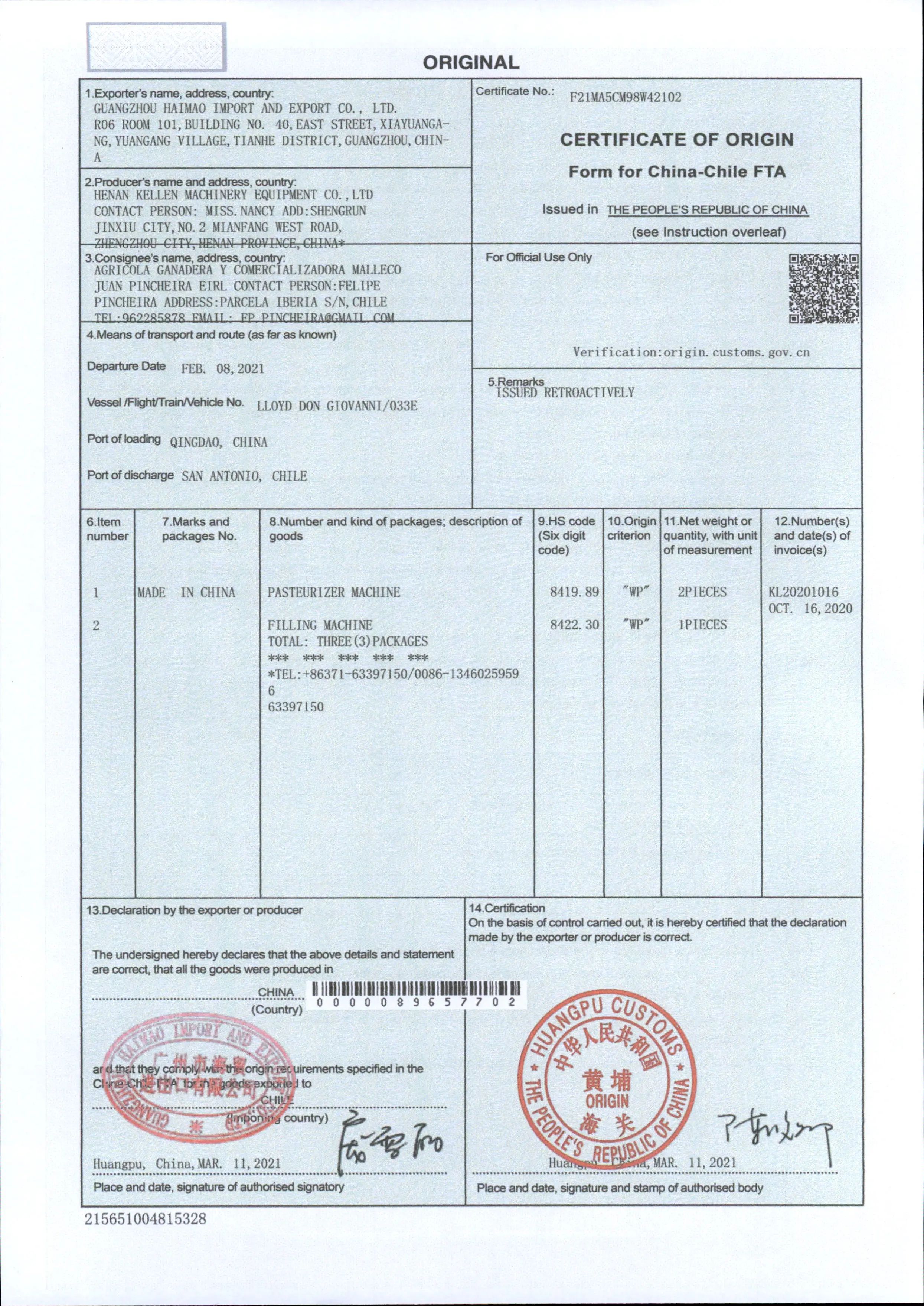

Certificates
FAQ
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.Engineers available to service machinery overseas. We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, Alibaba Trade Assurance.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $2480 / set
- 2–4 set: US $2280 / set
- 5+ set: US $1980 / set
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the blast freezer be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
