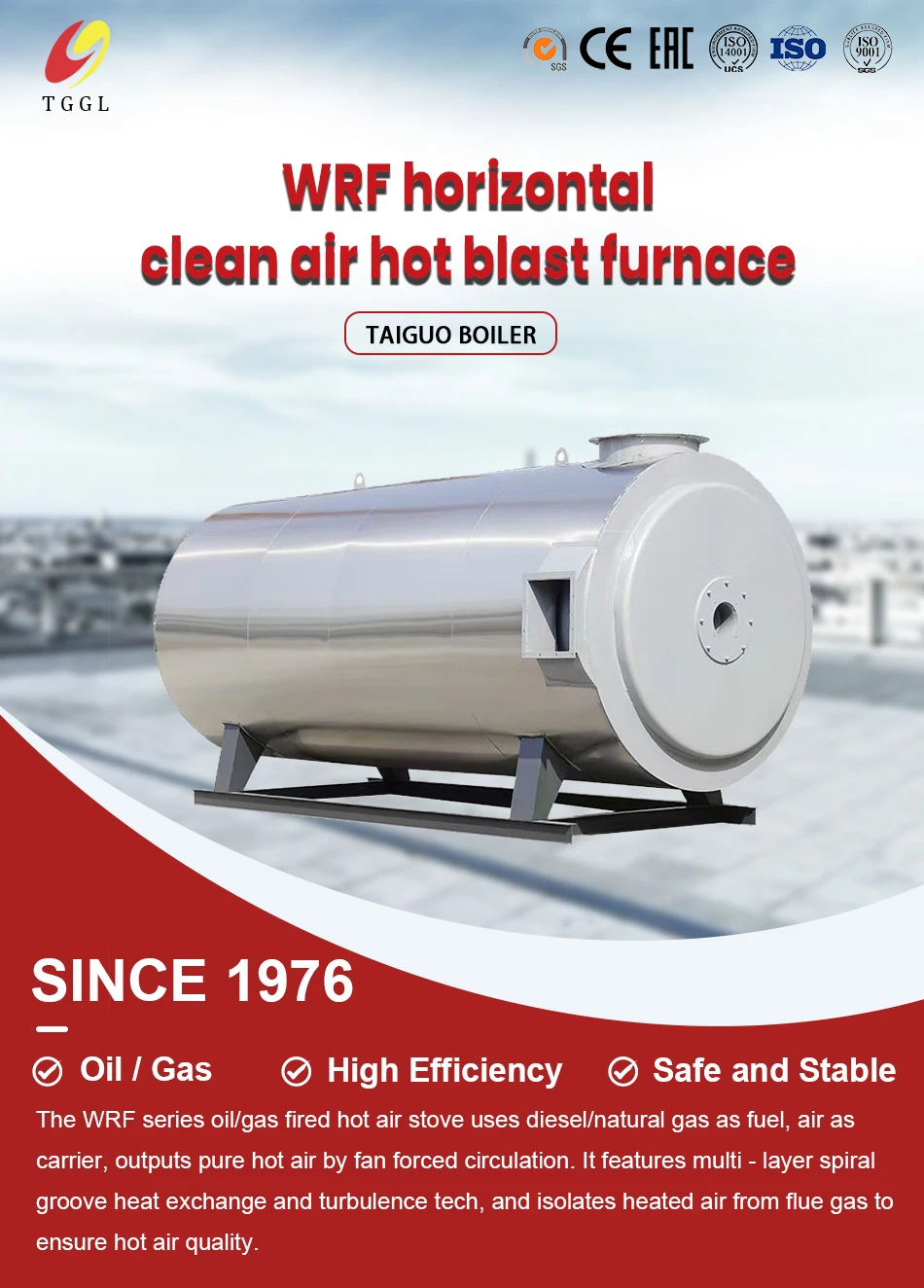

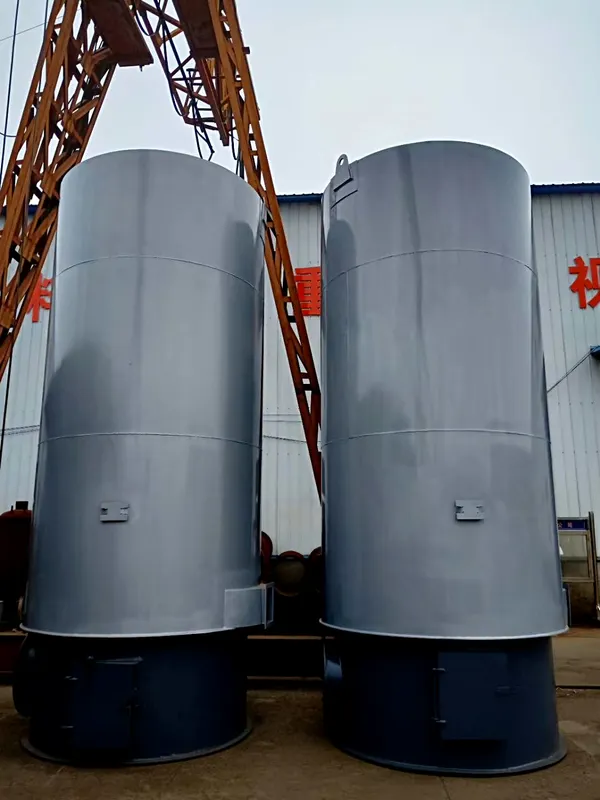

The blast stove listed here carries 380V/220, 50HZ (Customizable), power 600,000–4800,000Kcal (700-5600KW), documented exactly as the manufacturer publishes it. Made by Henan Taiguo Boiler Products Co., Ltd. (16 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

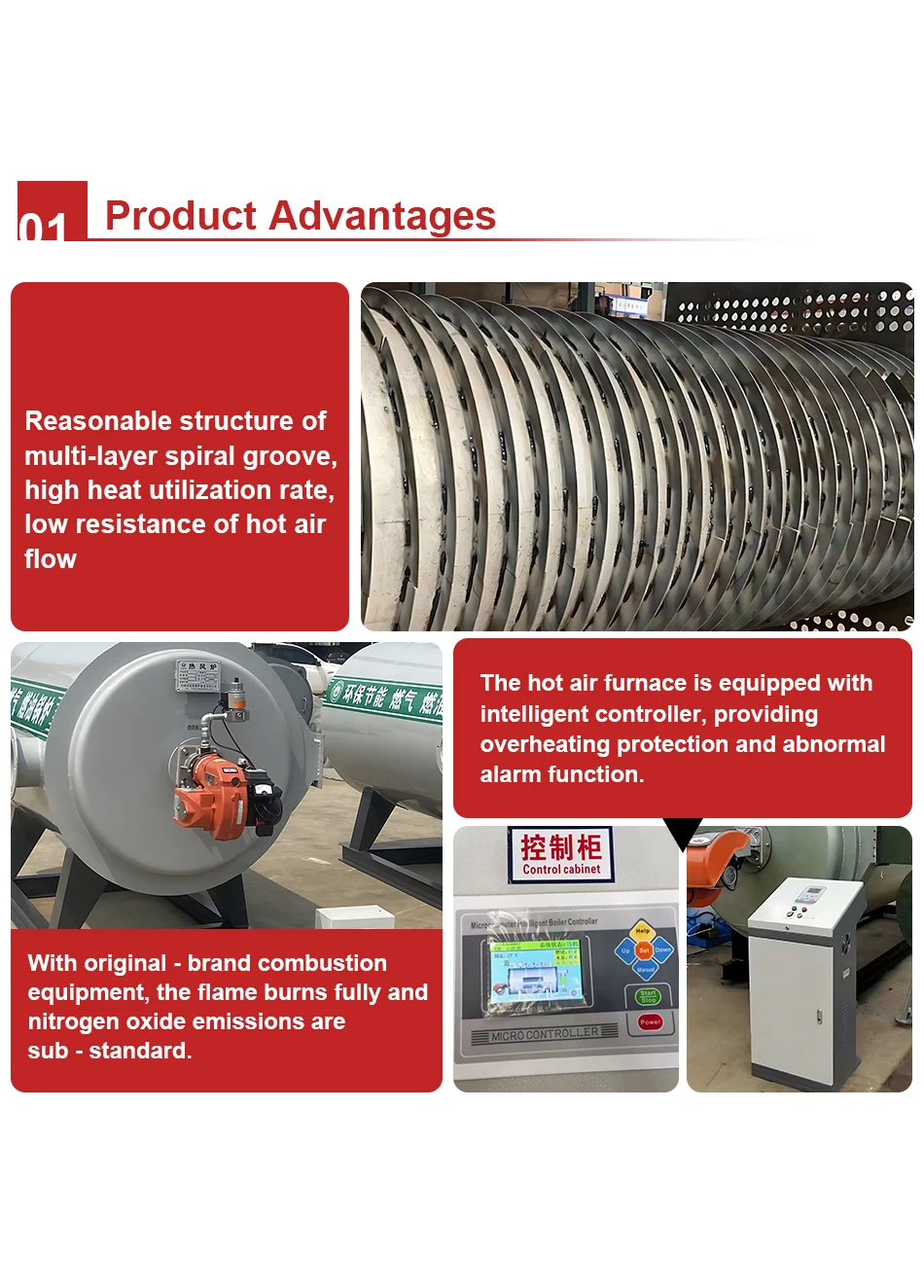

Key Features of This Blast Stove
- Power(W): 600,000–4800,000Kcal (700-5600KW)
- Voltage: 380V/220, 50HZ (Customizable)
- HeatIing Capacity We Supply: 600,000–4,800,000Kcal (700-5,600KW)
- Material: q245
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Type | Hot Air Furnace |
|---|---|
| Voltage | 380V/220, 50HZ (Customizable) |
| Heating Method | Coal, oil and gas |
| Material | q245 |
| Power(W) | 600,000–4800,000Kcal (700-5600KW) |
| Application | Chemicals Processing, Plastics Processing, Food Processing |

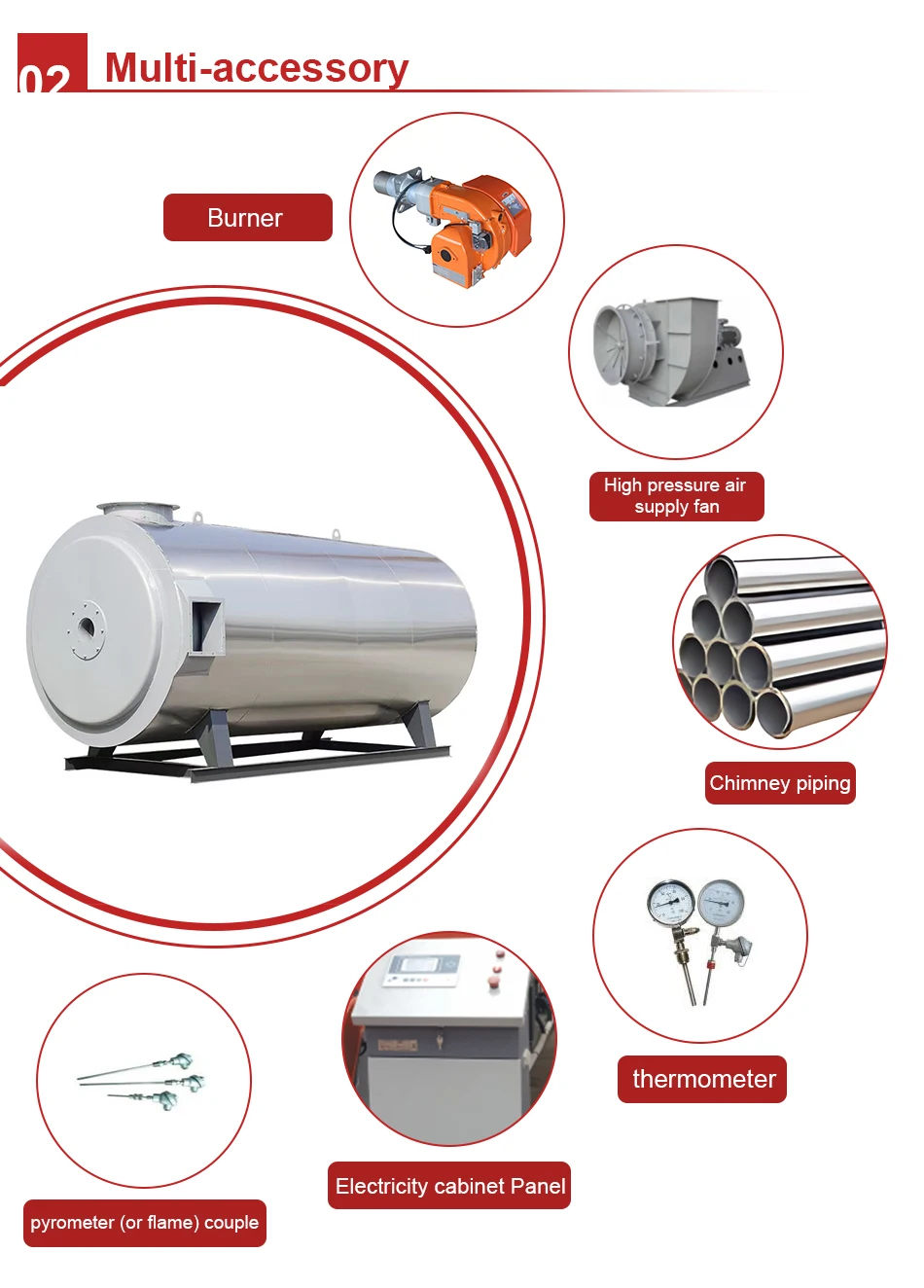

| Core Components | Motor, Pressure Vessel |
| Key Selling Points | Eco-Friendly |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 6700 |
| Brand Name | TAIGUO |
| Dimension(L*W*H) | Refer to the model |
| Weight | Refer to the model |
| Fuel | Coal, waste wood |
| Output | Clean hot air |
| Hot Air Temperature Range | 50-500℃ |
| HeatIing Capacity We Supply | 600,000–4,800,000Kcal (700-5,600KW) |
| Condition | New |
| Applicable Industries | hotels |
| Selling Units | Single item |
| Single Package Size | 2600X1500X2300 cm |
| Single Gross Weight | 7200.000 kg |
Product Details
Model | WRF-10-YQ | WRF-30-YQ | WRF-60-YQ | WRF-80-YQ | WRF-100-YQ | WRF-150-YQ | WRF-200-YQ | WRF-300-YQ | ||
Rated power（MW） | 0.12 | 0.35 | 0.7 | 1.05 | 1.2 | 1.7 | 2.4 | 3.5 | ||
Applicable temperature（℃） | 60-300 | 60-300 | 60-300 | 60-300 | 60-300 | 60-300 | 60-300 | 60-300 | ||
thermal efficiency（%） | 86 | 86 | 86 | 86 | 86 | 86 | 86 | 86 | ||
Fuel consumption | Natural gas（m3/h） | 15 | 46 | 93 | 124 | 155 | 232 | 310 | 464 | |
Liquid gas（m3/h） | 12 | 37 | 74 | 99 | 124 | 186 | 248 | 371 | ||
City gas（m3/h） | 33 | 98 | 195 | 260 | 325 | 488 | 650 | 975 | ||
Light diesel（Kg/h） | 13 | 38 | 76 | 102 | 127 | 191 | 255 | 382 | ||
heavy oil（Kg/h） | 13 | 39 | 78 | 104 | 130 | 195 | 260 | 390 | ||
Transport reference weight（T） | 1.2 | 2 | 3.7 | 4.5 | 5.5 | 7.2 | 11 | 16 | ||
Transport reference dimensio | Long | 2400 | 2400 | 3700 | 4200 | 7500 | 5500 | 6200 | 6700 | |
Wide | 1200 | 1400 | 1700 | 1900 | 2000 | 2100 | 2300 | 2600 | ||
High | 1500 | 1800 | 2100 | 2300 | 3333 | 2500 | 2800 | 3000 | ||
Q1:How can you get the best price quickly?
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if
you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2：Why choose us?
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $5600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast stove?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the blast stove be supplied for my local voltage?
The standard configuration is 380V/220, 50HZ (Customizable). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Taiguo Boiler Products Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Henan Taiguo Boiler Products Co., Ltd. range on HVACR Nexus.
