Key specification for this bldc motor: rated voltage 24VDC, type Brushless Motor. Everything below is reproduced from the factory data sheet. Made by Changzhou Daiwei Motor Co., Ltd. (12 years on the platform, typical reply ≤19h). For a binding price and lead time, send the volume you need and where it ships to.

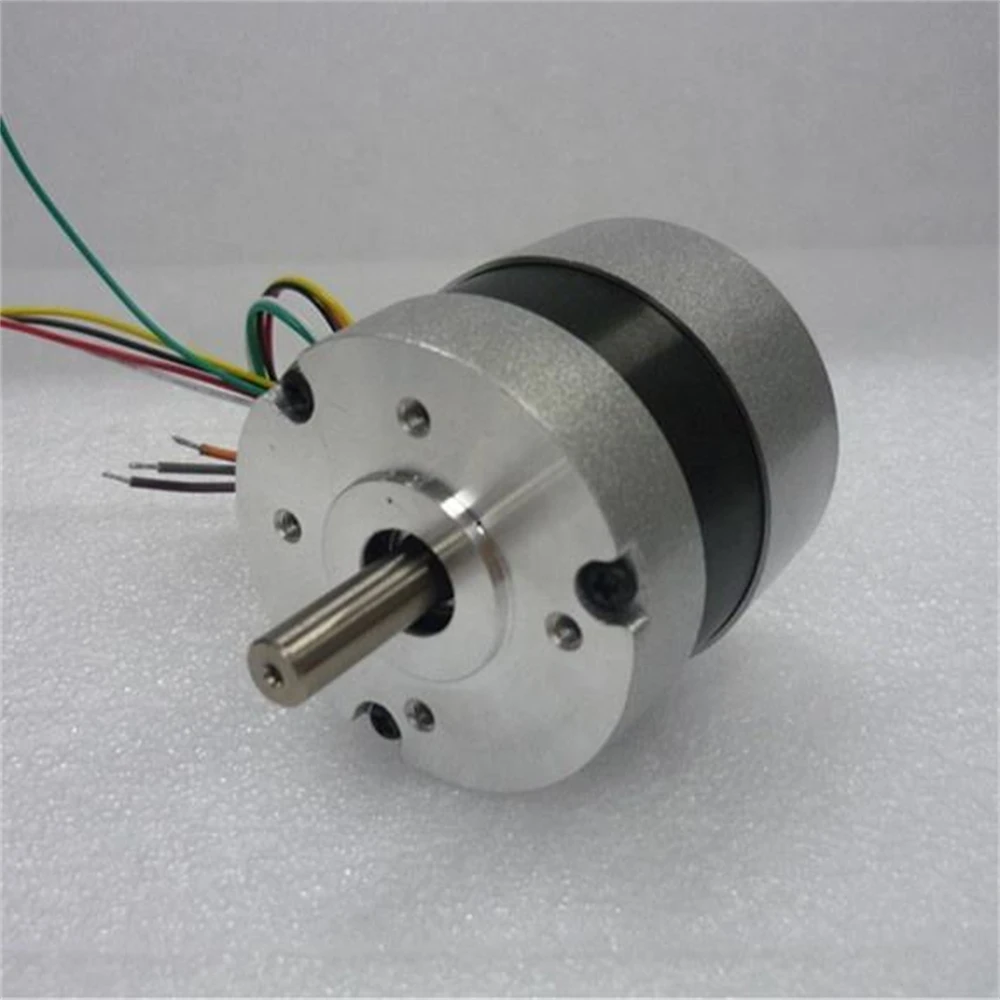

Key Features of This Bldc Motor
- Model Number: DW57BL01
- Rated Power: 60 w
- Rated Voltage: 24VDC
- Speed(RPM): 5000rpm
- Warranty: 3 months ~ 1 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | 60 w |
| Speed(RPM) | 5000rpm |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 57 mm(2.24in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 2A |
| Model Number | DW57BL01 |
| Torque | Requests |
| Place Of Origin | Jiangsu, China |
| Brand Name | DAIWEIMotor |
| Rated Voltage | 24VDC |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Brushless DC motors are widely used for many industrial applications as they have many advantages:
•High efficiency and high torque in a small diameter
•Low starting voltage,low rotor intertia,low noise,long lifetime
•Wide range of speed control and steady working state with less inaccuracy

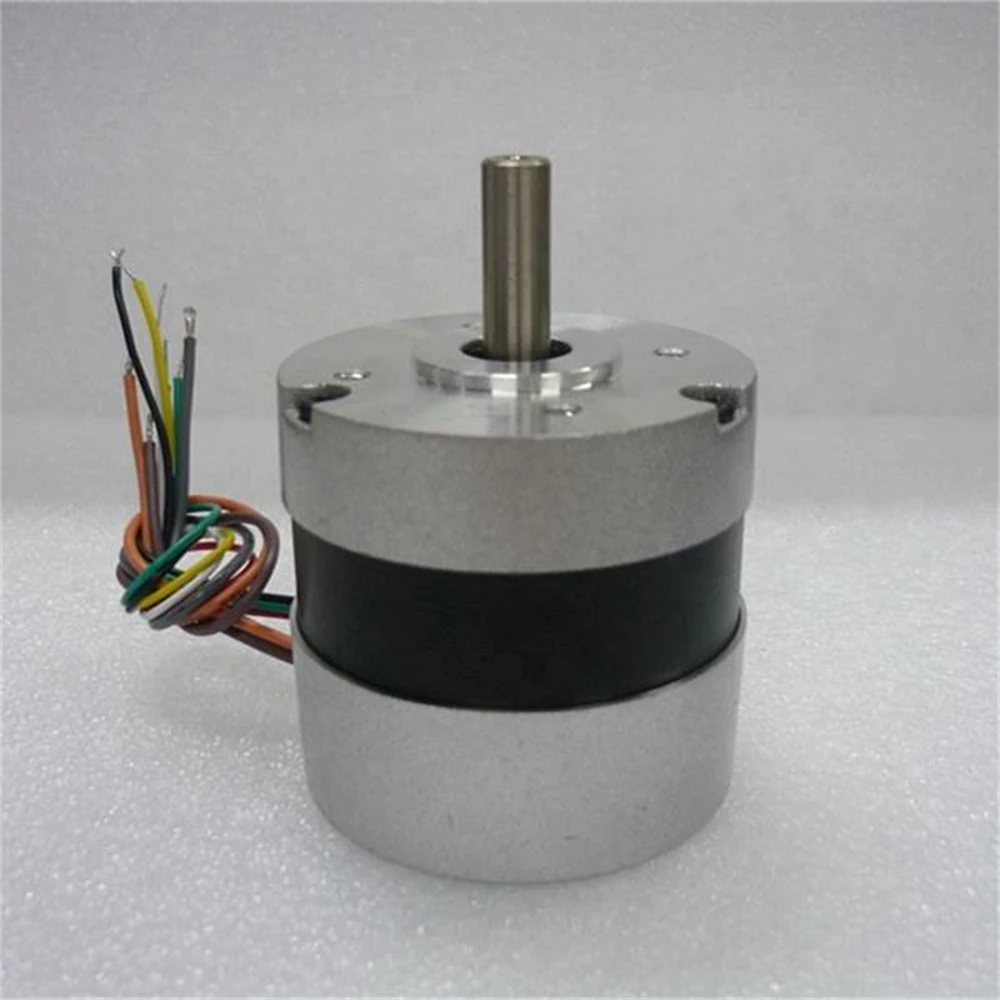

引出线颜色 Color | 功能 Functions |
红色(Red) | 霍尔电源正(Vcc) |
黄色(Yellow) | 霍尔1(H1) |
绿色(Green) | 霍尔2(H2) |
白色(White) | 霍尔3(H3) |
黑色(Black) | 霍尔电源负(GND) |
橙色(Orange) | U相(Phase U) |
灰色(Grey) | V相(Phase V) |
棕色(Brown) | W相(Phase W) |
DW57BL01-2450 | ||
级数(Number of poles) | 4 | |
相数(Number of phases) | 3 | |

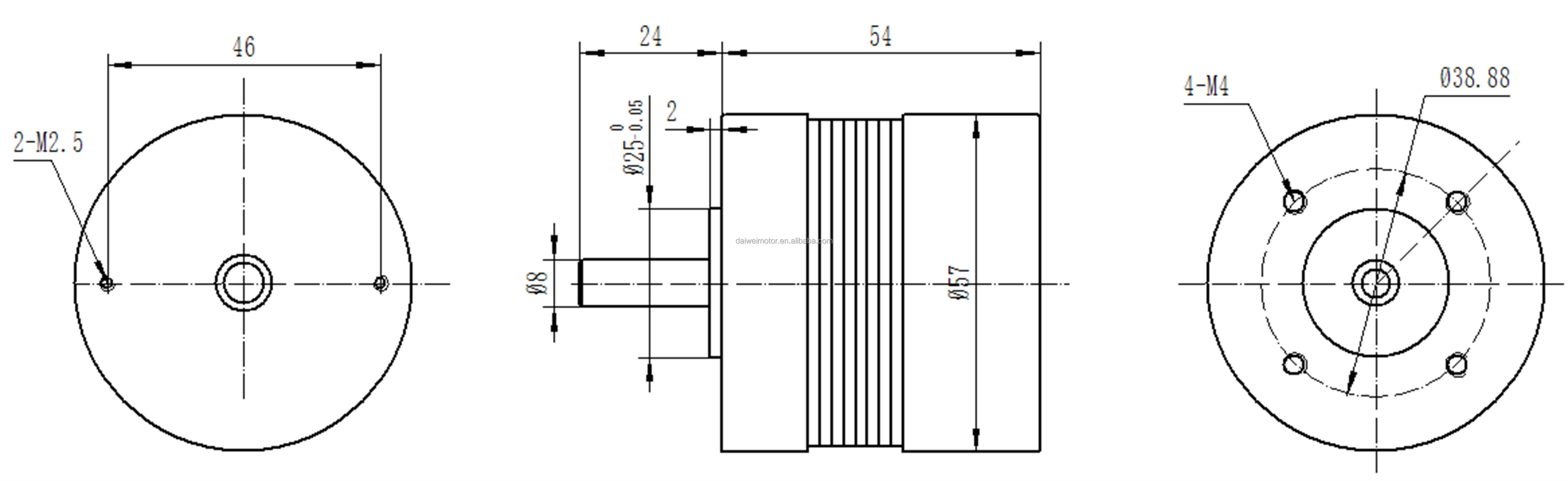

机身外径(Motor diameter) | φ57mm | |
机身长度(Motor length) | 54mm | |
重量(Weight) | 0.44kg | |
额定电压(Rated voltage) | 24V | |
空载转速(No-load speed) | 5000rpm | |
额定转矩(Rated torque) | 0.16Nm | |
额定转速(Rated speed) | 3333rpm | |
额定电流(Rated current) | 3.7A | |
额定功率(Rated power) | 58W | |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $25 / piece
- 10–499 piece: US $23 / piece
- 500–999 piece: US $21 / piece
- 1000+ piece: US $19 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the bldc motor be supplied for my local voltage?
The standard configuration is 24VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

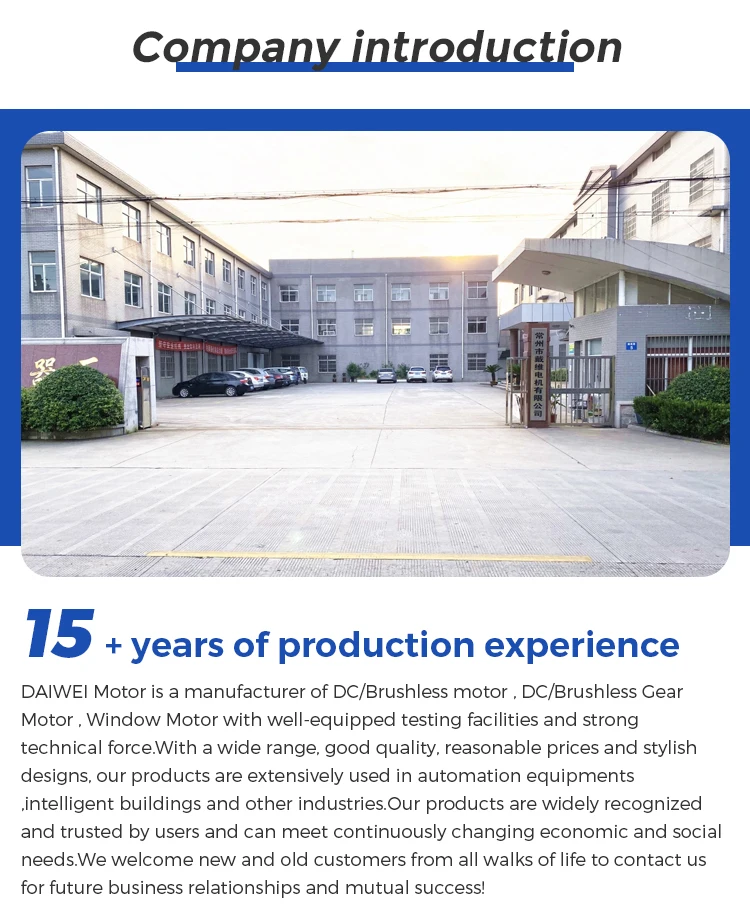

About the Manufacturer
This product is produced by Changzhou Daiwei Motor Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Daiwei Motor Co., Ltd. range on HVACR Nexus.
