Key specification for this dc brushless motors: 24V, type Brushless Motor. Everything below is reproduced from the factory data sheet. Made by Changzhou Daiwei Motor Co., Ltd. (12 years on the platform, typical reply ≤19h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Dc Brushless Motors
- Model Number: DW42RBL60
- Rated Power: Subject to product
- Rated Voltage: 24V
- Speed(RPM): 2500-8000
- Warranty: 3 months ~ 1 year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | Subject to product |
| Speed(RPM) | 2500-8000 |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Frame | 42 mm(1.65in) |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Usage | Cosmetic Instrument |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | Subject to product |
| Model Number | DW42RBL60 |
| Place Of Origin | Jiangsu, China |
| Brand Name | DAIWEI Motor |
| Rated Voltage | 24V |
| Diameter | 42mm |
| Selling Units | Single item |
| Single Package Size | 20X20X12 cm |
| Single Gross Weight | 1.0 kg |
Product Details

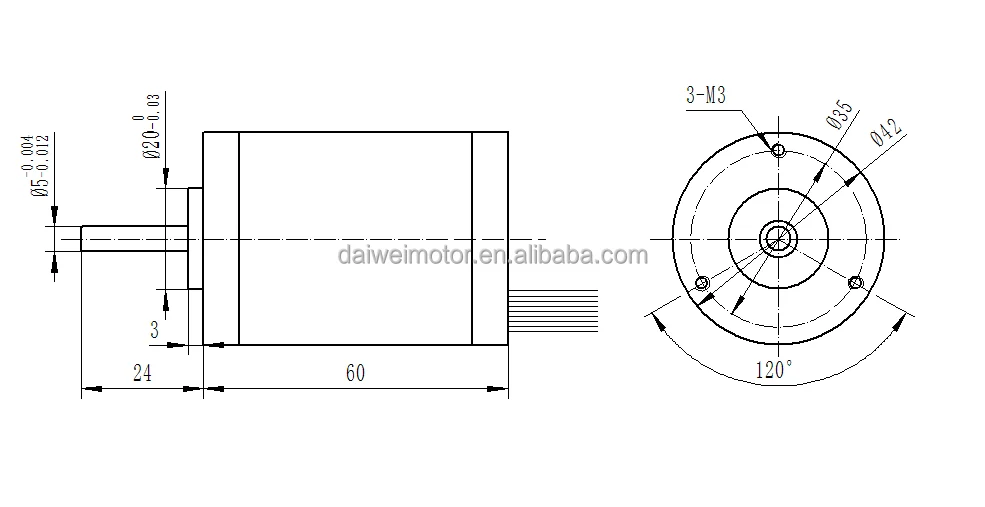

Dimension
PRODUCT DETAILS
| Unit | DW42RBL60 | |||||||
| Number of poles | 8 | |||||||
| Number of phases | 3 | |||||||
| Motor diameter | mm | φ42 | ||||||
| Motor length | mm | 60 | ||||||
| Weight | Kg | 0.4 | ||||||
| Rated voltage | VDC | 24 | ||||||
| No-load speed | RPM | 2500 | 3000 | 4000 | 5000 | 5500 | 7000 | 8000 |
| Rated torque | N.m | 0.056 | 0.068 | 0.073 | 0.075 | 0.09 | 0.095 | 0.12 |
| Rated speed | RPM | 1667 | 2000 | 2667 | 3333 | 3667 | 4667 | 5333 |
| Rated current | A | 0.7 | 0.9 | 1.5 | 1.6 | 2.2 | 2.85 | 3.9 |
| Rated output power | W | 9 | 12 | 18.5 | 20 | 33 | 43 | 65 |

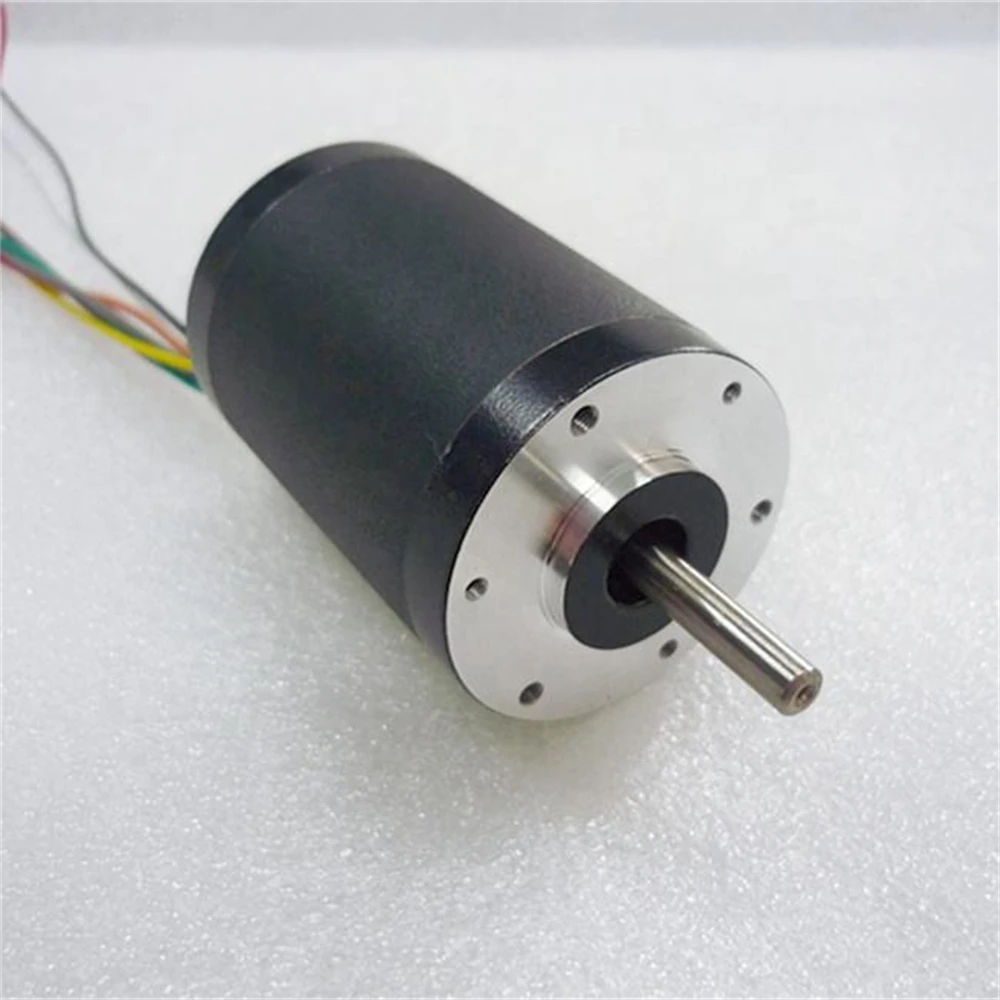

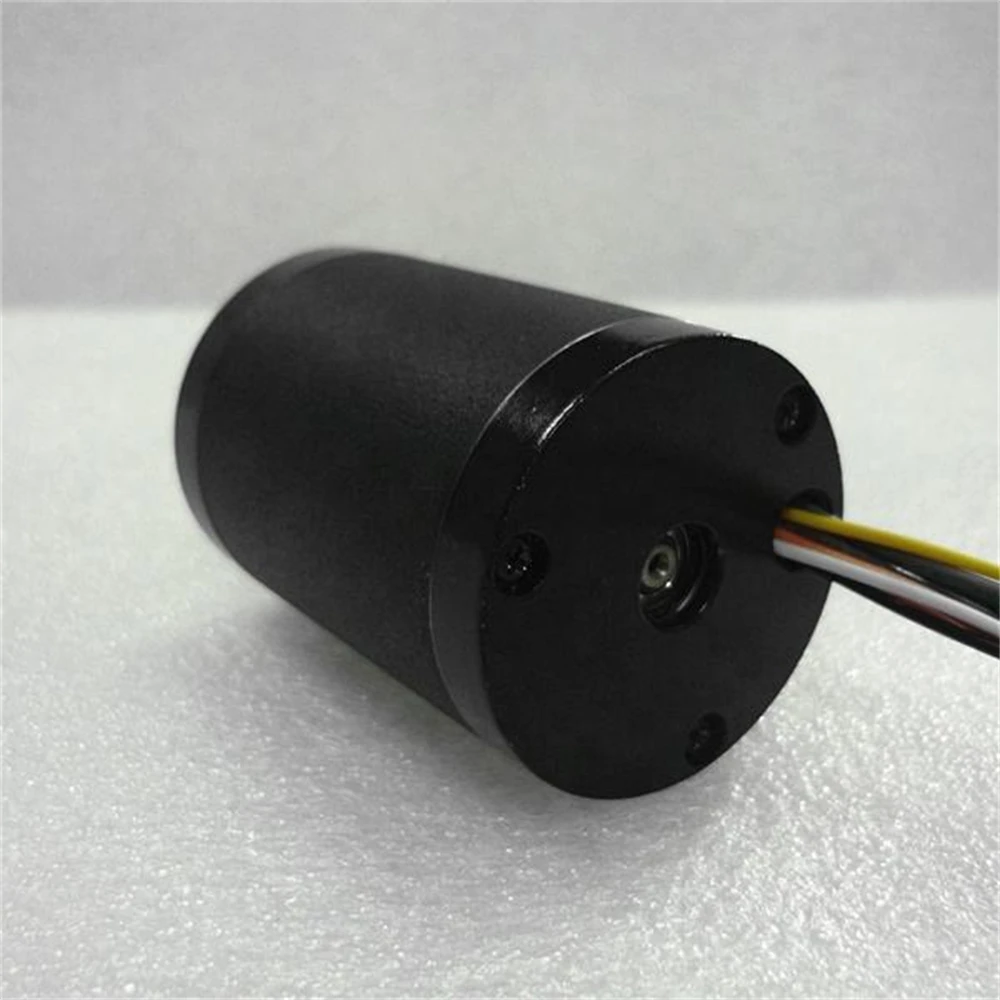

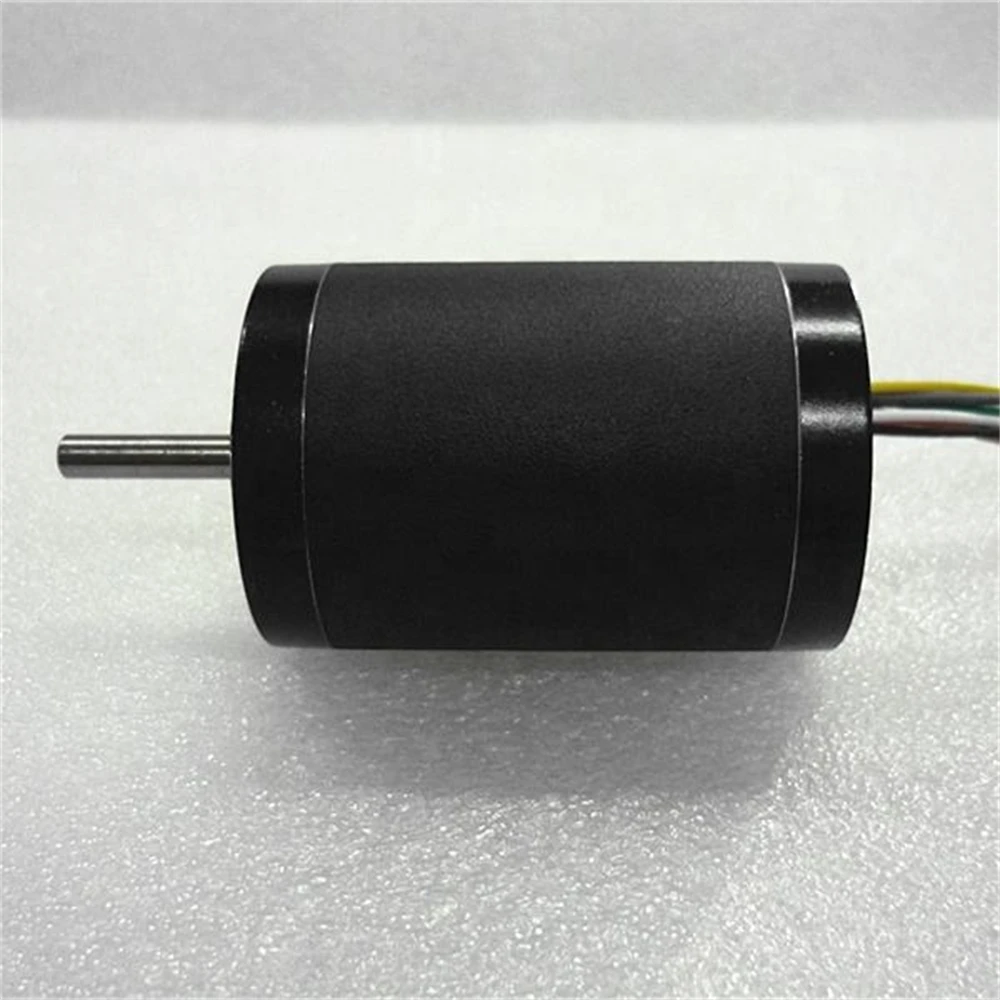

PRODUCT PICTURE
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $22 / piece
- 100–499 piece: US $20 / piece
- 500+ piece: US $18 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dc brushless motors?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the dc brushless motors be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
