The boiler listed here carries power Electric, type Pressure Reducing Control Valves, documented exactly as the manufacturer publishes it. Made by Suzhou Delan Energy Science & Technology Co., Ltd. (10 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Boiler
- Model Number: MX2500 Series
- Power: Electric
- Warranty: 18 MONTHS
- Place Of Origin: Jiangsu, China
- Application: Power plant, steam system, natural gas system, water system
- Type: Pressure Reducing Control Valves
Technical Specifications
| Structure | Control |
|---|---|
| Media | Base |
| Power | Electric |
| Port Size | 1/2"~6" |
| Customized Support | OEM, ODM, OBM |
| Warranty | 18 MONTHS |
| Temperature Of Media | Medium Temperature, 610℃ |
| Application | Power plant, steam system, natural gas system, water system |
| Model Number | MX2500 Series |
| Place Of Origin | Jiangsu, China |
| Brand Name | DELAN |
| Standard Or Nonstandard | Standard |
| Certificate | ISO9001 CE |
| Type | Pressure Reducing Control Valves |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 25.0 kg |
Product Details
Products Description

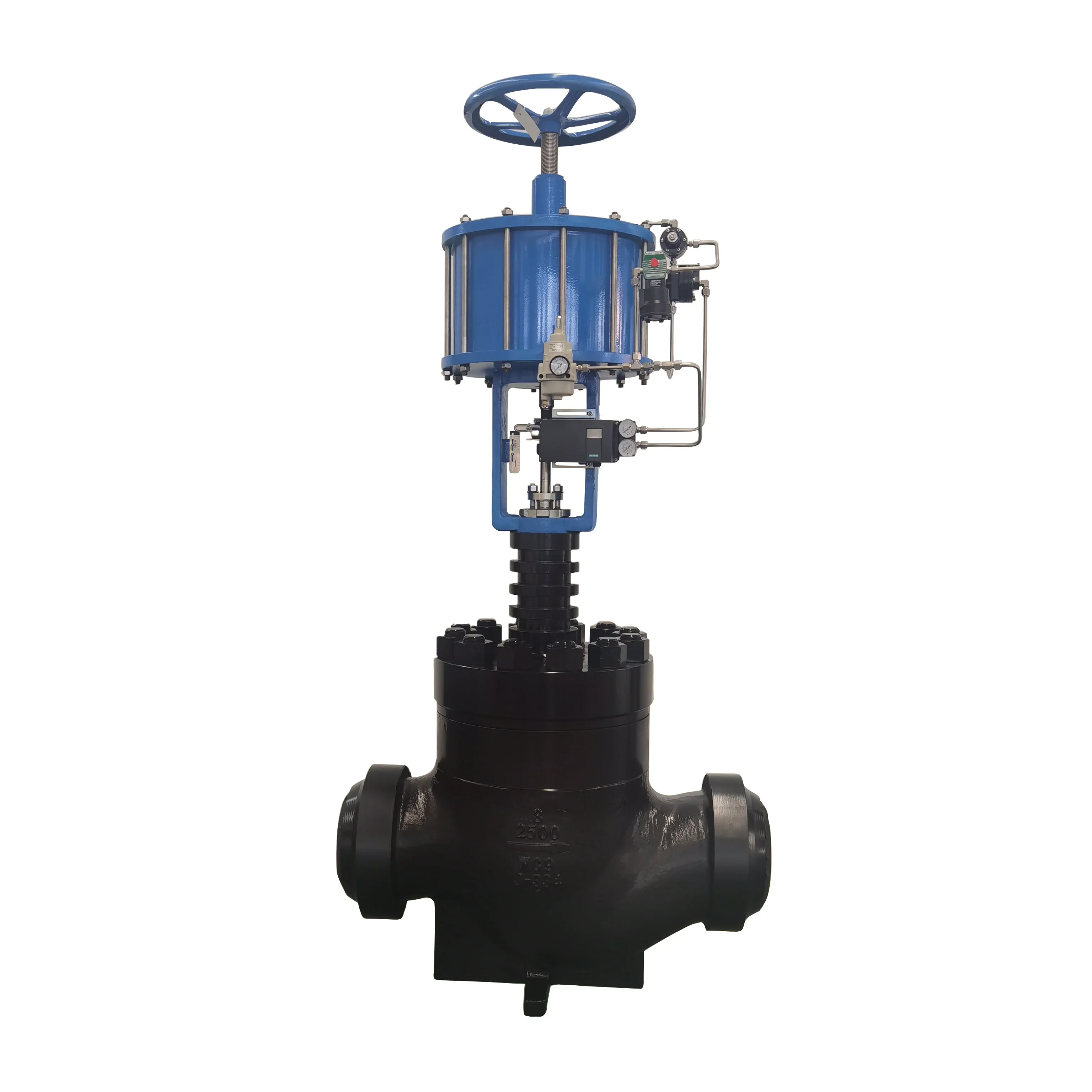

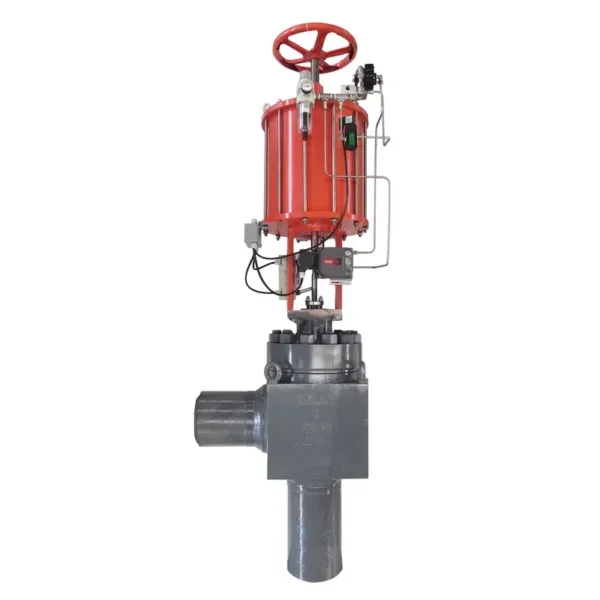

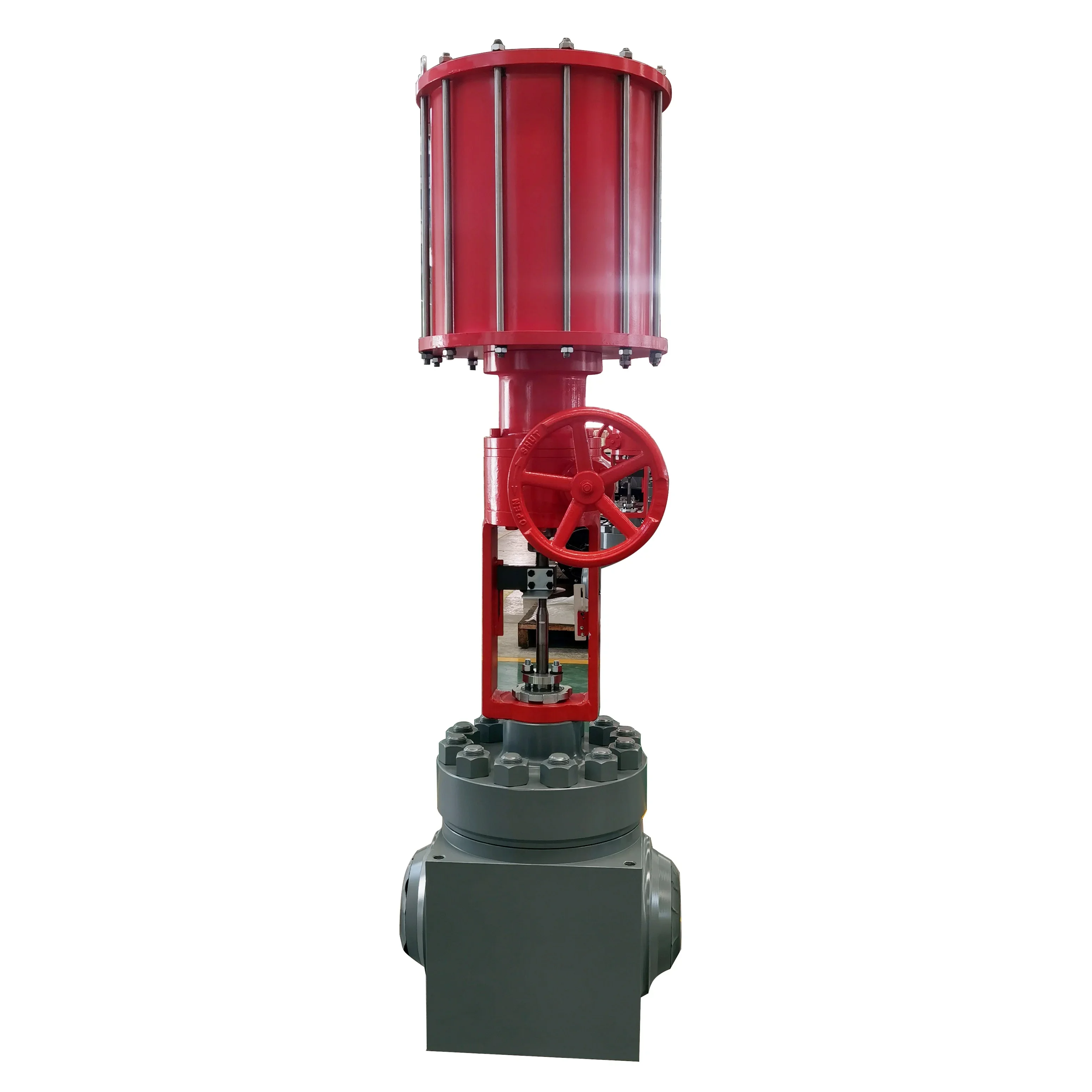

MX Series Control Valve
Performance Parameters
◆Diameter：DN20~DN300◆Pressure：PN100~PN420
◆Flow characteristics：
1、Linear
2、Equal percentage
3、Quick opening

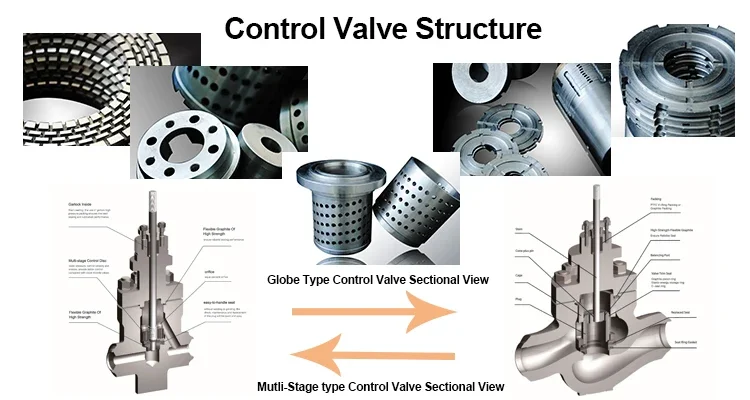

◆Structure：
Main forgings , circulating convection structure（one of our patents）
◆Body material：
A105、12Cr1MoV、F22、WC9,etc
◆Typical valve：
minimum flow recirculation control valve,spray water control valve,boiler air exhaust valve,etc.
Installed in recirculation system to prevent pump from overheat. Apply for high differential pressure service. Minimize the
erosion phenomenon caused by cavitation under the high differential pressure. Anti-cavitation trim by multi-stage variable
orifice.
erosion phenomenon caused by cavitation under the high differential pressure. Anti-cavitation trim by multi-stage variable
orifice.

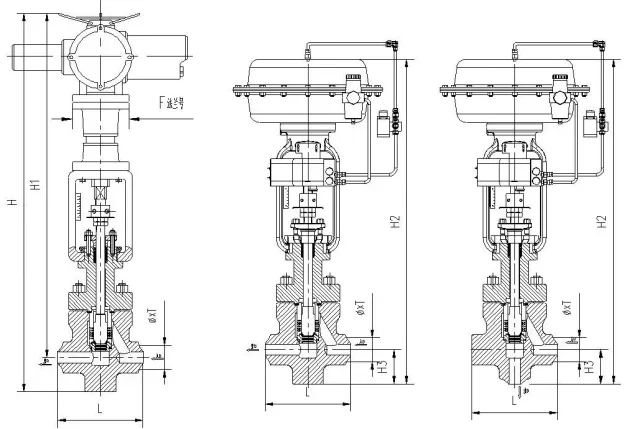

Product Paramenters
Nominal diameter | L | H | H1 | Flange No. | H2 | H3 | D | Weight | ||
Inch | mm | （mm） | （mm） | （mm） | （mm） | （mm） | （mm） | （kg） | ||
3/4" | 20 | 250 | 950 | 850 | F10 | 884 | 100 | 333 | 80 | |
1" | 25 | 250 | 950 | 850 | F10 | 884 | 100 | 333 | 80 | |
1-1/2" | 40 | 250 | 950 | 850 | F10 | 884 | 100 | 333 | 80 | |
2" | 50 | 250 | 1035 | 935 | F14 | 1058 | 100 | 406 | 86 | |
2-1/2" | 65 | 400 | 1115 | 1025 | F14 | 1158 | 90 | 473 | 140 | |
3" | 80 | 498 | 1155 | 1025 | F14 | 1258 | 130 | 473 | 220 | |
4" | 100 | 575 | 1320 | 1190 | F14 | 1332 | 168 | 536 | 340 | |
6" | 150 | 700 | 1402 | 1190 | F14 | 1420 | 212 | 536 | 380 | |
Item | Size | Operation Temperature | Type | Pressure Class | Body Material | Operation | Leakage Level |
Control Valve | 1/2" ~24" | -29℃ ~628℃ | Globe Angle | 150LB ~4500LB | WCB WC9 CF8 CF8M | Manual/ Pneumatic/ Electric/ Hydraulic | IV/V/VI |
Attemperator Spray Control Valve | 1/2" ~6" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | V |
Feedpump Recirculation Valve | 1" ~12" | -29℃ ~425℃ | Globe Angle | 150LB ~4500LB | WB36 A105 F22 | Manual/ Pneumatic/ Electric/ Hydraulic | MSS-SP61 |
Globe Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Check Valve | 3/8‘’ ~4'' | -29℃ ~680℃ | Globe Y-type | 150LB ~4500LB | CF8C CF8M 316H 347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Forged Steel Gate Valves | 1/2" ~30" | -29℃ ~628℃ | Parallel double gate | 150LB ~4500LB | WB36/A105/F22/F91/F92 | Manual/ Pneumatic/ Electric/ Hydraulic |
Recommend Products
●condensate pump recirculation control valve
●deaerator liquid level control valve
●high pressure and emergency drain control valve
●boiler feedpump recirculation control valve (minimum flow valve)
●main feedwater control valve
●attemperator spray control valve
●soot blowing control valve
●main steam control valve
●high-pressure forged steel globe valve
●pneumatic and electric drain valve
●boiler continuous blowdown control valve

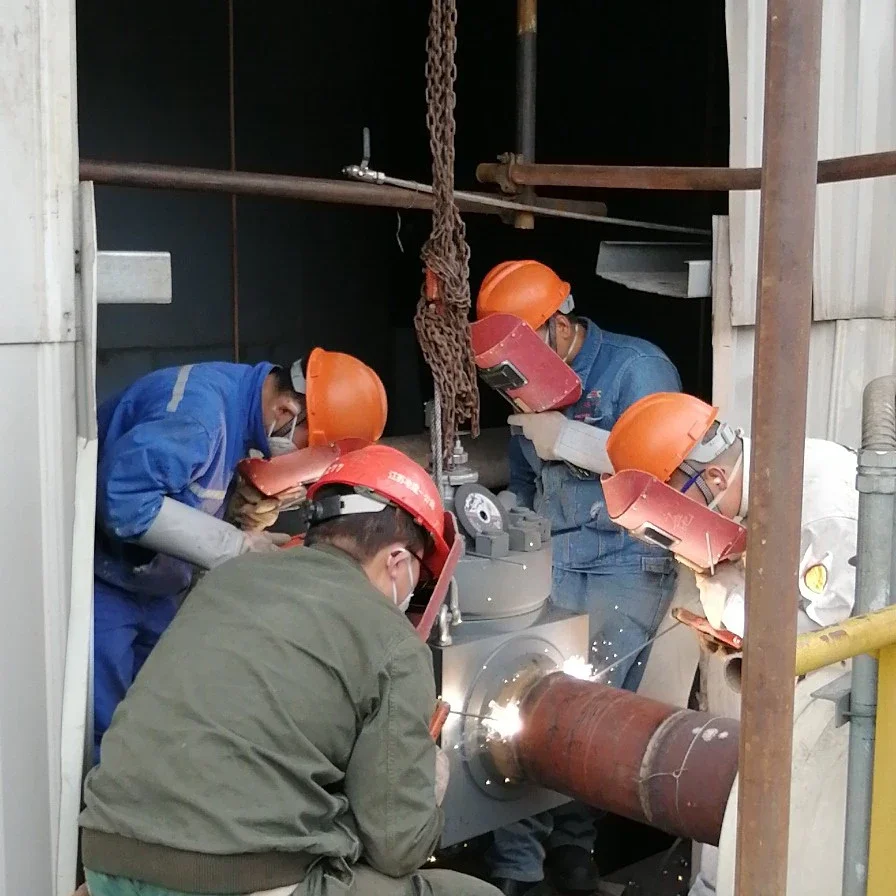

Installation site view

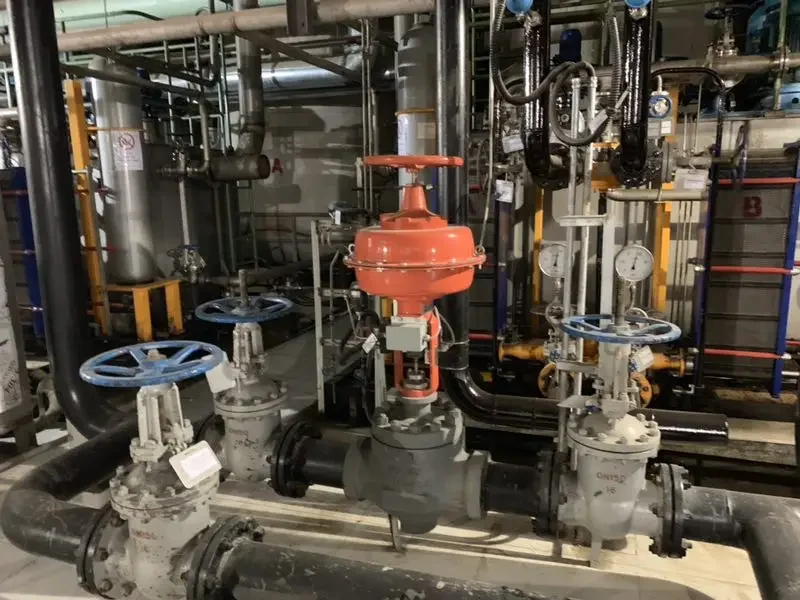

Pneumatic control valve in Indonesian chemical plant
Feedpump Recirculation Valve in Power plant(2*660MW)

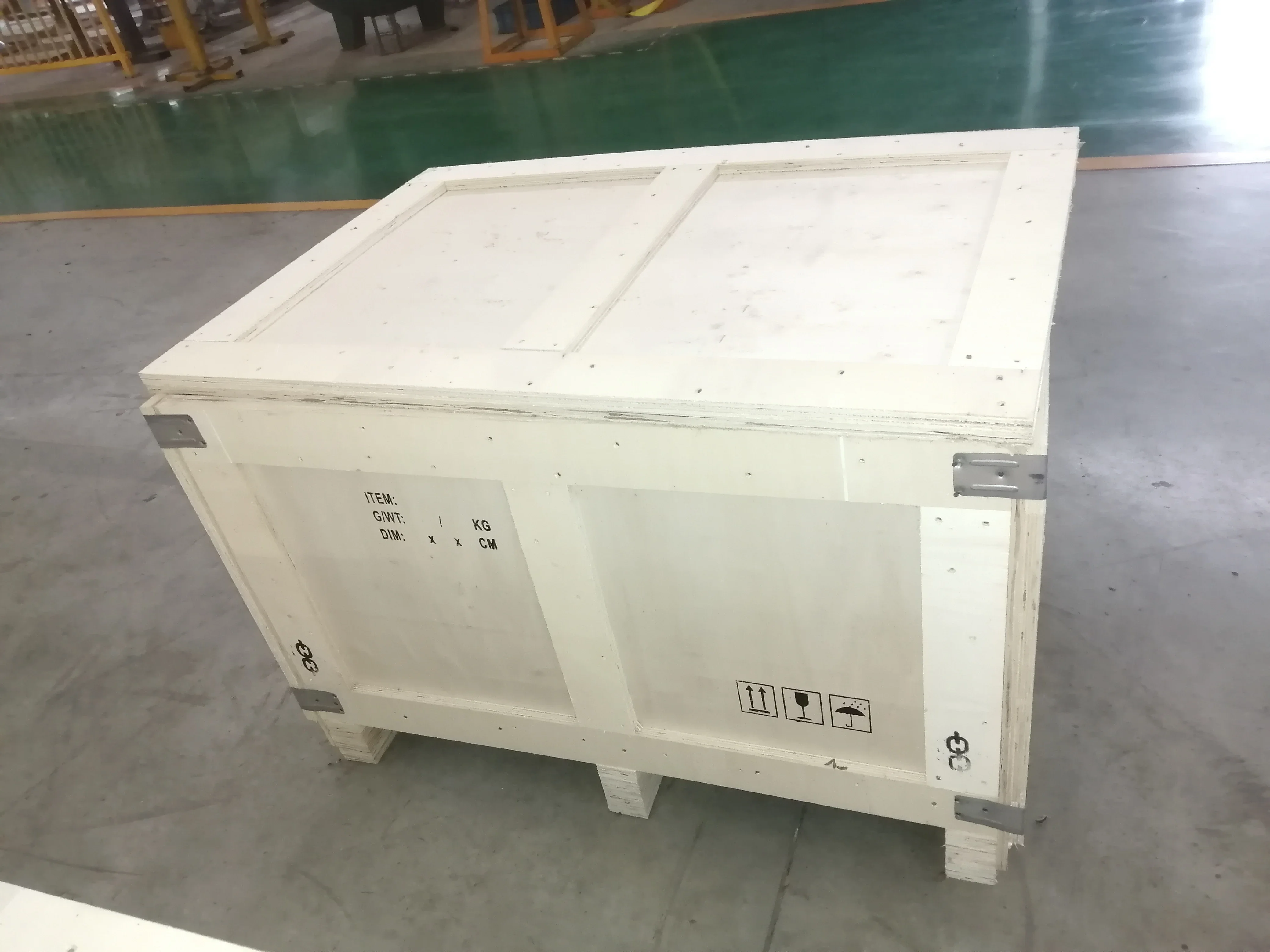

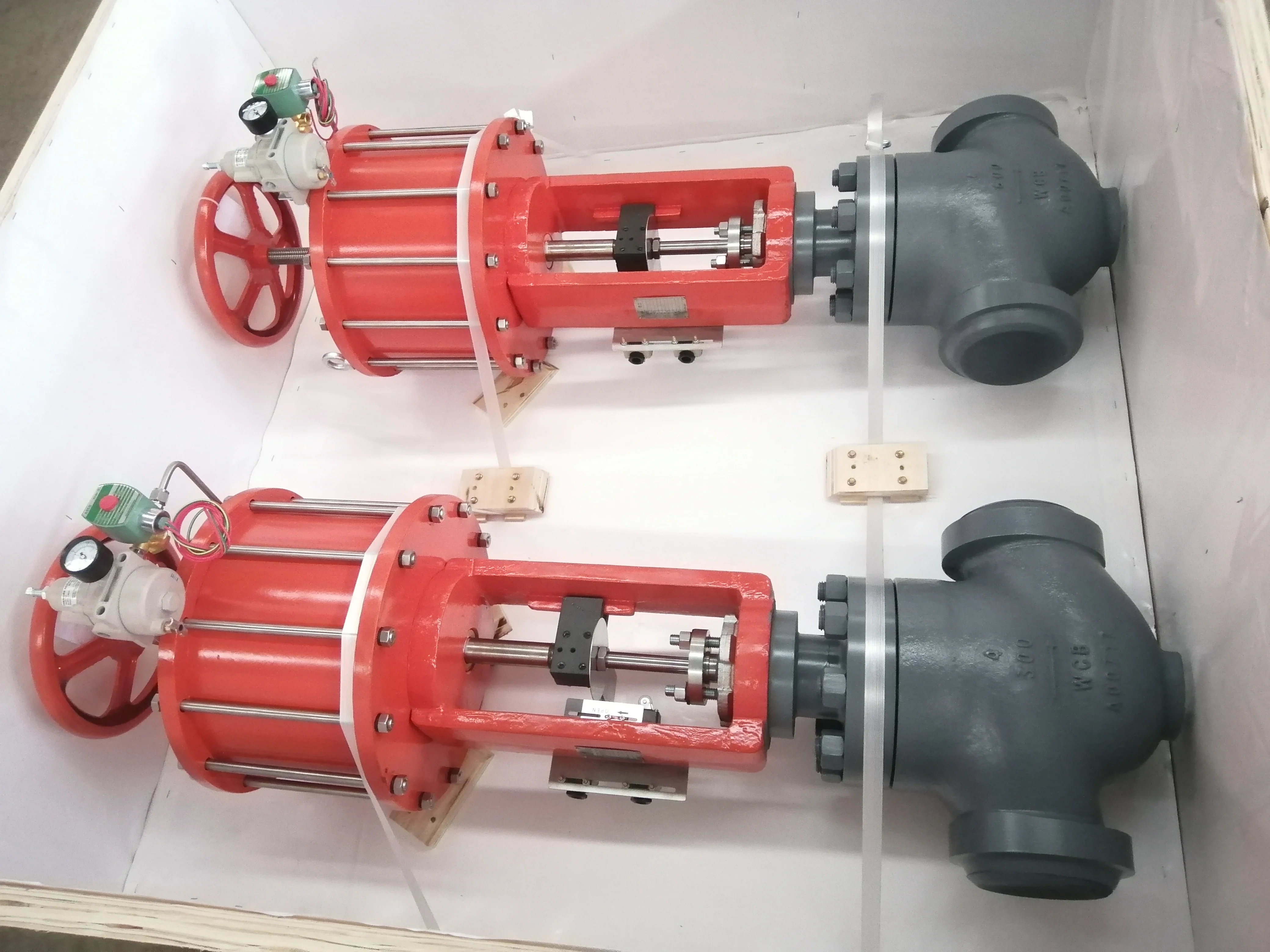

Packing & Delivery
Generally packed in export wooden boxes ,and also can be packed according to customer's requirements .
Contact Us Now
GET FREE QUOTATION
Warmly welcome to call or write to consult and negotiate details.
Company Profile
https://delanvalve.en.alibaba.com/
● History: Since 1991, rich experience of manufacturing regulating valves, pneumatic high-pressure traps, and forged steel globe valves
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization

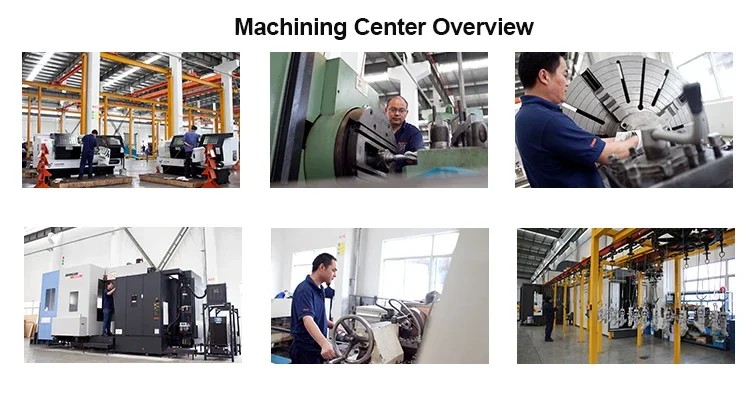

● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.
● Scale: 19000m² working area , 120 employees, 5000pcs monthly capacity
● Management: ISO9001 quality management system, ERP production system
● Technology: Sufficient patents, professional technical team, strict QC system, R&D capability for customization
● Manufacturing: CNC center, Horizontal machining centre; Milling machines; Internal grinding machine etc.

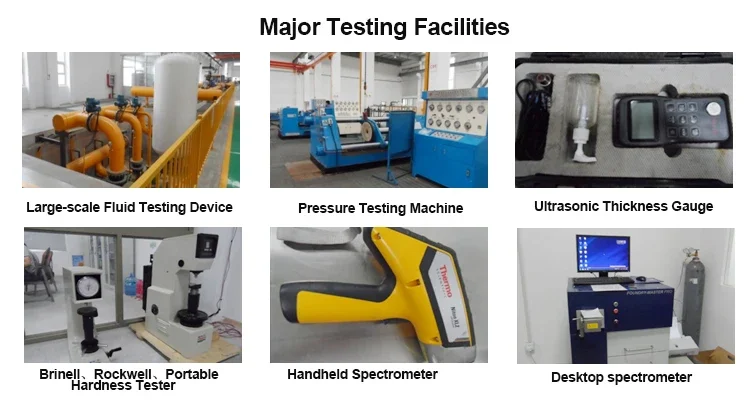

● Testing facilities : Large-scale fluid laboratory, test range : 25-400mm diameter valves; 4 sets Hydraulic valves pump test desk; Handheld Spectrometer; Ultrasonic fault detector; Tensile testing machine; Shock testing machine etc.
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
● Certification: ISO14001, OHSAS18001, CE, Serbia 3A professinal certifications and approvals
● Guarantee: 18 months guarantee, and provide free parts during warranty period
● Service: DELAN brand agent, ODM, OEM
FAQ
Q1: Are you a factory or trading company?
A1: We are a family business integrating manufacturing and trading, and our headquarters are in Suzhou, China Q2: How long is your product warranty? A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; final Inspection before shipment;
A3: Always a pre-production sample before mass production; final Inspection before shipment;
Q4: What is your hot items? A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands. Q5: How about the shipping method? A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted. Q6: How about the label and the logo? A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $800 / piece
- 5–9 piece: US $700 / piece
- 10–19 piece: US $600 / piece
- 20+ piece: US $399 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this boiler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 18 MONTHS warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this boiler carry?
It is supplied with ISO9001 CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
