Boiler Parts, DC 24V, PBT+GFPP, SK-R800L, 10m

Key specification for this boiler parts: power supply DC 24V, material PBT+GFPP. Everything below is reproduced from the factory data sheet. Made by Shaanxi Shengke Electronic Technology Co., Ltd. (4 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of These Boiler Parts

• Power Supply: DC 24V
• Material: PBT+GFPP
• Warranty: 1 years
• Place Of Origin: Shaanxi, China
• Type: Radar Level Meter
• Single Package Size: 19X12X11 cm

Technical Specifications

Product Details

Product Description

Specification

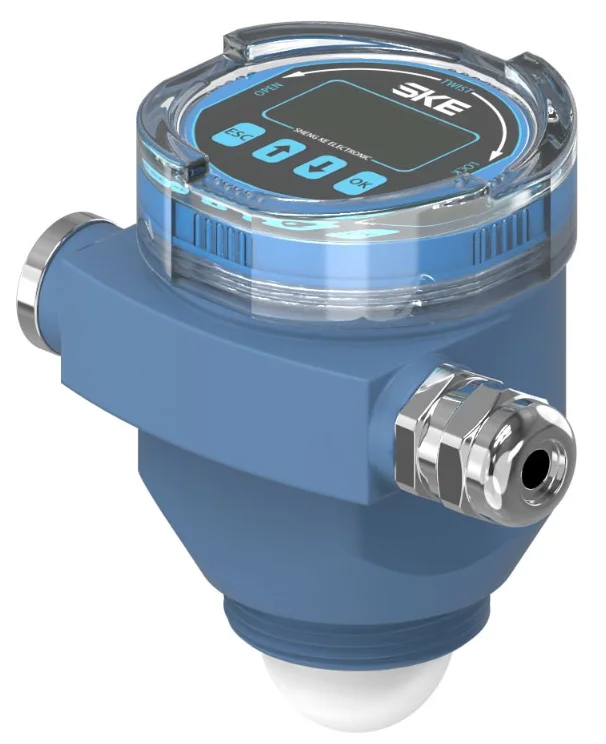

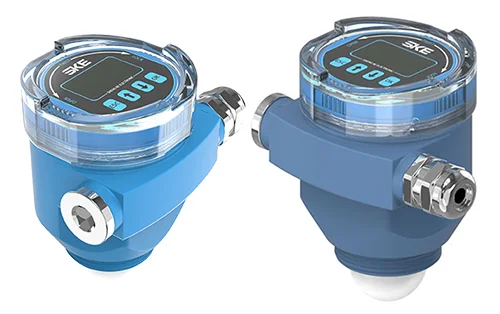

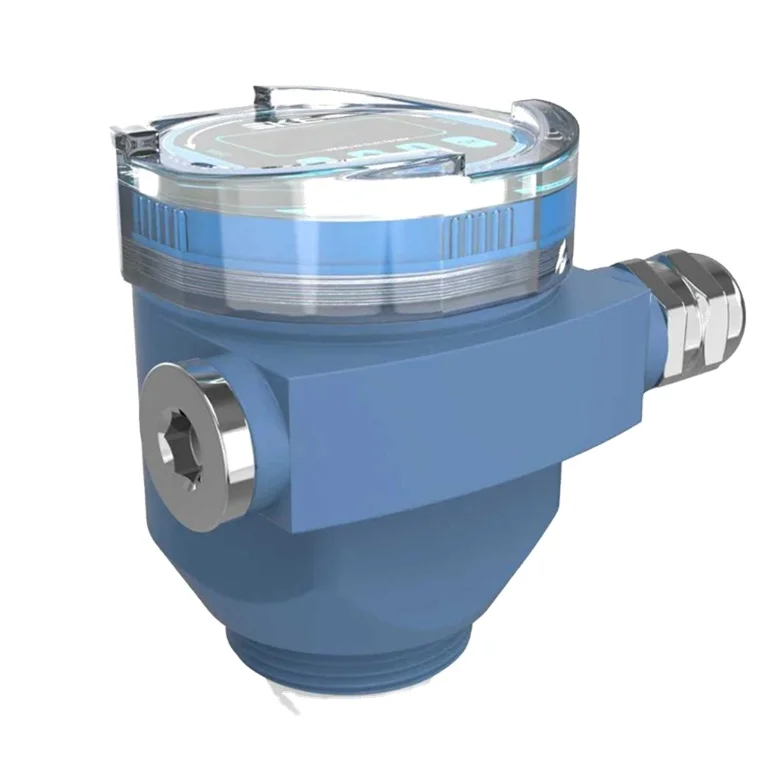

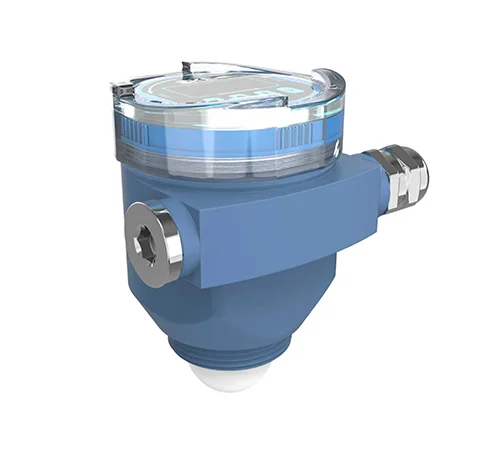

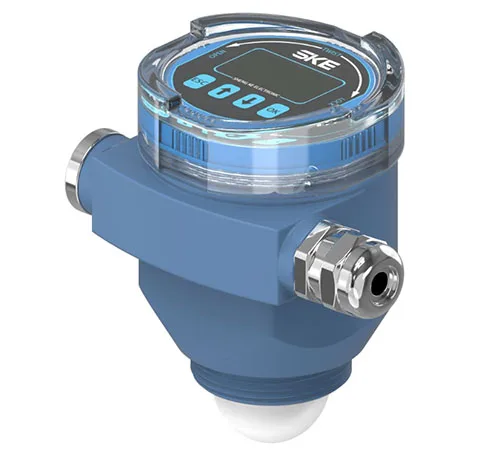

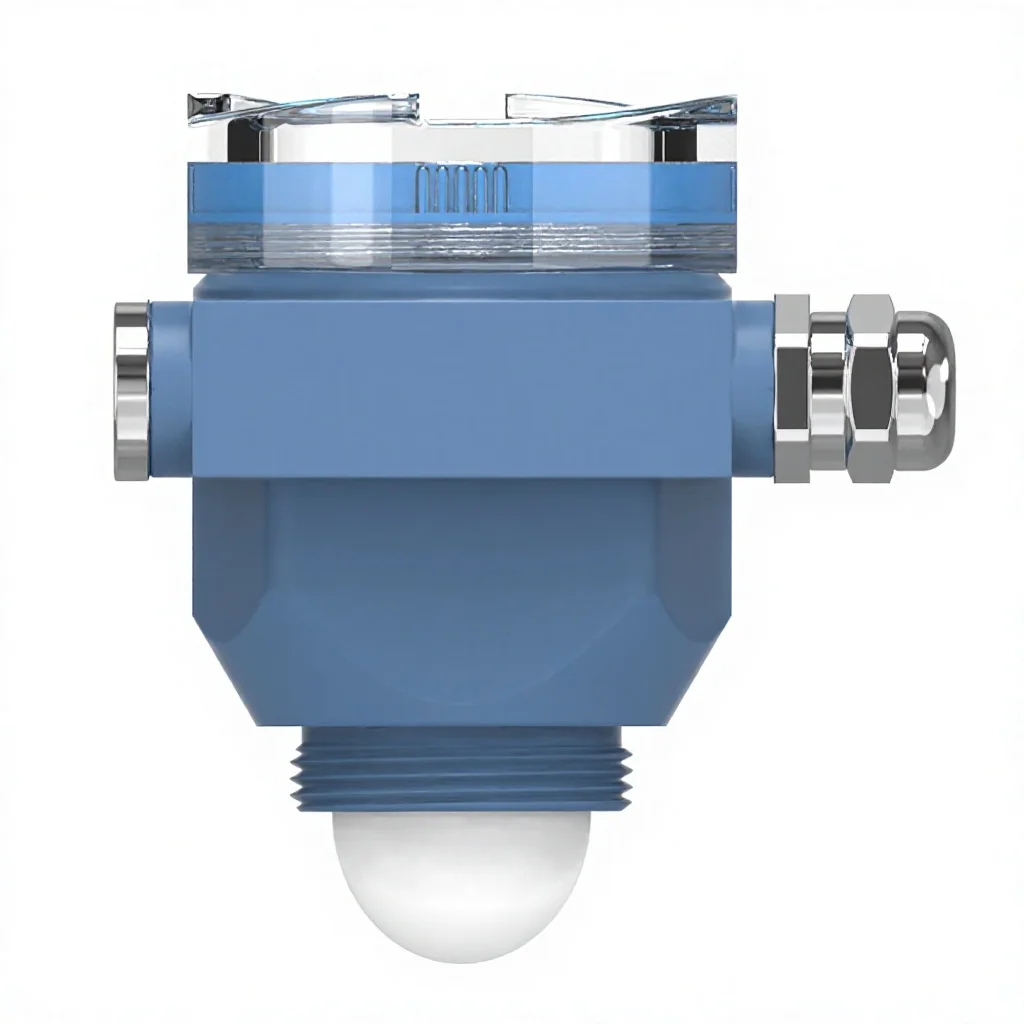

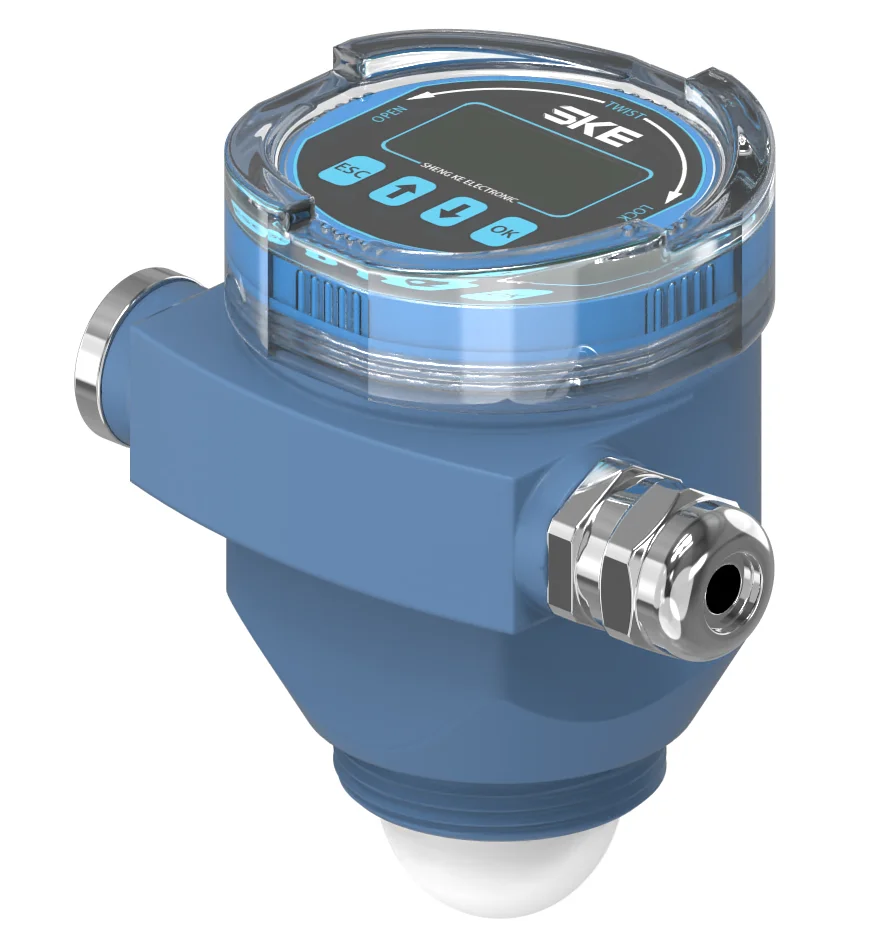

Model	SK-R800L
Product	80Ghz Radar Level Sensor
Housing	PBT+GFPP
Max Range	10m/20m/30m
Accuracy	±2mm
Power Supply	DC 24V
Signal Output	4-20mA
Process Temperature	-40℃~80℃
Process Pressure	Normal Atmospheric Pressure
Process Connection	Threaded Connection G1.5
Protection Classic	IP67
Communication	RS485/Modbus/Hart
Display	LCD/Bluetooth
Beam Angle	3°
Power	<0.5W
Electrical interface	M20*1.5

Packing & Delivery

Box

Company Profile

Shaanxi SK electronic technology company is a high-tech enterprises, Located in Xi 'an high-tech industrial development zone.SK rely on xi 'an universities of science and technology resources, committed to liquid level gauge's research and development for petroleum, chemical industry, pharmacy, electricity, metallurgy, storage Etc. SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wire external liquid level indicator and external liquid level switch. All these three products' capability has reached the international standard. Especially the two-wire external liquid level gauge is the first type in the world. We based on the customers requirement, provide the high quality product and service, aim to improve customer satisfactory and create the most value for our customer. In line with the concept of integrity, specialty and efficient, human concerted, self-independent innovation, Dedicated to be the influential high tech enterprise in the industry automation control field in China.

FAQ

1. who are we?
We are based in Shaanxi, China, start from 2013,sell to Eastern Europe(30.00%),North America(20.00%),Mid East(10.00%),Western Europe(10.00%),South America(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
radar level sensor,80G radar sensor,radar level transmitter,tank level sensor,water level sensor

4. why should you buy from us not from other suppliers?
SK Company dives in the study of Sonar technology, actively explore the technology and apply it to the industry automation control field. Three new products have been widely used in kinds of market, the two-wire external liquid level indicator, the four-wi

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Benefits

Simple installation and maintenance-free operation

Simple installation,maintenance-free operation, convenient debugging (mobile APP, WeChat applet debugging), long life.Low-cost
radar sensor.

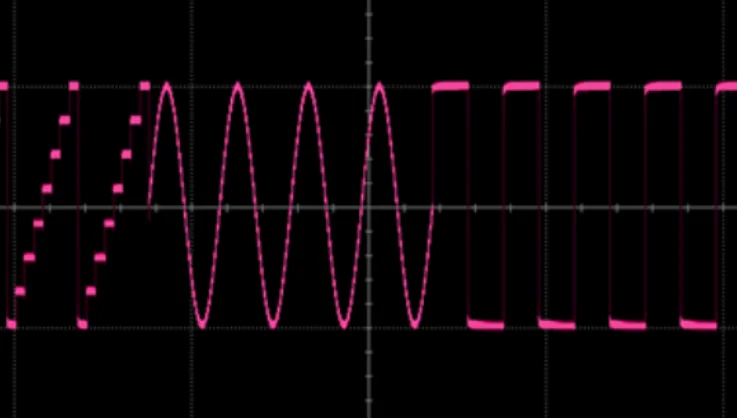

Various signal output

A variety of output circuit interfaces cooperate with the acquisition systemSignal output: RS485/ 4-20mA,etc.

Continuous signal acquisition

Uninterrupted work, continuous online acquisition of signals.

Wireless transmission

No need to excavate cable trenches, no impact on the construction of channel lining, tree planting and other projects.

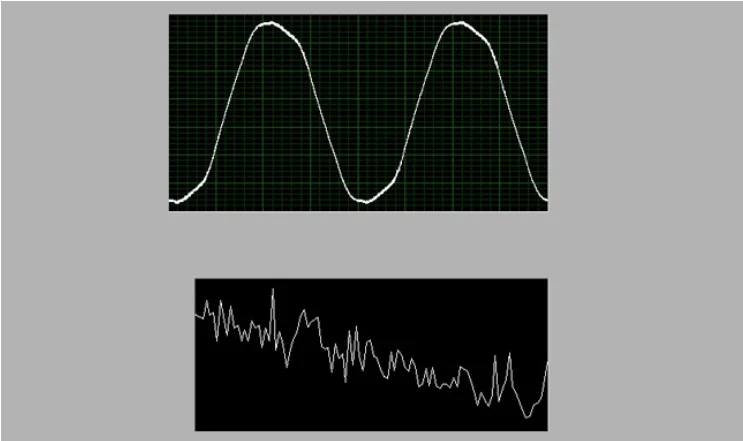

Strong anti-interference ability

Narrow emitting angle: ±5°.Precise measurement results independent of media, process and ambient conditions

Low cost

Directly replace ultrasonic liquid level sensor.

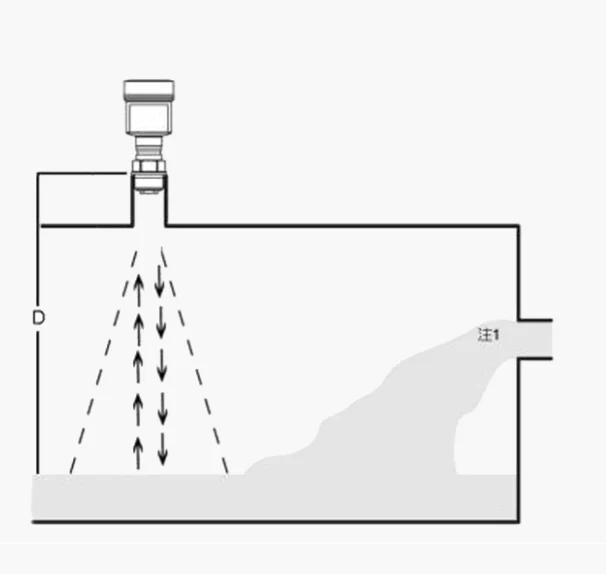

Principle

Frequency modulation continuous wave (FMCW) technology is adopted in the object level meter of 80GHz radar level transmitter. The
continuous wave with frequency variation is transmitted within a certain period, and the echo reflected by the object has a
certain frequency difference with the transmitted signal. The distance information between the target and the radar can be
obtained by measuring the frequency difference.

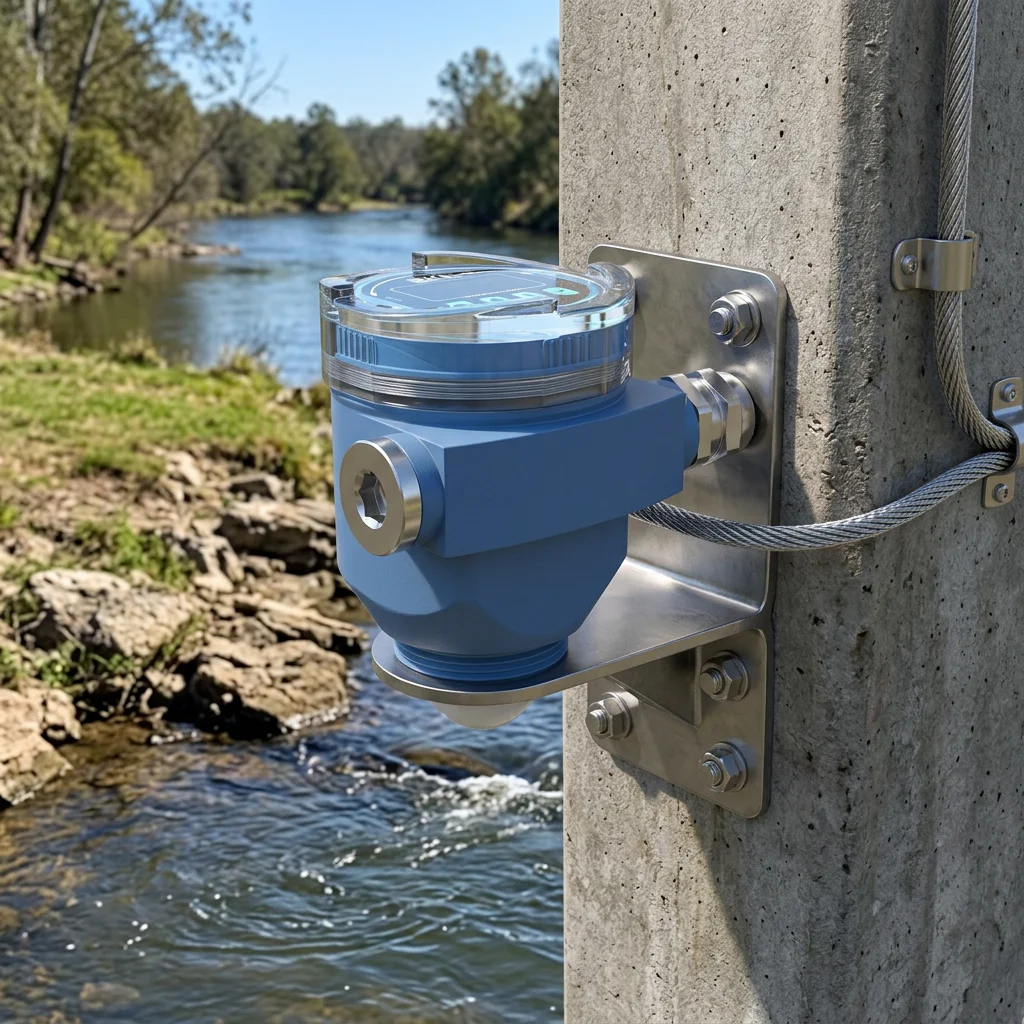

Application area

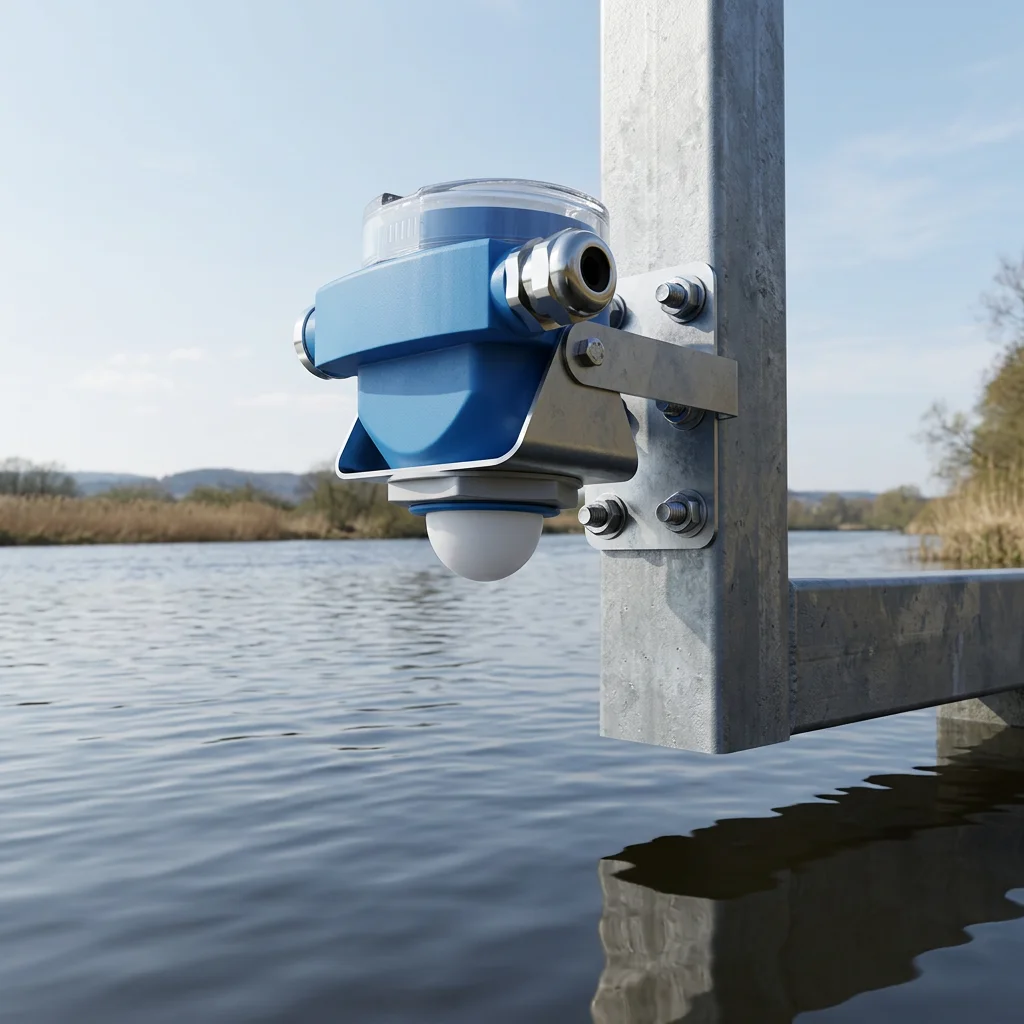

* Open channel water level monitoring

Automatic monitoring of seasonal rivers, not suitable for underwater installations.

* Flash flood warning

Monitoring of the tail water level in front of the reservoir dam, under the dam, and the water level of the surge tower (well).

* Sewage Dispossal

City water supply, sewage level monitoring syatem.

* Gate station water level monitoring

Data collection is carried out for the water level of the river.When the water level of the inland river is lower or higher than the warning line, a siginal is output to the central control system, so that the station gate can realize real-time monitoring of the water level.

* Urban waterlogging

Under the influence of heavy rainfull in urban low-lying terrain areas, the drainage system is overloaded, which can easily cause urban waterlogging and cause immeasurable loss of life and property to citizens.Using radar water level gauge to monitor its water level is an effective means of guarantee.

Industry

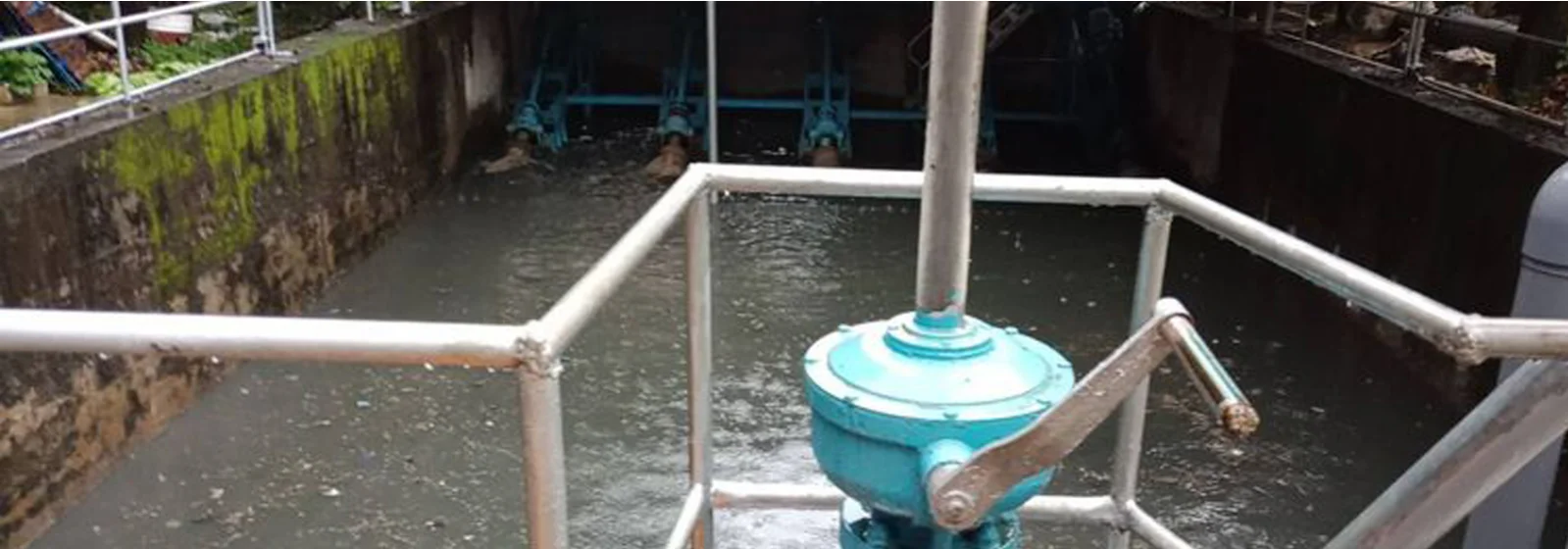

Pumping station

Level control in a pumping station

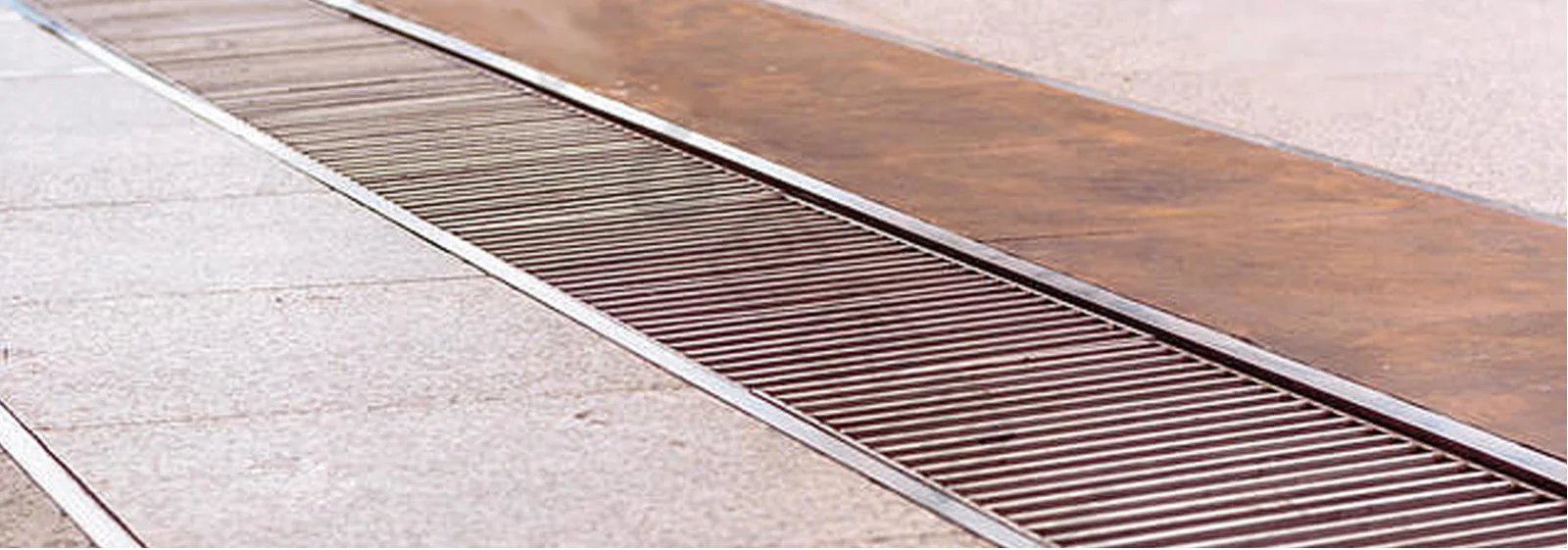

Gullies

Detecting deposits in gullies with water level measurement

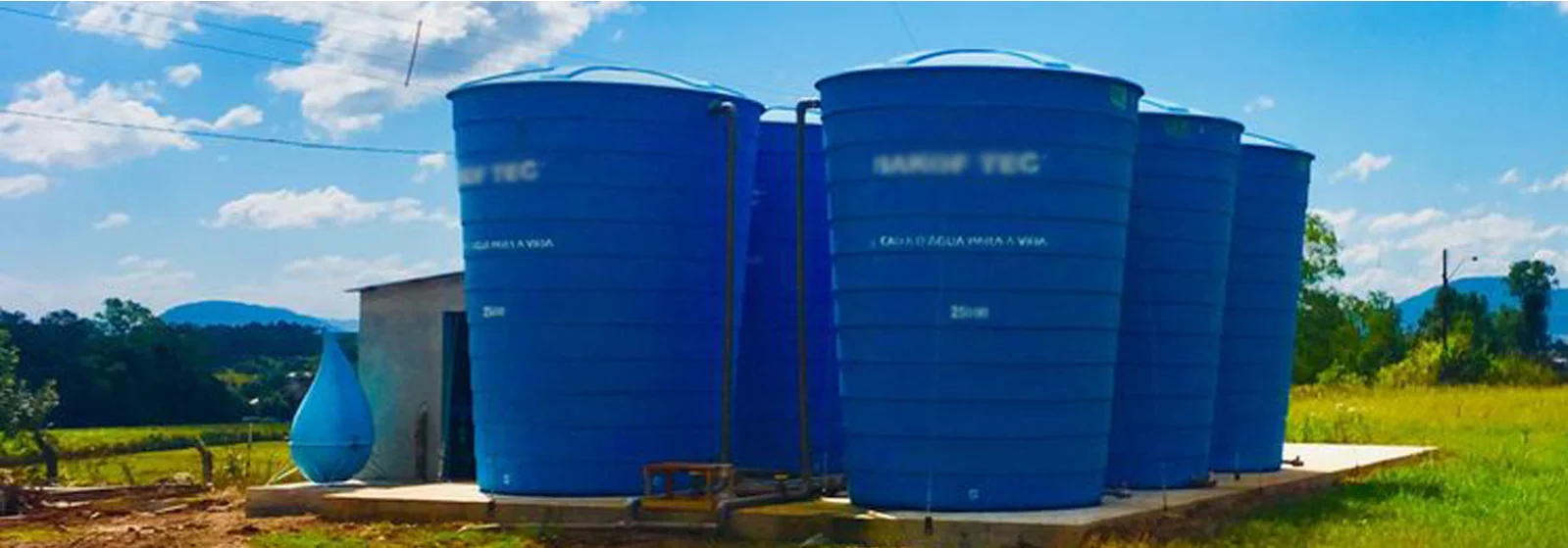

Process water tank

Level measurement in operating water tank

Sewer network

Measuring water levels in sewer networks

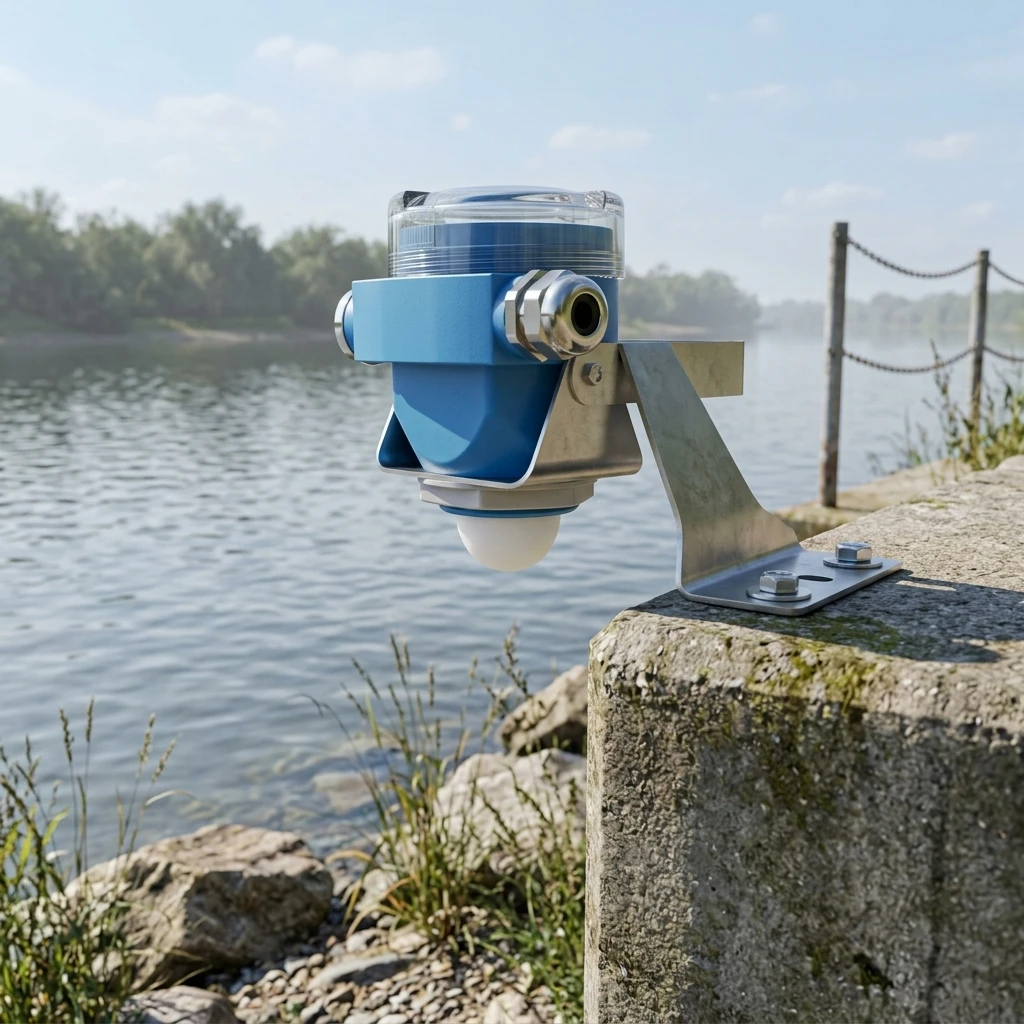

Level measurement in river

Water level monitoring in open channels

Sumps

Level control in sump

Fast delivery and comprehensive support
SKE provides customers with a series of full support from product selection to production, sales and after-sales through mature
production technology and comprehensive service system.

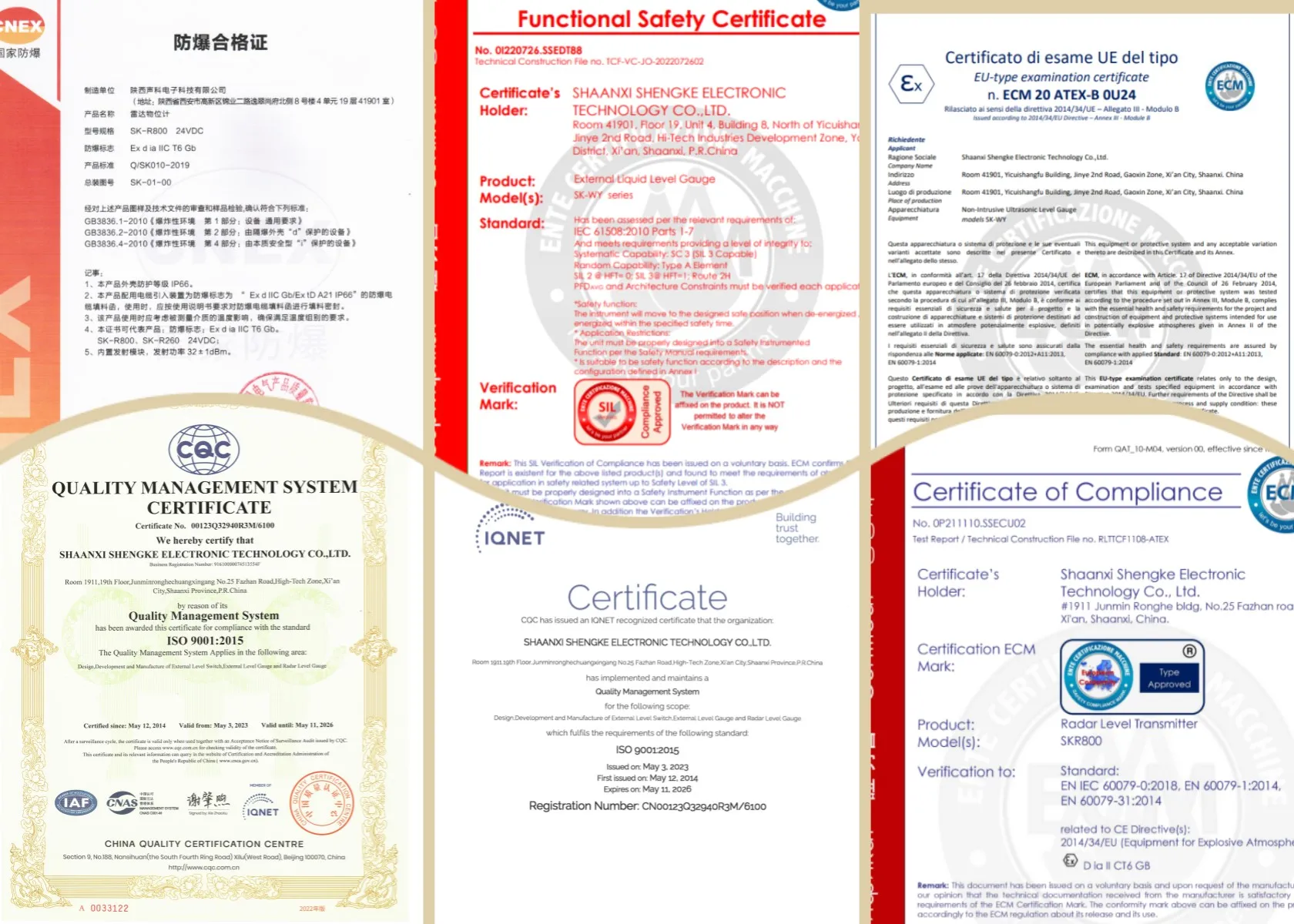

Certification

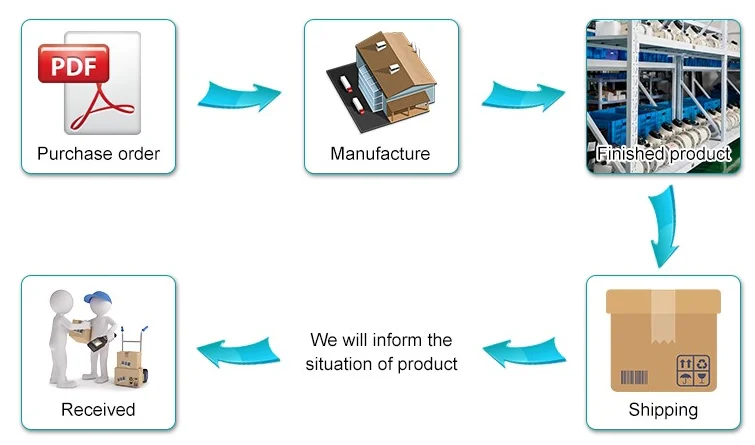

Packaging and Delivery

Clients

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $96 / piece
  • 100–499 piece: US $91 / piece
  • 500+ piece: US $86 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this boiler parts?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.

Can the boiler parts be supplied for my local voltage?

The standard configuration is DC 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shaanxi Shengke Electronic Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shaanxi Shengke Electronic Technology Co., Ltd. range on HVACR Nexus.
