This boiler parts is published with the manufacturer’s full specification — applicable power supply AC220V/50Hz/1O, type Gas Burner. Made by Hebei Yong Chun Heating Equipment Co.,ltd (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Boiler Parts
- Output Power: 116-350 KW
- Applicable Power Supply: AC220V/50Hz/1O
- Motor Power: 0.37 KW
- Warranty: 1.5 year
- Place Of Origin: Hebei, China
- Type: Gas Burner
Technical Specifications
| Type | Gas Burner |
|---|---|
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1.5 year |
| Weight (Kg) | 21 |
| Place Of Origin | Hebei, China |
| Brand Name | Jihang |
| Output Power | 116-350 KW |
| Control Mode | Fully automatic two-stage flame control |
| Applicable Fuel | Nature gas/LPG |
| Adaptable Pressure Range | 30-50 mbar |
| Applicable Power Supply | AC220V/50Hz/1O |
| Motor Power | 0.37 KW |
| Flange Installation Form | Sliding adjustable flange |
| Fuel Access Port Size | DN25 |
| Burner Weight | 21 kg |
| Packaging Details | Cardon |
| Port Of Dispatch | Tian Jin |
| Selling Units | Single item |
| Single Package Size | 78X67X46 cm |
| Single Gross Weight | 26.0 kg |
| Supply Ability | 200 sets per Month |
Product Details

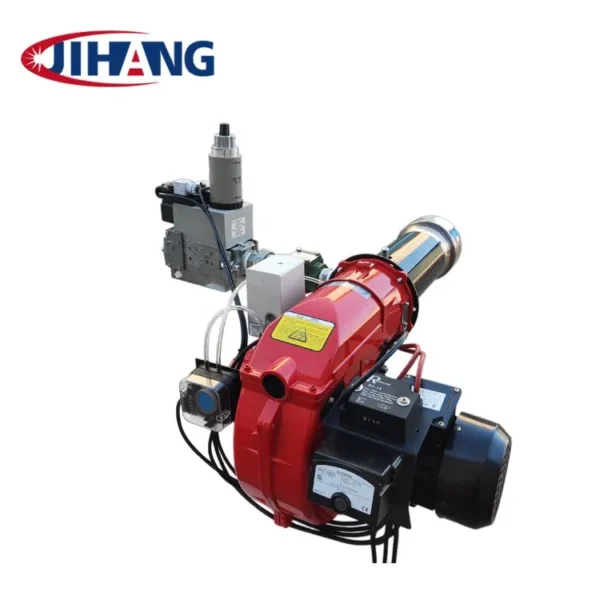

JH-30-QT 350kw Fully Automatic Two-Stage LPG Gas Industrial burner Natural Gas Burner for Power coating oven
1. This burner can have three kinds of flame modes, one-stage fire, two-stage fire and proportion adjustment.
2. Select appropriate type according to different production process requirements.
3. The proportion adjustment type can only be realized with the ratio adjustment instrument.
| Technical Parameters | |||||||
| Model | JH-5-Q | JH-10-Q | JH-15-Q | JH-30-Q | JH-30-QT | JH-35-QT | |
| Output power | KW | 23-70 | 46-116 | 81-174 | 116-350 | 116-350 | 116-406 |
| 104Kcal/h | 2-6 | 4-10 | 7-15 | 10-30 | 10-30 | 10-35 | |
| Control mode | Fully automatic One stage flame control | Fully automatic two-stage flame control | |||||
| Applicable fuel | Nature gas | ||||||
| Fuel consumption | m³/h | 5.9 | 11.8 | 17.6 | 35.3 | 11.8-35.3 | 11.8-41.2 |
| Adaptable pressure range | mbar | 20-30 | 30-50 | 30-70 | |||
| Design fuel calorific value | Kcal/Nm³ | 35.53(8500Kcal/Nm³) | |||||
| Adapt to ambient temperature | ℃ | -15~60 | |||||
| Applicable power supply | AC220V/50Hz/1O | ||||||
| Motor power | KW | 0.08 | 0.18 | 0.18 | 0.37 | 0.37 | 0.55 |
| Safety Protection Level | IP | 44 | 55 | ||||
| Flange Installation Form | Fixed flange | Sliding adjustable flange | |||||
| Fuel access port size | DN15 | DN15 | DN20 | DN25 | DN25 | DN25 | |
| Burner weight | kg | 6.1 | 15 | 15.7 | 21 | 23 | 26 |

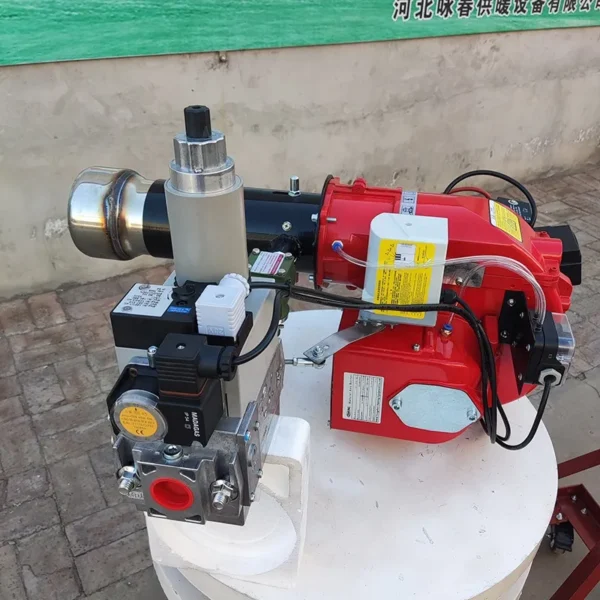

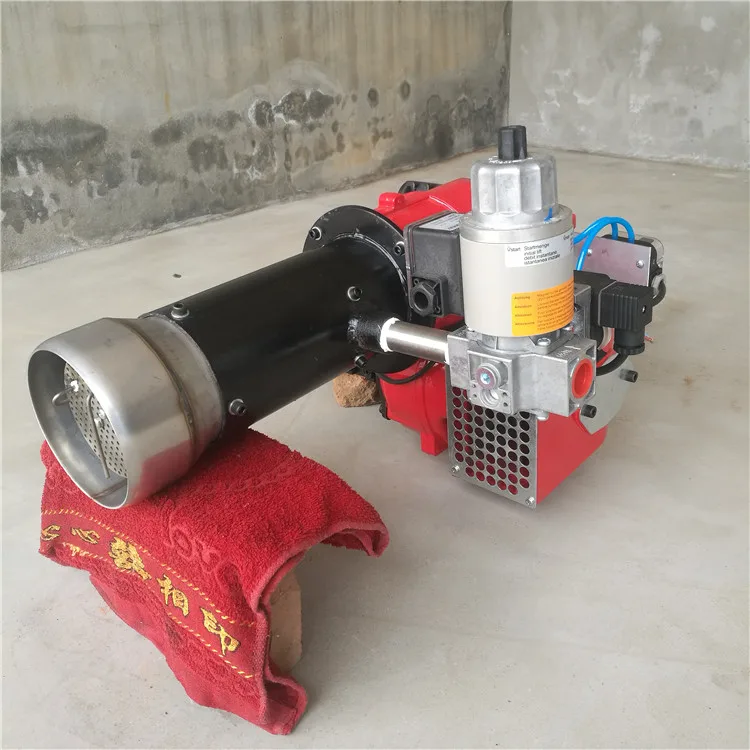

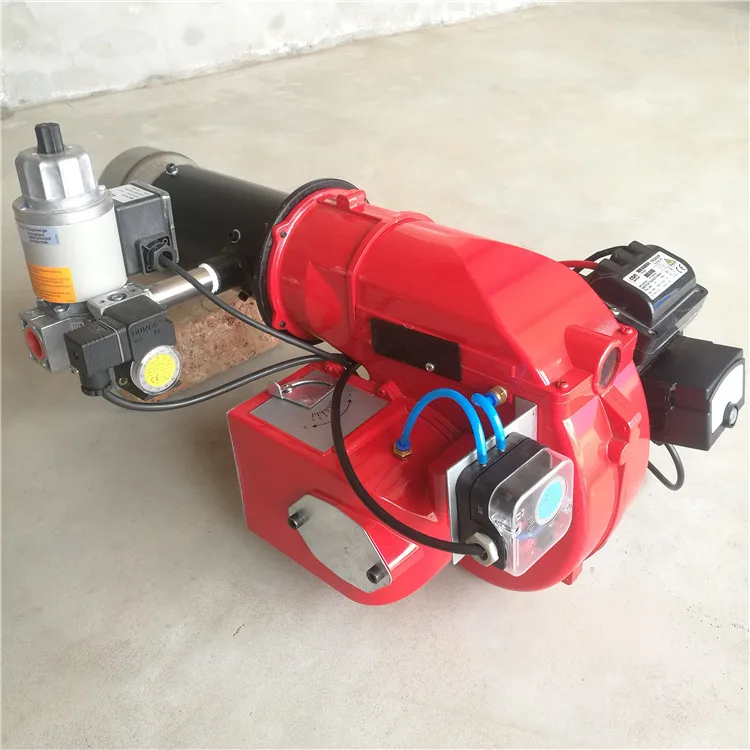

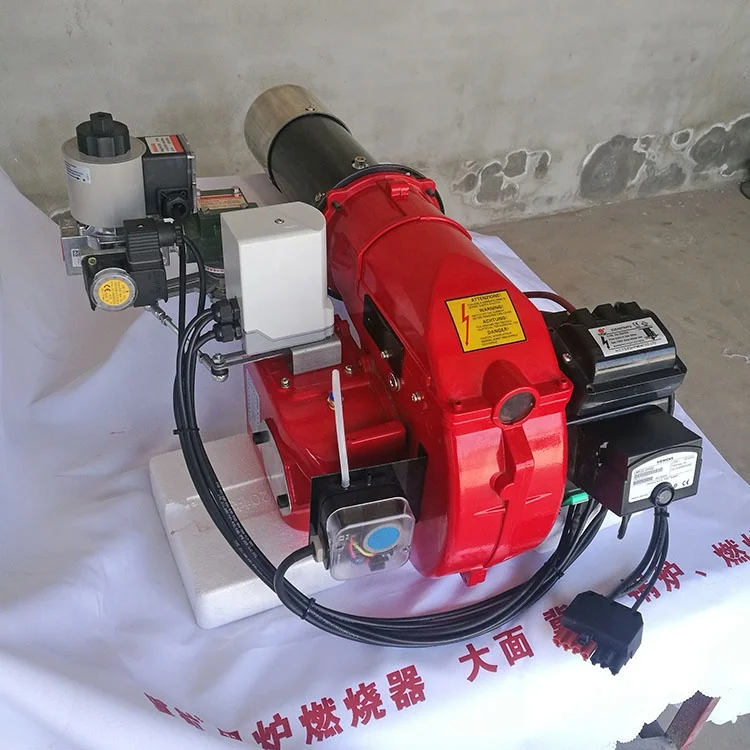

Product Picture

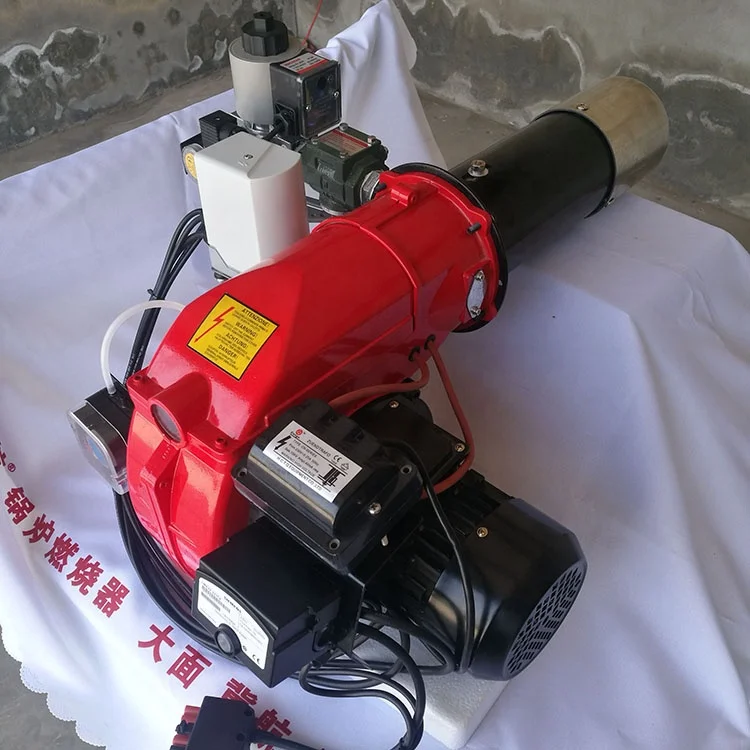

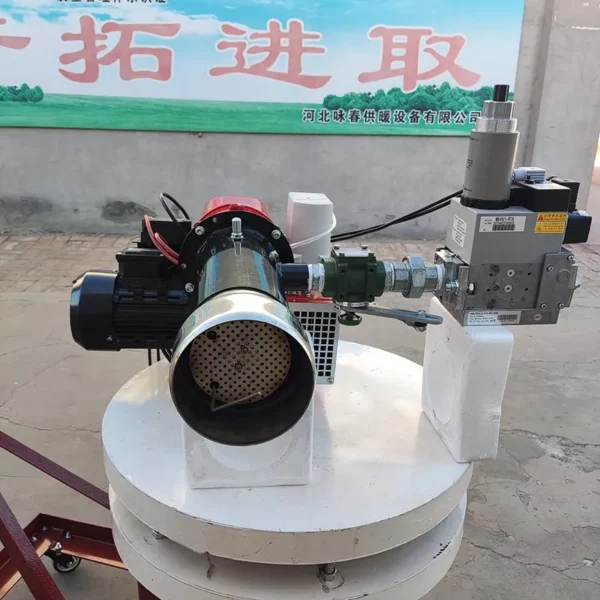

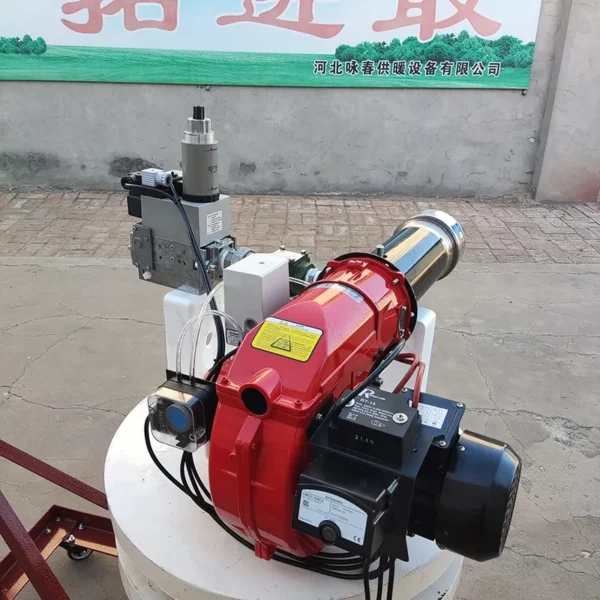

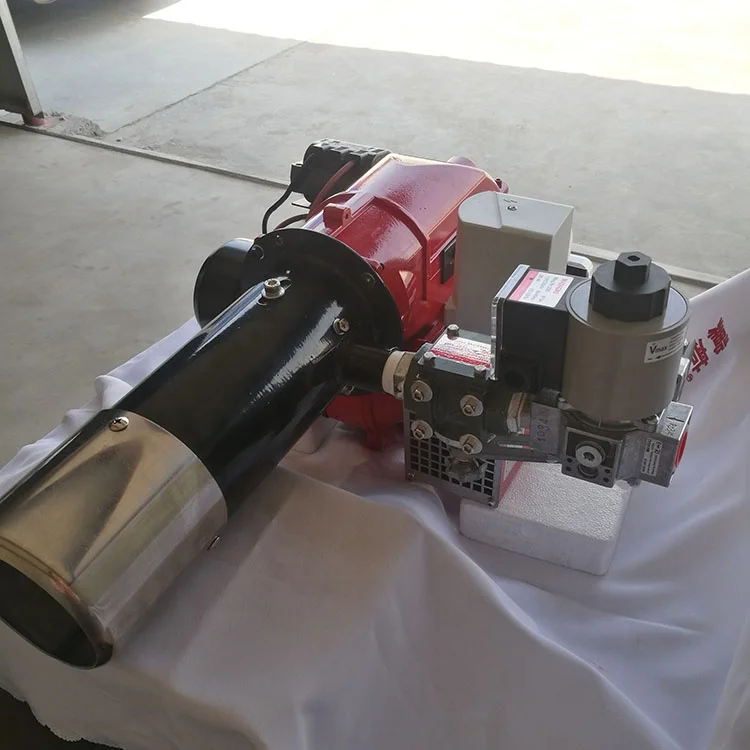

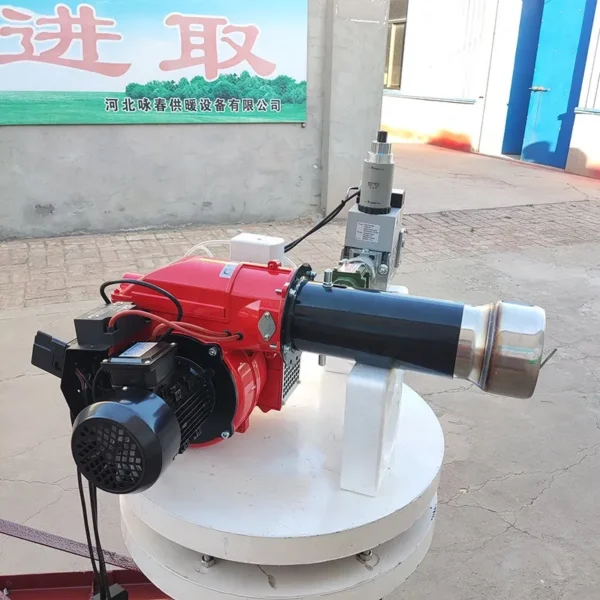

JH-30-Q Two-stage and proportion adjustment

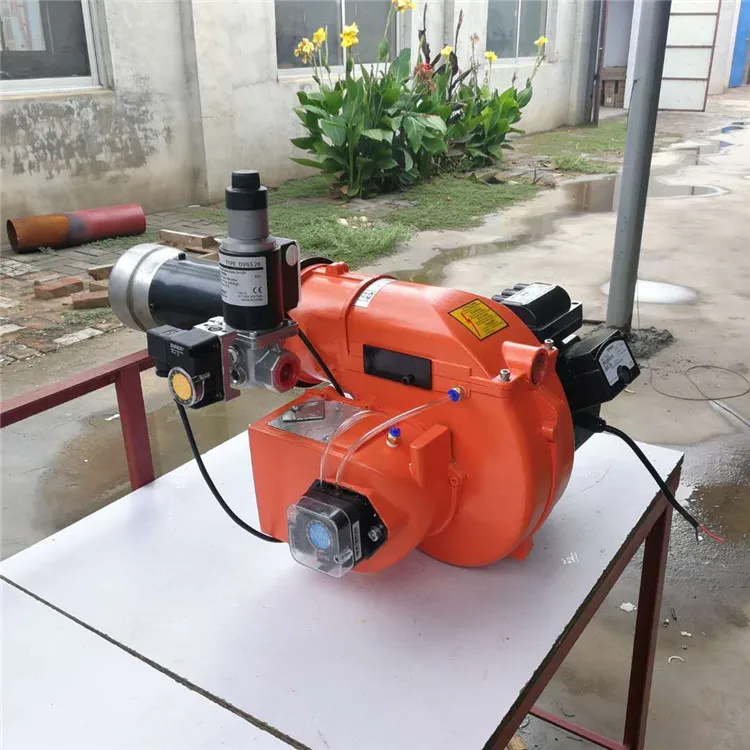

JH-30-Q One-stage
1.Is your company a manufacturer or a distributor?
Answer: our company is a manufacturer with a complete sales, production, technology and after-sales service team.
2.What are the payment methods?
Answer: orders less than $500 can be remitted by Western Union, but only by international express, such as DHL, Fex, UPS, etc. large orders support T / T payment, and the final payment is settled before shipment.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this boiler parts?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the boiler parts be supplied for my local voltage?
The standard configuration is AC220V/50Hz/1O. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hebei Yong Chun Heating Equipment Co.,ltd, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Yong Chun Heating Equipment Co.,ltd range on HVACR Nexus.
