The brand industrial air heater listed here carries 220v/380v, 0.2kw, documented exactly as the manufacturer publishes it. Made by Changzhou Haomai Drying Engineering Co., Ltd. (9 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brand Industrial Air Heater
- Power(W): 0.2kw
- Voltage: 220v/380v
- Heat Supply Capacity: 30*10000kcal/h
- Material: SUS304
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Hot Air Furnace |
|---|---|
| Voltage | 220v/380v |
| Heating Method | Steam Heating |
| Material | SUS304 |
| Power(W) | 0.2kw |
| Application | Chemicals Processing, Plastics Processing, Food Processing |
| Core Components | Motor |
| Key Selling Points | Automatic |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2260 |
| Brand Name | Haomai |
| Dimension(L*W*H) | 3400*1500*1800mm |
| Name | Oil fuel, Gas Fuel hot air furnace |
| Total Weight | 350kg-3160Kg |
| Hot Air Hole | 250*300mm |
| Combustion Device Type | YL3 |
| Heat Supply Capacity | 30*10000kcal/h |
| Oil Combustion | 39-48kg/h |
| Overall Dimension | 3400*1500*1800mm |
| Thermal Efficiency | 75-85% |
| Output Temperature | can reach 300℃ |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 60.000 kg |
Product Details
Products Description

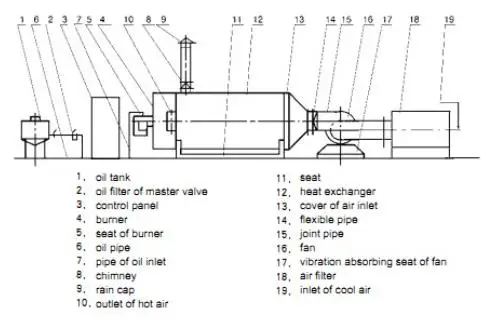

WORKING PRINCIPLE When the fuel is burned in firebox,high temperature smoke gas is produced. Those smoke gas is sent byhot air furnace which has strong exchange heating function to dried air. After quantity of heat is emanated,hot fueling gas temperature is decreased to 250°C and those gas are exhausted by fan. Fresh air is sent to hot air furnace by selected blow fan machine. After absorbed heating energy, when air temperature reaches to specific degree, it is sent to outlet of hot air,while hot air temperature meet the highest limited point,the burner will stop burning automatically or turn to small fire burning, when hot air temperature decreases to the lowest preseted degree, burner start running again, the speed of heating can be adjusted by air inlet valve.
Descriptions

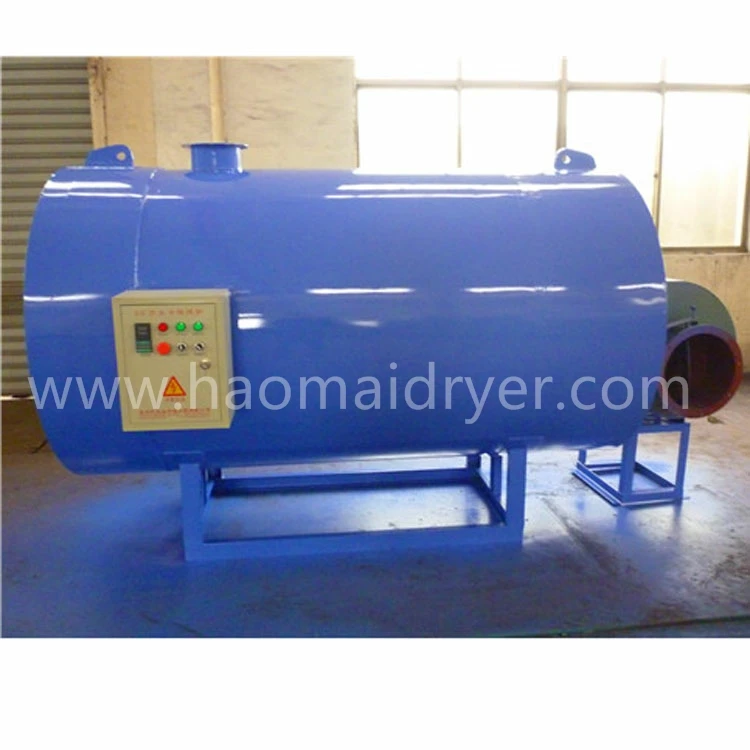

Our company’s RLY series oil fuel hot air furnace is a highly efficient equipment which combines burning and heating exchange two functions together. Heating efficiency can reach to 65-75%,the output temperature of hot air can be 300°C, for special designed furnace, it can reach to 500-800°C, smoke and air are separated, therefore, when heat exchanged, inside of burner is clean hot air; this machine can be totally applied with other drying equipments together.
Features Convenient operation and low labor cost. Structure compact and small occupied area. advanced burning machine, fuel can be fully consumed no environment pollution.
Specification
Model | Burner | Oil Combustion kg/h | Capacity 104kcal/h | Overall Dimension L×W×H mm | Hot Air Inlet L×W mm | Total Weight kg |
RLY1 | RIELLO.G3/DL3FS | 1.3-1.6 | 1 | 1200×1200×1600 | Φ200 | 460 |
RLY4 | RIELLO.G10/DL10FS | 5-6.5 | 4 | 1700×1300×1600 | Φ250 | 850 |
RLY10 | RIELLO.G20/DL23FS | 13-16 | 10 | 2300×1568×1870 | Φ300 | 2200 |
RLY20 | RIELLO 1G/DL34FS | 26-32 | 20 | 2800×1568×1870 | Φ400 | 2670 |
RLY30 | RL50/DL55FT | 39-48 | 30 | 3400×1568×1870 | Φ450 | 3060 |
RLY40 | RL70/DL75FT | 52-64 | 40 | 4440×1768×2070 | Φ550 | 5600 |
RLY60 | RL100/DL100FT | 78-96 | 60 | 5140×1868×2070 | Φ600 | 8460 |
RLY100 | PRESS 4G/DL 120FT | 130-140 | 100 | 6440×2480×2300 | 550×600 | 12800 |
RLY160 | P300/DL250FT | 200-270 | 160 | 7470×2920×3480 | 750×900 | 15780 |
RLY200 | P300/DL300FT | 260-300 | 200 | 8175×2920×3480 | 750×900 | 18500 |
RLY360 | G1510 | 480-620 | 360 | 9300×2920×3480 | 21000 |
Applied material

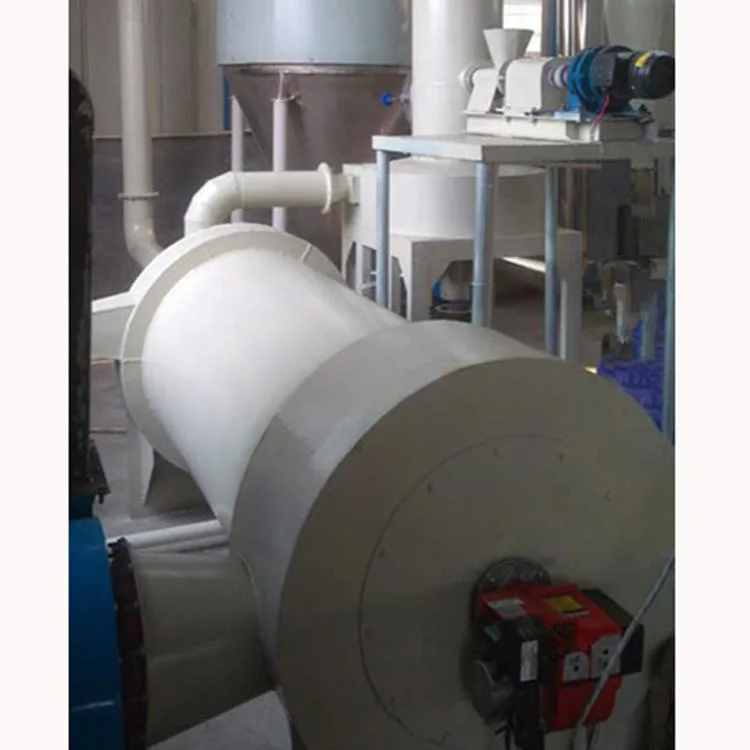

This equipment main function are heating and removing damp. It is widely applied in agricultural, chemical industry, such as grain, seeds, feedstuff, fruits, dehydrated vegetable, mushroom, agaric, white fungus, tea, tobacco leaf, foodstuff, chemical raw materials.

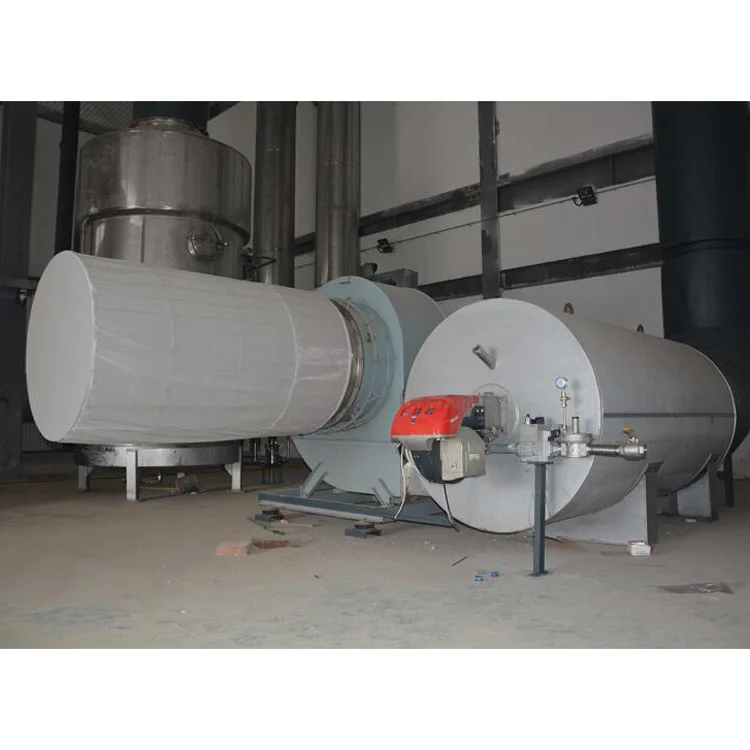

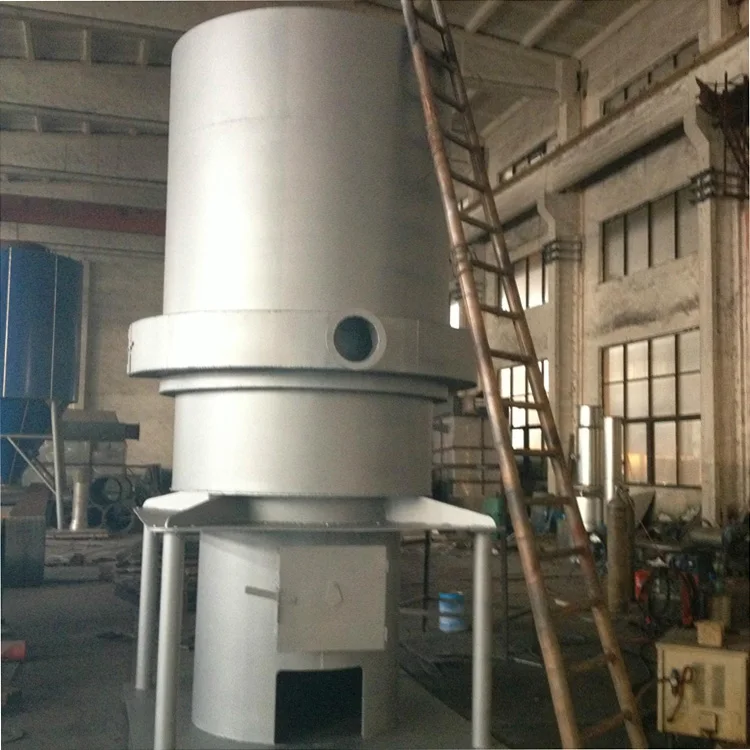

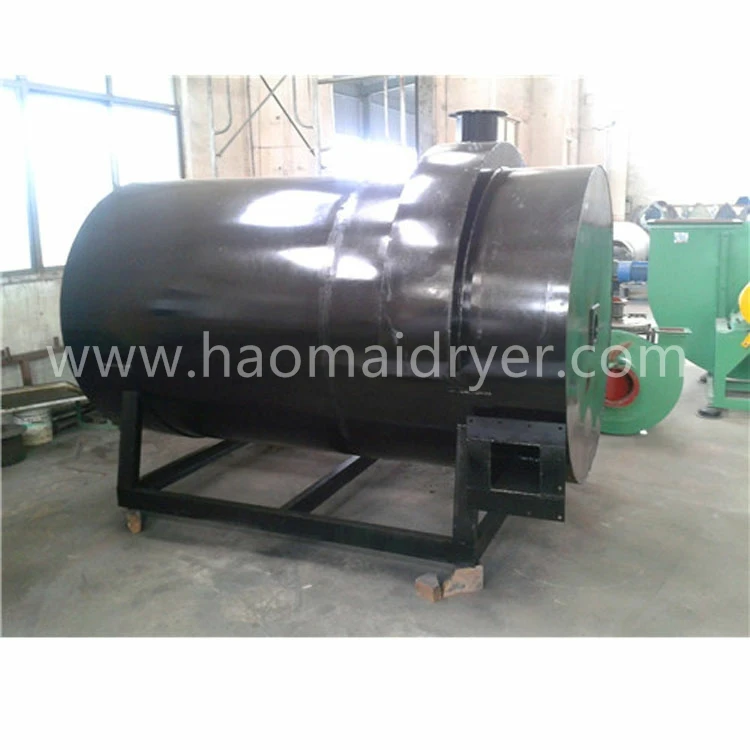

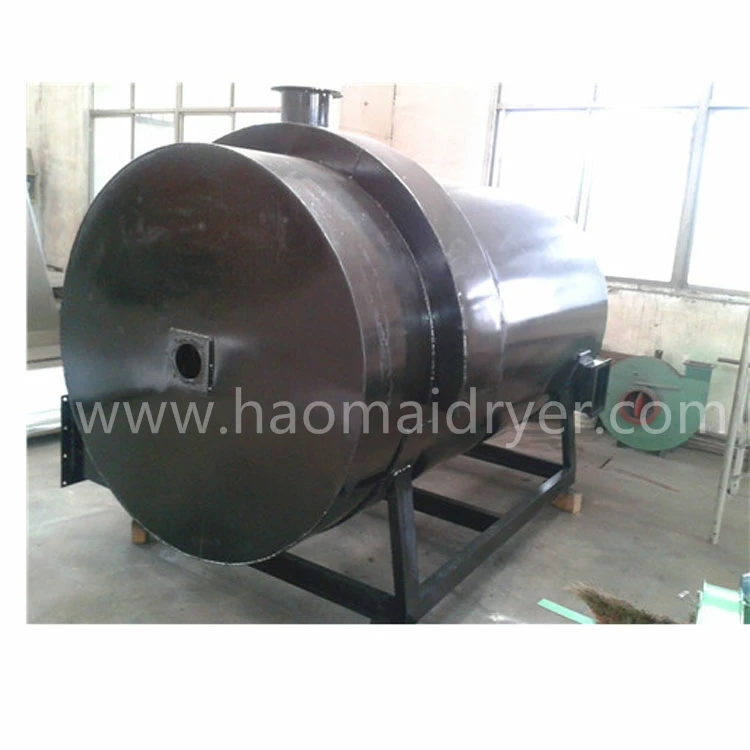

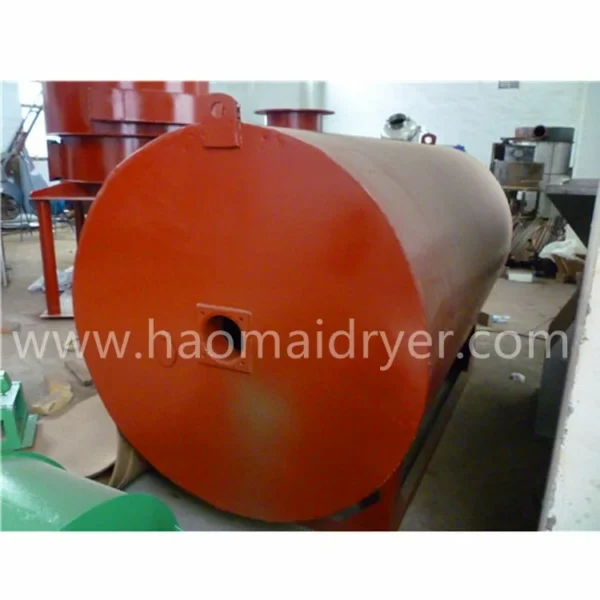

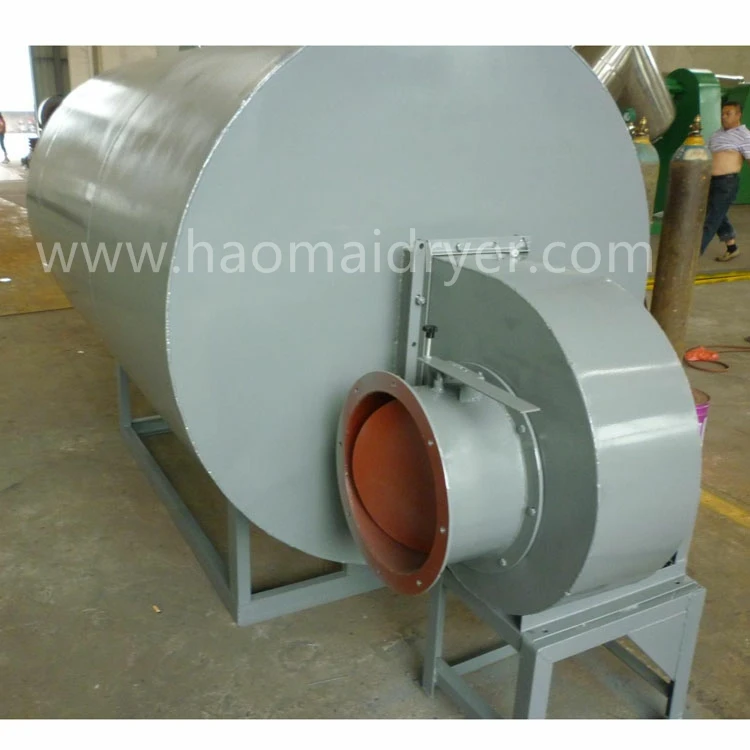

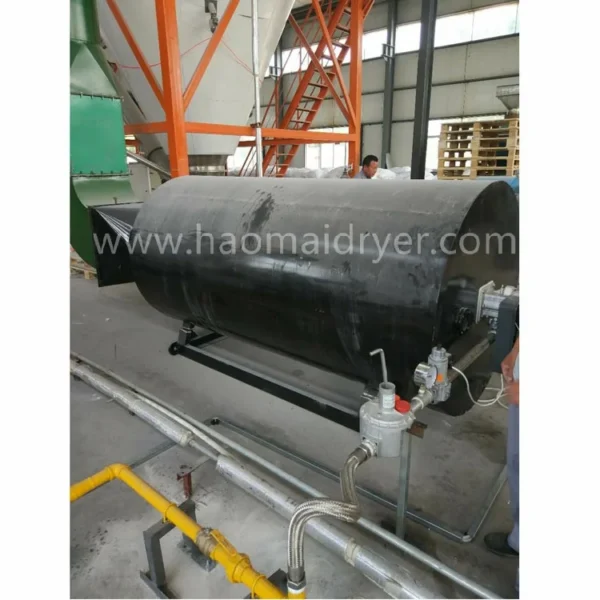

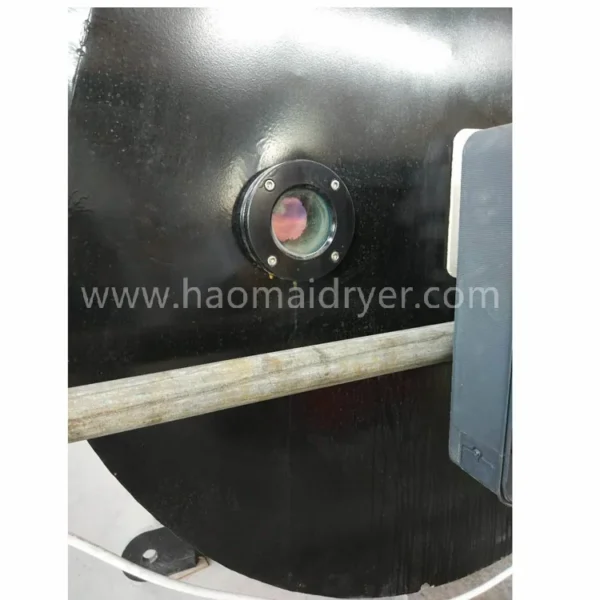

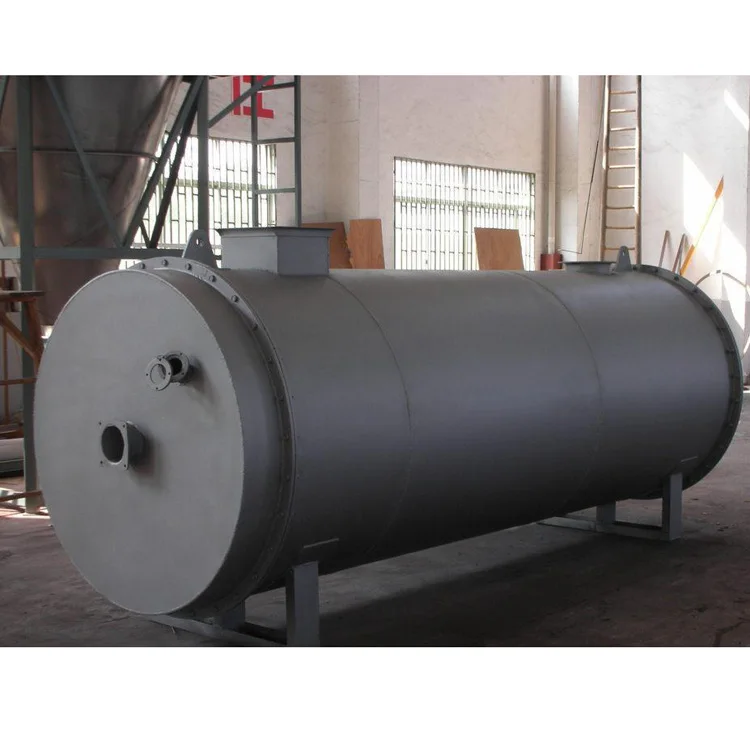

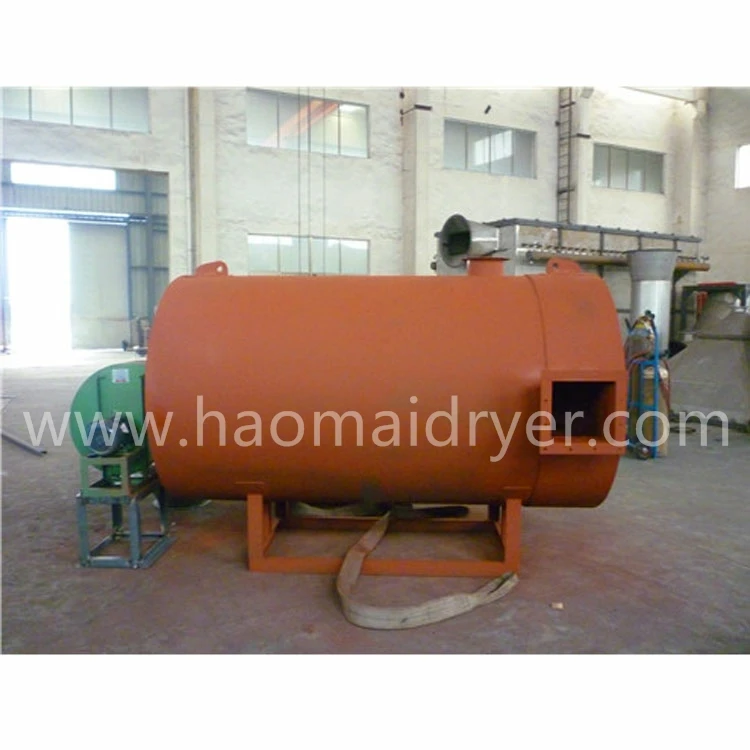

Detailed Images
Strict selection of materials、Handle details、Consistent quality

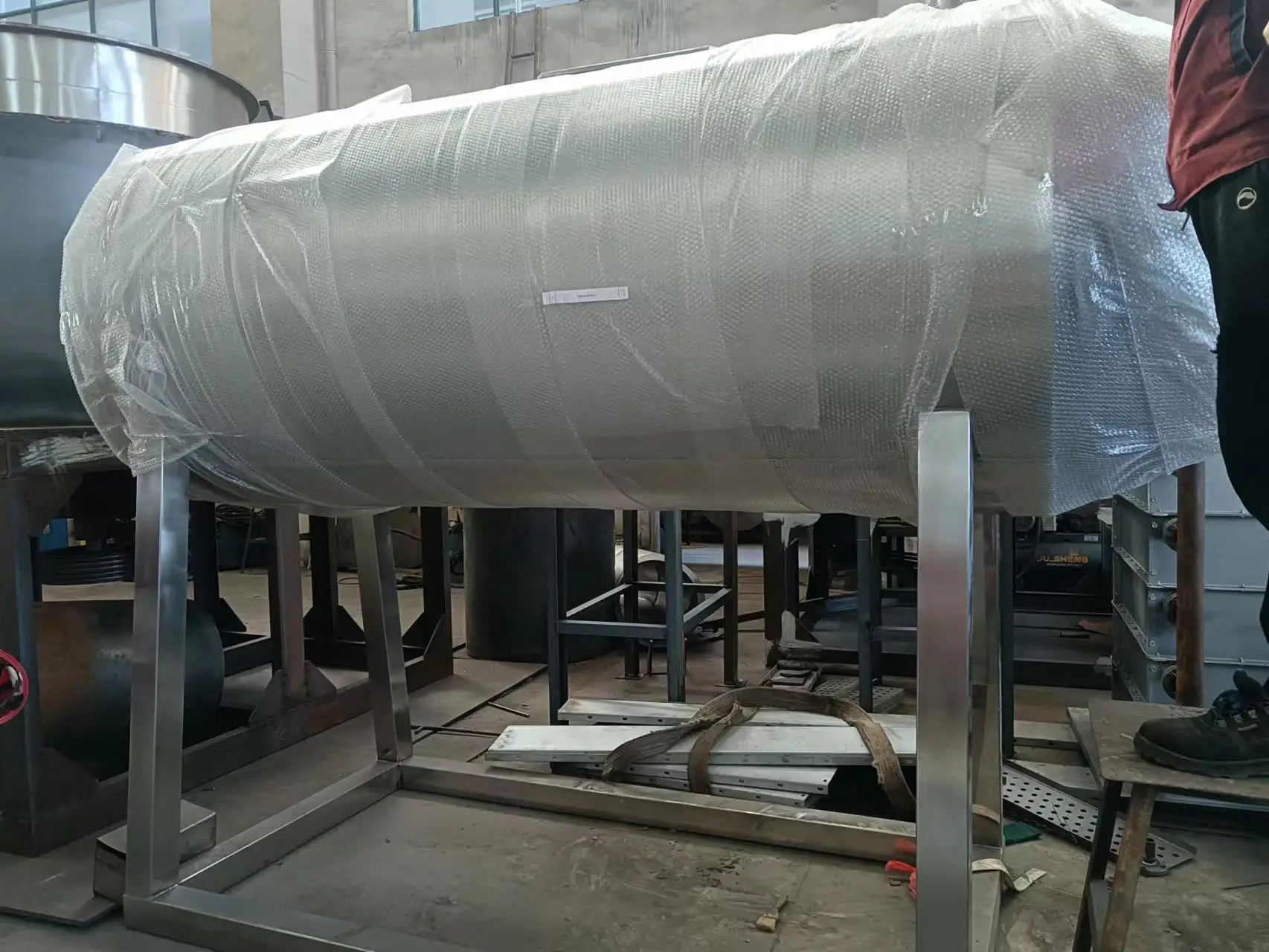

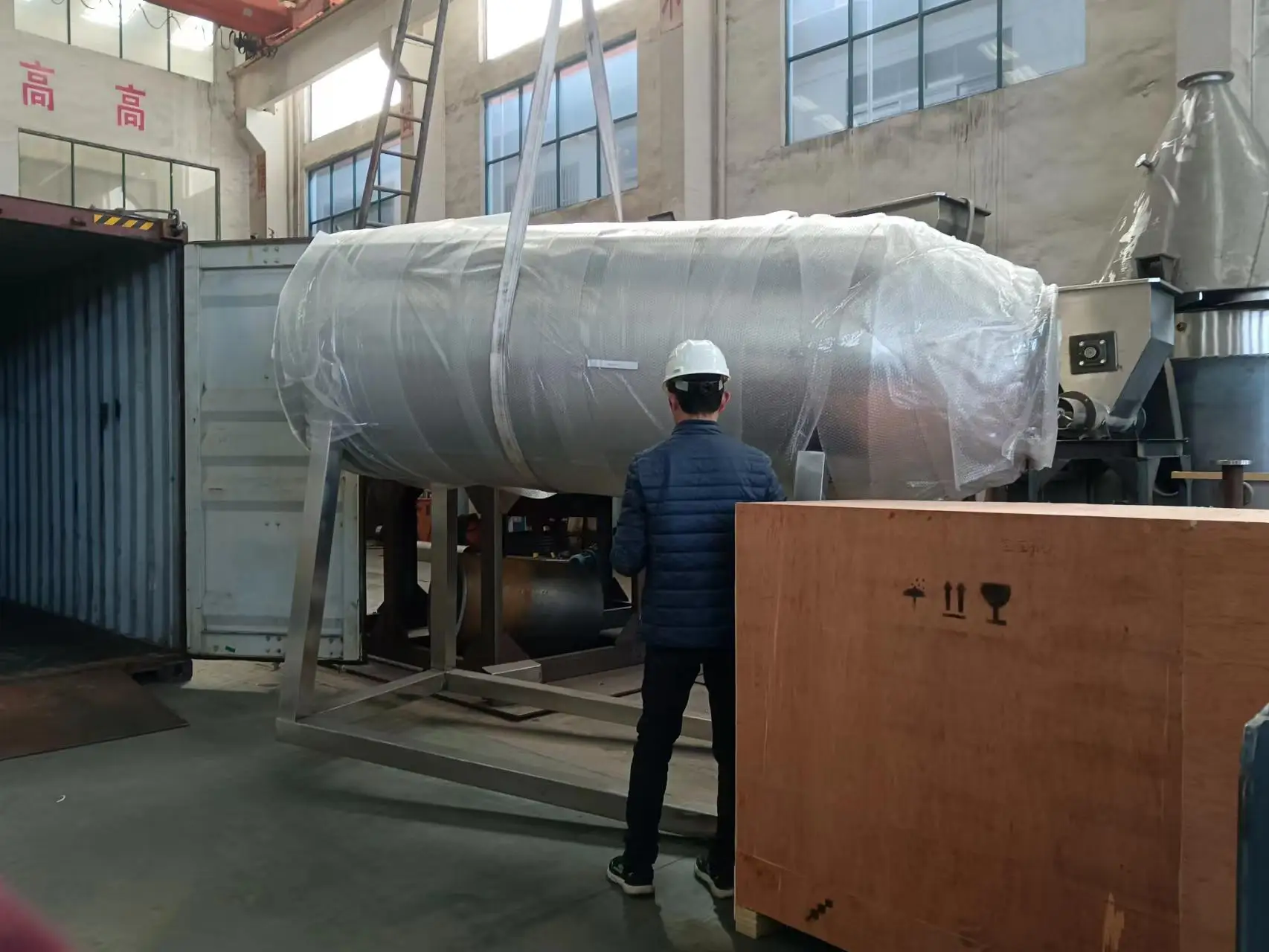

Packing & Delivery

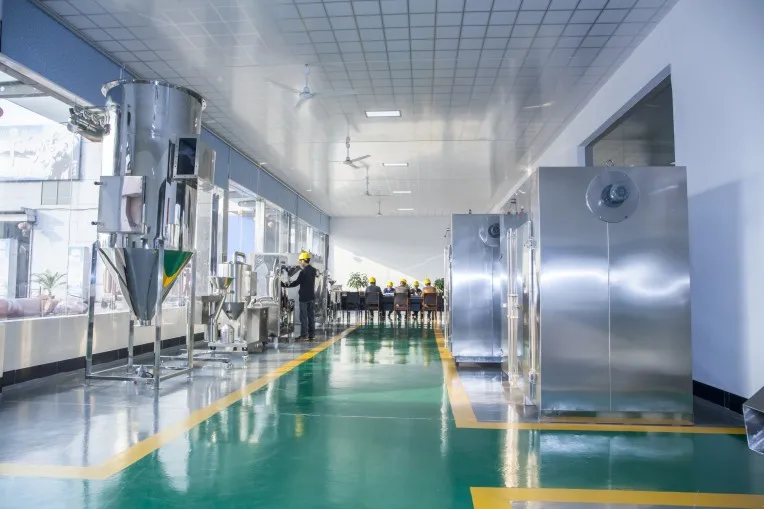

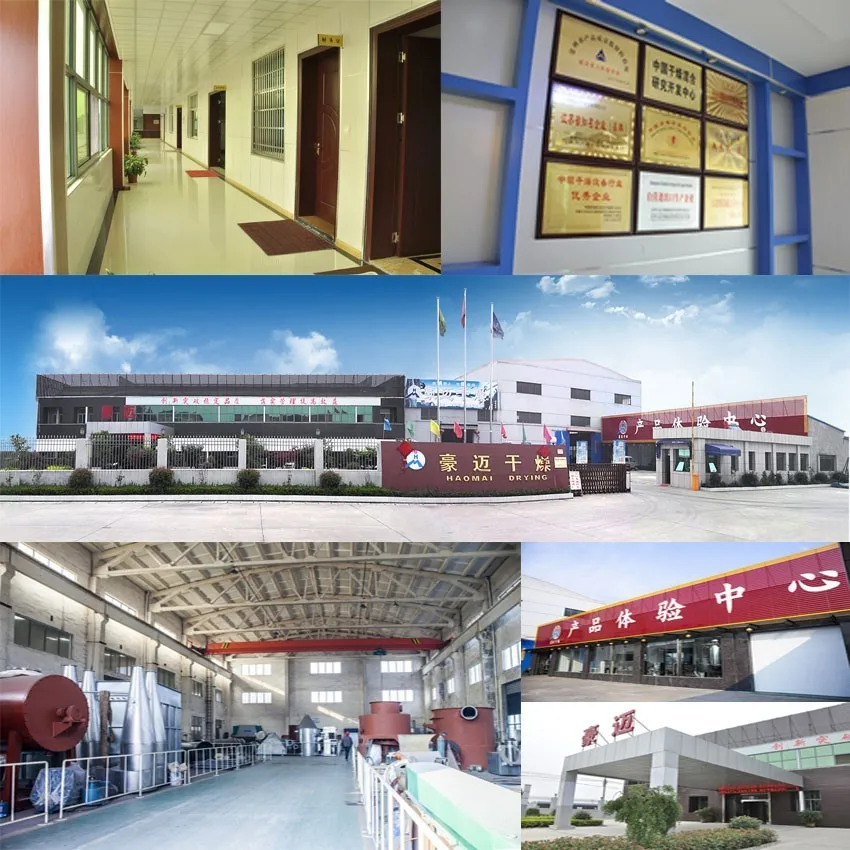

Company Profile
Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.
Our Service
Pre-sales Service.
*Inquiry and consulting support
*Sample testing support
*View our Factory
*Provide flow chart , basic drawing , technical design
After-sales Service.
*Training how to instal the machine , training how to use the machine *Providing professional installation instructions and video of troubleshoot. *We supply after sales service for 24 hours , 7 days per week . Customer can contact us any time *When some problems cant be solved by customers , our engineer can go to door to support
The company has strong technical force , advanced equipment , supporting technology , equipment manufacturing installation , debugging and other one-stop services
The company has the professional research and development , design team . according to different materials , formulate the plan . meet the requirement of each customer
Certifications
FAQ
Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $10000 / set
- 2–2 set: US $9800 / set
- 3+ set: US $9500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brand industrial air heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the brand industrial air heater be supplied for my local voltage?
The standard configuration is 220v/380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Haomai Drying Engineering Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Haomai Drying Engineering Co., Ltd. range on HVACR Nexus.
