Brushless Axial Cooling Fan, 14000, RPM, 5v, 12v

Key specification for this brushless axial cooling fan: 5 V, 12 V, air flow 1.05-1.35CFM. Everything below is reproduced from the factory data sheet. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Brushless Axial Cooling Fan

• Model Number: 2010
• Power Source: Electric
• Power: 0.3-0.96W
• Voltage: 5 V, 12 V
• Rated Voltage: 5V 12V
• Air Flow: 1.05-1.35CFM

Technical Specifications

Product Details

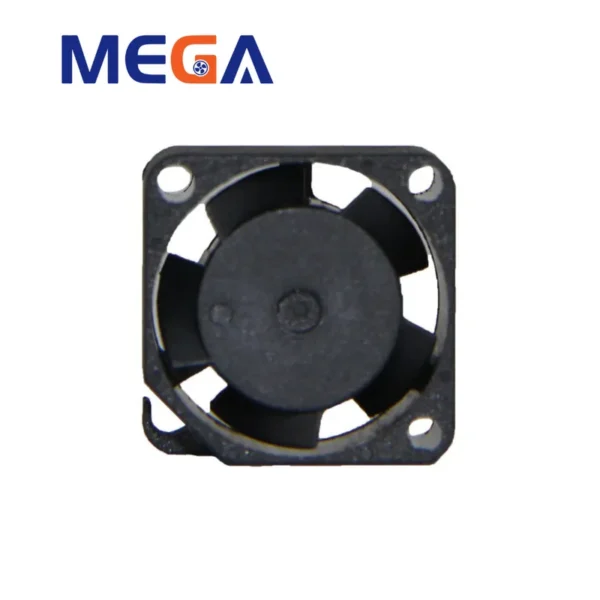

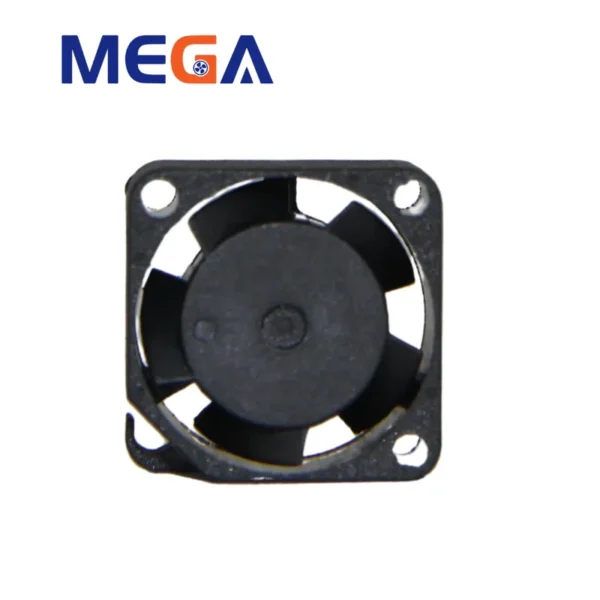

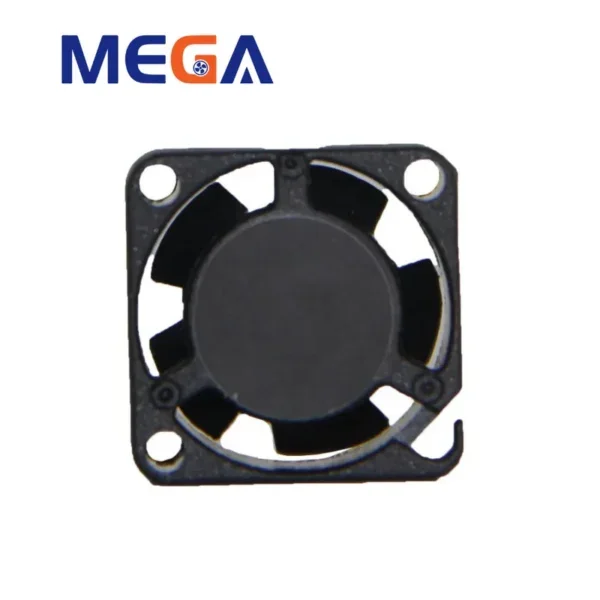

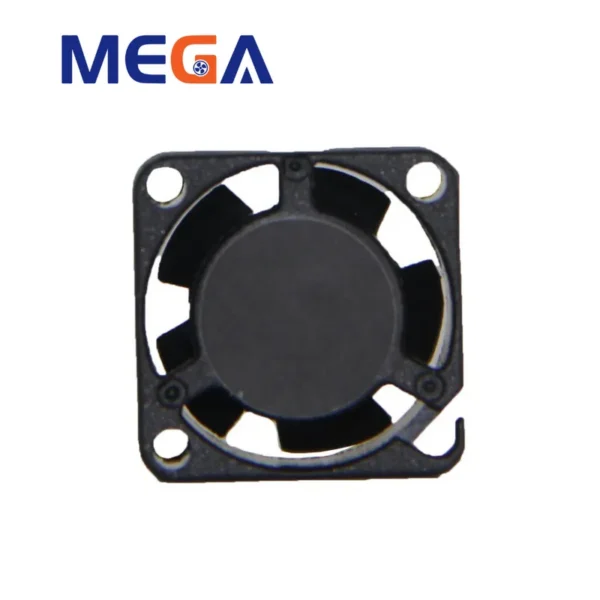

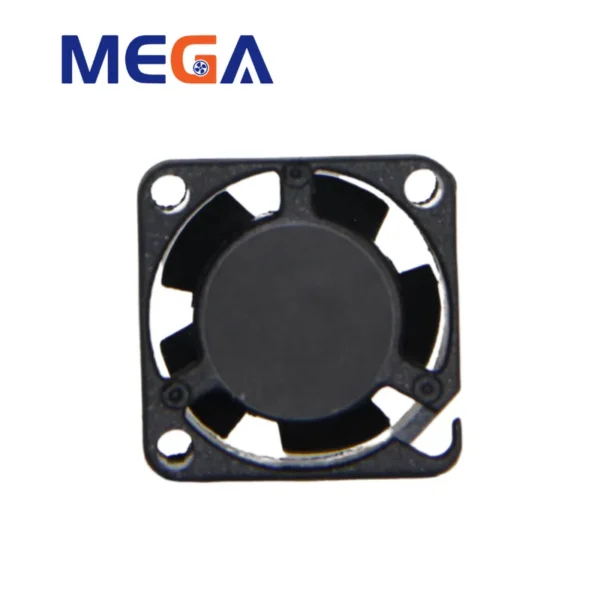

14000 RPM 5v 12v 2010 20x20x10mm Dc Brushless Axial Cooling Fan

www.cnmegatech.com

We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact

lisa@cnmegatech.com

whatsapp: 86-13570567086

Product Description

Product Overview
The 3510 fan is a 35x35x10mm brushless fan with the following features:
* Compact size, large airflow
* Optional 5V or 12V rated voltage for wide compatibility
* Voltage-dependent maximum airflow and maximum wind pressure, suitable for heat dissipation scenarios
* Voltage-dependent speed range to meet different application requirements
* Dual ball bearings for long life and stable operation

* Size: 40x40x28mm (1.57×1.57×1.10in.)
* Voltage: 12V or 24V
* Current: 0.08A to 0.6A
* Power: 10.8W to 14.4W
* Speed: 20000RPM to 22000RPM
* Airflow: 26.6CFM to 29.7CFM
* Static Pressure: 57.6mmH2O to 71.3mmH2O
* Noise: 61.3dB(A) to 64.5dB(A)
* Bearing: Ball bearing
* Weight: 238g

Product Parameters

Model	Rated Voltage	Operationg Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow	Maximum Air Pressure	Noise
PART.NO.	VDC	VDC	Amp	Watt	R.P.M	CFM	mmH2O	dB-A
MG2010 L05X	5	1.8~3~6	0.06	0.3	10000	1.05	2.16	18.8
MG2010M05X	5	1.8~3~6	0.08	0.4	12000	1.14	2.65	21.3
MG2010H05X	5	1.8~3~6	0.13	0.65	14000	1.35	4.3	24.2
MG2010L12X	12	8.5~13.5	0.03	0.36	10000	1.05	2.16	18.8
MG2010M12X	12	8.5~13.5	0.05	0.6	12000	1.14	2.65	21.3
MG2010H12X	12	8.5~13.5	0.08	0.96	14000	1.35	4.3	24.2

Product Advantages
Key Features
1. Compact size: The fan measures 20x20x10mm, making it extremely compact and suitable for installation in devices with limited space.
2. Stable performance: Equipped with a DC brushless motor, it offers high speed, low noise, and a long lifespan.
3. Safe materials: The fan frame, blades, and other materials comply with the UL94V-0 flame retardant rating, ensuring excellent safety.
4. Customizable performance: The "X" in the model number represents the bearing type, and "Y" represents the special function, allowing customization to meet customer needs.
Advantages
1. Wide range of applications: Suitable for heat dissipation in various electronic devices such as computers, power supplies, and industrial equipment.
2. Excellent heat dissipation: The maximum airflow can reach 1.35CFM, effectively dissipating heat generated by devices.
3. Low noise: The noise level is low, minimizing interference with the working environment.
4. Long lifespan: Equipped with a brushless motor, it has a long service life.
5. High safety: Complies with the UL94V-0 flame retardant rating, ensuring safety.
6. Customization: Bearing type and special functions can be customized to meet customer needs.

Product Applications
1. Small Electronic Devices
1. Wearable devices: Smartwatches, smart bracelets, etc.
2. Power banks: High-capacity power banks.
3. Portable electronic devices: Portable Bluetooth speakers, mobile hard drives, etc.
4. Small electronic instruments: Electronic measuring instruments, portable medical devices, etc.
2. Consumer Electronics
1. Digital cameras: High-pixel digital cameras.
2. Drones: Small drones.
3. VR/AR devices: Head-mounted VR/AR devices.
4. Game controllers: High-performance game controllers.
3. Computer Peripherals
1. External hard drive enclosures: High-speed external hard drive enclosures.
2. USB hubs: Multi-port USB hubs.
3. Network switches: Small network switches.
4. Industrial Control Equipment
1. Small PLCs: Programmable Logic Controllers.
2. Sensor modules: Industrial sensor modules.
3. Small frequency converters: Small frequency converters.
5. Automotive Electronics
1. In-car chargers: In-car fast chargers.
2. In-car navigation systems: High-end in-car navigation systems.
3. In-car driving recorders: High-definition in-car driving recorders.

Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.

We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.

Application

Automotive

Computers and laptops

Drones

HVAC equipment

Telecommunications

Consumer appliances

Medical devices

Industrial machinery

Medical diagnostic

3d Printers

Refrigerator

Solar Photovoltaic

Company Profile

Guangzhou Mega technology Co.,LTD

*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.

*Products are customized according to Clients' application.

*Sample Available, Small Quanity 0rder Available, Quick Delivery

*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.

*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !

Product packaging

Packing And Deliver are all according to Client's requirement

Why Choose Us

Always Give Customer Best

* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted

Customer Satisfaction

FAQ

1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.

2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.

3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.

One is testing during production

Another is 100% testing before packing.

4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.

5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week

Home

Ordering and Pricing

• Minimum order quantity: 10 piece
• Volume pricing:
  • 10–99 piece: US $3.15 / piece
  • 100–999 piece: US $2.34 / piece
  • 1000+ piece: US $1.87 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this brushless axial cooling fan?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the brushless axial cooling fan be supplied for my local voltage?

The standard configuration is 5 V, 12 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Mega Technology Limited Company, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Mega Technology Limited Company range on HVACR Nexus.

See more in Axial Flow Fans on HVACR Nexus.
