This brushless cooling fan is published with the manufacturer’s full specification — 12V, power source Electric. Made by Shenzhen Huaxia Guangda Electronic Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brushless Cooling Fan
- Model Number: DF122512HB
- Power Source: Electric
- Voltage: 12V
- Blade Material: Plastic
- Fan Speed Control: 4000RPM
- Warranty: 2 Years
Technical Specifications
| Voltage | 12V |
|---|---|
| Type | dc cooling fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | HX-FAN |
| Model Number | DF122512HB |
| Fan Life | 50000 Hrs |
| Fan Size | 120X120X25MM |
| Fan Speed Control | 4000RPM |
| Application | Computer Case |
| Color | Black |
| Weight | 135.3g |
| Sample | Avaliable |
| Certification | ce RoHS |
| Selling Units | Single item |
Product Details

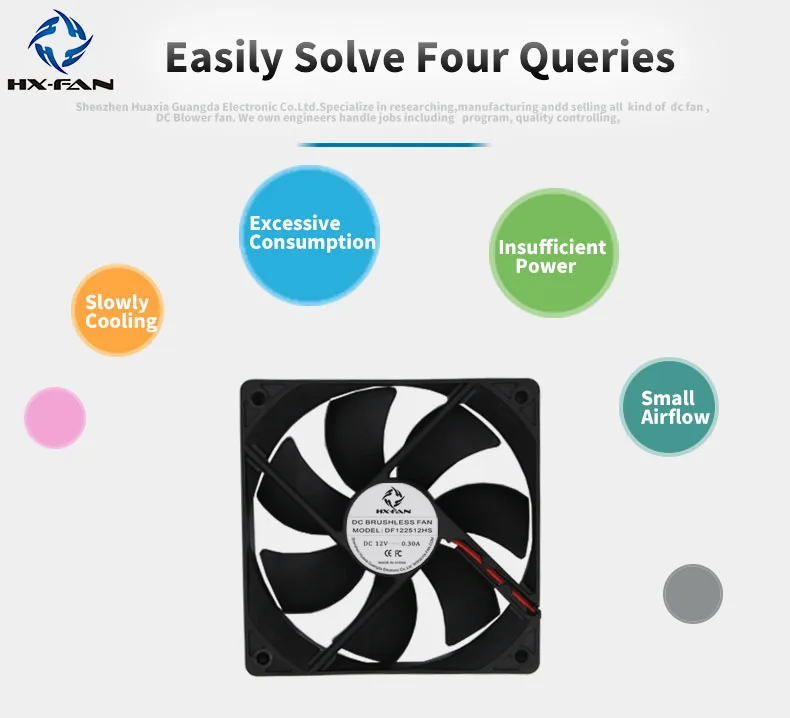

120x120x25mm PWM DC Brushless Cooling Fan High Airflow Axial Fan For Server And Industrial Equipment
| Item | HXF12251HB |
| Axial Flow Fan | |
| Applicable Industries | office equipment ,lighting products ,high-level power , communication devices , medical equipment , household application equipment in car charging point , digtal products |
| DC | |
| Free Standing | |
| Plastic | |
| Place of Origin | China |
| Guangdong | |
| Brand Name | HX-FAN |
| Model Number | HXF12251MB |
| 12V / 24V/48V | |
| CE, FCC, ROHS,ISO9004,UL,REACH | |
| Warranty | 1 YEAR |
| After-sales Service Provided | Online support |
| Size | 120*120*25mm |
| Power | 4.8~6.24w |
| Bearing Type | Dual Ball Bearing |
| Color | Balck |
| Speed | 2200rpm |
| Function | FG PWM RD |
| Air flow | 87.73CFM |
| Noise | 35.73DB |
Office
Sample Room
Production line
Warehouse
Exhibition and Customers
Certification
Q1. What is a DC Axial Fan?
A: An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the
track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm,
92mm,120mm, 150mm, and 200mm.
Q2. How to choose a DC fan?
A: To choose a DC fan, you should consider the points below
a.fan voltage b. fan current c. fan speed d. fan airflow e. fan noise f. fan lifespan
Q3. What is a bearing?
b.A: Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
Q4. How do we carry out quality control?
c.A: Usually, there are two ways to monitor reliability during the manufacturing process. a. Early Life Test This is used as a mean of process control aimed at identifying any latent manufacturing problems
and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the
production lines for burn in at 50°C+/-5°C for 24 hours.
b. On-going Reliability Demonstration This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for
burn-in for 168 hours at 50°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and
corrective actions taken where necessary.
Q5. What can I do if we can not find the suitable fan model in the fan list?
A: Please contact us for customized fans.
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–499 piece: US $2.98 / piece
- 500–999 piece: US $2.94 / piece
- 1000–4999 piece: US $2.85 / piece
- 5000+ piece: US $2.78 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless cooling fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this brushless cooling fan carry?
It is supplied with ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the brushless cooling fan be supplied for my local voltage?
The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Huaxia Guangda Electronic Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Huaxia Guangda Electronic Co., Ltd. range on HVACR Nexus.
