Brushless motor — 120 V, 230V, power source Electric. The complete factory specification follows. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brushless Motor

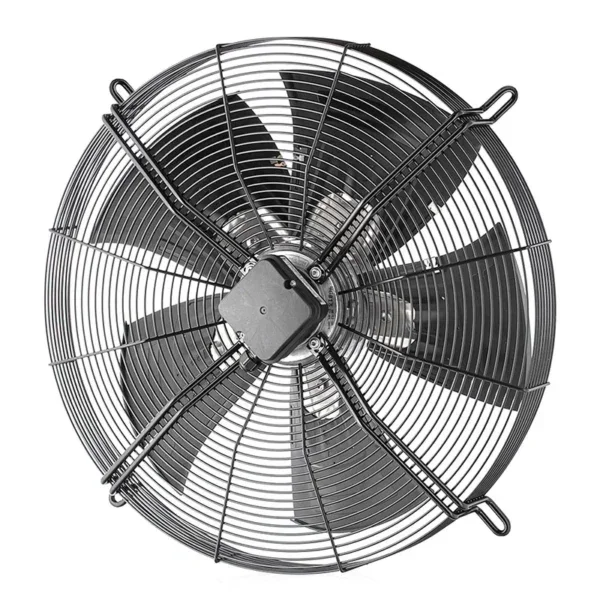

- Model Number: LWAE 500mm EC axial fan
- Power Source: Electric
- Voltage: 120 V, 230V
- Material: Stainless Steel
- Blade Material: Stainless Steel

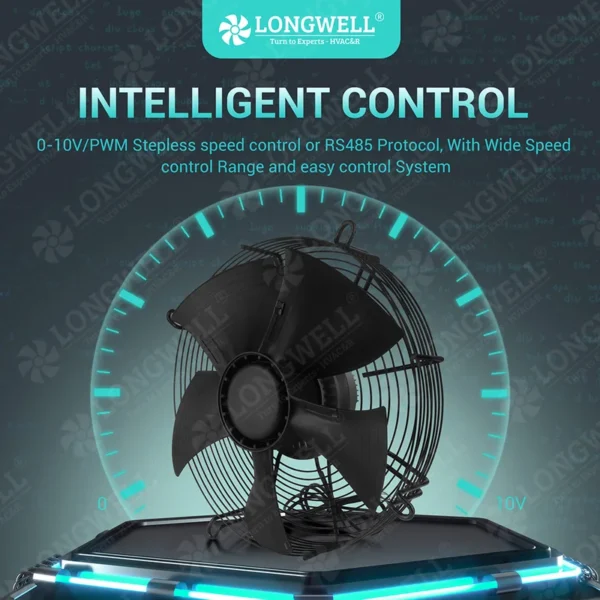

- Speed Control: 0~10V/ PWM
Technical Specifications
| Voltage | 120 V, 230V |
|---|---|
| Type | Duct Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |

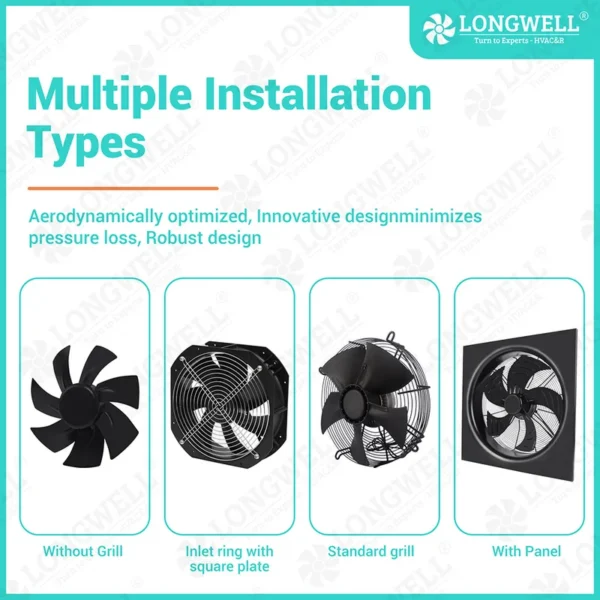

| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWAE 500mm EC axial fan |
| Product Name | Electric motor cooling ventilation fan |
| Outer Diameter | 600*600mm |
| Usage | air cooling system |
| Frequency | 50/60 Hz |

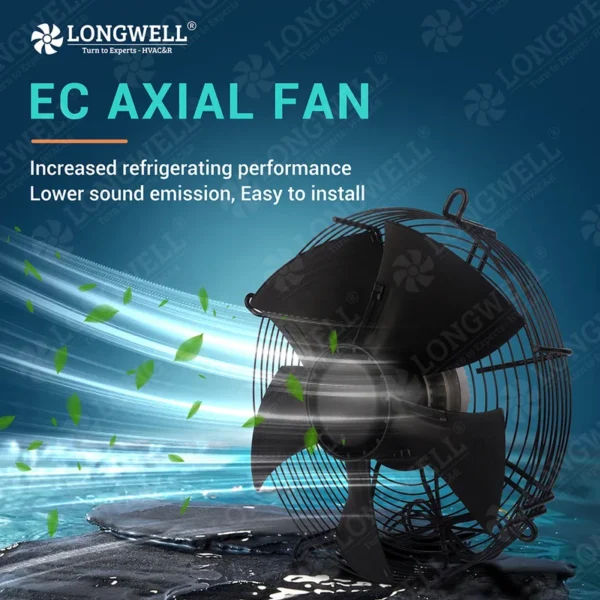

| Product Type | EC Axial flow type |
| Protection | Tech out put /Over voltage protection /Over loading protection |
| Speed Control | 0~10V/ PWM |
| Selling Units | Single item |
| Single Package Size | 62X62X25 cm |
| Single Gross Weight | 8.0 kg |
Product Details
Types : | axial fan |
Voltage Ranges : | 115V,230V,400V |
Frequency : | 50/60 Hz |
Diamter : | 133mm-630mm ( impeller diameters ) |

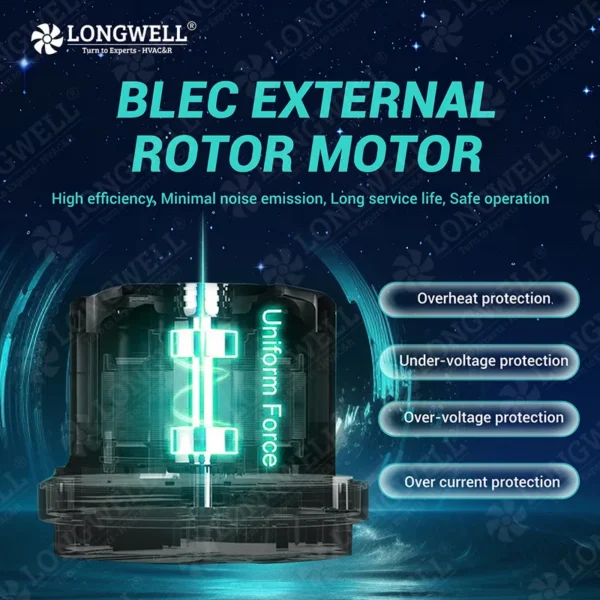

Motor Types : | BLEC External Rotor Motor |
Speed Control : | 0-10V Signal / PWM / RS485(Optional) |
Max.ambient Temp: | -25℃～ +60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP44 ,IP54,IP55 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Working & Storage | Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
Mainly Applications | AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–499 piece: US $320 / piece
- 500–999 piece: US $296.85 / piece
- 1000+ piece: US $286 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless motor?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the brushless motor be supplied for my local voltage?
The standard configuration is 120 V, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
