Brushless radiator — 24v, airflow @100pa 2128. The complete factory specification follows. Made by Changzhou Sunlight Electrical Appliance Co., Ltd. (11 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brushless Radiator
- Power(W): 400W
- Voltage (V): 24v
- Airflow((M^3/H) @100Pa: 2128
- Speed(RPM): 2800
- Warranty: 1 Years
- Certification: RoHS
Technical Specifications
| Purpose | for replace/repair |
|---|---|
| Condition | New |
| Warranty | 1 Years |
| Universal Fitment | Yes |
| OE NO. | universal |
| Place Of Origin | Jiangsu, China |
| Model | WBLF-1201-BT1400 |
| Diameter | 12inch |
| Voltage (V) | 24v |
| Power(W) | 400W |
| Speed(RPM) | 2800 |
| Airflow((M^3/H) @100Pa | 2128 |
| IP Rating | IP68 |
| Service Life | 25000Hours |
| Certification | RoHS |
| Applicable Industries | Retail |
| Selling Units | Single item |
| Single Package Size | 42X42X15 cm |
| Single Gross Weight | 3.0 kg |
Product Details

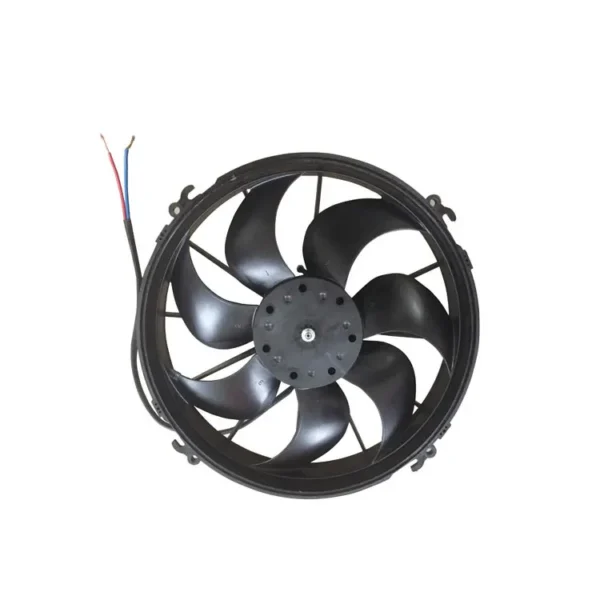

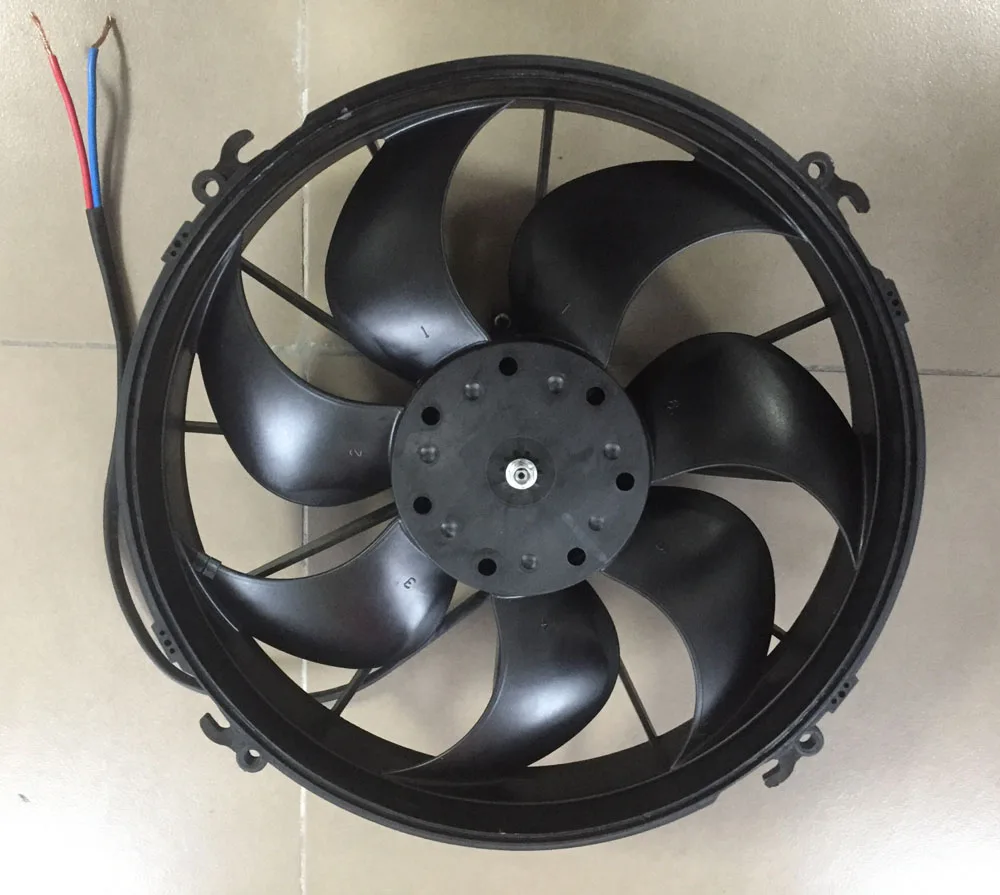

24V 12inch Radiator Cooling Fan
Specification:
1,Rated voltage:24v,voltage range 16~32VDC
2,Pressure test,: <5mA@660VAC-1S
3,Protection: IP68
4,Insulation class:H
5,Humidity: 0–100℃
6,Life: 25000H min
7,Operaing temperture: -40℃-85℃
8,Lead length: 500±20mm,UL1015 12AWG
9.Vibration:20ms 5G
10,Weight:3K
| Name | 24V 12inch Radiator Cooling Fan |
| Model | WBLF-1201-BT1400 |
| Diameter | 12inch |
| Voltage | 24V |
| Power | 400W |
| Speed | 2800RPM |
| Airflow((m^3/h) @100Pa | 2128 |
| IP Grade | IP68 |
| Color | Black |
| PWM Speed Control | Available if clients require. |
| Color | Function | Model |
| Red | +26VDC | 12AWG |
| Black | GND | 12AWG |
| Yellow | PWM | 20AWG |
| BLDC Axial Fan Performance Parameters(Test Voltage:26V) | ||||||||
| Staric Pressure (Pa) | Airflow(m³/h) | Current Input(A) | ||||||
| 0 | 2753 | 10.8 | ||||||
| 50 | 2619 | 11.3 | ||||||
| 100 | 2128 | 11.6 | ||||||
| 150 | 1949 | 1 | ||||||

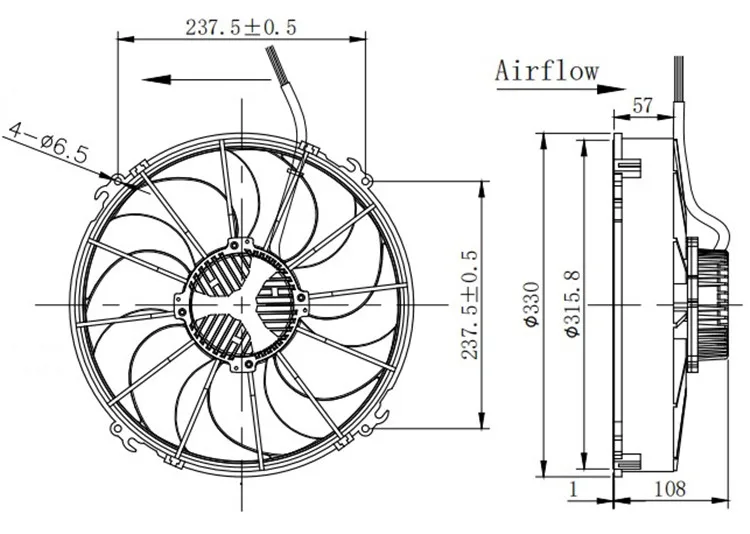

Drawing of 24V 12inch Radiator Cooling Fan

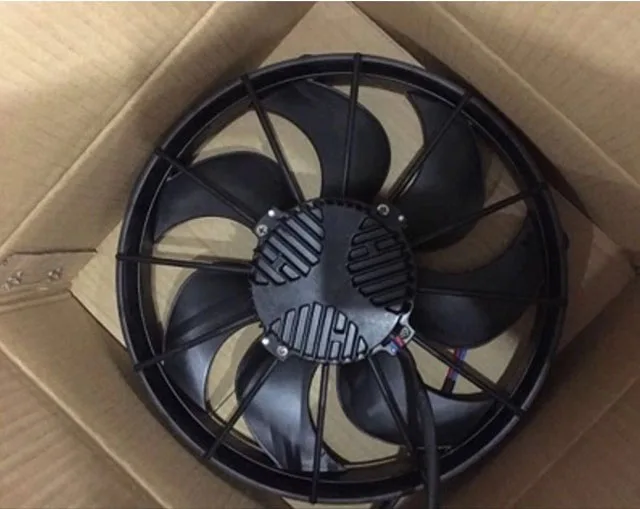

For our 24V 12inch Radiator Cooling Fan,the standard packing 1 piece/box,45Pcs/Carton
Application The 24V 12inch Radiator Cooling Fan is widely used in new engergy bus for ATS system and cooling system heat,shop truck.it is universal.
Ralated Products
If the airflow or speed of this 24V 12inch Radiator Cooling Fan could not meet your requirements,other dimensions from 9inch~16inch,service life option 2000hours/5000hours/25000hours are all available.
We also have blowers.We will help you recommend suitable model for your application.
example please check the parameter of the related 12V 12inch Radiator Cooling Fan
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $49.7 / piece
- 50–99 piece: US $47.54 / piece
- 100+ piece: US $45.31 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless radiator?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this brushless radiator carry?
It is supplied with RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the brushless radiator be supplied for my local voltage?
The standard configuration is 24v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
