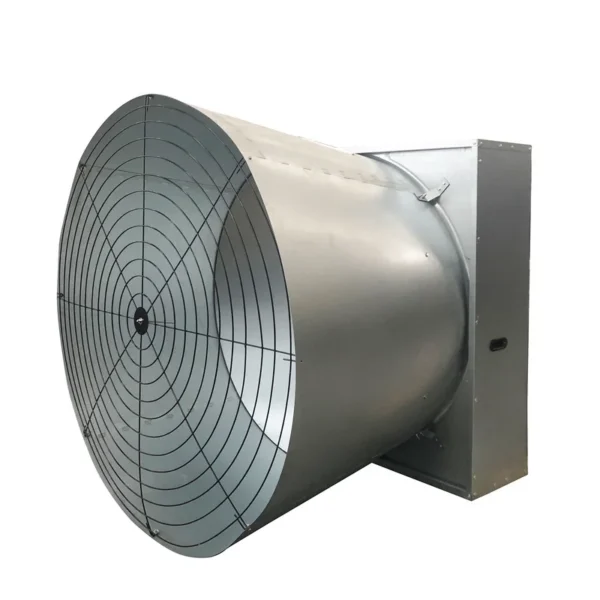

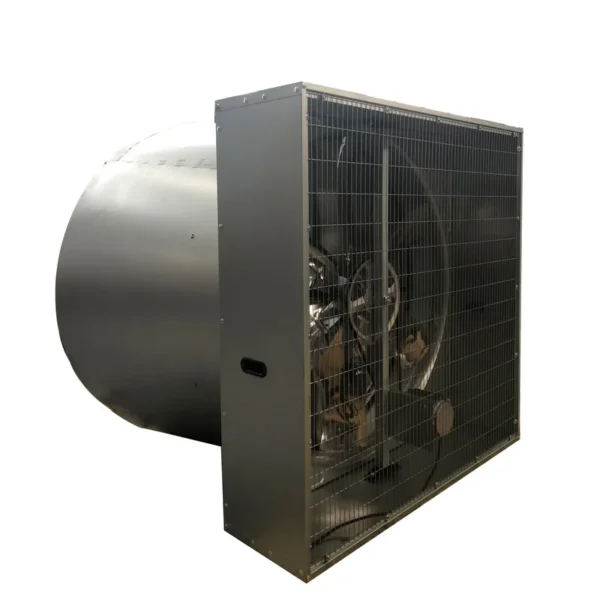

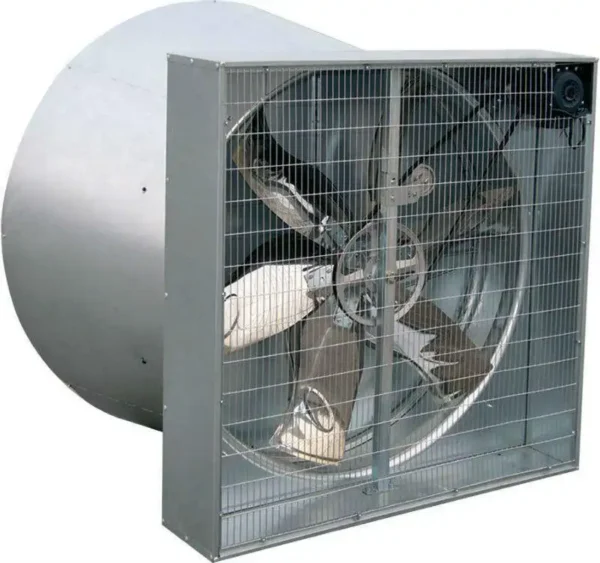

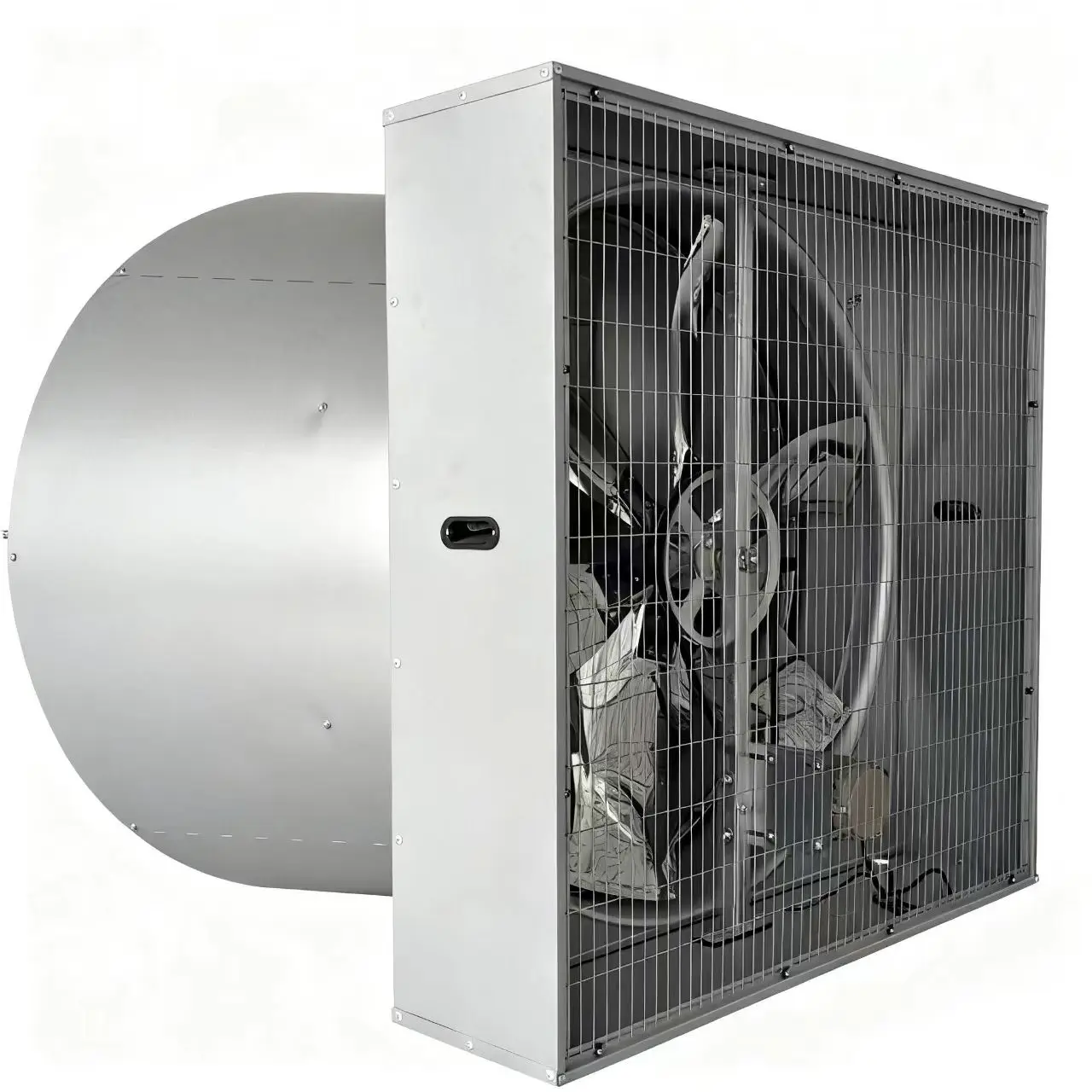

Key specification for this butterfly ventilation cone fan: 380v, 1100w. Everything below is reproduced from the factory data sheet. Made by Qingzhou Jinlong Temperature-Controlled Equipment Co., Ltd. (17 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Butterfly Ventilation Cone Fan
- Model Number: JLF-1380
- Power: 1100w
- Voltage: 380v
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shandong, China
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 380v |
| Blade Material | Stainless Steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | Jinlong |
| Model Number | JLF-1380 |
| Product Name | Butterfly Cone Fan |
| Usage | Cooling Equipment |
| Size | 1380*1380*1300mm |
| Application | Industrial Ventilation |
| Noise | 70dB |
| Type | Centrifugal |
| Motor Type | China Top Brand/Siemens motor |
| Power | 1100w |
| Brand | Jinlong |
| Blade | 6pcs |
| Selling Units | Single item |
| Single Package Size | 138X138X130 cm |
| Single Gross Weight | 80.0 kg |

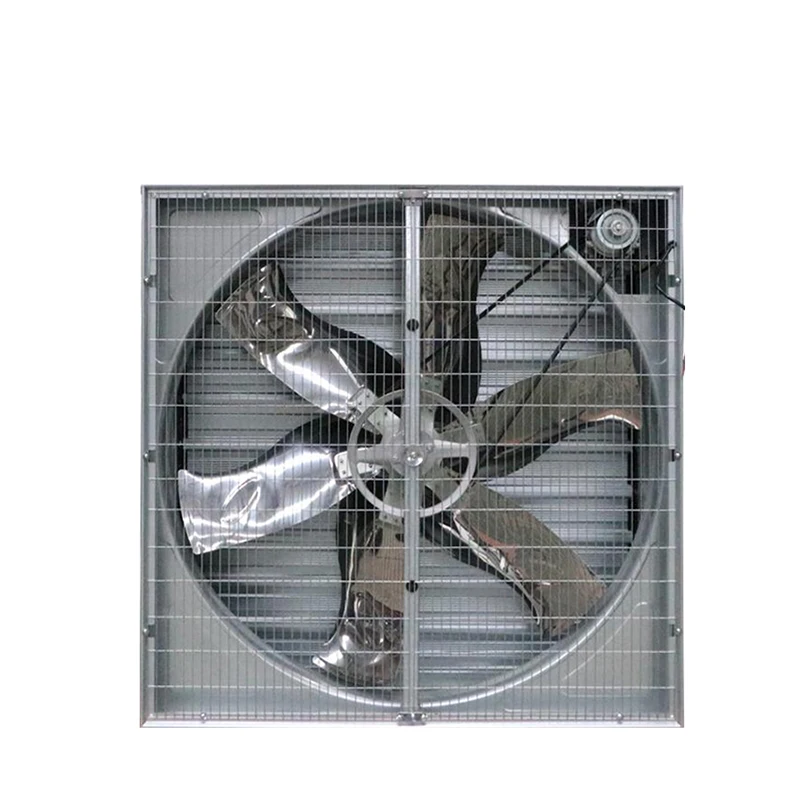

Product Details

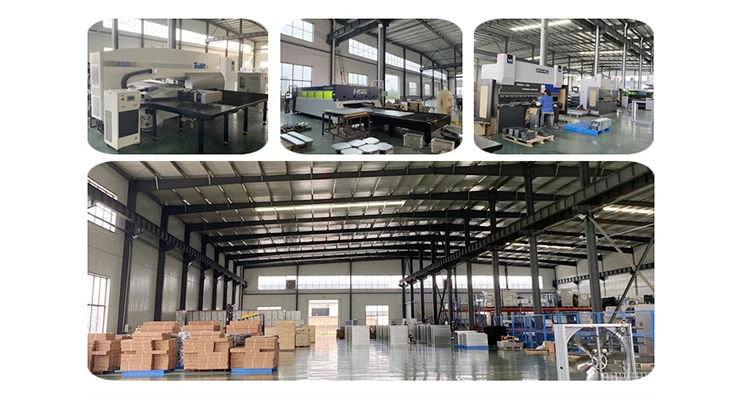

2. Jinlong has advanced production technology with automatic equipment, professional production line, NC-based professional equipment. Auto punching and bending, highly accurated. Frame material is made by 275g coating weight galvanized sheet.

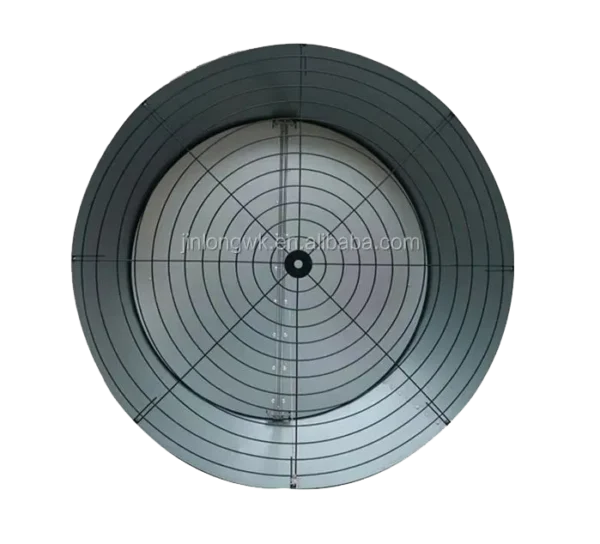

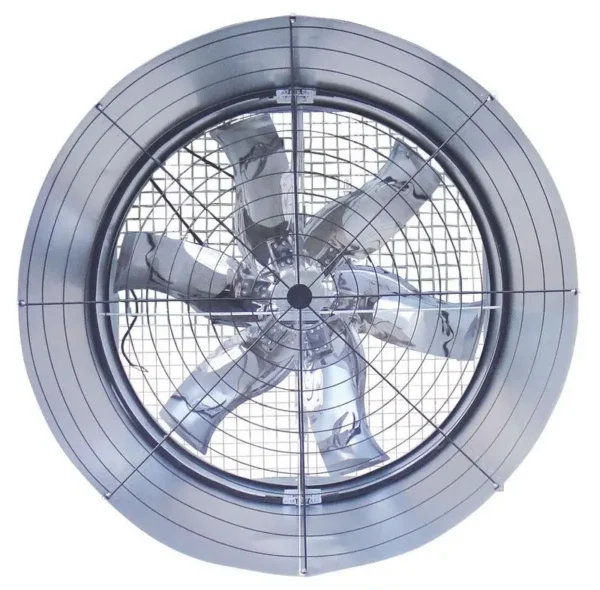

3.Reasonable cone designing which can concentrate blowing and direction, so the air flow is bigger and the fan will beenergy-efficient, lower noise.
Specification | Blade diamater (mm) | Blade RPM | Motor RPM | Airflow m³/h | Total Pressure | Import power | Rated voltage | Dimension (mm) |
JLF-1100 | 1000 | 600 | 1400 | 36000 | 70 | 750 | 380 | 1100*1100*1150 |
JLF-1220 | 1100 | 460 | 1400 | 41000 | 73 | 750 | 380 | 1220*1220*1200 |
JLF-1380 | 1270 | 439 | 1400 | 51020 | 80 | 1100 | 380 | 1380*1380*1300 |

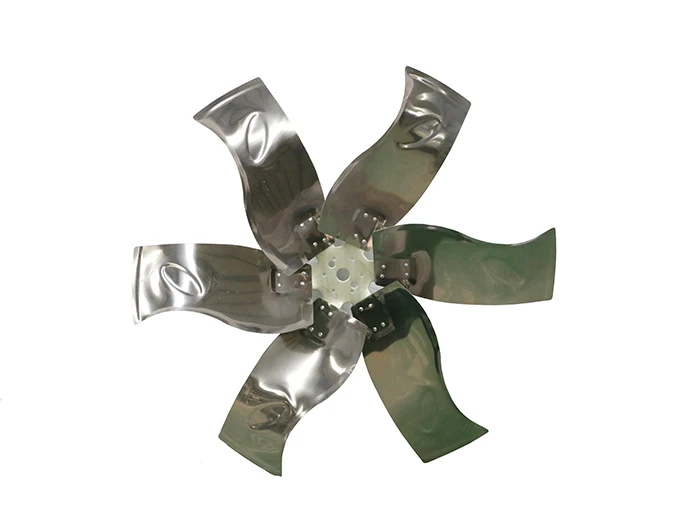

Fan Blade:
1.2 mm thickness

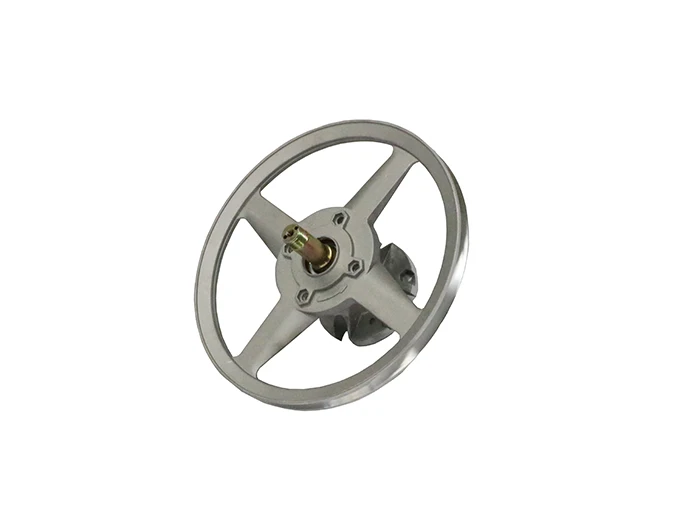

Belt Pulley and Flange:

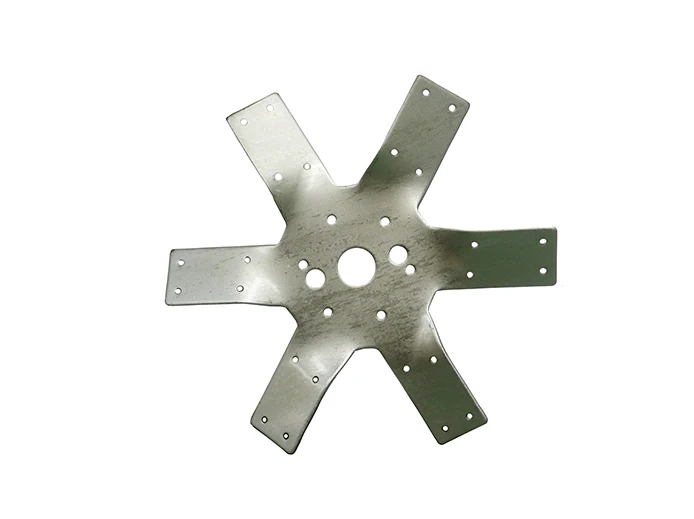

Blade Hub:

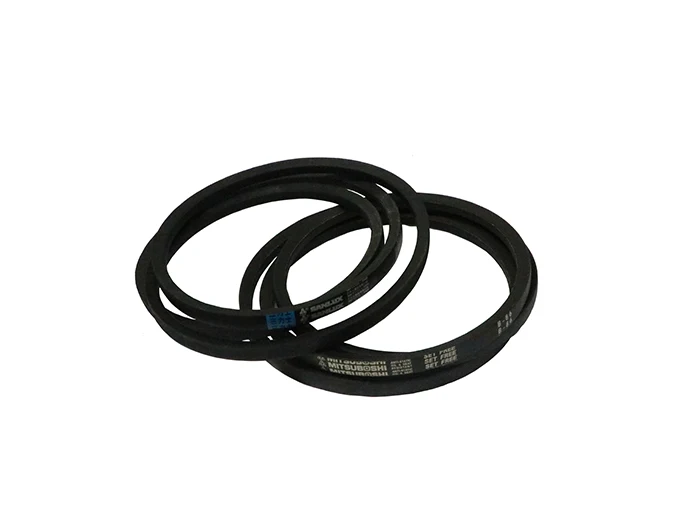

Fan Belt:
Janpanese Mitsuboshi brand
Bearing:
high intension
Blade Support:
bottom bases are made by aluminum-magnesium alloy
Shutter Plastic Part:
Frame:

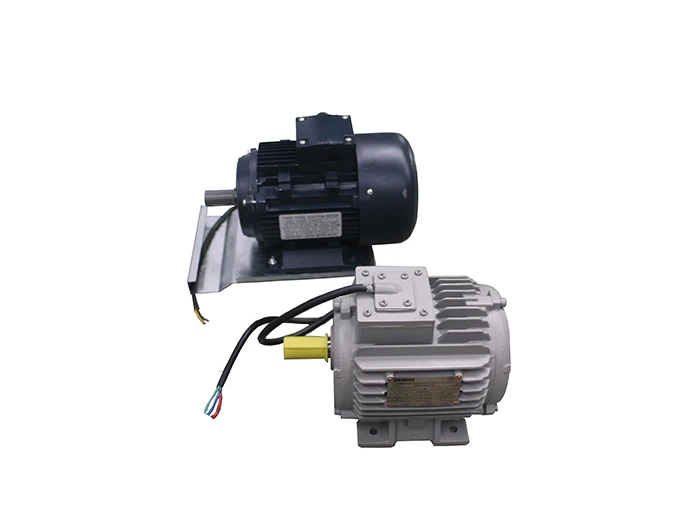

Motor:
protection class: IP 55
insulation class: F
Qingzhou Jinlong Temperature- Controlled Equipment Co.,Ltd
A: We are a professional manufacture of ventilation cooling system, heating equipment, feeding and drinking equipment, as well as
the related accessories for poultry, workshop, and greenhouse in China.
2. Q: Do you accept customization serv ice?
A: Absolutely! We support OEM& ODM.
3. Q: Do you have MOQ requirement?
A: No MOQ requirement, no inventory pressure, but please note that the freight will be high.
4. Q: How is the quality of your products?
A: We always offer high quality products to our clients in a rather reasonable price.
5. Q: What kind of payment do you accept?
A: TT/ LC/ DP/ Alibaba.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $220 / set
- 100+ set: US $140 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this butterfly ventilation cone fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the butterfly ventilation cone fan be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Jinlong Temperature-Controlled Equipment Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Qingzhou Jinlong Temperature-Controlled Equipment Co., Ltd. range on HVACR Nexus.
