Window Air Conditioner, 220V~240V, 50Hz/60Hz

The window air conditioner listed here carries 220V 50-60Hz, airflow 300m³/h(10594.40ft3/h), documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Window Air Conditioner

• Operating Voltage: Other
• Voltage: 220V 50-60Hz
• Cooling Capacity: 300W 500w 600W 800W 1000W 1500W 2000W
• Heating Capacity: 100W
• Airflow: 300m³/h(10594.40ft3/h)
• Frame Material: Galvanized steel

Technical Specifications

Product Details

Product Description

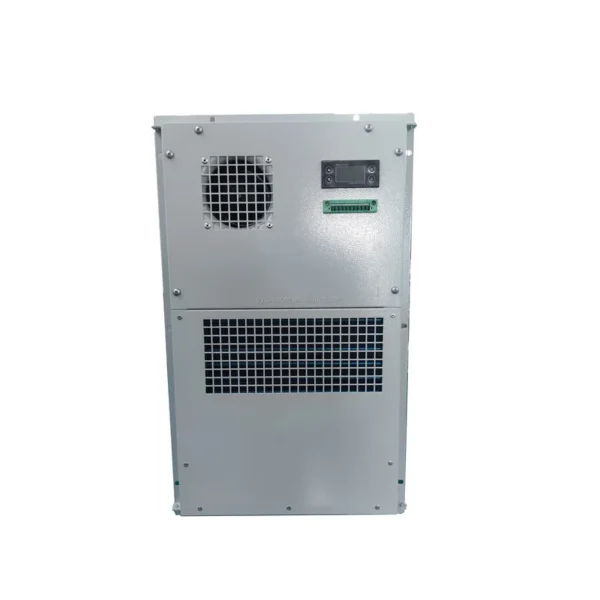

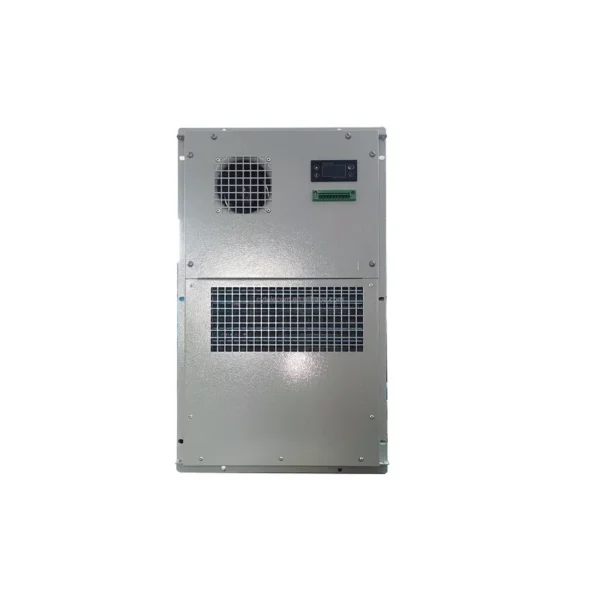

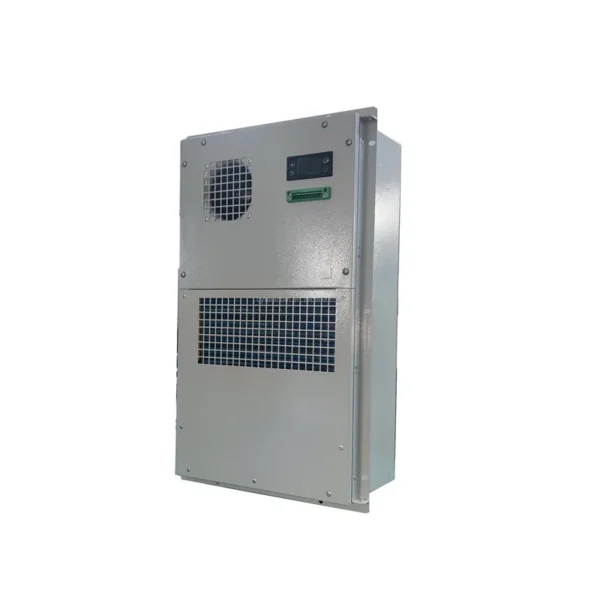

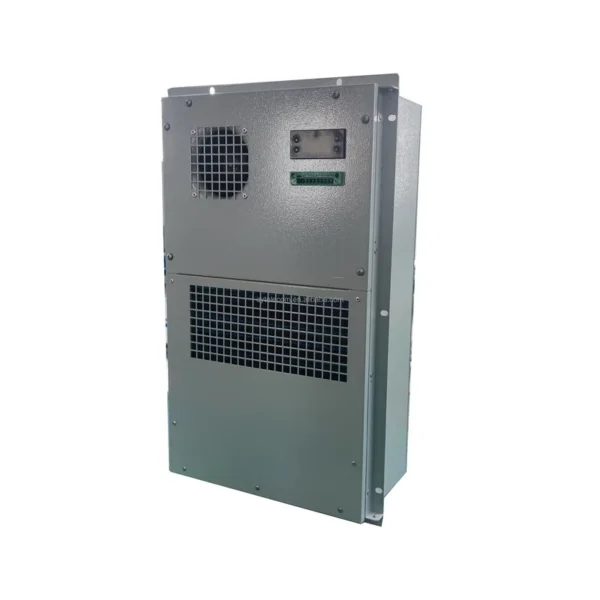

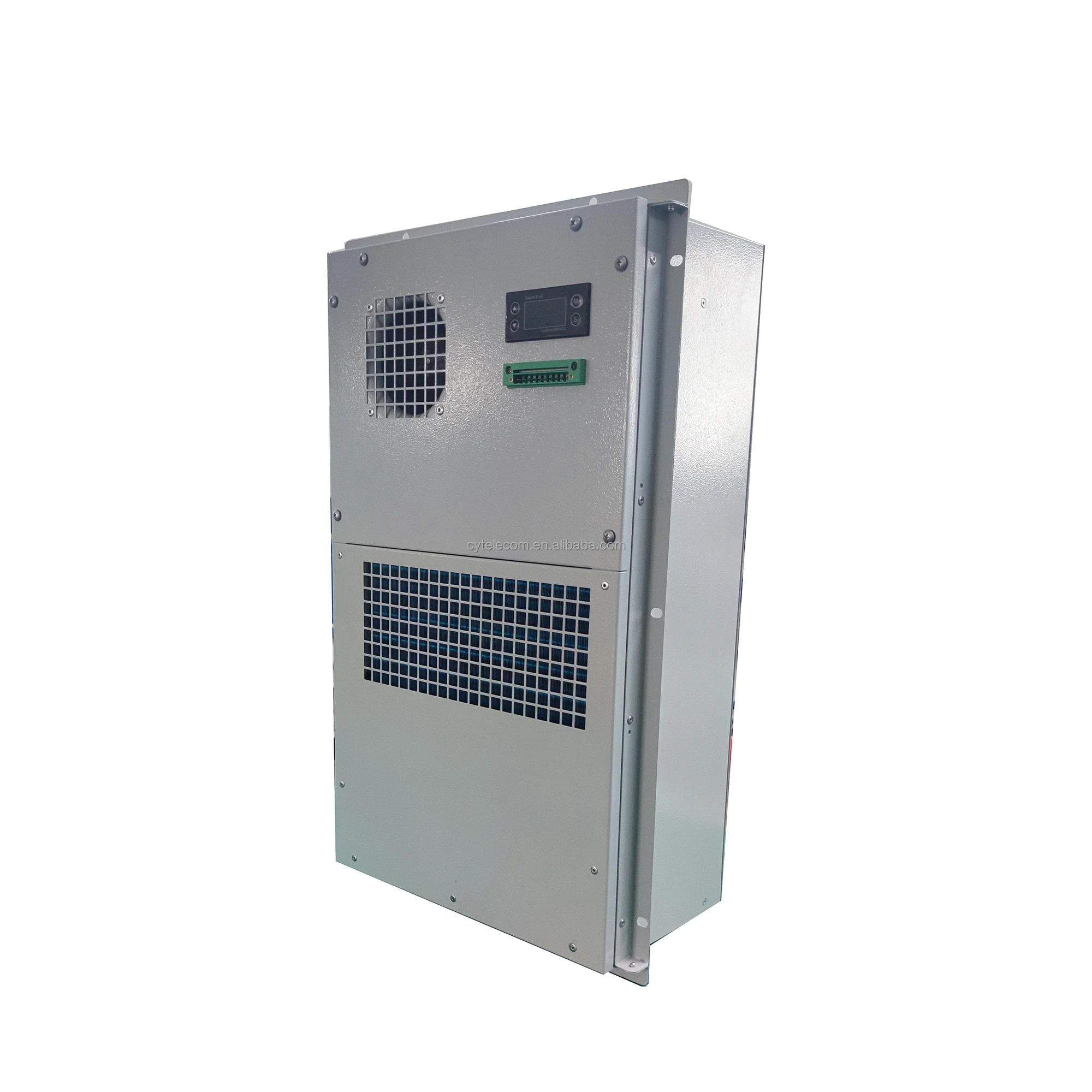

Window Custom hot sale 220V~240V 50Hz/60Hz Mechanical Window Type Aircon Window Air Conditioner

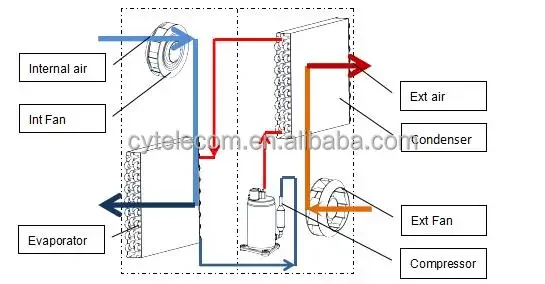

Window type air conditioner is actively cooling with compressor, and it will remove the heat inside the cabinet to outside. It also can keep the dust and heat outside the cabinet, avoiding problems from using fan. The inside cabinet can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.

Product Feature

1. This series of products can be widely used for outdoor communication cabinets, battery cabinets, electric cabinets and industry control cabinets etc. 2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed. 3. Digital temperature controller and high precision of temperature control.

Product Paramenters

Name	Air cooler
Model	AC1000
Mounting Method	Semi-embedded Mounting
Power Supply	AC220V 50HZ
Cooling capacity	1000W@L35/35
Power capacity	430W@L35/35
Cooling capacity	650W@L35/55
Power capacity	550W@L35/55
Max Noise Level	65dB（A）
IP Grade	IP55
Net Weight	28kg
Refrigerant	R134a
Dimensions	746*446*200（mm）(HxWxD)

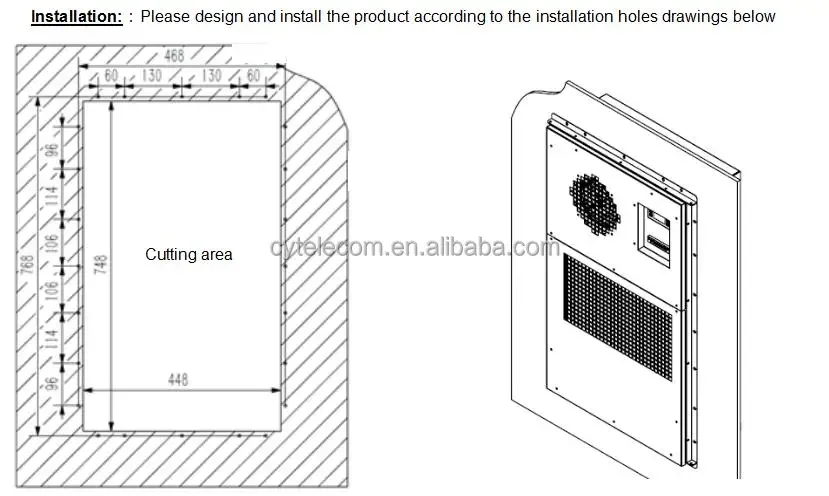

Installation of Air Conditioner

•Please do not use this equipment in hot、dusty、moist or corrosive environment. The ambient temperature should not be high than55℃ and also should not be less than -40℃. The humidity should not be more than 85%. Starting voltage should not be higher or lower than 10% of the rated voltage. • Place the air conditioner on the cabin and screw the air conditioner on the edge of the cabin. •Make sure that the air conditioning drainage is smooth and that the pipe exposed outside the wall should not be raised or bent to avoid affecting the drainage. •Do not upside-down, over-tilt and collision when handling or moving the equipment •Installation and electrical wiring of the equipment must be operated strictly by professionals in accordance with the relevant provisions of this manual.

Company Profile

Chen Tong Yuan a high-tech enterprise integrating R & D, production and sales. The total area of the factory is 5000 square meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its establishment, the company has been focusing on window type air conditioner, network cabinet 48v air conditioner, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system,distribution cabinet research and development, production and sales.

Why Choose Us

Q1.Do you have any MOQ limit for window type air conditioner?
A: Low MOQ, 1pc for sample checking is available.

Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.

Q3.Are your window type air conditioner can be customized?
A: Yes,We can customize products according to customer needs.

Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.

Q5: Where the application of window type air conditioner?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.

Welcome your inquiry for further discussion regarding on our window type air conditioner

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $1100 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this window air conditioner?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the window air conditioner be supplied for my local voltage?

The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
