The cabinet with hepa filter listed here carries airflow velocity Average of 0.30~0.45m/s, model number BBS-H1100, documented exactly as the manufacturer publishes it. Made by Biobase Biotech (jinan) Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cabinet With Hepa Filter
- Model Number: BBS-H1100
- Airflow Velocity: Average of 0.30~0.45m/s
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Single Package Size: 125X105X135 cm
- Gross Weight: 170kg
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Model Number | BBS-H1100 |
| Brand Name | BIOBASE |

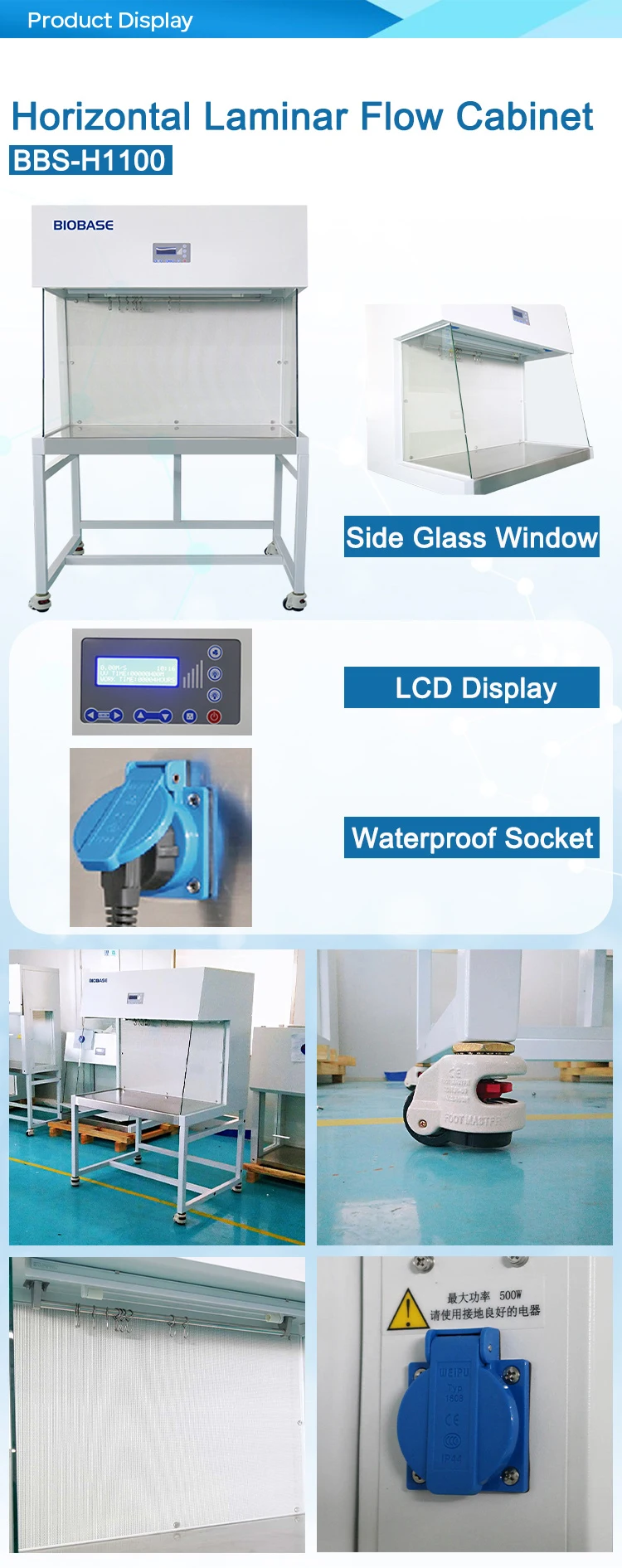

| Product Name | Horizontal Laminar Flow Cabinet |
| Laminar Flow Cabinet Display | LCD Display |
| Work Surface Height | 750mm |
| Airflow Velocity | Average of 0.30~0.45m/s |
| Pre-Filter | Polyester fiber, washable |
| HEPA Filter | 99.999% efficiency at 0.3um |
| Noise | <65dB(A) |
| Consumption | 200W |
| Gross Weight | 170kg |
| Selling Units | Single item |
| Single Package Size | 125X105X135 cm |
| Single Gross Weight | 175.000 kg |
Product Details

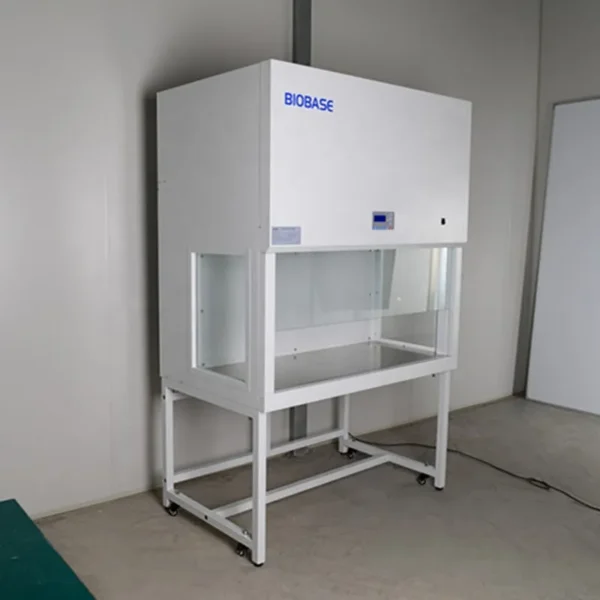

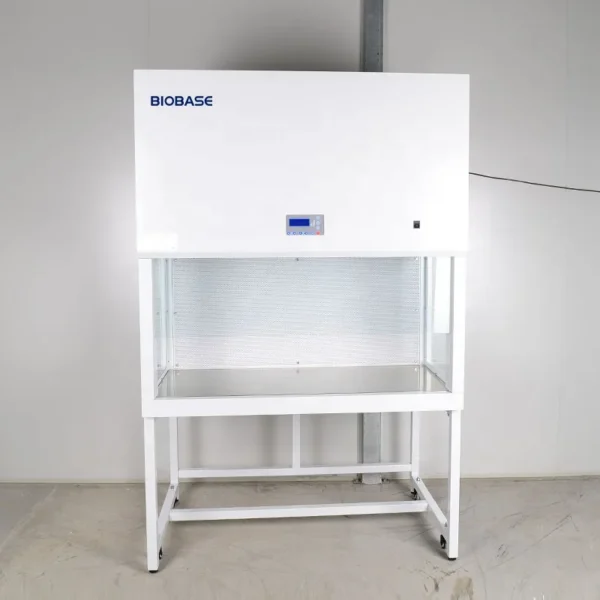

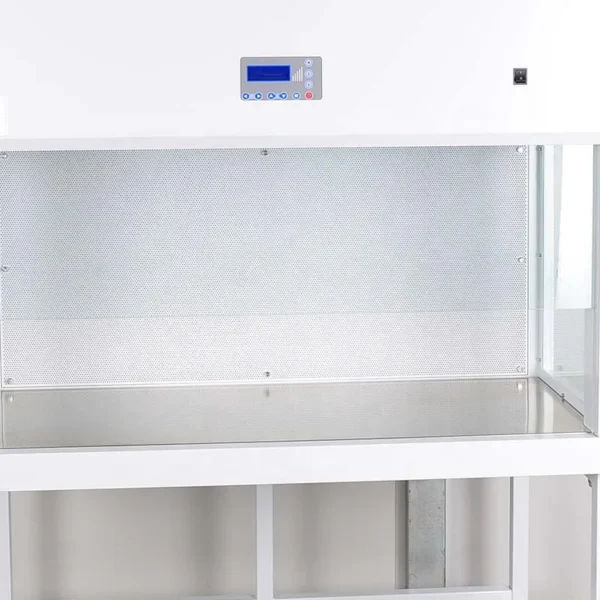

1.Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
2.The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
3.Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Model | BBS-H1100 (Previous name: BBS-DDS) | BBS-H1500 (Previous name:BBS-SDS) | BBS-H1800(X) | ||
External Size(W*D*H) | 1100*808*1690mm | 1500*808*1690mm | 1800*808*1890mm | ||
Internal Size(W*D*H) | 1000*500*600mm | 1400*500*600mm | 1700*500*800mm | ||
Work Surface Height | 750mm | ||||

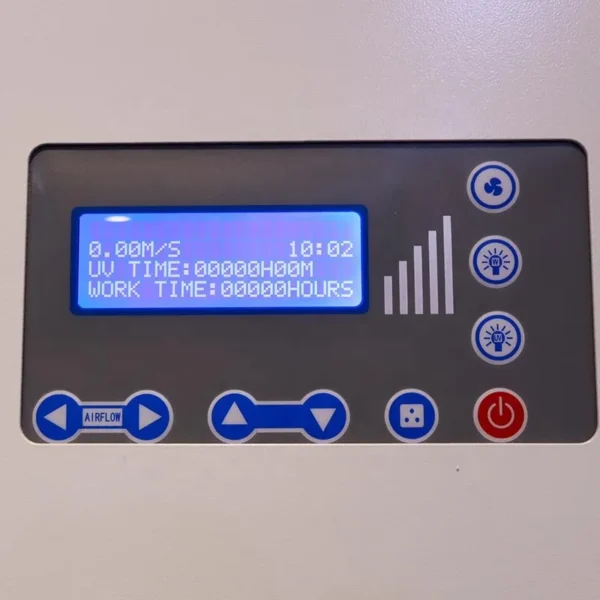

Display | LCD Display | ||||
Airflow Velocity | Average of 0.30~0.45m/s | ||||
Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
Work Table:304 stainless steel | |||||
Side Windows:8mm toughened glass, anti-UV | |||||
Pre-filter | Polyester fiber, washable | ||||
HEPA Filter | 99.999% efficiency at 0.3um | ||||
Noise | <65dB(A) | ||||
LED Lamp | 12W*1 | 16W*1 | 16W*2 | ||
UV Lamp | 20W*1 | 30W*1 | 20W*2 | ||
Emission of 253.7 nanometers | |||||
Consumption | 200W | 300W | 400W | ||

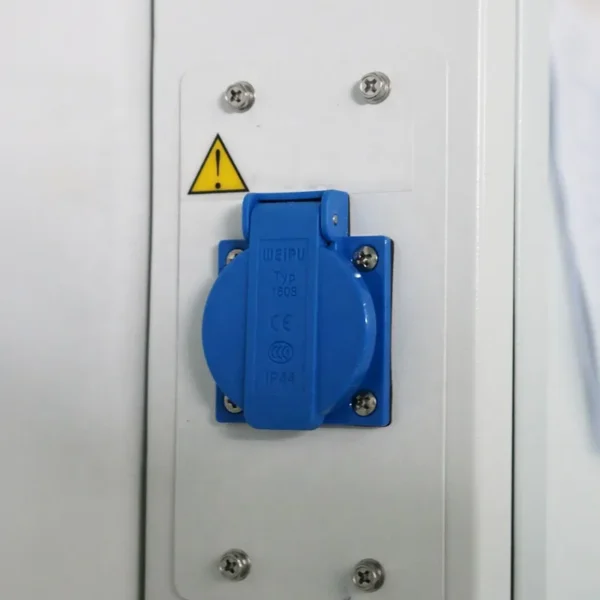

Waterproof socket | Two, total load≤500W | ||||
Caster | Universal caster with leveling feet | ||||
Power Supply | AC220V±10%; 50/60Hz; 110V±10%, 60Hz | ||||
Standard Accessory | LED lamp, UV lamp*2,Base stand, Waterproof socket*2, Hook*10 | ||||
Optional Accessory | Electric height adjustable base stand | ||||
Gross Weight | 175kg | 185kg | 240kg | ||
Package Size(W*D*H) | 1240*1030*1350mm | 1650*1030*1340mm | 1950*1050*1550mm | ||
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $850 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cabinet with hepa filter?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Biobase Biotech (jinan) Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Biobase Biotech (jinan) Co., Ltd. range on HVACR Nexus.
