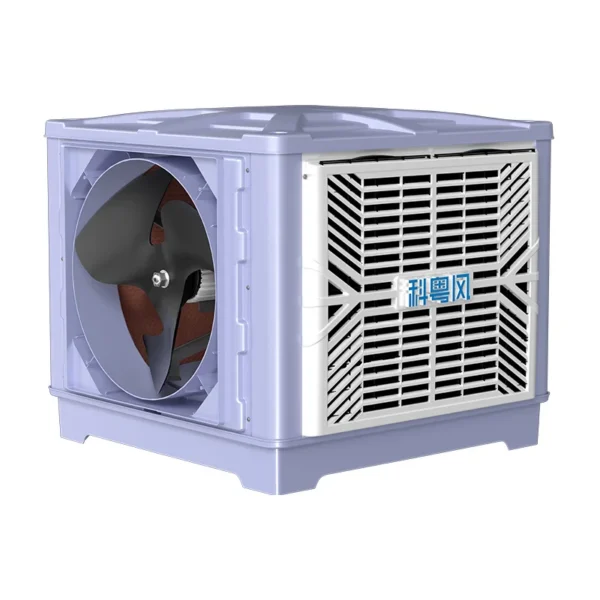

This capacity evaporative air conditioner is published with the manufacturer’s full specification — 220V-380V/50Hz-60Hz, air flow 18000m³/h. Made by Dongguan Fengqing Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Capacity Evaporative Air Conditioner
- Model Number: KYF-18B
- Power: 1.1KW
- Voltage: 220V-380V/50Hz-60Hz
- Air Flow: 18000m³/h
- Refrigerant: Water
- Warranty: 1 Year
Technical Specifications
| Type | Air Cooler |
|---|---|
| Refrigerant | Water |
| Mounting Type | Wall / Window Mount |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Application | Warehouse, School, Hospital, Hotel, Plant, Apartment, Office, Mall |
| Key Selling Points | Eco-Friendly, Low Maintenance Cost, Easy To Operate, Energy Saving, Low Noise Level, R410A |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | China |
| Weight (Kg) | 60 |
| Brand Name | Keyuefeng |
| Model Number | KYF-18B |
| Dimension(L*W*H) | 1120*1120*1220mm |
| Air Flow | 18000m³/h |
| Voltage | 220V-380V/50Hz-60Hz |
| Power | 1.1KW |
| Coverage Area | 100-150 square meters |
| Cooling Pad | 5090 Cooling Pad |
| Direction Of Air Outlet | Side air outlet |
| Water Consumption | 25L/H |
| Selling Units | Single item |
Product Details
- Energy Saving: Up to 70% Less Power Consumption
- Strong Cooling: Large Air Flow, Fast Temperature Down
- Fresh & Cool Air: 100% Fresh Air Circulation
Model | KYF-18C |
Power | 1100W |
Voltage | 3 phase 380-480V/50-60Hz |
Prod. Size | 110*110*94cm |
Net Weight | 60KG |
Outlet Size | 67*67cm |
Motor Type | Full Copper Motor with Cooling Fins |
Protection Grade | IP55 |
Rated Speed | Approx.1400rpm/min |
No. of Blades | 3 Blades |
Speed Levels | 50 speed regulation with remote |
Cooling Pad | 5090 High-Efficiency Cooling Pad |
Air Flow | 18000m3/h |
Bearing Type | Sleeve Bearing |
Body Material | Virgin PP |
Blade Material | PP & Nylon |
Mounting Type | Wall/window/Roof |
Color | Purple +White |
Outlet Vent | Side Air Outlet |
Noise Level | ≤ 65db |
Connectable Duct Length | ≤20m |
Applicable Area | 100-150sq.m |
Packing | 1 Piece/Stretch film |
Motor Winding Material
Housing Design
Founded Year | 2013 |
Factory Area | 5,000㎡ |
Employees | 100+ Staff |
Production Lines | 5 Production Lines |
Monthly Capacity | 3000+ Units |
Export Countries | 50+ Countries |
OEM Service | Supported |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–39 piece: US $450 / piece
- 40–79 piece: US $420 / piece
- 80+ piece: US $390 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this capacity evaporative air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the capacity evaporative air conditioner be supplied for my local voltage?
The standard configuration is 220V-380V/50Hz-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Fengqing Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Fengqing Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
