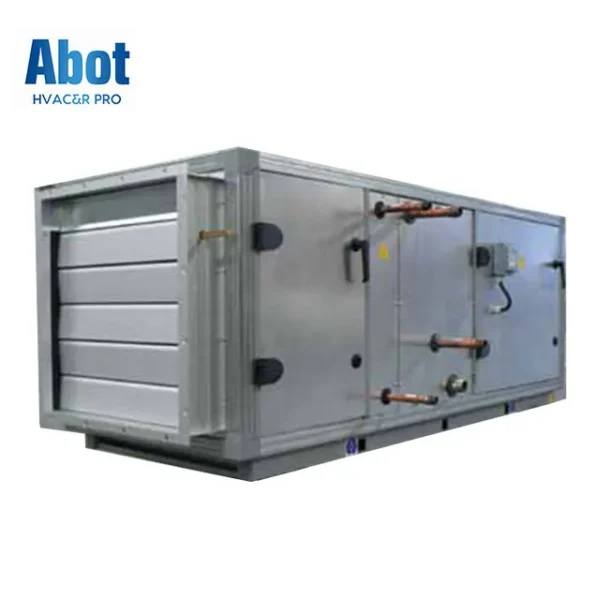

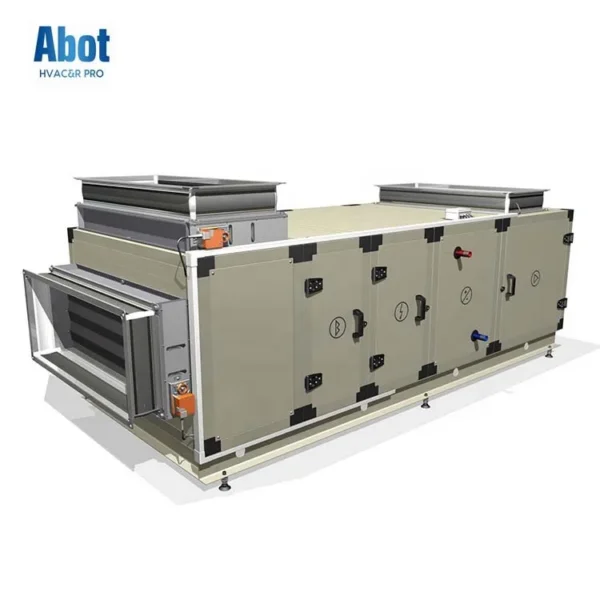

Carrier air handling unit — 100btu and above, model number 42GW. The complete factory specification follows. Made by Henan Abot Trading Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Carrier Air Handling Unit
- Model Number: 42GW
- Ambient Voltage: AC 240V
- Cooling Capacity: 100btu and above
- Material: Stainless Steel, Brass, Aluminum Foil, ABS Plastic, PVC
- Warranty: 5 year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Application | Hospital |
|---|---|
| Ambient Voltage | AC 240V |
| Material | Stainless Steel, Brass, Aluminum Foil, ABS Plastic, PVC |
| Current Rating | 10A |
| Control Signal | modulating |
| Actuator Type | Electric |
| Feature | Flexible, Energy Saving, Anti-Corrosion, Easy Install |
| Warranty | 5 year |
| After-Sale Service | Free Spare Parts, Online Technical Support |
| Project Solution Capability | 3D model design, graphic design |
| Cooling Capacity | 100btu and above |
| Length | 10 meters |
| Model Number | 42GW |
| Place Of Origin | Zhejiang, China |
| Brand Name | Carrier |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Options/accessories
• Outdoor installation
• Inspection section in between heating and cooling coils
• Reversed hot/chilled water coils
• Differential pressure gauges
• Differential pressure taps
• Direct-expansion refrigerant coil (25% fresh air)
• Lighting with switch
• Door safety screen
• Variable-speed drive with integrated disconnect switch
Features
• Standardised components for short delivery time (target 4 weeks) and competitive price positioning.
• "Clean concept" design with smooth internal surfaces for easy cleaning and better air quality.
• 60 mm double-skin construction for good thermal insulation and low-noise operation.

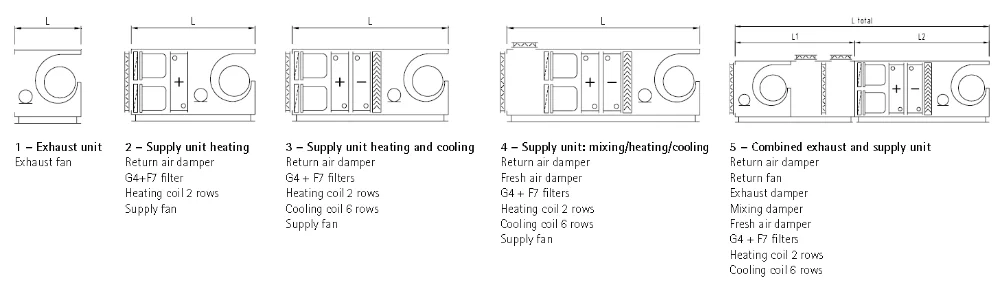

• Three basic configurations:
– Exhaust unit
– Supply unit with a single fan
– Combined return and supply unit with two fans

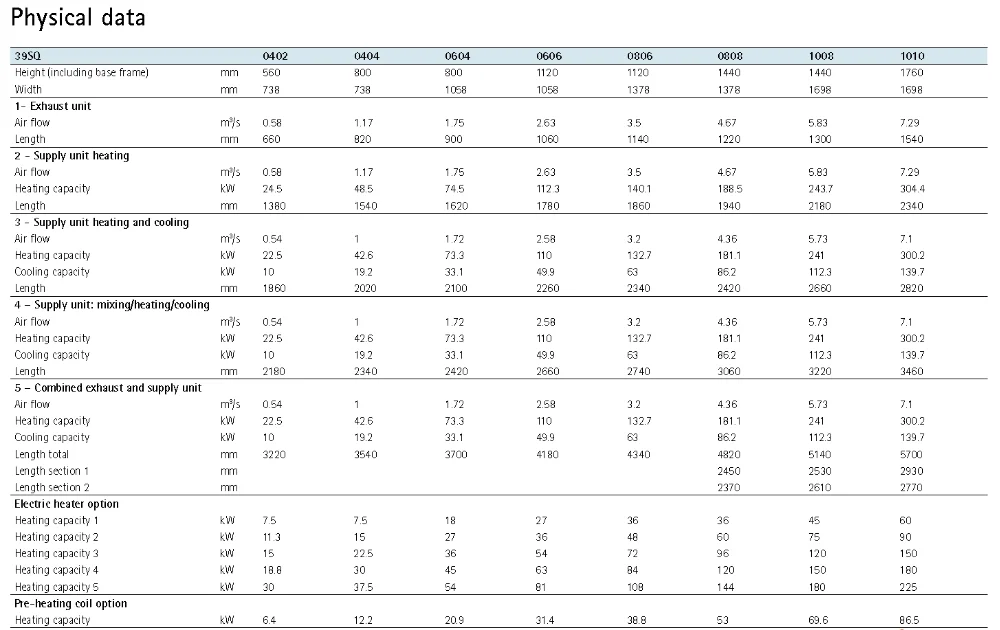

• Eight sizes with air flows from 0.4 to 7.3 m3/s (1400 to 26300 m3/h).

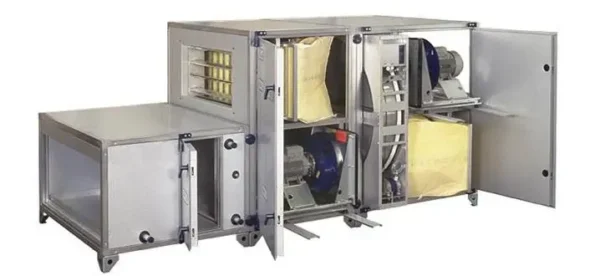

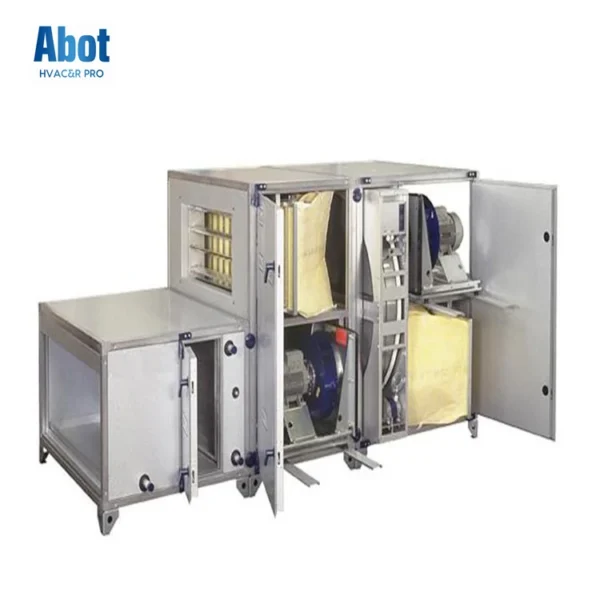

• Galvanised steel frame and casing with large hinged access doors.
• Casing characteristics in accordance with EN1886 standard: air leakage class L2, thermal bridging class TB3, thermal transmission class T2.
• Double or single mixing section.
• Pre-heating hot water coil.
• G4 pleated or/and F7 bag filters.
• Hot water coil or electric heaters.
• Chilled water coil.
• Belt-driven forward/backward curved fans or direct-drive plug-in fans.
Packaging | ||
Size | 970 (L) * 770 (W) * 1620 (D) | |
Weight | 210 kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this carrier air handling unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the carrier air handling unit be supplied for my local voltage?
The standard configuration is AC 240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Abot Trading Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Henan Abot Trading Co., Ltd. range on HVACR Nexus.
