Key specification for this carrier central air conditioner: power supply 380-415V/3Ph/50Hz, airflow 3500m³/h. Everything below is reproduced from the factory data sheet. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Carrier Central Air Conditioner
- Power Supply: 380-415V/3Ph/50Hz
- Power Input: 5-32Kw
- Operating Voltage: 380/400 VAC
- Cooling Capacity: 5-30 ton
- Airflow: 3500m³/h
- Refrigerant: R-410A
Technical Specifications

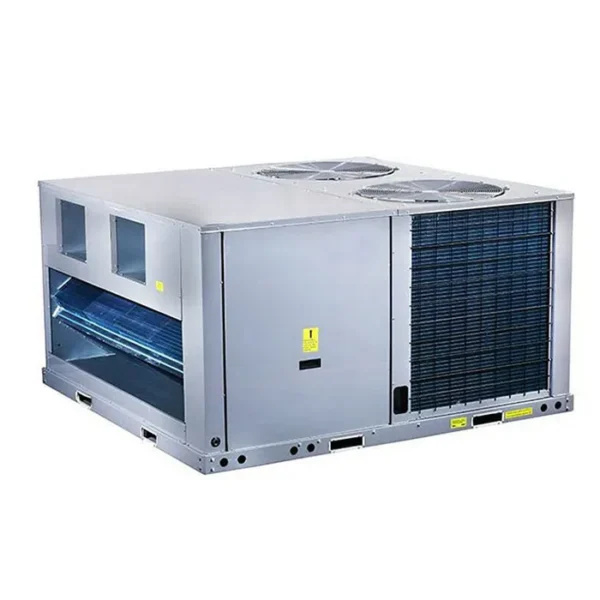

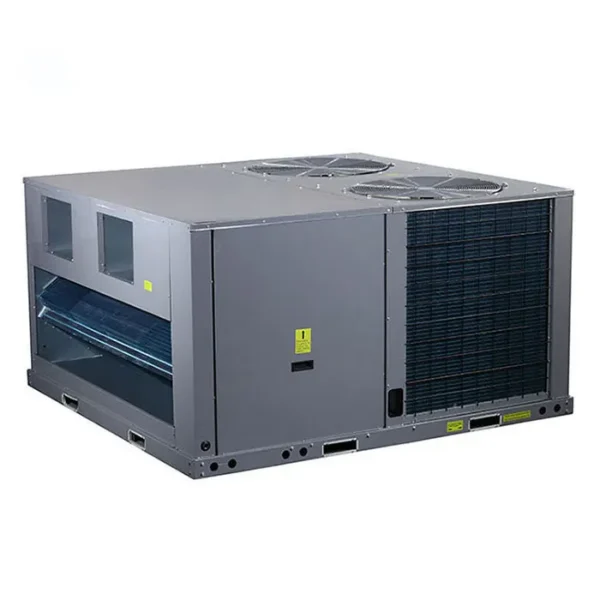

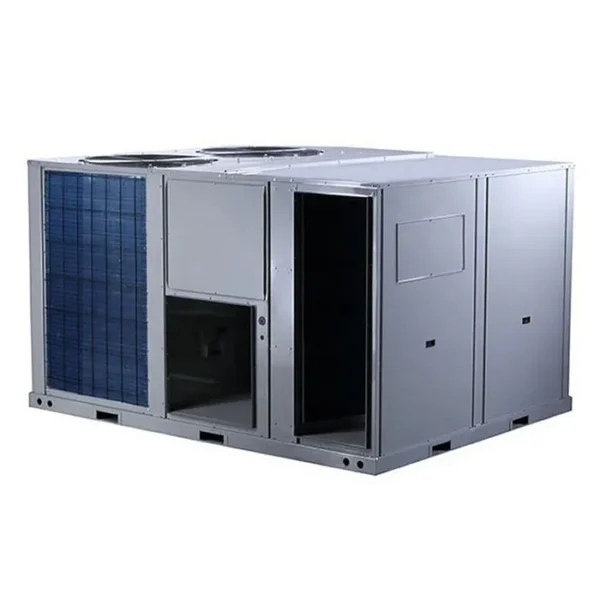

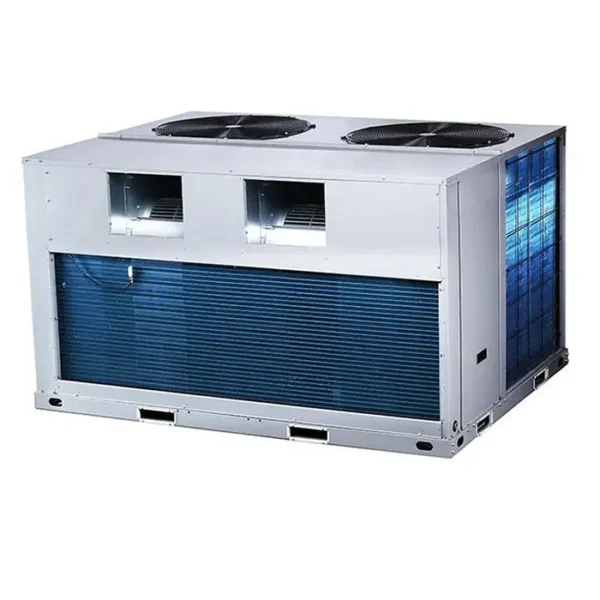

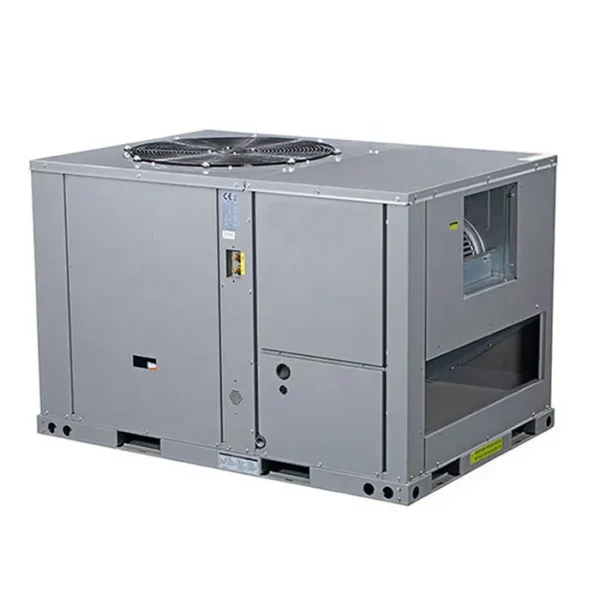

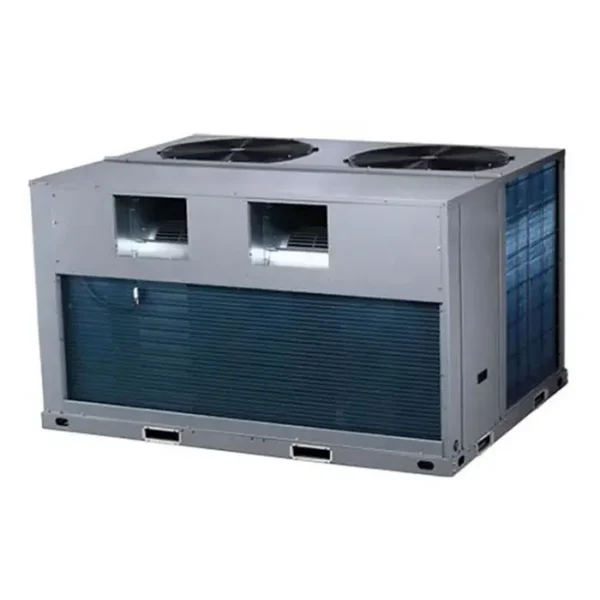

| Type | Rooftop Packaged Unit |
|---|---|
| Airflow | 3500m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Rooftop |
| Key Selling Points | Eco-Friendly |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Henan, China |
| Weight (Kg) | 600 KG |
| Brand Name | TX |
| Dimension(L*W*H) | Customized |
| Product Name | 20 ton Rooftop Package Unit Air Conditioners HVAC System AC Rooftops |
| Refrigerant | R-410A |
| Function | CoolingHeating |
| Cooling Capacity | 5-30 ton |
| Cooling Btu | 58k – 332k |
| Compressor | DC Inverter Compressor |
| Power Supply | 380-415V/3Ph/50Hz |
| Power Input | 5-32Kw |
| Noise | 67-80db(A) |
| Working Condition | 10~52 degree |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Series | SEER | 13-18 | ||||||
Nominal ton | 3Tons | 4Tons | 5Tons | |||||
Model type | CRS-36CNR1-W | CRS-48CNR1-W | CRS-48CNR1-W | CRS-60CNR1-W | ||||
821047100006 | 821047200006 | 821047200007 | 821047200005 | |||||
Power | voltage/phase/frequency | 230V/1/60 | 230V/1/60 | 230V/1/60 | 230V/1/60 | |||
Applicable voltage | Max. | 253 | 253 | 253 | 253 | |||
Min. | 187 | 187 | 187 | 187 | ||||
Capacity | Cooling(Btu/h) | 33500 | 47000 | 47000 | 56500 | |||
Input （W） | 3150 | 4400 | 4400 | 5300 | ||||
Heating(Btu/h) | / | / | / | / | ||||
Input （W） | / | / | / | / | ||||
Performance | EER(Btu/h W) | 11.0 | 11.0 | 11.0 | 11.0 | |||
SEER | 13.0 | 13.0 | 13.0 | 13.0 | ||||
Performance | COP(Btu/h W) | / | / | / | / | |||
HSPF | / | / | / | / | ||||
Dimensions | Length(mm) | 1321 | 1486 | 1486 | 1486 | |||
Width(mm） | 958 | 1086 | 1086 | 1086 | ||||
Height（mm) | 630 | 840 | 840 | 840 | ||||
Net weigt（Kg） | 140 | 195 | 195 | 200 | ||||
Gross weight（Kg） | 144 | 199 | 199 | 204 | ||||
Packing dimension: LxWxH | 1323*950*660 | 1491*1056*865 | 1491*1056*865 | 1491*1056*865 | ||||
Stuffing QTY | 84 | 48 | 48 | 48 | ||||
* The application of the building
* The size of the building, such as the height of each floor? And specific address? Decorated or not?
* The drawing of the building
* The environment condition of the building, such as highest temperature in summer
* The working condition of the outdoor units
* The function of each room? Which kind of indoor units do you prefer?
* What is the local power supply for your building
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–9 set: US $600 / set
- 10+ set: US $300 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this carrier central air conditioner?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the carrier central air conditioner be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Shangfeng Hvac Engineering Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Shangfeng Hvac Engineering Co., Ltd. range on HVACR Nexus.
