Key specification for this modular air handling unit: type Air Cooler. Everything below is reproduced from the factory data sheet. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Modular Air Handling Unit
- Warranty: 3 Years
- Place Of Origin: Henan, China
- Application: Plant
- Type: Air Cooler
- Mounting Type: Floor Standing
- Single Package Size: XX cm
Technical Specifications
| Type | Air Cooler |
|---|---|
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | COMPRESSOR |
| Place Of Origin | Henan, China |
| Weight (Kg) | 1000 KG |
| Brand Name | TICA |
| Product Name | INDUSTRIAL WATER CHILLER |
| Function | CoolingHeating |
| Application | Plant |
| Condition | New |
| Selling Units | Single item |
| Single Package Size | XX cm |
Product Details
*Warm Reminder
Due to more product models and specifications and different prices, the product price is for reference only. If you
need a quotation, please contact customer service for specific consultation, customer service will design and formulate the most reasonable plan for you according to your needs.
Product Description

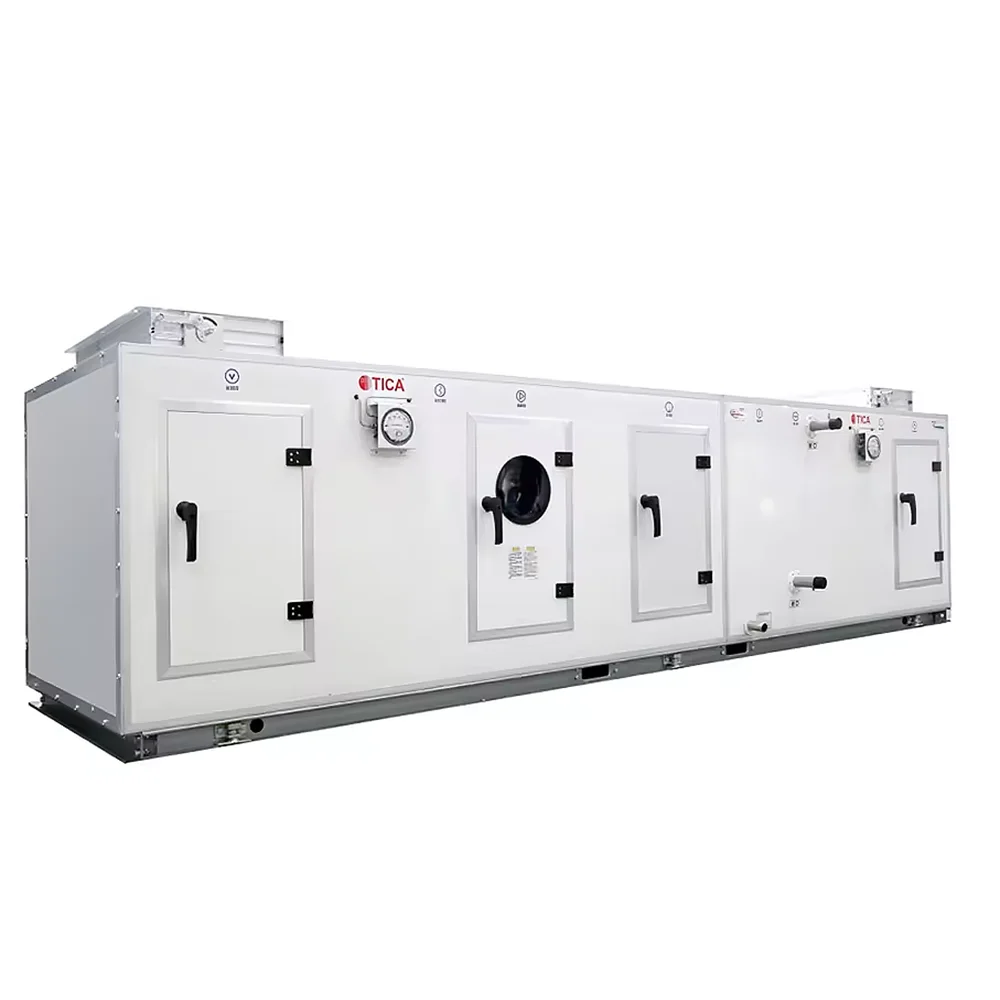

Air Handling Unit Air Conditioner

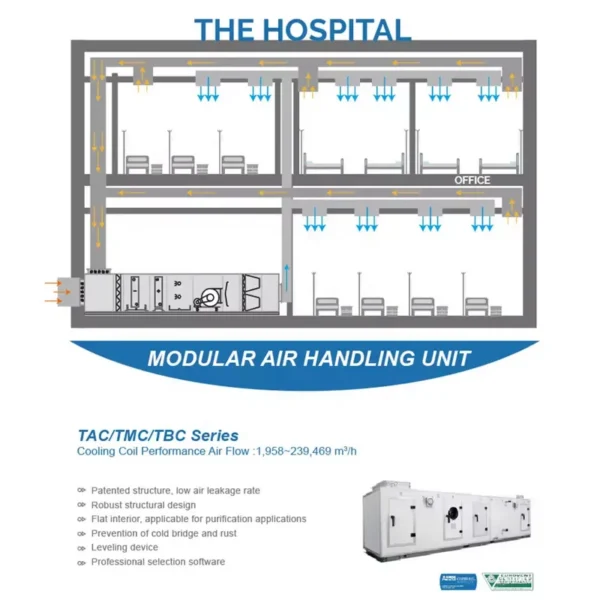

TICA AHU is a classic labyrinth full-formwork composite box structure, which has the advantages of strong sealing, high mechanical strength, no cold bridge, good thermal insulation and energy saving effect. Can provide a variety of functional segments according to user requirements, suitable for a wide range of places and air volume, can be used in electronics, hospitals, pharmaceuticals, food, tobacco, automobile painting, precision machinery, textile and other technological places, as well as subway, exhibition center, airport, office buildings, hotels, restaurants, shopping malls and other comfortable places.
FEATURES | ||||||||
Reliable and safe | The mechanical insulation performance of the box reaches the European standard EN1886 T2 (T1~T5) and air leakage L1 (L1~L3). With the American standard certified high-efficiency heat exchanger, the air leakage and cold leakage are greatly reduced and the operation cost is saved. | |||||||
High efficiency and low consumption | High-pressure foaming heat preservation with sealing strip, cold bridge factor is excellent to European standard EN1886 TB1 (TB1~TB5 grade) grade; sheet metal corner wrap to avoid rust. | |||||||
No cold bridge, no rust | The maintenance door has no deformation and no leakage under high strength, and the pressure relief device ensures safe operation. | |||||||
European Standard American Standard Certification and selection Software
①According to the rich design experience of TICA Group, the embedded template and unit model database can meet the requirements of box size in various places, and the model can be directly selected to speed up the selection. ②Core components such as heat exchangers and fan motors are specialized in type selection, automatically matching high cost-effective models, and heat exchanger selection is certified by American Standard.
③The selection results can intuitively and quickly output a complete set of reports,
including technical parameters of each functional section of the unit, details of coil selection, enthalpy and humidity diagram and operating point, schematic diagram of the shape and size of the unit, etc. The authenticity of the report was certified by the European Standard.
including technical parameters of each functional section of the unit, details of coil selection, enthalpy and humidity diagram and operating point, schematic diagram of the shape and size of the unit, etc. The authenticity of the report was certified by the European Standard.
Aeronautical Technical Maintenance Door
The inspection door designed by aeronautical technology has the advantages of integral foaming, high strength, small deformation, double knife edge seal and no leakage, and is equipped with safety pressure relief device to ensure the safe operation of the inspection door.

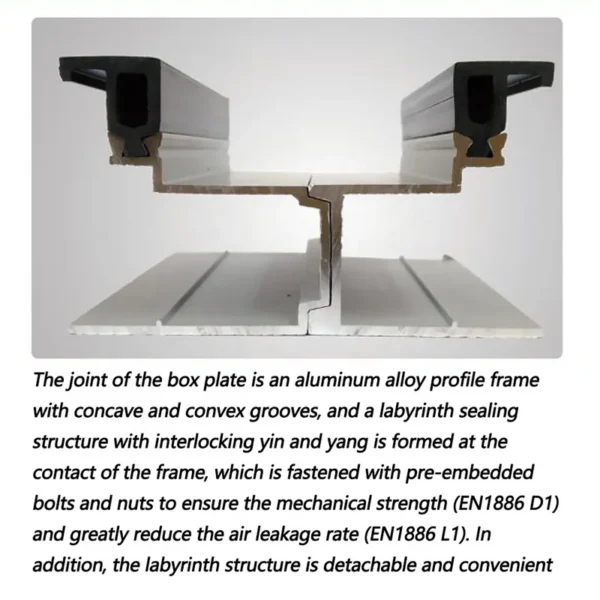

Invention of Labyrinth Box
The joint of the box plate is an aluminum alloy profile frame with concave and convex grooves, and a labyrinth sealing structure with interlocking yin and yang is formed at the contact of the frame, which is fastened with pre-embedded bolts and nuts to ensure the mechanical strength (EN1886 D1) and greatly reduce the air leakage rate (EN1886 L1). In addition, the labyrinth structure is detachable and convenient for maintenance.
Professional Detail Design
In TICA's installation and design of differential manometer, stainless steel pipe is used instead of traditional plastic pipe, and rubber sealing sleeve is used to seal the joint, which can effectively solve the problems of air leakage and pointer jitter caused by insufficient strength of differential manometer.
High Density Filter Frame.
The designed filter framework can greatly guarantee the performance of the filter section, and the filter bypass leakage rate can reach the European standard EN1886 grade (F9).

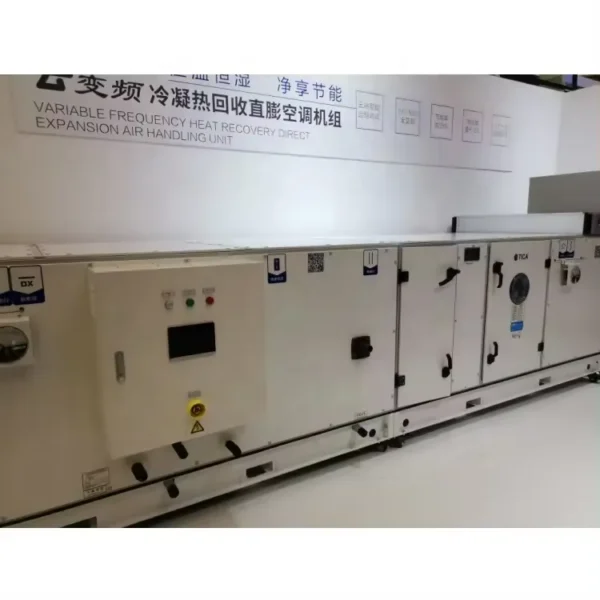

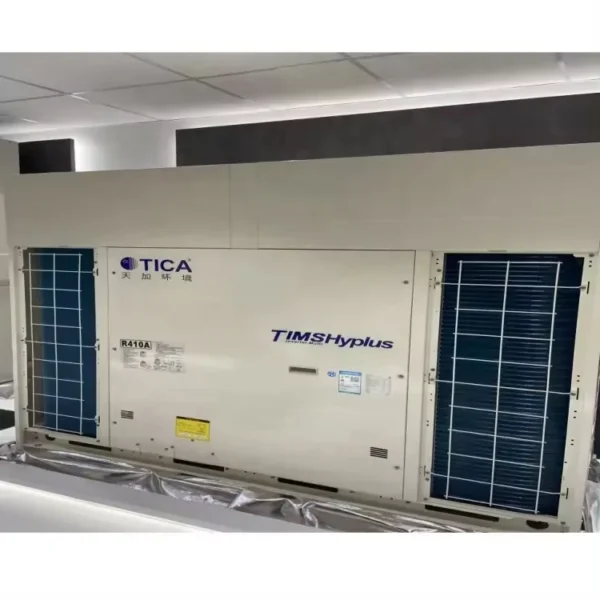

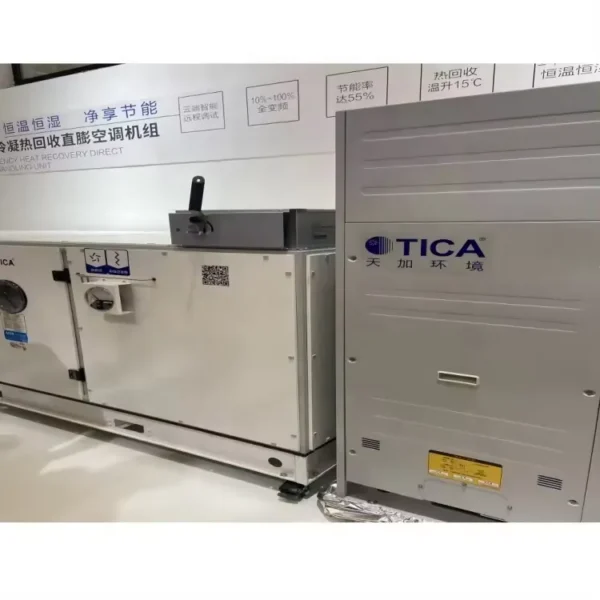

Product Display
Projects Introduction
Packing & Delivery
Company Profile
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $5500 / piece
- 10+ piece: US $5200 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this modular air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
