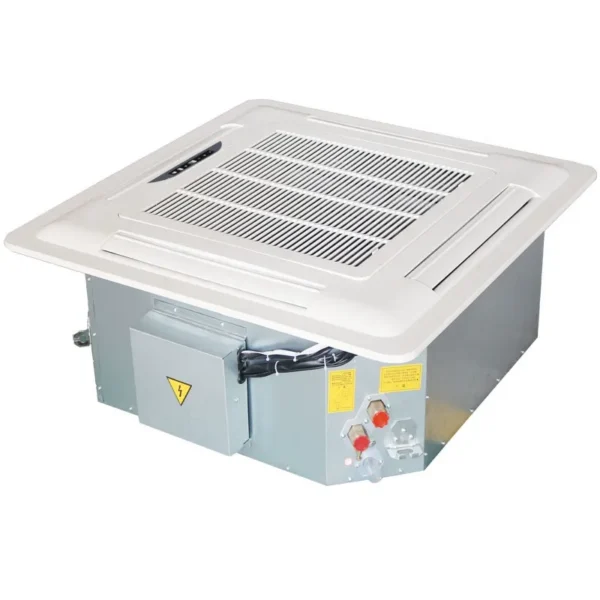

Cassette Fan, 4-Way, Air Handling Unit

Cassette fan — type Air Handling Unit. The complete factory specification follows. Made by Dezhou Spruce Hvac Equipment Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Cassette Fan

• Warranty: 1 Year
• Place Of Origin: China
• Application: Hospital, Hotel, School, Office
• Type: Air Handling Unit
• Mounting Type: Cassette
• Fan Motors Type: AC

Technical Specifications

Product Details

1.High-performance,high-efficiency The surface cooler adopts high quality red copper pipe going through windowed hydrophilic aluminum fins then expanded by mechanicalforce.By tis way air resistance can be reduced and heat-exchange performance enhanced. 2.Fine and durable structure The shell s die-shaped with fine appearance and high intensity. 3.Safe operation and energy efficiency High quality bearings make adding lubricant oil unnecessary.Speed of the fan is controlled by 3 gears or according to user's requirements. 4.Advanced techniques,low noise Adopts large wheel diameter ABS,high efficiency and low noise double inle centrifugal turbines,which take strict dynamic and static balance test.The wind wheel has the advantages of light weight,corrosion resistance,long service life and high reliability. 5.Easy adjustment and maintenance The human-oriented design makes sure that maintenance can be done easily.Filters(optional)can be washed and cleaned atwil l.

Details Images

性能 Performance	型号 Model	FP-34	FP-51	FP-68	FP-85	FP-102	FP-119	FP-136	FP-170
FP-204	FP-238	额定风量(m³/h) Rated air flow	高挡H speed	340	510	680	850	1020	1190
1360	1700	2040	2380		中挡M speed	258	388	517	646
775	904	1034	1292	1550	1809		低挡L speed	187	281
374	468	561	655	748	935	1122	1309	额定供冷量(W) Rated cooling capacity	高挡H speed
2235	3073	3957	4962	5400	6879	7845	9380	12266	12737
	中挡M speed	1699	2335	3007	3771	4104	5228	5962	7129
9322	9680		低挡L speed	1274	1752	2255	2828	3078	3921
8931	11126	12871	15726	20443	20879		中挡M speed	2767	3873
4986	6361	6788	8456	9782	11952	15537	15868		L speed
2075	2905	3739	4771	5091	6342	7336	8964	11653	11901
12675	12945		M speed	1724	2324	2991	3817	4188	5261
6052	7386	9633	9838		L speed	1293	1743	2244	2863
3141	3946	4539	5539	7225	7379	(W) Input power	12Pa	36	50
60	74	93	112	130	147	183	221		30Pa
40	56	70	82	105	121	151	169	206	245
	50Pa	4B	60	75	94	114	131	169	204
243	291	噪声dB(A) Noise	12Pa	37	39	41	43	45	46
46	48	50	52		30Pa	40	42	44	46
47	47	48	50	52	53		50Pa	42	44
46	47	49	50	50	52	54	56	FCEER(WW)	12Pa
60	60	62	64	51	58	57	59	62	55
	30Pa	57	57	56	61	51	54	50	48
56	47		50Pa	47	52	54	54	42	49
83	86	83	87	85	81		30Pa	70	74
79	85	75	77	73	78	76	69		50Pa
65	66	72	64	64	67	65	64	66	63
FCCOP(WW) The water supply temperature is 45℃	12Pa	46	49	54	54	51	49	49	53
51	48		30Pa	39	43	47	49	45	46
43	47	46	44		50Pa	35	39	41	43
42	43	38	40	40	38	净重(kg) Net weight	无回风箱Without air return box	11	13
15	16	18	19	24	28	31	34		With air return box
13	16	18	20	21	23	29	33	37	39
(kpa)Water resistance			23	23	30	30	30	40	40	40
40	50	供水量(kg/min)Water supply			6.4	8.8	11.3	14.3	15.4	19.7
22.5	26.9	35.2	36.5	风机Fan	形式	Forward multi-wing centrifugal double suction fan

Application Scenarios

4-72 centrifugal fan suits in ventilation,deliver or exhaust in all kinds of civil and industry architectures. The F4-72 anticorrosion centrifugal fan is suitable in chemical plant,laboratory,basement,bathing pool and so on,to convey caustic gas,acid or alkali gas and high-moisture gas. B4-72 explosion-proof centrifugal fan is suitable in boiler(oil or gas as fuel),highly concentrated dust workshop,fuel depot,gas storage stands,high explosive cargo warehouse and so on,this situation has the explosion -proof request,to transport the flammable,explosive and easy volatile gas.

Company Profile

Dezhou SPRUCE HVAC Products Co., Ltd.

Dezhou SPRUCE HVAC Products Co., Ltd., located in Dezhou City, Shandong Province, China's northern industrial base of refrigeration and air conditioning, is a comprehensive company integrating design, production and sales of HVAC products. The company was founded in 2011, covers an area of 100,000 square meters, manufacturing workshop of 60,000 square meters, with more than 400 employees, we are equipped with confidential CNC machine tools and automated production lines, the company mainly produces fire and smoke prevention and exhaust systems, fresh air conditioning systems, industrial dust removal, air purification system related products. This includes a wide range of HVAC products from air handling units, chillers and heat pumps, centrifugal and axial fans, ductwork systems and air distribution systems. SPRUCE HVAC is a leading manufacturer of high-quality HVAC equipment, specializing in energy-efficient heating, ventilation and air conditioning solutions. With years of industry expertise, we are committed to providing reliable, innovative, and customized HVAC systems for chemical, aquaculture, commercial, industrial, and residential applications.

Product Packaging

Certifications

Customer Photos

FAQ

Q 1.What's the payment term?
A. We accept T/T,LC,Western Union,Paypal.
Q 2.What is the delivery time?
A. It depends on order quantity,usually it will take about 3-5 days for sample production.
Q 3.What's the package used for?
A. For the small capacity,will use carton,but for big capacity,we should use honeycomb carton and pallet or wooden case for
protection.
Q 4.Would you accept to use our logo?
A.It's no problem,we accept OEM service.

Q 5. What kind of certificates you have?
A. Our company has ISO9001,CE, RoHS,SGS etc.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $82 / set
  • 5+ set: US $78 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cassette fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dezhou Spruce Hvac Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Dezhou Spruce Hvac Equipment Co., Ltd. range on HVACR Nexus.
