Fan Coil Unit, 3.5Kw, 500cfm

Fan coil unit — power supply 220-240v /1ph/50Hz, heating capacity 5.07-12.62Kw. The complete factory specification follows. Made by Beijing Midea Overseas Engineering&technology Co., Ltd. (7 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Fan Coil Unit

• Power Supply: 220-240v /1ph/50Hz
• Power Input: 74-190W
• Heating Capacity: 5.07-12.62Kw
• Cooling Capacity: 3.92-12.9Kw
• Warranty: 1 Year
• Place Of Origin: Guangzhou

Technical Specifications

Product Details

Product Presentation

Midea HVAC Building Technologies Heat Pump for small to large buildings

Fan coil units Four-Way Cassette

Midea fan coil units are divided into ceiling exposed type, ceiling concealed type, wall-mounted type and floor-standing type according to their structure, design and installation method. The air volume ranges from 150CFM to 2200CFM
(255m3 /h~3740m3 /h). It is a highly versatile product suitable for hospitals, office buildings, hotels, airports and
various other applications

Why Choose Us

1.Experience

Over 50-years Experience in Air

Conditioning/HVAC System. With more than 50 years of experience, we have successfully completed dozens of large-scale HVAC projects and have a deep understanding of global HVAC projects.

2.Professional design

We have a professional design team, can provide you with a suitable AC plane design according to your architectural plan, we will provide you with the most suitable design

scheme.

3.Professional selectoion

According to the different design scheme, we will choose the most suitable design scheme for you from a more professional perspective.

4.Providing One-Stop Solution of HVAC System

We can provide one-stop service, which will save you a lot of money and time. Indoor units and outdoor units, control system, installing accessories, tools and Supply HVAC all materials, including air conditioners, ventilation, installation accessories, etc.

5.Technical Support

We can provide HVAC commissioning service. Air conditioner project engineers can guide and supervise product installation on site.

6.After-sales service

We have Global After-Sales System with expertise installation service. Ensure your after-sales worry-free.

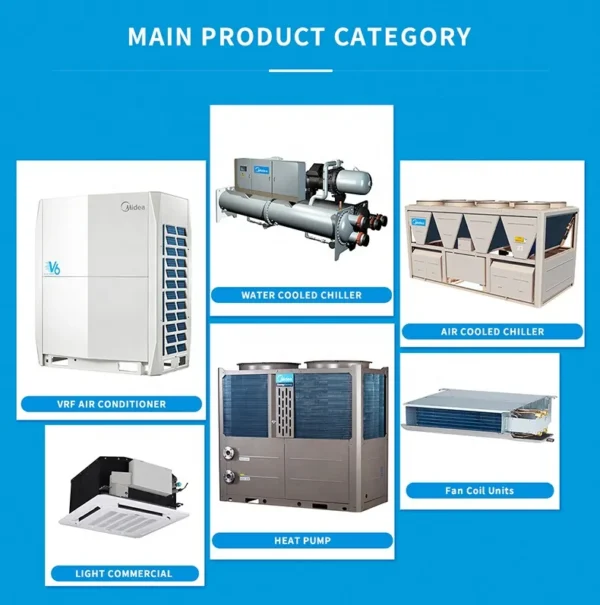

Product Line

Produc name	Fan coil units AC/DC 2-Pipe/4Pipe Four-Way Cassette
Type	2-Pipe  4-Way Cassette			4-Pipe 4-Way Cassette
Power supply	220-240V/1Ph/50Hz			220-240V/1Ph/50Hz
Air flow(H/M/L)	720-2550m³/h        420-1500CFM			690-1480m³/h      410-1004CFM
Heating capacity	5.32-17.6Kw			5.07-12.62Kw
Cooling capacity	1.68-5.09Kw			3.64-10.58Kw
Ciol row	2/3			2/3

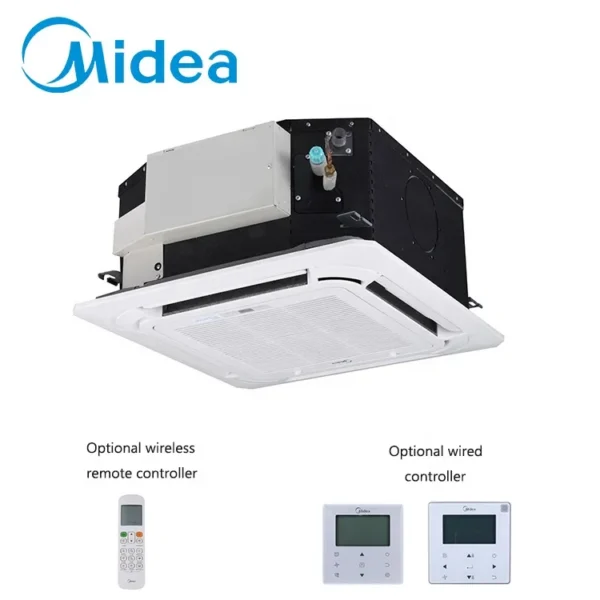

Four-way Cassette

—360° air flow for immediate, equal distribution of wider-angle cooling and heating, ideal for standard ceilings.

Features

—4-way air supply panel as standard, new 360°air supply panel is optional.
—Fresh air intake, also supply to side room.
—Built-in PCB and drain pump with pump head-750mm.
—Remote controller with LED display is standard, wired controller is optional.
—Safety grill for safety maintenance.
—Optional extended drainage pan for protecting your ceiling better.
—Compatible with 0-10V control function.
—Available for 2/4 pipe system
—EAH is optional (for 2-Pipe 4-Way Cassette)

1.Stylish Panel with Large Airflow Outlet

—4-way air supply panel is standard for 4-way cassette. 360° air supply panel is standard for compact 4-way cassette.

2.NEW 360° panel

—New design, round air flow path ensures uniform air flow and temperature distribution.

Individual louver control

—The Individual louver control can control the motors
separately, making it possible to control all four louvers
independently.

3.Various Selections

—Versions for normal size.
The height of models 600 to 750 is just 230mm whilst models 850 to 1500 is 300mm, making the Four-way Cassette ideal for standard ceilings.

4.Auto restart

In the event of a sudden power failure during operation,unit
restarts automatically and the unit will operate based on the
previous setting (operating mode, temperature setting and
fan speed).

High-lift Drain Pump

—A drain pump with a 750mm pump head is fitted as standard, simplifying installation of the drain piping.

5.Fresh Air Intake

—A reserved outside air intake port allows outdoor air to be induced directly into the unit, negating the need for a
separate ventilation system.

—Knock out hole is available int the unit.
—Accessories such as booster fan must be supplied on field and installed.

6.Control solutions

—The fan coil units can be connected to Midea central control lers through the customized XYE port, also can be connected to Modbus gateway through the customized PQE port with Modbus RTU protocol.

7.Certifications and Authorization

IECEE CB Scheme Eurovent certification CE Certification Nigeria PC Certification

How to get a quick quotation?

Information needed Midea Group's management system before prepare quotation details for you.

1.Project name :building name or building type, such as ××× office project, residential house project etc.

2.Project accurate address;

3.Your company contact information ＆ address；

4.Please provide product list or engineer drawing with product type marked.

5.When you expect to process purchase ＆ logistics for this project?

6.Is it tender project or not? Because tender project you may need our authorization letter.

Product packaging

We will use cartons and wooden cases to protect your goods from shock and try our best to ensure that your goods will not be damaged during transportation.
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container

Midea Product Show

We have a lot of successful project experience, you can trust to give the project to us.

Company Profile

Contact US

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $2200 / set
  • 2–2 set: US $2000 / set
  • 3+ set: US $1800 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this fan coil unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the fan coil unit be supplied for my local voltage?

The standard configuration is 220-240v /1ph/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
