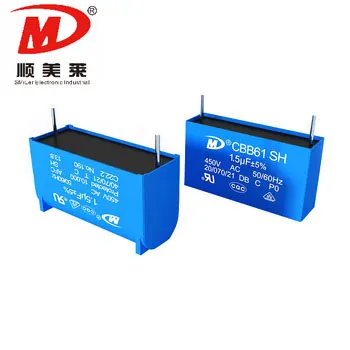

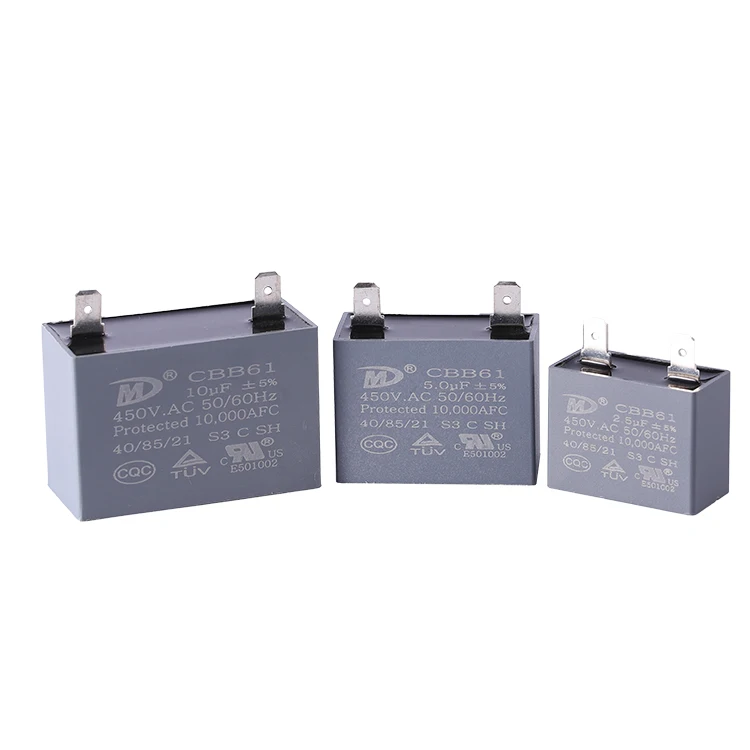

The cbb61capacitors for fan listed here carries rated voltage 250VAC~500VAC(50-60Hz), model number CBB61 with teriminal, documented exactly as the manufacturer publishes it. Made by Smiler Electronic Industry Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cbb61capacitors For Fan
- Model Number: CBB61 with teriminal
- Rated Voltage: 250VAC~500VAC(50-60Hz)
- Place Of Origin: China
- Applications: motor
- Application: motor, fan, air conditioner etc.
- Type: Polypropylene film capacitor, Polypropylene film capacitor
Technical Specifications
| Model Number | CBB61 with teriminal |
|---|---|
| Brand Name | SMILER |
| Place Of Origin | China |
| Type | Polypropylene film capacitor, Polypropylene film capacitor |
| Safety Approvals | CQC/VDE/TUV/CE |
| Approval Standard | GB/T3667,810,EN60252-1 |
| Climatic Category | 25/70/21,25/85/21 |
| Rated Voltage | 250VAC~500VAC(50-60Hz) |
| Capacitance Range | 0.1uf~35uf |
| Capacitance Tolerance | +_5%(J),+_10%(K) |
| Tangent Of Loss Angle(20) | <=0.002(1KHz) |
| Fault Currency | Fault Currency |
| Supplier Type | Original manufacturer |
| Media Available | datasheet |
| Package Type | Surface Mount |
| Operating Temperature | 25/70/21,25/85/21 |
| Applications | motor |
| Tolerance | +_5%(J),+_10%(K) |
| Application | motor, fan, air conditioner etc. |

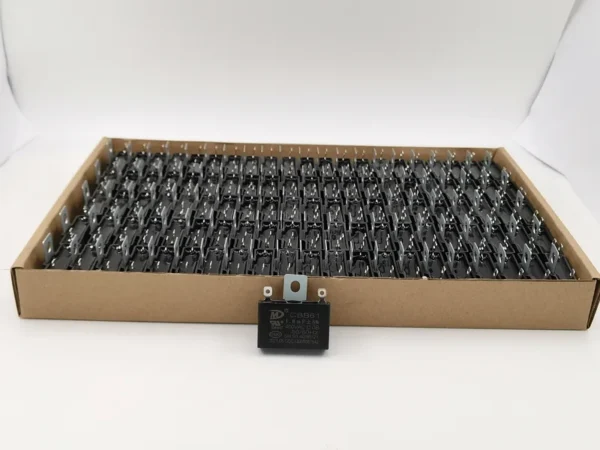

| Packaging Details | CBB61:50/100 pcs in polybag/inner,more pieces in one carton CBB60/65:one piece in one box,more pieces in one carton CD60:one piece in one box,more pieces in one carton Core:500-1000 pieces packing one vacuum-bag,more pieces in one carton Film:with vacuum-bag packing,more in one cartons |
| Port Of Dispatch | Guangdong,Shenzhen |
| Selling Units | Single item |
| Single Package Size | 100X80X60 cm |
| Single Gross Weight | 1.000 kg |
| Supply Ability | 300000 pieces per Day |
Product Details
Model Number: | CBB61 with wires | |
Type | Polypropylene film capacitor | |
Safety approvals: | CQC/UL/VDE/TUV/CE | |
Approval standard | GB/T3667,UL810,EN60252-1 | |
Climatic category | 25/70/21,25/85/21 | |
Rated voltage | 250VAC~500VAC(50-60Hz) | |
Capacitance range | 0.1uf~35uf | |
Capacitance tolerance | +_5%(J),+_10%(K) | |
Testing voltage: | ||
Between terminals | 2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(UL) | |
Between terminals and case | 2*Un+1000(VAC)/3s(>=2000VAC) | |
Insulation Resistance(20) | between terminals and case>=5000/C(100VDC,3s) | |
Tangent of loss angle(20) | <=0.002(1KHz) | |
Fault Currency | S0/S3 | |
Place of Origin | CHINA | |
Packing | More pieces in one inner box or polybag as customer request. | |
Color | accept customization | |
Supplier type | OEM factory | |

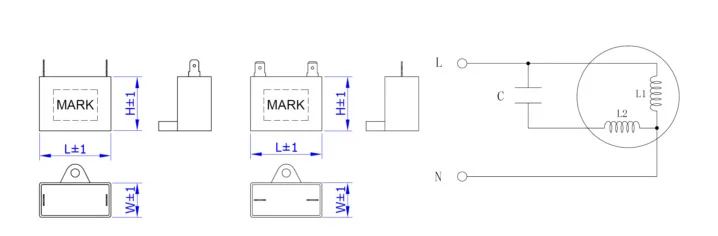

Capacitance(uf) | 250V | 300V | 400V | 450V | 500V |
L/W/H | L/W/H | L/W/H | L/W/H | L/W/H | |
0.8UF | 32*10*20 | 32*10*20 | 32*10*20 | 32*11*22 | 36*11*22 |
1.0UF | 32*10*20 | 32*11*22 | 32*11*22 | 36*10*20 | 36*13*23 |
1.2UF | 32*10*20 | 32*11*22 | 36*10*20 | 36*11*22 | 37*13*24 |
1.5UF | 36*10*20 | 36*11*22 | 36*11*22 | 37*13*24 | 37*15*27 |
2.5UF | 36*10*20 | 36*13*23 | 36*13*23 | 38*15*25 | 38*17*28 |
3.0UF | 36*11*22 | 37*13*24 | 38*15*25 | 38*17*28 | 38*19*31 |
3.5UF | 36*11*22 | 38*15*25 | 38*17*28 | 38*18*29 | 47*19*31 |
4.0UF | 36*13*23 | 37*15*27 | 38*17*28 | 38*19*31 | 47*19*33 |
5.0UF | 37*13*24 | 38*17*28 | 47*17*28 | 47*19*33 | 47*25*35 |
6.0UF | 38*15*25 | 38*18*29 | 48*19*31 | 47*20*35 | 47*27*37 |
8.0UF | 38*17*28 | 47*17*31 | 47*20*35 | 47*25*35 | 47*30*43 |
The products are made of electrical class polypropyne film, zinc-aluminum metallized electrode,dry fabric,aluminum shell,and enveloped with epoxy resin.They have the characteristics of high cost performance,high perssure-resistant,long life and soon.

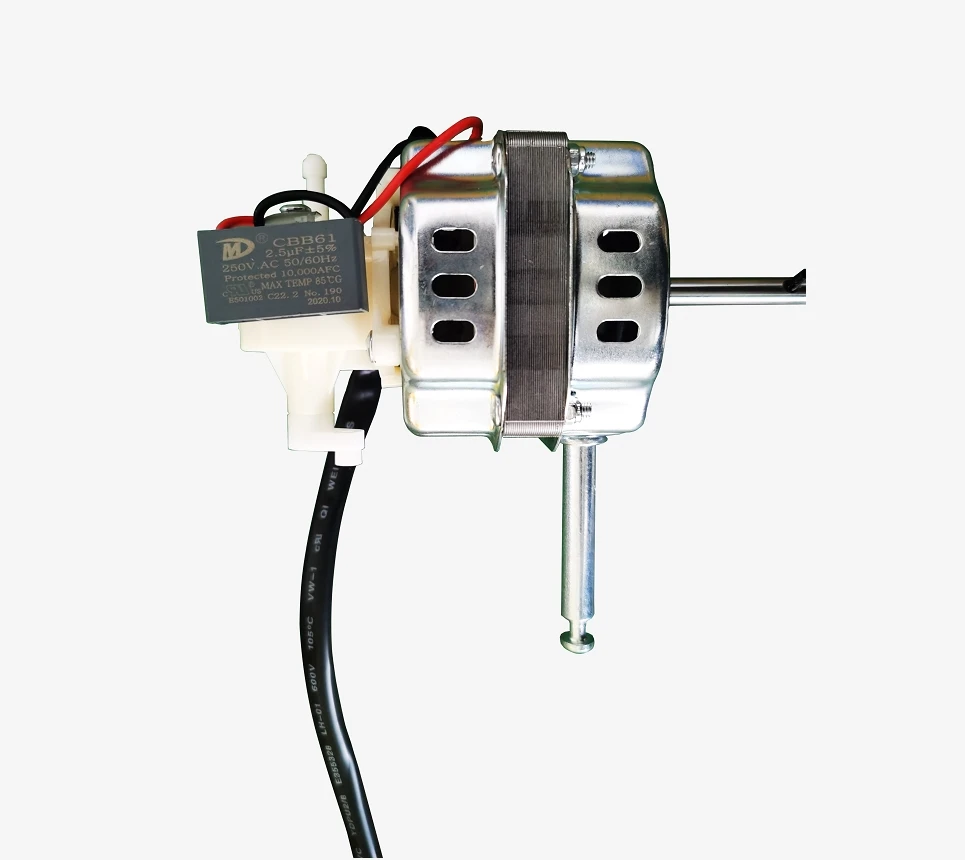

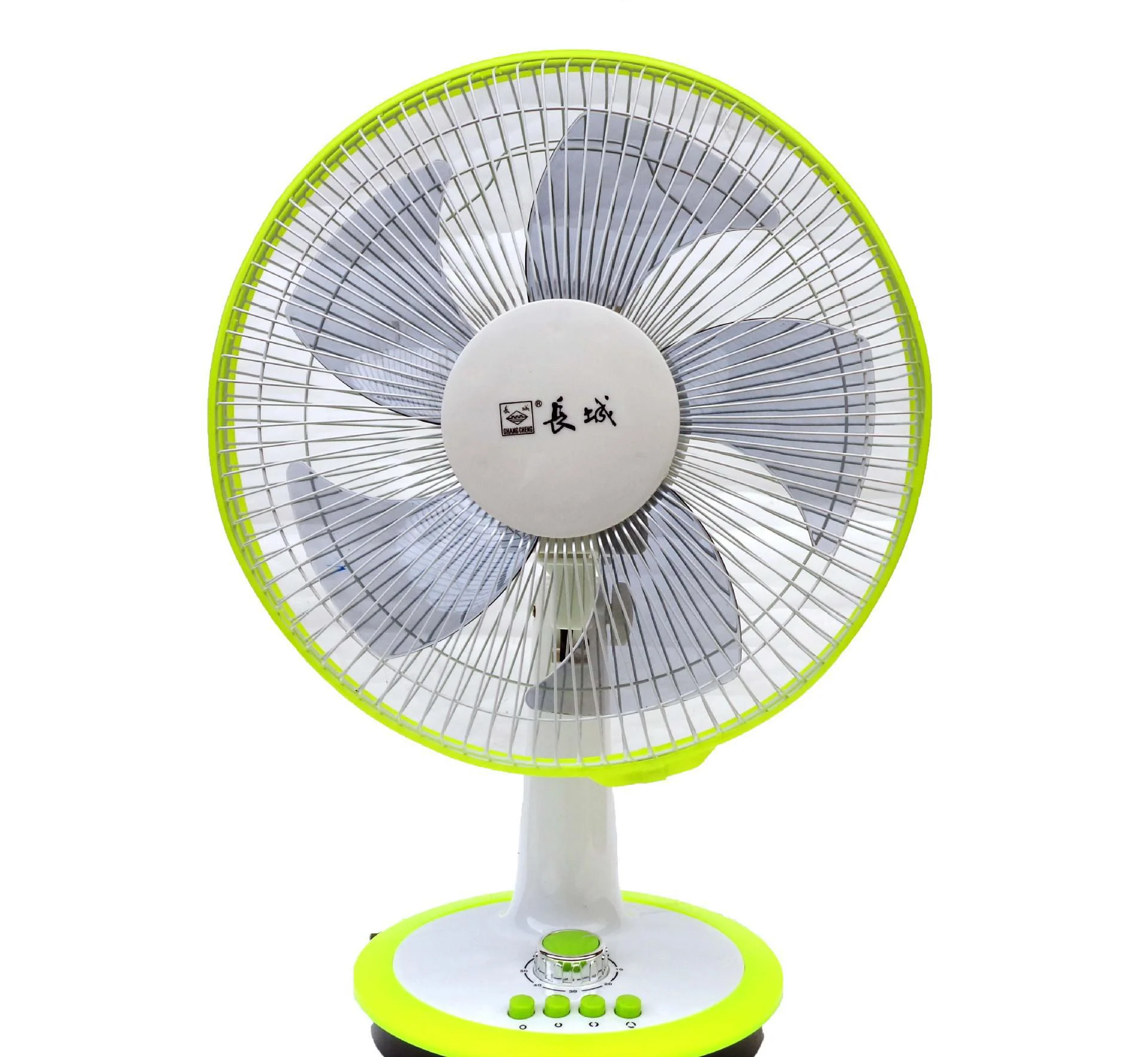

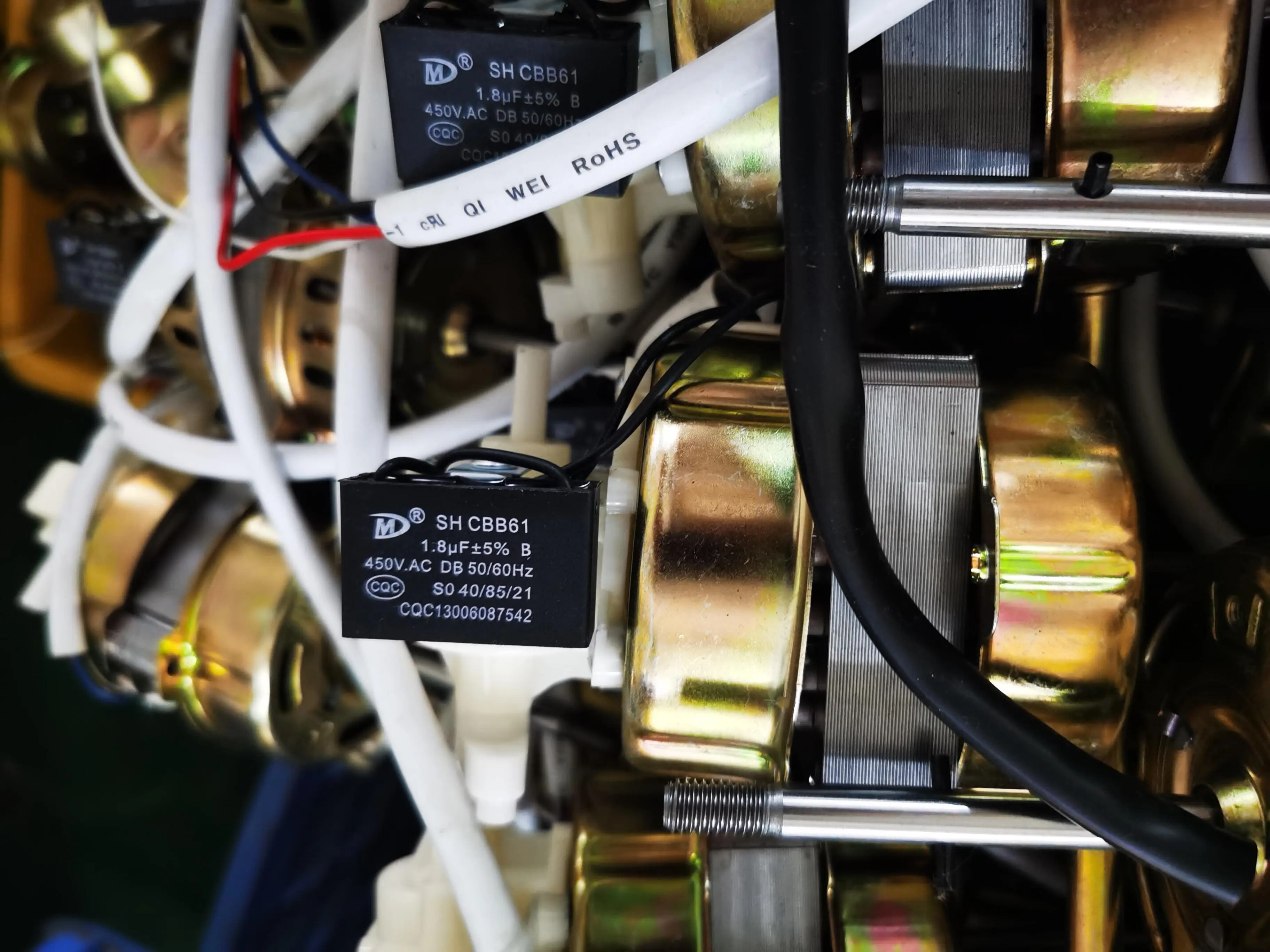

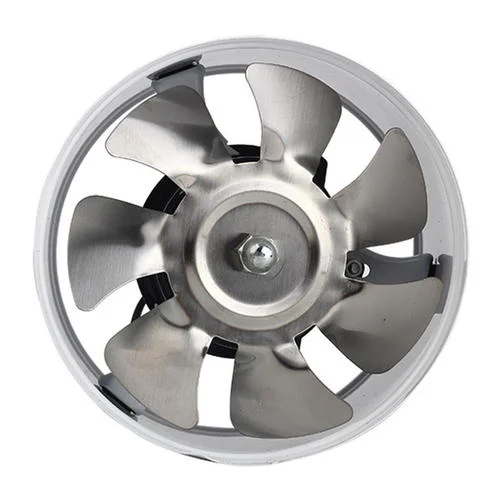

Fan motor,exhaust fan motor,air conditioning fan,lampblack machinfe,bread machine,bread machine and so on many household appliances.

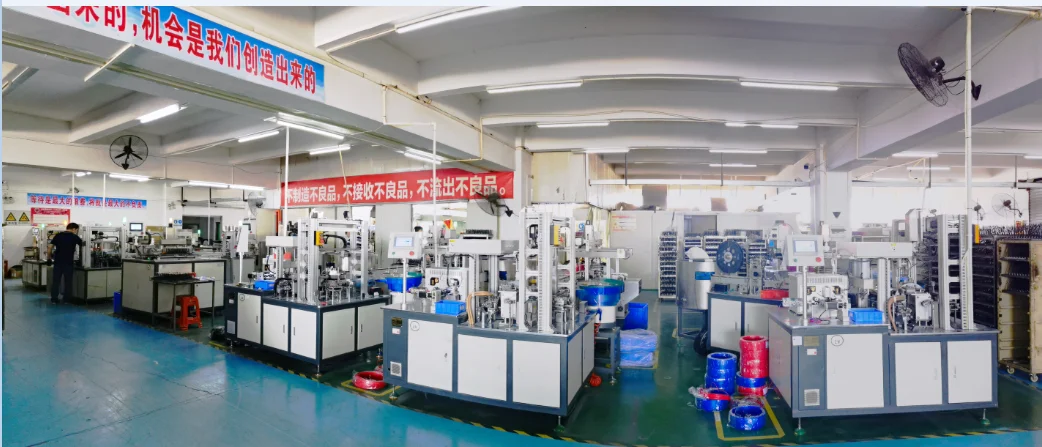

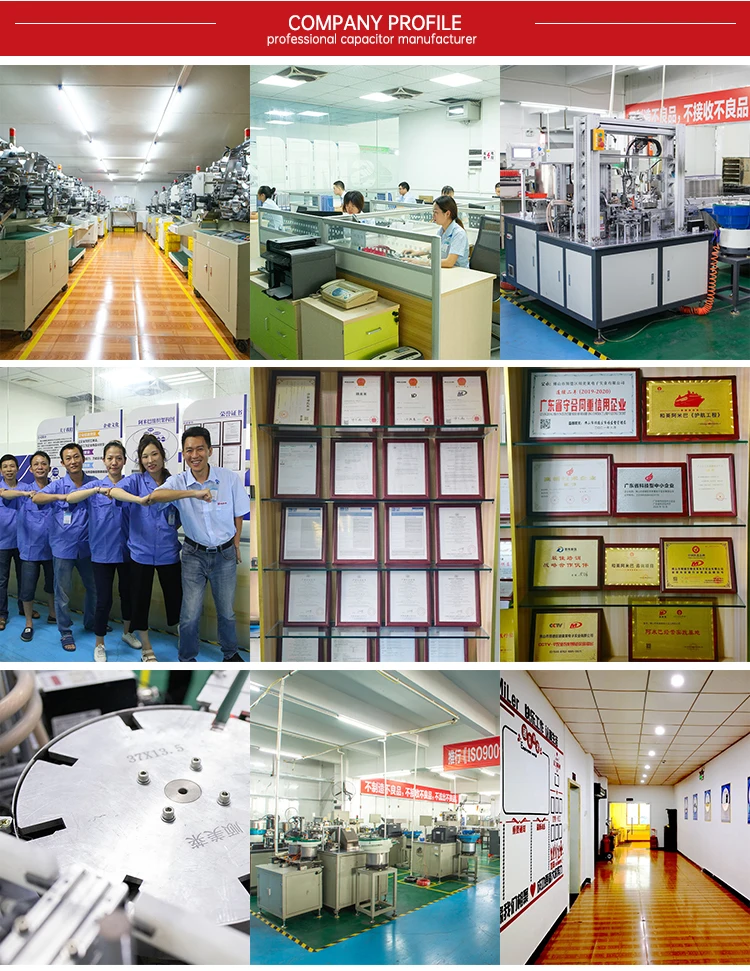

SMiLer Electronic Industrial Co., Ltd. A professional manufacturer of film capacitor. Our capacitor mainly use for motor, fan, washing machine, air conditioner, water pump etc. We established in 2009 and located in Shunde where is know as the hometown of electric appliance in china. SMiLer had nearly 100 empolyees now. Including R&D team, quality management team and production team and sale team, more than 30 professional and skillful technical personnel. SMiLer whole area is 5000 square meters with Electric cutting rolled film machines, element winding machine in New air – conditioning plant, closed shop. and clean advanced vacuum packing machine. The Automatic Production Line in assemble and welding production take us with high quality and cut down the production cost for the capacitor. The maximum production capacity is 300000 pcs per day. And the storage capacity is 3000,000 pcs.
SMiLer own product certification in CQC,VDE,UL,CUL,TUV,CE,CB and so on. We have more than 20 patents. Every key raw material from the excellent suppliers of china and overseas which can ensure the product quality from the source. SMiLer own advanced performance & endurance laboratories, Durability test machine working 24 hours. The sales area covers China, Europe, America, Southeast Asia, The middle east etc. Welcome the visit of domestic and foreign customers. Motor capacitor, Right choose by SMiLer.
FAQ：
1. Which style of capacitor lead out do you available?

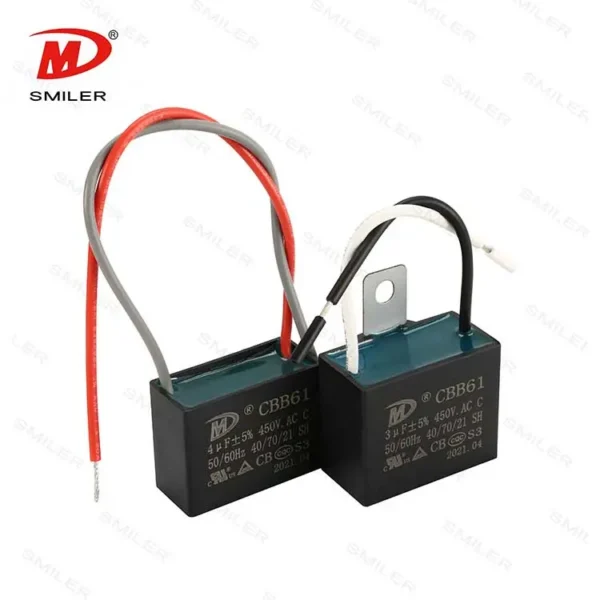

The lead out of capacitor we available is Wires, pin, insert and terminal.

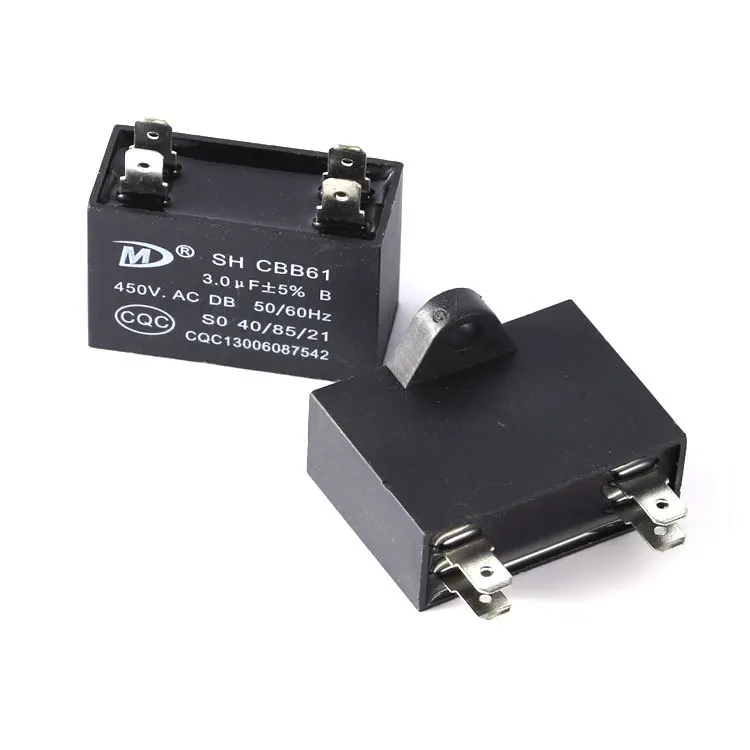

The terminals are divided into 187# (width 4.8mm) and 250# (width 6.3mm).
At the same time we accept the customization.

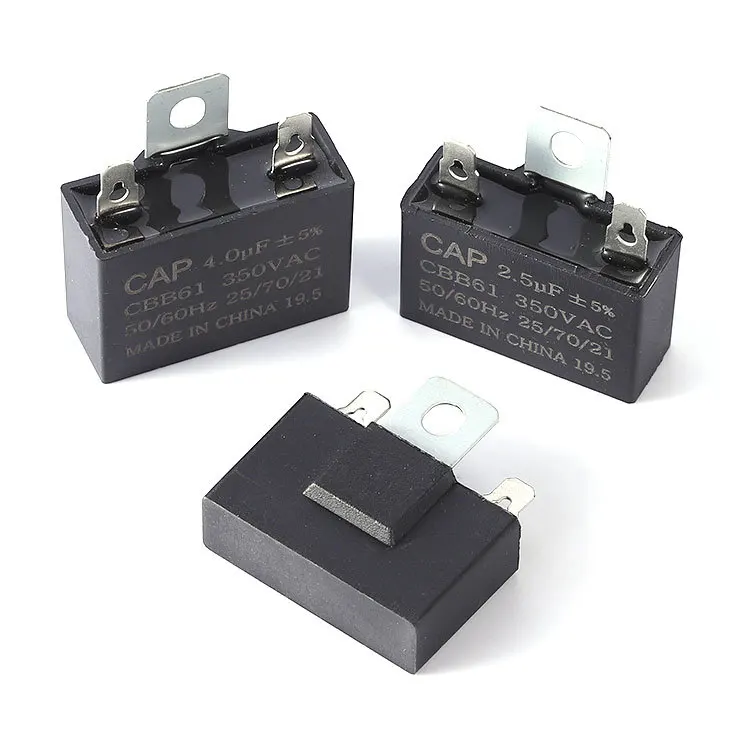

2. Which style Installation hanger of capacitor do you have?
We own the Installation hanger styles which in the market selling. The detail please reference follow pictures.
At the same time we accept the customization.
1. Which style of capacitor lead out do you available?
The lead out of capacitor we available is Wires, pin, insert and terminal.
The terminals are divided into 187# (width 4.8mm) and 250# (width 6.3mm).
At the same time we accept the customization.
2. Which style Installation hanger of capacitor do you have?
We own the Installation hanger styles which in the market selling. The detail please reference follow pictures.
At the same time we accept the customization.
3. What color plastic shell do you have?
The general color is black, white and blue etc.
At the same time we accept the customization.
4. Which certificate do you have?
From the company, we own near 15 honour certificates from the government and our customers. The main certificate is the high -tech enterprises which pass the audit of the government.
At the same time, we own near 20 patent certificates of the production and products.
From the products,We own near 20 certificates which such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There main parameter with Capacity and voltage.
6. The unit of capacitor capacity is F (Farad).
The conversion formula of F (Farad) is:
1F(Farad)=1000000μF(Micro method)
1μF (micro method)=1000000pF (picofarad)
The amount of F is very large, generally μF and pF are used as the unit of capacitance.
7. What does CBB mean?
CBB is China's abbreviation for metallized polypropylene film capacitors.
8. The words PO and P2 in capacitor for what meaning?
P0 in the capacitor means non-explosion-proof, and P2 means explosion-proof. The explosion-proof principle of safety filmcapacitors. The metalized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails, themicro-fuse is disconnected and the power supply is automatically cut off, thereby preventing the expansion of the fault andachieving the purpose of self-safety protection.
The general color is black, white and blue etc.
At the same time we accept the customization.
4. Which certificate do you have?
From the company, we own near 15 honour certificates from the government and our customers. The main certificate is the high -tech enterprises which pass the audit of the government.
At the same time, we own near 20 patent certificates of the production and products.
From the products,We own near 20 certificates which such as CQC, TUV, UL VDE and so on.
5. What are the main parameters of the capacitor?
There main parameter with Capacity and voltage.
6. The unit of capacitor capacity is F (Farad).
The conversion formula of F (Farad) is:
1F(Farad)=1000000μF(Micro method)
1μF (micro method)=1000000pF (picofarad)
The amount of F is very large, generally μF and pF are used as the unit of capacitance.
7. What does CBB mean?
CBB is China's abbreviation for metallized polypropylene film capacitors.
8. The words PO and P2 in capacitor for what meaning?
P0 in the capacitor means non-explosion-proof, and P2 means explosion-proof. The explosion-proof principle of safety filmcapacitors. The metalized electrode adopts a micro-fuse network structure (as shown in Figure 1). When the capacitor fails, themicro-fuse is disconnected and the power supply is automatically cut off, thereby preventing the expansion of the fault andachieving the purpose of self-safety protection.
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–50 piece: US $0.1 / piece
- 5000000–5000000 piece: US $0.03 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cbb61capacitors for fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this cbb61capacitors for fan carry?
It is supplied with CQC/VDE/TUV/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cbb61capacitors for fan be supplied for my local voltage?
The standard configuration is 250VAC~500VAC(50-60Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Smiler Electronic Industry Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Smiler Electronic Industry Co., Ltd. range on HVACR Nexus.
