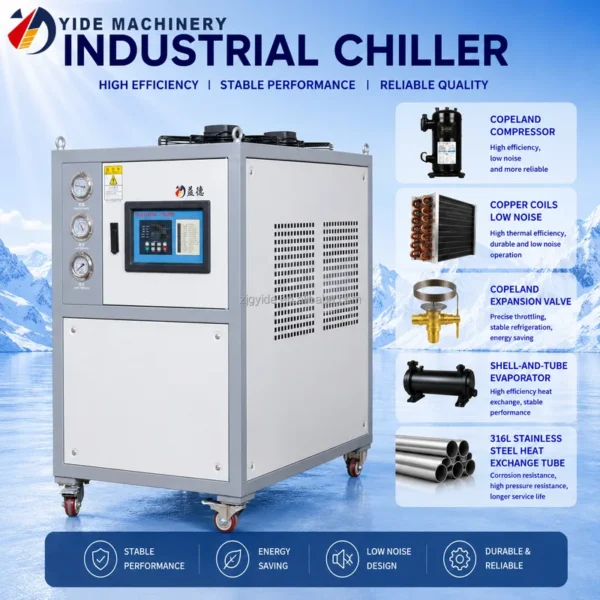

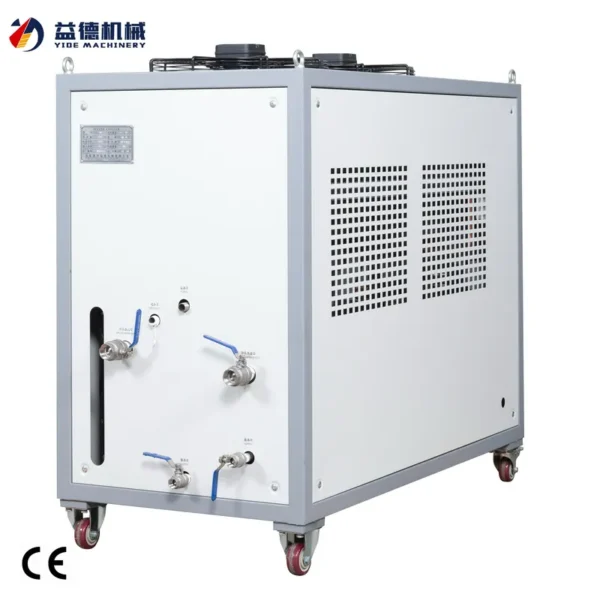

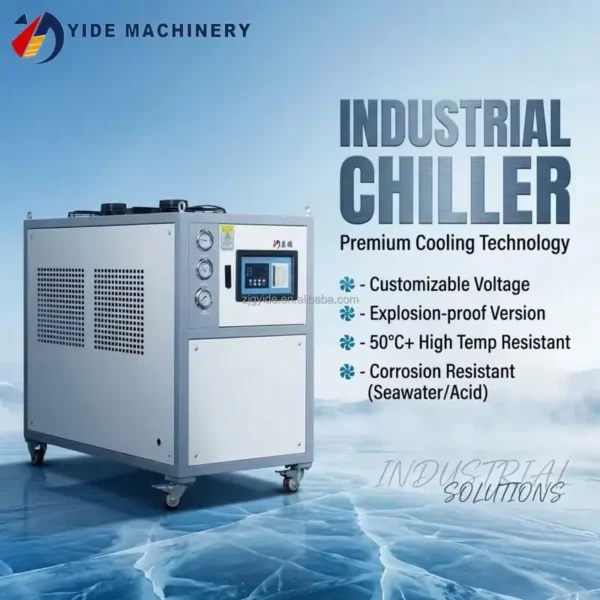

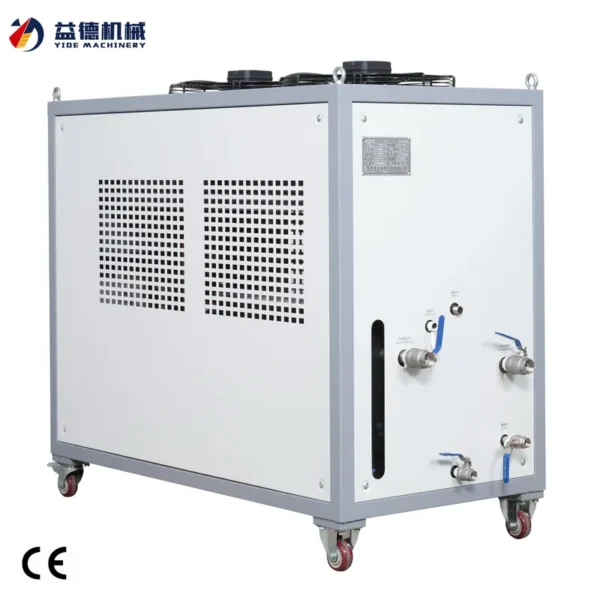

Ce-certified Automatic Air-cooled Chiller, 3HP, R-22(R407c

This ce-certified automatic air-cooled chiller is published with the manufacturer’s full specification — 3HP, refrigerant R-22(R407c/R134a). Made by Zhangjiagang Yide Machinery Co., Ltd. (3 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ce-Certified Automatic Air-Cooled Chiller

• Model Number: YDL-3F
• Power: 3HP
• Voltage: customized
• Refrigerating Capacity: 6612kcal/h
• Refrigerant: R-22(R407c/R134a)
• Warranty: 1 Year

Technical Specifications

Product Details

Chillers in Carbon Crystal Panel Production

After extrusion from the wide-width mold at up to 150 ℃, the carbon crystal plates immediately enter the cooling water tank. A chiller precisely controls the water temperature within 5–15 ℃ (adjustable by material and line speed), ensuring fast and uniform cooling. This effectively prevents warping and wavy edges caused by internal stress, while forming a smooth, mirror-like surface essential for uniform heat generation and appearance. Working together with the mold temperature machine, which guarantees stable melting and flow, the chiller instantly “sets” the plates. This heating–cooling synergy significantly reduces post-processing correction and lowers the waste rate.

On-Site Insights – Chillers in Plastic Pipe Production Lines

Chilled water rapidly solidifies hot plastic pipes in the vacuum tank, ensuring accurate roundness and dimensions—standard for high-speed extrusion lines. Intelligent PID control keeps water temperature within ±1 °C, ensuring uniform shrinkage and consistent wall thickness. Built for 24/7 operation, the chiller delivers stable, long-term performance, while inverter technology reduces energy consumption by up to 30%.

参数	型号	YDL-3F	YDL-5F	YDL-8F	YDL-10F	YDL-12F	YDL-15F	YDL-20F	YDL-25F
制冷量	kw(50Hz)	7.69	13.5	19.08	22.56	31.41	38.79	51.12	62.82
	制冷量	Kcal/h	6612	11607	16405	21976	27006	33352	43943	54013
总输入功率	kw	3	4.8	7.3	9	10.7	14	18.5	22.8
输出功率	hp	3	5	8	10	12	15	20	25
电源	3N~380V 50Hz
压缩机	类型	全封闭涡旋式
		功率kw	2.25	3.75	6	3.75*2	9	5.5*2	7.5*2	9.4*2
蒸发器	类型	高效外螺纹壳管式
冷冻水	流量 (L/min)	60	60	200	250	250	400	400	400
		水箱(L)	45	55	85	85	150	180	200	240
		进出水口径	1’’	1’’	1.5’’	1.5’’	1.5’’	2’’	2’’	2’’
水泵	功率(KW)	0.55	0.55	1.5	2.2	2.2	2.2	3	3
		扬程(Kpa)	19.5	19.5	21.4	24.6	24.6	26	24	24

COMPANY PROFILE

Zhangjiagang Yide Machinery Co., Ltd., founded in 2006, specializes in innovative refrigeration and mold temperature control technology. Over two decades, we have enhanced its products through technological advancement and advanced equipment. Today, Yide provides efficient and reliable global refrigeration solutions, with its water chillers and mold temperature machines widely used in industries such as CNC machining, beverage filling, laser processing, and food processing. The company has earned a strong market reputation through excellent product performance and comprehensive after-sales service.

1.How about after-sales service and warranty?

A: We offer 1-year warranty, global technical support, and provide video guides and manual documents. Spare parts are available long-term.

2.What's the lead time for orders?

A: Overseas orders: 20-40 days. Urgent requests can be prioritized.

3.How to ensure the normal operation of machines in areas with unstable voltage?

A: Voltage fluctuation +10%.

4. Has the factory passed international certifications (such as ISO9001, CE, UL, etc.)?

A: All machines are certified by ISO9001, CE, and meet UL standards.

5. Do you have the ability of independent research and development? Can technical parameter modification or customization services be provided?

A: All products are independently developed and can be customized according to customer requirements

Certifications

Company Profile

Our Advantages

Products Description

Customer Photos

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–5 set: US $1450 / set
  • 6+ set: US $1380 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ce-certified automatic air-cooled chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ce-certified automatic air-cooled chiller be supplied for my local voltage?

The standard configuration is customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
