The system recirculating water chiller listed here carries voltage AC220V~380V 50HZ, or customization, cooling capacity 0.4~7.2KW, or customization, documented exactly as the manufacturer publishes it. Made by LNEYA Thermo Refrigeration Co., Ltd. (16 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This System Recirculating Water Chiller
- Power: 220V/380V 50HZ/60HZ, or customization
- Voltage: AC220V~380V 50HZ, or customization
- Cooling Capacity: 0.4~7.2KW, or customization
- Capacity Of Liquid Storage: 15L~60L
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Air-Cooled |
|---|---|
| Voltage | AC220V~380V 50HZ, or customization |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Energy Saving |
| Core Components | PLC, Bearing, Gearbox, Pressure Vessel, Gear, Pump |
| Place Of Origin | Jiangsu, China |
| Brand Name | LNEYA |
| Dimension(L*W*H) | 50*85*130~80*120*185CM |
| Working Temperature Range | -60 ~ -20℃ (optional: -120 ~ 30℃) |
| Temperature | -60 ~ -20℃ (optional: -120 ~ 30℃) |
| Cooling Capacity | 0.4~7.2KW, or customization |
| Power | 220V/380V 50HZ/60HZ, or customization |
| Dimension | 50*85*130~80*120*185CM |
| Compressor | brand compressor, or customization |
| Circulation Pump | Max20~50L/min 0.7~1Bar |
| Capacity Of Liquid Storage | 15L~60L |
| Evaporator | Plate heat exchanger |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Product Advantages:
1. The temperature of heat transfer fluid can be adjustable;
2. Adopt ASPERA, DANFOSS, MANEUROP, COPELAND etc. Brand compressor.Stable performance and can work continuously;
3. Use hot gas bypass, save energy and improve the control precision;
4. A variety of fault alarm (over-temperature alarm, high-pressure alarm, sensor alarm, compressor overheat alarm);
5. Power on delay protection;All parts are safety grounding.
2. Adopt ASPERA, DANFOSS, MANEUROP, COPELAND etc. Brand compressor.Stable performance and can work continuously;
3. Use hot gas bypass, save energy and improve the control precision;
4. A variety of fault alarm (over-temperature alarm, high-pressure alarm, sensor alarm, compressor overheat alarm);
5. Power on delay protection;All parts are safety grounding.

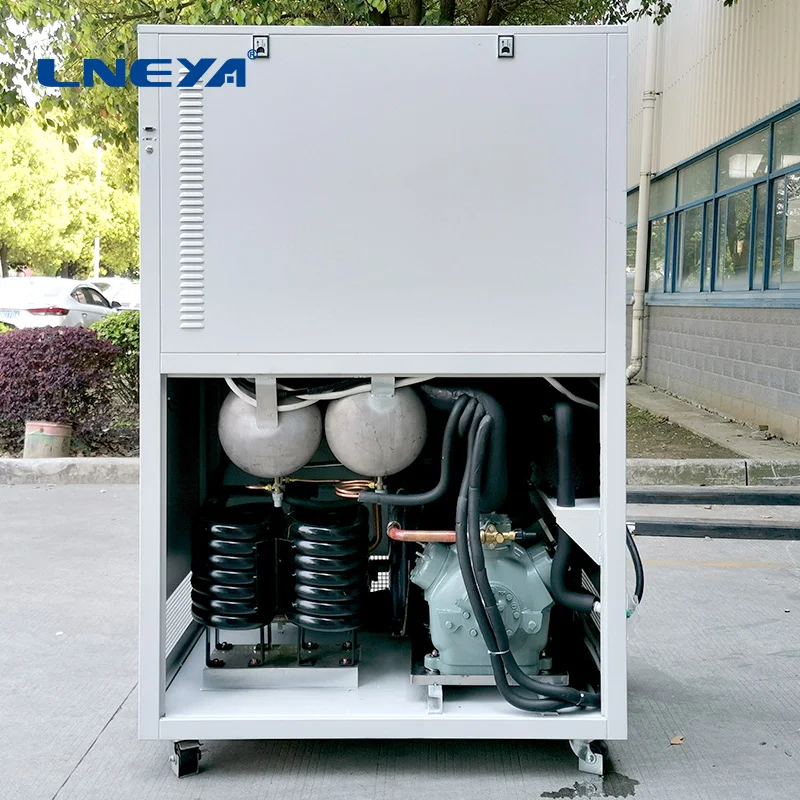

Compressor:
Multi-safety protection, more reliable operation. TECUMSEH compressor, DANFOSS compressor, EMERSON compressor, automatic cascade refrigeration technology.

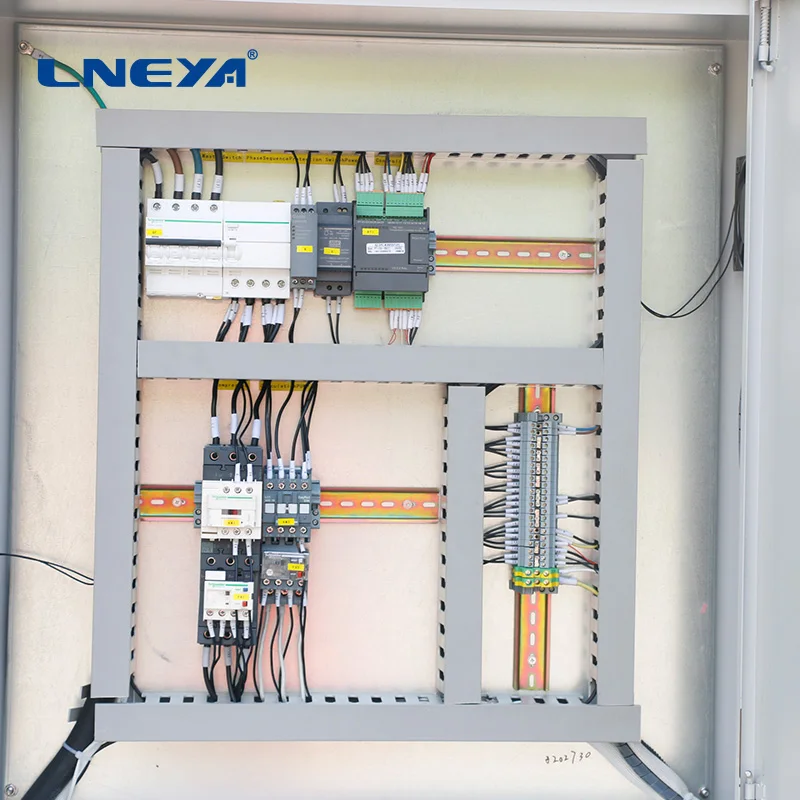

Electrical Cabinet:
With self-diagnosis functions, freezer overload protection, overload relays, thermal protect device and other security functions, and fully guarantee the use of safety.

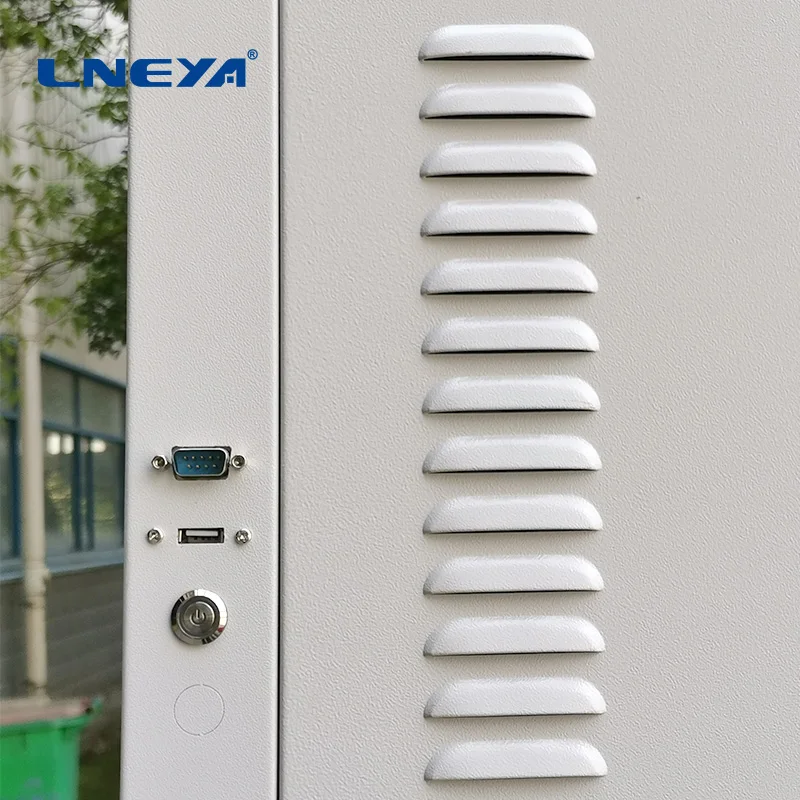

Communication Protocol:
Support USB data communication interface, convenient data export, optional with RS485 interface, Modbus RTU protocol.
Customized products
We support customization services, pls click to consult us for details.
Product Paramenters
Model | LT- 6518N | LT- 6530N | LT- 6562N | LT- 6590N | LT- 65A1N | LT- 65A2N | |||||||
Temp range | -60 ~ -20 ℃ (optional: -120 ~ 30℃) | ||||||||||||
Cooling capacity (KW) | -20℃ | 0.85KW | 1.45KW | 2.5KW | 3.4KW | 4.8KW | 7.2KW | ||||||
-40℃ | 0.7KW | 1.2KW | 2.1KW | 2.8KW | 4KW | 6KW | |||||||
-60℃ | 0.4KW | 0.6KW | 1.2KW | 1.6KW | 2KW | 3KW | |||||||
Circulation pump info | 20L/min 0.7BAR | 20L/min 0.7BAR | 35L/min 1BAR | 35L/min 1BAR | 50L/min 1BAR | 50L/min 1BAR | |||||||
Interface size | G1/2 | G1/2 | G3/4 | G3/4 | G1 | G1 | |||||||
Liquid storage volume | 15L | 20L | 30L | 35L | 40L | 60L | |||||||
Compressor | Tecumseh, Dorin | ||||||||||||
Evaporator | Plate Heat Exchanger | ||||||||||||
Operation Panel | 7-inch color touch screen shows setting temperature and measuring temperature, temperature curve record, data export excel-format | ||||||||||||
Refrigerant | R-404A/R23 | ||||||||||||
Dimension cm | 50*85 *130 | 50*85*130 | 55*100 *175 | 70*100 *175 | 70*100 *175 | 80*120 *185 | |||||||
Power max 50HZ | AC220V 2.5KW | AC380V 3KW | AC380V 4KW | AC380V 5.8KW | AC380V 7KW | AC380V 9KW | |||||||
Weight kg | 145 | 185 | 230 | 275 | 340 | 380 | |||||||
Shell Material | Cold rolled steel painting | ||||||||||||
Optional | Circulation pump 35L/min 2.5bar、50L/min 2.5bar、110L/min 2.5bar optional | ||||||||||||
Optional | Pressure ≤6 bar circulating pump | ||||||||||||
Optional | MODBUS RTU Protocol, RS 485 Interface | ||||||||||||
Optional | SUS304 Material | ||||||||||||
Optional Power | 220V 60HZ three-phases，460V 60HZ three-phases | ||||||||||||
Why Choose Us
Our Advantages
1 More than 10 years of Research and development experience of refrigeration and heating equipment 2 Many experienced and professional designers. Industry and trade company, Support customization 3 Very wide temperature control range: -152~350℃ 4 Machine spare parts are strictly in accordance with international certification requirements. Continuously innovate and create high-quality products
Company Profile
Wuxi Guanya Refrigeration Technology Co., Ltd. specialized in the industrial chiller, environmental chamber, industrial freezer, thermostatic bath, multi-reactor chiller (TCU), recirculating air control system and ultra-low temp. water-cooled chiller.We are the technology leader for high precision thermoregulation solutions in research and development industry. Our products offer temperature control solutions for applications from -152 to +350℃.
Exhibition
LNEYA attends various exhibitions at home and abroad every year. At the exhibition, we show the latest research equipment of LNEYA. Every year, long-term cooperative customers will come to exhibitions and communicate with us. We are also actively developing new customers to provide them with high quality machines and services.
Certifications
So far, LNEYA has 11 patents of utility model authorized certificate.
As an enterprise certified by ISO9001, LNEYA has reached international standards in the integration of various management systems. The products of LNEYA, CE is used as a permit for the product to enter the European market.
FAQ
Q: How many years have your factory been established？ Our company was established in 2006, registered the LNEYA trademark in 2007 and began to develop industrial temperature control equipment.
Q: Are you a trader or a manufacturer？ We are a professional manufacturer of industrial temperature control equipment, and have agents in the United States, South Korea, Russia, Thailand and India.
Q: How long is the warranty? One-year free warranty. During the warranty period, no maintenance fees and accessory fees will be charged (the cost of spare parts will be charged for instrument failure caused by human factors). After the warranty period, the equipment will be responsible for maintenance for life, and appropriate fees will be charged according to the actual maintenance costs.
Q: Do you provide customized services? Of course, you only need to send your specific requirements, and we will provide you with the products you want.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $6500 / set
- 3–4 set: US $5700 / set
- 5+ set: US $4800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this system recirculating water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the system recirculating water chiller be supplied for my local voltage?
The standard configuration is AC220V~380V 50HZ, or customization. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
