The ceiling fan listed here carries 230v, blade material PA66+Gf, documented exactly as the manufacturer publishes it. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Model Number: BL-B250B-EC-00
- Voltage: 230v
- Blade Material: PA66+Gf
- Warranty: 2 Years
- Certification: ce,ccc,RoHS
- Place Of Origin: Jiangsu
Technical Specifications
| Voltage | 230v |
|---|---|
| Blade Material | PA66+Gf |
| Mounting | Ceiling Fan |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Jiangsu |
| Brand Name | Blauberg |
| Model Number | BL-B250B-EC-00 |
| Housing | Iron |
| Protection Class | IP55 |
| Size | 250*250*99mm |
| Bearing | Ball Bearings |
| Certification | ce,ccc,RoHS |
| Color | Picture |
| Application | General Machinery |
| Protect Feature | Waterproof |
| Selling Units | Single item |
| Single Package Size | 60X60X25 cm |
| Single Gross Weight | 8.0 kg |

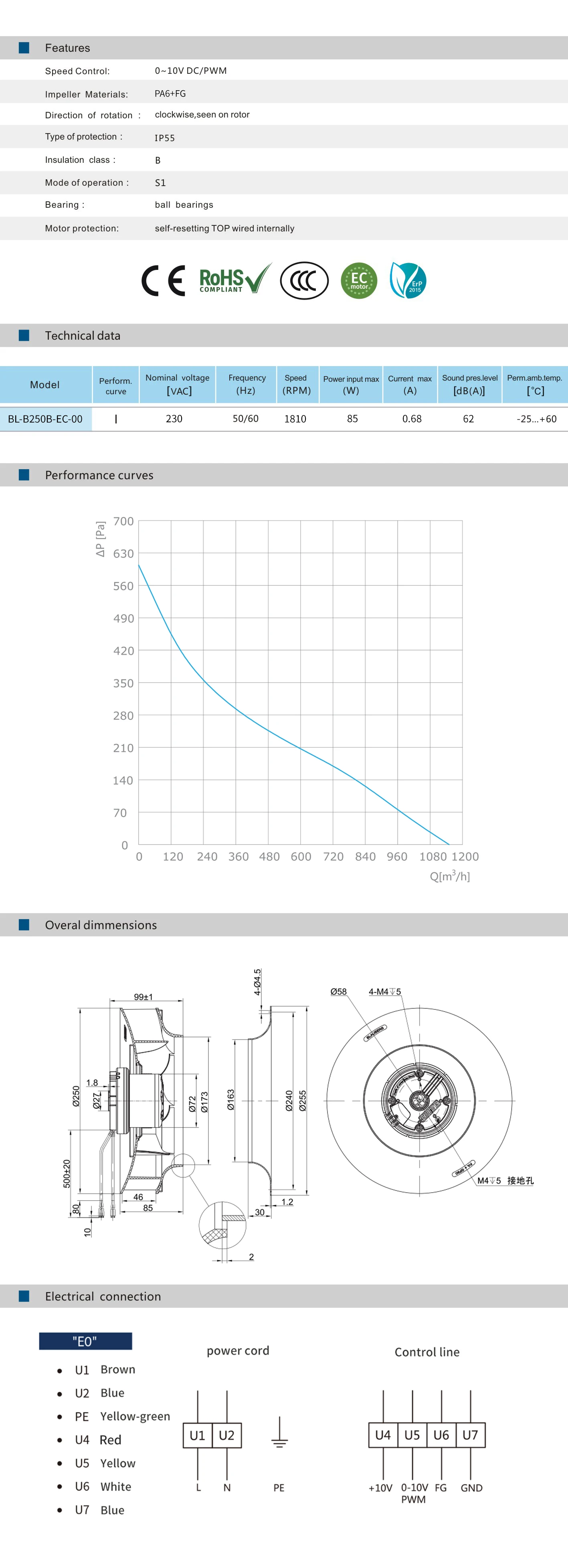

Product Details
Dimension: | 250*250*99 mm | Mode of operation: | S1 |
Materials Impeller: | Plastic | Bearing: | ball bearings |
Materials Housing: | SPCC+S45C | Motor protection: | self-resetting TOP wired internally |
Direction of rotation : | clockwise,seen on rotor | Air Flow: | 670.97CFM/ 1140M³/H |
Number of Blades: | 7 | Static Pressure: | 2.38 inH2O / 595Pa |
Speed Control: | 0~10VDC / PWM | Life Expectance: | 50,000 Hours(L10) |
Operating Voltage: | 230 VAC | Operating Humidity: | 5%-90% RH |
Type of protection: | IP55 | Signal Output: | FG (Frequency Generator) |
Insulation class: | B | Authentication: | UL,CE,ROHS,CCC,ISO |
Model | Nominal voltage[VAC] | Speed (RPM) | Power input max(W) | Current max(A) | Sound pres level[dB(A)] | Perm amb temp[*c) | Electrical connection |
BL-B133A-EC-00 | 230 | 4400 | 53 | 0.38 | 70 | -25 ºC ~ +60 ºC | E0 |
BL-B175B-EC-00 | 230 | 3110 | 49 | 0.38 | 67 | -25 ºC ~ +60 ºC | E0 |
BL-B190B-EC-00 | 230 | 3300 | 87 | 0.65 | 87 | -25 ºC ~ +60 ºC | E0 |
BL-B220C-EC-00 | 230 | 2470 | 86 | 0.71 | 68 | -25 ºC ~ +60 ºC | E0 |
BL-B225G-EC-00 | 230 | 2300 | 85 | 0.7 | 65 | -25 ºC ~ +60 ºC | E0 |
BL-B250B-EC-00 | 230 | 1810 | 85 | 0.68 | 62 | -25 ºC ~ +60 ºC | E0 |
BL-B280D-EC-07 | 230 | 2650 | 225 | 1.6 | 70 | -25 ºC ~ +60 ºC | E0 |
BL-B310D-EC-05 | 230 | 2350 | 410 | 1.85 | 70 | -25 ºC ~ +60 ºC | E0 |
BL-B400D-EC-05 | 230 | 1900 | 700 | 3.1 | 86 | -25 ºC ~ +60 ºC | E0 |
BL-B450D-EC-05 | 230 | 1650 | 700 | 3.1 | 70 | -25 ºC ~ +60 ºC | E0 |
Industries
1 | Ventilation & Purification | 7 | Automobile Industry |
2 | Air Conditioning | 8 | Household Electric Appliances |
3 | Cold Storage and Cold Chain | 9 | Cloud Date Center |
4 | IT & Electronic Industry | 10 | Mechanical Equipment and Systems |
5 | Medical Industry | 11 | Energy-saving & Intelligent Retrofitting |
6 | Heating |
1 | Charging Column | 9 | Equipments Cooling Project |
2 | Kitchen smoke exhaust system | 10 | Ventilation Unit Project |
3 | FFU Project | 11 | AHU（Air Handing Unit）Project |
4 | Computer room cooling | 12 | Air Purifier Project |
5 | Air-conditioned fan for rail transit carriers | 13 | Heater Exchanger Project |
6 | Electrical appliances | 14 | Telecom Container Project |
7 | FanGrid Project | 15 | Data Center Cooling Project |
8 | Ventilation Equipments Project |
Our Certificate | ||||||||||
RoHS | ISO 9001 | ISO 45001 | CCC | CE | CB | |||||
A1: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.We will offer you a reasonable price and make samples for you.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Q7: Is Blauberg a Chinese Brand?
A7: We are a branch company of Blauberg Group.Blauberg Group is a Germany company.Our headquater in Munich,Germany,Chinese factory is the main production plant of Blauberg Group.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–199 piece: US $46.84 / piece
- 200–999 piece: US $38.17 / piece
- 1000+ piece: US $33.93 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with ce,ccc,RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 230v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
