Series axial exhaust fan — blade material Plastic, type YWF. The complete factory specification follows. Made by Xi Maike (guangdong) Refrigeration Technology Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Series Axial Exhaust Fan
- Model Number: YWF 4d-400
- Blade Material: Plastic
- Warranty: Unavailable
- Place Of Origin: Guangdong, China
- Application: condensing unit
- Electric Current Type: AC
Technical Specifications
| Blade Material | Plastic |
|---|---|
| Electric Current Type | AC |
| Mounting Type | Wall Fan |
| Warranty | Unavailable |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Model Number | YWF 4d-400 |
| Product Name | Axial fan |
| Application | condensing unit |
| Keyword | axial fan |
| Type | YWF |
| Color | BLACK |
| Noise | 56DBA |
| Weight | 5.6KG |
| Installation | Vertical |
| Packaging Details | Cold Storage Evaporator Cooling Coil. |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 pieces per Month Cold Room Evaporator |
Product Details
Product descriptions from the supplier

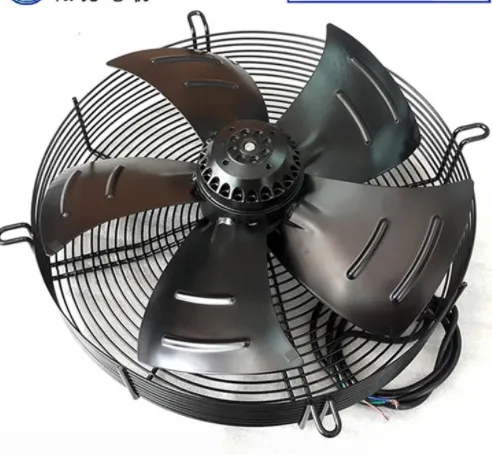

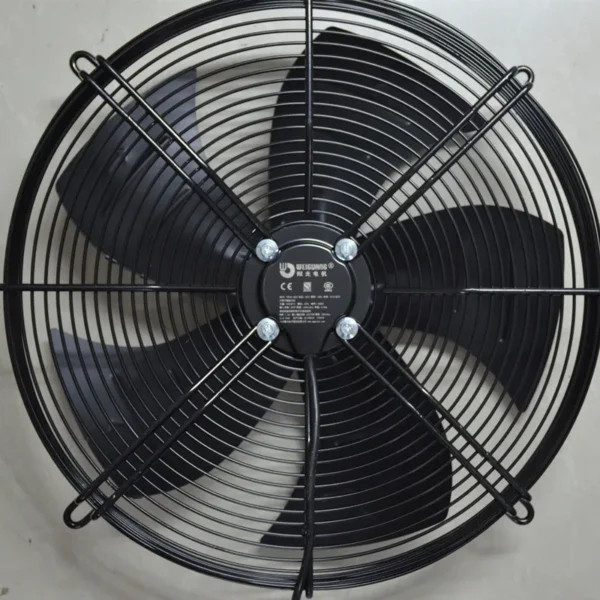

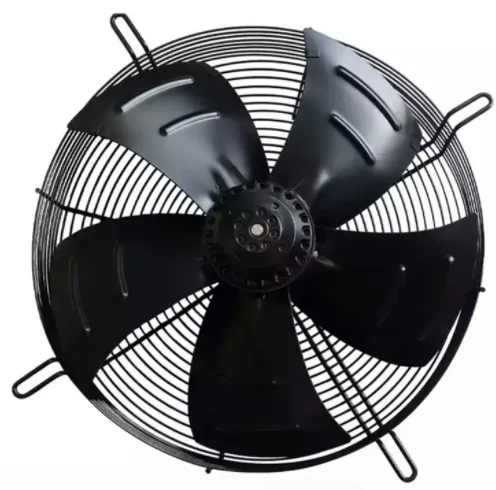

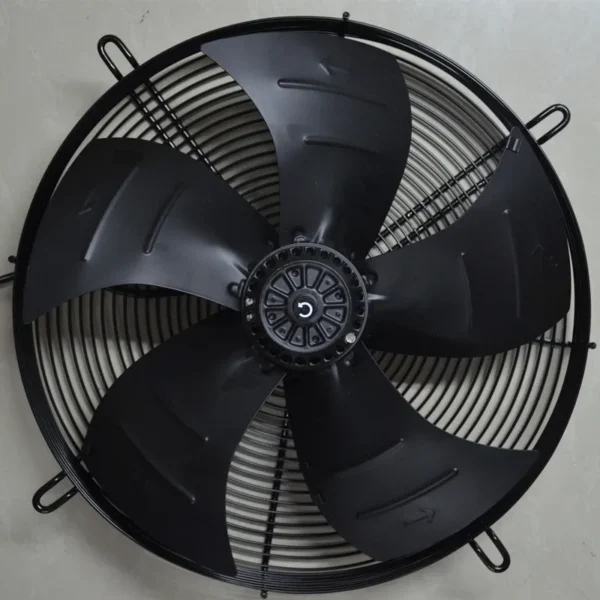

energy saving YWF 400 series axial exhaust fan external rotor HVAC axial flow fans motor
The products are extensively applied to all kinds of refrigeration, ventilation, air conditioner, medical, communication and other instrumentation equipment.
1,Out factory cooperation with Shanghai Jiao Tong University on technology, External Rotor Fan Blade adopts advanced aerodynamic design, which is beautiful appearance, high efficiency.
2,Fan rotor is directly with rotor and blade, that adopt dual-side dynamic balance, dynamic balance achieved G6.3.
3,The fan blade, rotor and grid is all sprayed, the surface is bright appearance that is not easy oxidation and discoloration, and has good corrosion-resistant effect, motor cover also by the special treatment.
4,The insulation grade ambient temperature:-25°C~+60°C, if the temperature range exceed the above, our factory can be customized according to customer requirements.
5,The insulation grade of currently supplied fan is B-class, F-class and H-class, the protection class is IP54. At present, we can also supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection in them. Our factory will put the IP56 external rotor motor with new structure soon, and this structure has got national patent. It can apply to the high humidity and bad environment.
6,Fans have single-phase capacitor running and three-phase asynchronous running. Single-phase motor has 220V/50HZ and 220V/60HZ. Three-phase motor has 380V/50HZ and 380V/60HZ. At the same time can provide customers with motors of the special requirements: special voltage, dual voltage and so on.
7,The line fan motor can be directly leaded out, and can provide various forms of water-proof junction box for the user’s selection.
| Model | Voltage (v) | frequency (HZ) | Eletric current (A) | Input power (W) | Rated speed (r/min) | Rated Airflow (m³/h) | Noise (dba) | capacitor (uf) | net.w (kg) |
| YWF4D-400 | 380 | 50 | 0.49 | 180 | 1400 | 4200 | 68 | – | 5.6 |
| YWF4E-400 | 220 | 50 | 0.80 | 180 | 1400 | 1225 | 69 | 6 | 5.6 |
| YWF6D-400 | 220/380 | 50 | 0.38 | 112 | 920 | 3250 | 58 | – | 5.6 |
| YWF6E-400 | 220 | 50 | 0.45 | 110 | 930 | 3260 | 56 | 3 | 5.6 |
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Guangzhou, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $33.45 / piece
- 5–9 piece: US $32.65 / piece
- 10+ piece: US $31.33 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this series axial exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

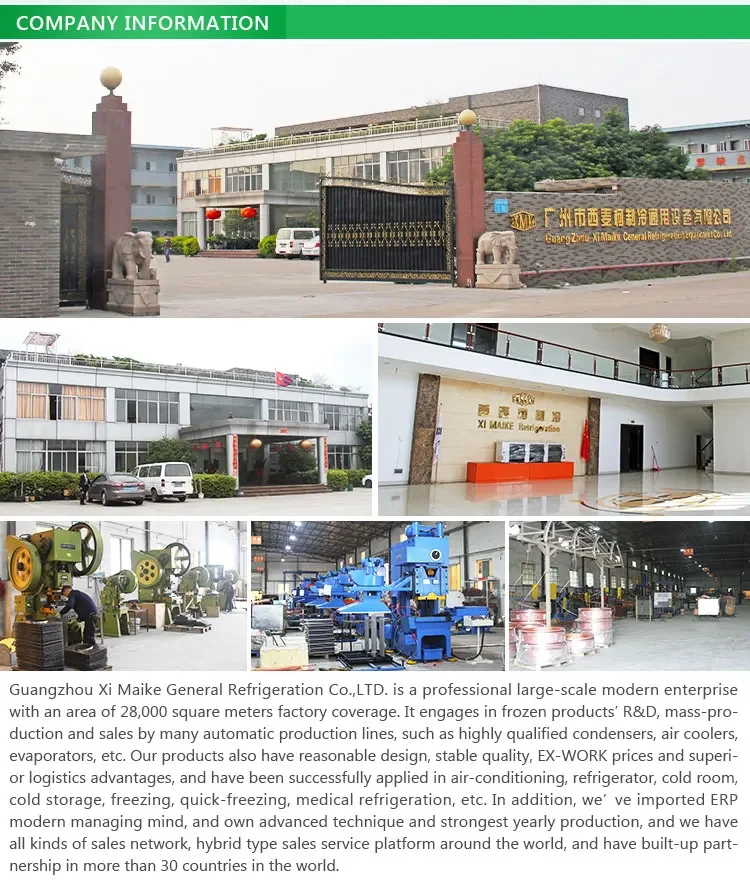

About the Manufacturer
This product is produced by Xi Maike (guangdong) Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xi Maike (guangdong) Refrigeration Technology Co., Ltd. range on HVACR Nexus.
