This ceiling fan is published with the manufacturer’s full specification — 380V,220V,230V,415V or as your request, air flow 18000-50000m3/h. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Model Number: 72inch, 55inch
- Power Source: Electric
- Voltage: 380V,220V,230V,415V or as your request
- Air Flow: 18000-50000m3/h
- Material: FRP
- Blade Material: Stainless Steel
Technical Specifications
| Blade Diameter | 72inch/55inch |
|---|---|
| Voltage | 380V,220V,230V,415V or as your request |
| Speed | 20m/s |
| Type | Roof Axial Fan |
| Material | FRP |
| Blade Material | Stainless Steel |
| Mounting Type | Ceiling Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HUAYI |
| Model Number | 72inch, 55inch |
| Product Name | Cow Dairy house hanging Exhaust Fan |
| Air Flow | 18000-50000m3/h |
| Application | Farms, Greenhouse, Poultry farm, Industrial |
| Usage | cowhouse hanging exhaust fan, ivestock barn hanging exhaust fan |
| Customized Service | Accept |
| Fan Type | Haning Ceiling Fan |
| Frame Material | PE |
| Motor | 100%Pure copper motor/Taiwan Xizi motor/Siemens motor |
| Certification | CCC/CE/IS09001 |
| Selling Units | Single item |
| Single Package Size | 2100X2100X1150 cm |
| Single Gross Weight | 180.000 kg |
Product Details
Product Description
Model | 72inch | 55inch |
Blade Diameter | 1830mm | 1398mm |
Fan Blade Material | 5052 aluminum-magnesium alloy | Reinforced nylon |
Fan speed | 330r/min | 700r/min |
Rated Power | 2200w | 1500w |
Noise | ≤70dB | ≤70dB |
Voltage | 380V/50Hz | 380V/50Hz |
Material of Case,deflector | Outer case;LLDPE | Outer case;LLDPE |
Protection Degree | IP55 | IP55 |
6m wind Speed | 6.5m/s | 13m/s |
Voltage/Phase/Frequency | 380v/three-phase/50HZ | 380v/three-phase/50HZ |
Insulation Class | F | F |
Size | 2100*2100*860mm | 1630*1630*1050mm |
Weight | 180KG | 95KG |

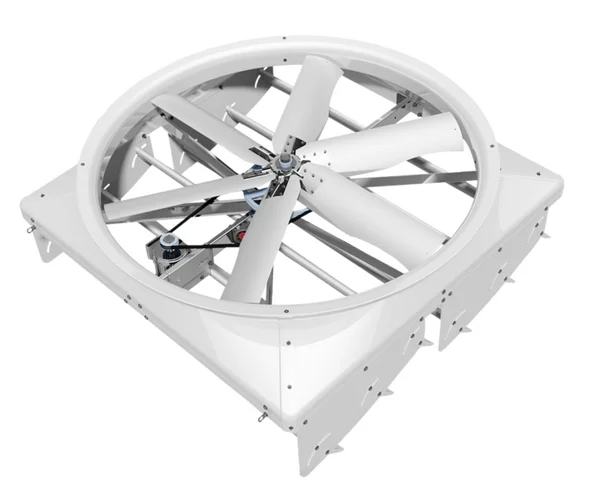

Directly Motor-drive Cooling System Greenhouse Circulation Fan For Greenhouse Exhaust Ventilation
Bonawind 72” circulation fan is a large air volume, which can effectively achieve environmental cooling and direct drive a large fan. The fan adopts a more energy-saving and efficient permanent magnet brushless motor, and the overall efficiency is increased by 10% compared with ordinary direct-connected fans. 72” circulation fan not only has large air volume, strong wind speed, low noise, and low energy consumption but also can be used with spray system, frequency conversion, and temperature control system at the same time. 72” circulation fans are made of anti-corrosion materials as a whole and are installed on the fan bracket as a whole, which is sturdy and durable. With adjustable deflector components, to ensure that fresh, clean air directly covers a large area of use. High performance and reliable quality, effectively solve the problem of cooling in usage scenarios.Greenhouse/poultry farm/livestock/chicken house ventilator ventilation exhaust fanBonawind Exhaust fans are widely used in Agriculture and industrial ventilation and cooling. It is mainly used for animal husbandry, poultry house, livestock breeding,greenhouse, factory workshop, textile, etc.
Details Images
Motor
Adopt energy-saving and high-efficiency permanent magnet brushless motor. Permanent magnet brushless motor has the advantages of high efficiency, low energy consumption, long life, low noise, and stepless speed regulation

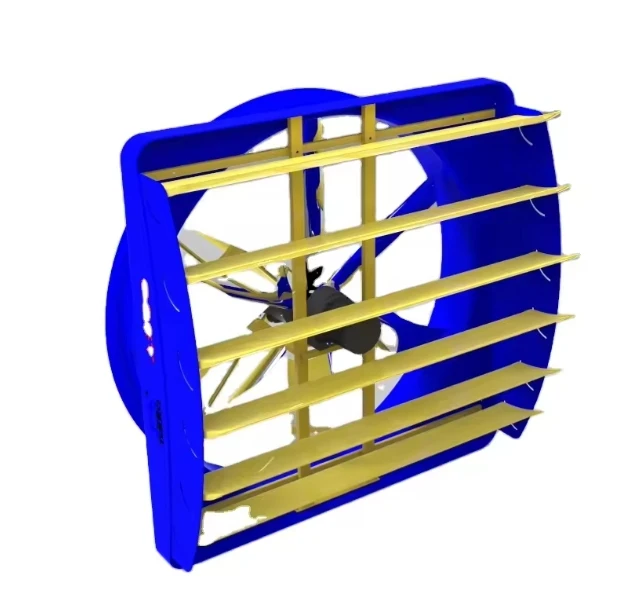

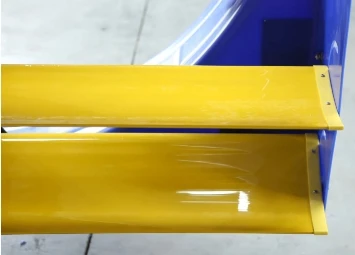

Professional Deflector
The deflector specially designed according to fluid mechanics can adjust the wind direction and angle according to the needs, so that the fresh air can cover a larger and farther area
Alloy fan blade
All-alloy fan blades provide strong and uniform airflow while ensuring the strength of the fan blades.
High strength shell
Corrosion-resistant, high-strength polyethylene housing.
Accessories&Options
*All motors configurations 1 or 3 phases IE3,and IE4are available
*The entire fan can meet the electrec regulation of CE and CSA certification
*Nylon or Aluminum nlades
*Available in Belt-drive and Direct-drive version
*Fully controllable by VFD controls
*Add High-Pressure-Misting units on the deflectors
Case Display
Air circulation fan has a wide range of uses, such as planting, breeding, factories,tunnels, etc., which can realize ventilation and reduce the harm caused by poor air circulation. It is more suitable for air circulation, cooling and ventilation in greenhouses and breeding places.
Company Information
Qingzhou Huayi Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. Huayi provide customers with high-quality, affordable temperature control equipment. Each machine has been adjusted and accurately tested before leaving the factory, making it easier for customers to install and achieve the best use effect. At the same time, we can also provide OEM or ODM services for customers,All products have passed strict quality control and certifications Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
Long Standing History
15 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 50 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
15years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 400mm to 1530mm, ventilation capacity ranges from 1000CFM to 40000CFM.
Fast Delivery
The production efficiency is high. Our daily output is 1000 pieces. Most of our customers can deliver within 7 days, and some can deliver within one day or three days.
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, CNC machining and assembly to ensure high precision of each part and higher performance of the exhaust fans.
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands''HUAYI''
Packaging&Shipping
FAQ
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again,we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible.Besides,12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again,we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production,fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible.Besides,12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–499 set: US $600 / set
- 500+ set: US $385 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with CCC/CE/IS09001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
