The centrifugal blower listed here carries 12v, power source Electric, documented exactly as the manufacturer publishes it. Made by Henan Superfan Electronic Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: WDF3010SL12V
- Power Source: Electric
- Power Cord Length: oem
- Rated Voltage: 12v
- Material: Plastic
- Blade Material: Plastic

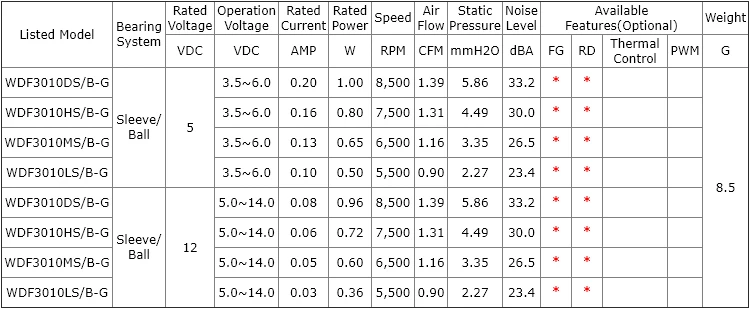

Technical Specifications
| Application | Fan Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 12v |
| Electric Current Type | DC |
| Motor Type | DC Motor |
| Speed | 5500-8500rpm |
| Material | Plastic |
| Blade Material | Plastic |
| Noise Level | 23-33DB |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Customized Support | OEM, ODM, OBM |
| Power Cord Length | oem |
| Place Of Origin | Henan, China |
| Brand Name | annewell |
| Model Number | WDF3010SL12V |
| Product Name | Air Conditioner Blower |
| Bearing Type | sleeve Bearing |
| Description | Brand new factory supply DC brushless cooling fan, coppe.. |
| Motor | Copper Motor |
| Connector | 2P/3P/4P |
| Weight | 8.5g |
| Selling Units | Single item |
| Single Package Size | 8X8X6 cm |
| Single Gross Weight | 0.500 kg |
Product Details
Factory Custom 12v DC 3010 Electric Centrifugal Blower Sleeve Bearing Fan for Rinters Cash Registers Small Vending Machines Fan
| FAQ |
1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. DC motor runs from the attract and repel of the permanent magnet inside the motor. It blows air along the axis of the fan, or parallel to the track of the blade axis to create changeable and not stable air-flow. Standard DC axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 140mm, 150mm, 172mm, 200mm and 254mm.
97mm DC 12V High Speed Centrifugal Air Blower Fan With 220V AC Plug Speed Controller 9733 Heater BBQ Small Blower Fan
2. How to choose a DC fan?
You should consider the points of below:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)
-Connector
-Lead wire:2pin, 3pin, 4pin, RD, FG, PWM, etc.
Portable Blower BBQ Blower Fan For 9733 DC 12V 2.7A Power 7000R/Min Air Turbo Blower With Variable Speed Controller
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
Blower piping head 220V household adjustable speed heating furnace waste oil furnace
4. Are you a factory?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team membe: 15
-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL, TUV, CE, CCC, SGS, ISO:9001-2008.
9733 Blower 220V Combustion Heating Furnace for Indoor Quiet Speed Regulating Electric Blower
5. What is the delivery time?
Sample lead time: 3~5 business days.
Mass production delivery lead time: 3~22 business days,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
Factory Directly High Pressure 9733 Waste Oil Burn Stove Blower Dc 12v 2.94A 3.6A 6A Centrifugal Blower Fan
6. Can you provide any sample? Is it free or extra?
Yes, we can offer the free samples for each model.
DC 12V 2.7A High Air Volume Double Ball Turbo Blower Fan Brushless 9733 for BBQ Grill Waste Engine Oil Firewood Generator
| Other Dimension | |||||
| 20*20*6mm | 20*20*10mm | 25*25*7mm | 25*25*10mm | 35*35*10mm | 40*40*10mm |
| 40*40*10mm | 40*40*20mm | 40*40*28mm | 50*50*10mm | 50*50*15mm | 60*60*15mm |
| 60*60*20mm | 60*60*25mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*25mm |
| 90*90*25mm | 92*92*38mm | 120*120*25mm | 120*120*38mm | 135*135*38mm | 140*140*25mm |
| 140*140*38mm | 150*150*50mm | 172*150*38mm | 170*152*51.5mm | 180*180*60mm | 200*200*60mm |
| 220*220*60mm | 225*255*80mm | 280*280*80mm | |||
75mm 97mm 110mm Dc 5v 12v Wood Stove Fan 7530 9733 11028 Powerful Turbo Mini Strong Fan
97mm DC 12V 24V 36V High Speed Centrifugal Air Blower Fan with AC Plug 3 Speeds Controller 9733 Heater BBQ Small Blower Fan
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $1.16 / piece
- 100–999 piece: US $1.02 / piece
- 1000–4999 piece: US $0.75 / piece
- 5000+ piece: US $0.58 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 12v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Superfan Electronic Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Superfan Electronic Equipment Co., Ltd. range on HVACR Nexus.
