Key specification for this axial fan: 110 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Henan Superfan Electronic Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Axial Fan
- Model Number: WDF12038SL
- Power Source: Electric
- Voltage: 110 V
- Material: Plastic
- Blade Material: Plastic
- Frame Material: Thermal Plastic PBT
Technical Specifications
| Voltage | 110 V |
|---|---|
| Speed | 2500-4000rpm |
| Type | ac axial fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Henan, China |
| Brand Name | annewell |
| Model Number | WDF12038SL |
| Product Name | EC Brussless Axial Fan |
| Application | Medical equipment, servers, communication power supplies |
| Casing Size | 120x120x38mm |
| Frame Material | Thermal Plastic PBT |
| Rated Current | 0.06-0.13A |
| Motor Type | 4-pole DC Brushless Motor |
| Available Function | FG/RD/PWM/IP55~IP68 |
| Feature | High Performance, EnergySaving |
| Free Sample | 2~3 pieces can be free |
| Selling Units | Single item |
| Single Package Size | 17X17X9 cm |
| Single Gross Weight | 0.5 kg |

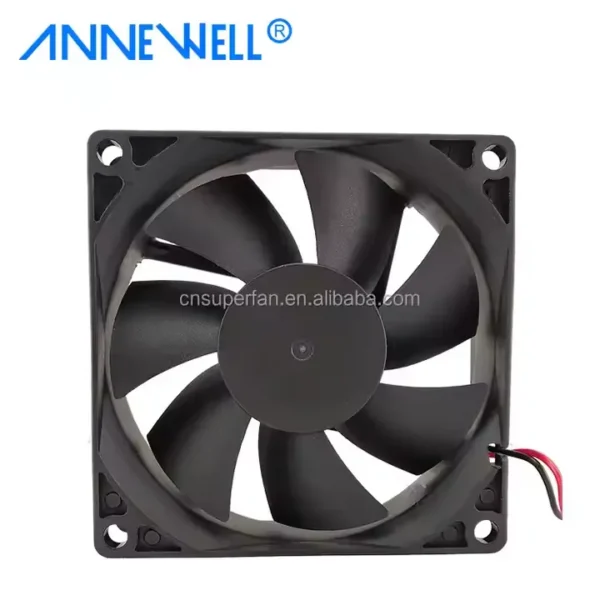

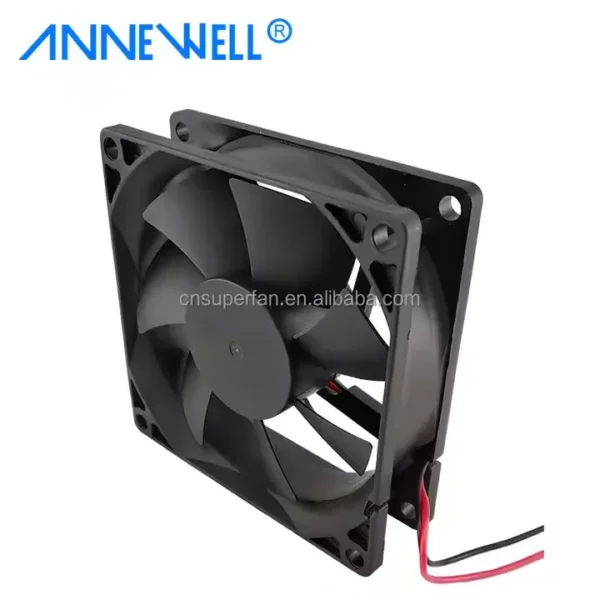

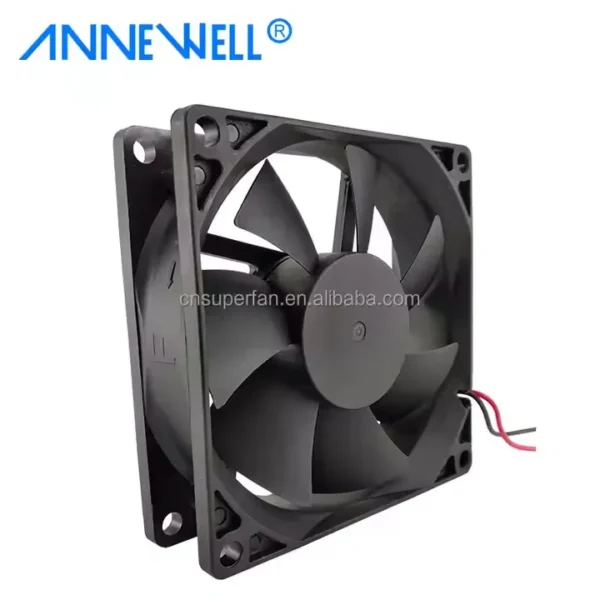

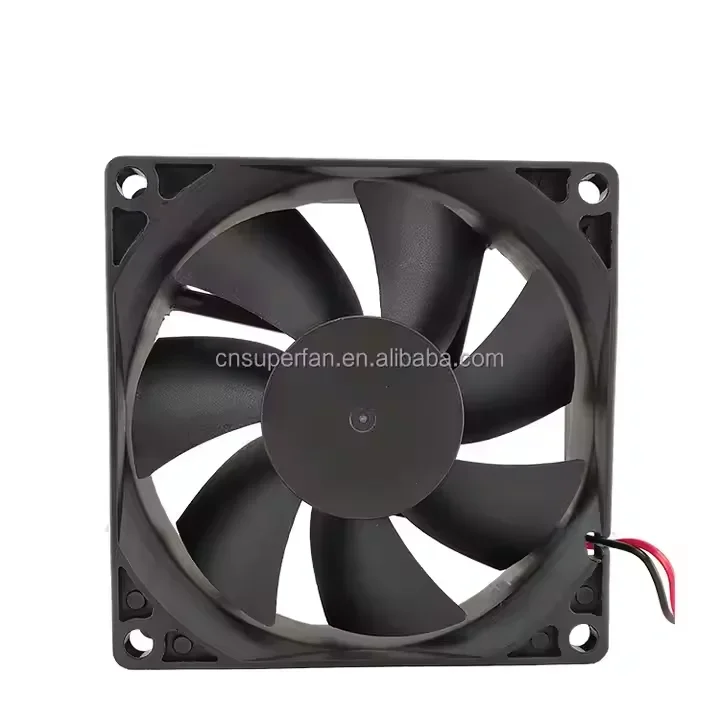

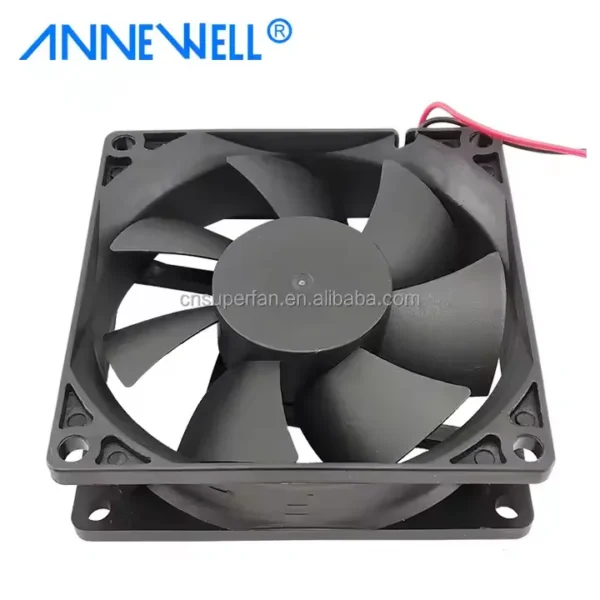

Product Details
OEM/ODM 110V EC Electric 12038 Sleeve Bearing Axial Cooling Fan Switch Refrigerator Professional Power Amplifier Arc Welder Fans
Product Description

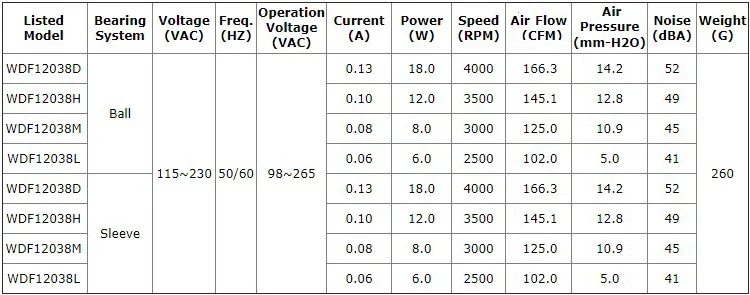

| Model | WD12038SL | Size | 120x120x38mm |
| Frame | Plastic Blade/Plastic Frame | Impeller | PBT+30%GF |
| Bearing Type | Sleeve Bearing | Lead Wire | UL type |
| Motor | Copper Motor | Motor Protection | Impedance Protected Reverse Polarity Protected |
| Weight | 260g | Rated Voltage | 110v |
| Application |
Switches, refrigerators, professional amplifiers, arc welders, security surveillance systems, UPS power supplies, gaming cabinets, commercial induction cookers
| ||

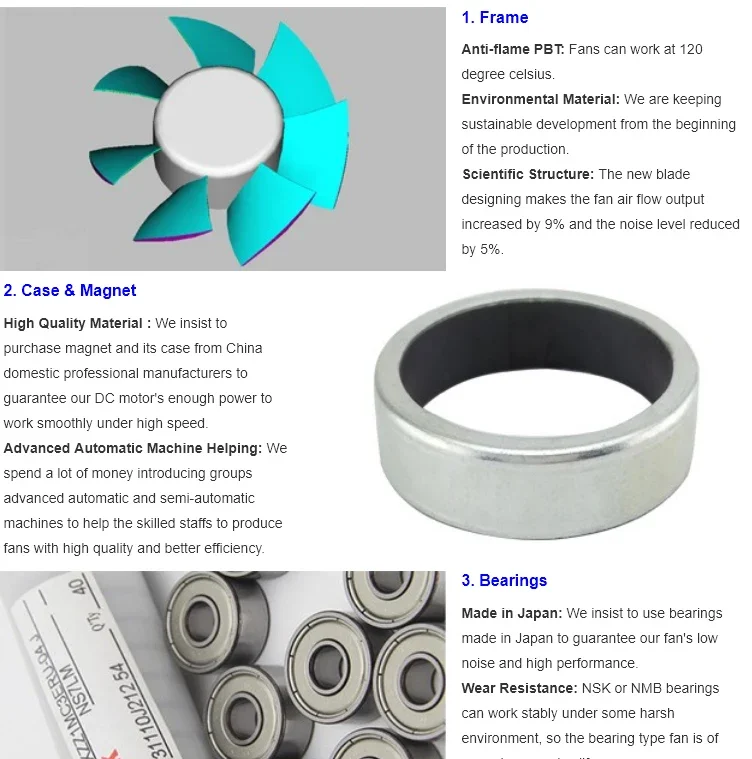

roduct Features
Product Application
Company Information

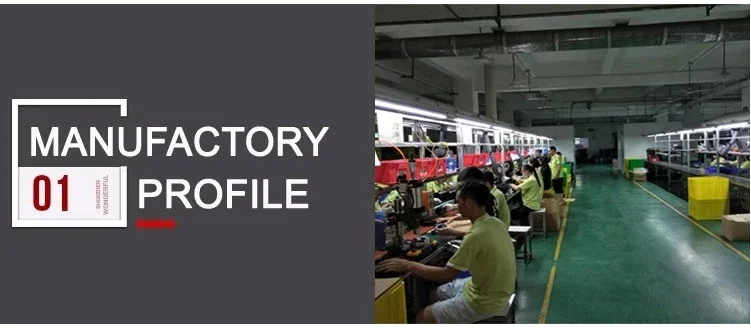

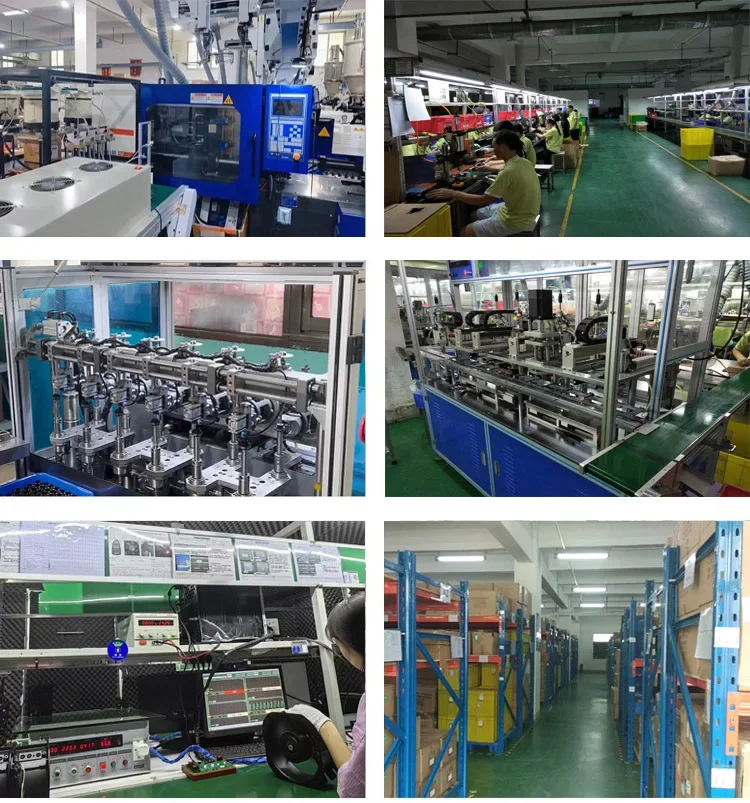

1. Manufactory Profile:Sperfan Electronics Technology Limited Company, established in Sep. 2008 in Shenzhen, China, is a manufacturing enterprise which develops, produces and sells in the fields of AC/DC/EC fans, blowers, fan accessories, negative fans. Currently, we own a four-floor plant manufacturer base of 8000 square meters with a production capacity of 1 million products per month. Our products are exported all over the world, including the United States of America, South America, Europe, Japan, Korea, Asia, and Africa. They can be easily found in the commercial, residential and industrial applications.OEM/ ODM products can be also provided for internationally famous companies. The company has already obtained ISO9001:2008 quality system certification along with UL, CUL,CAS, TUV, CE and FCC safety certification for all our products.At Superfan, we take pride in the fact that our customers receive excellent services and care. In pursuing this mission, we always follow the ideals of "Constant Perfection, Zero Defection and High-standard Customer Satisfaction". During the past 10 years, Wonderful has always offered the best thermal solutions and excellent service for millions of customers around the world. We sincerely look forward to working with you to build long-term stable partnership, and for provide your company with quality products and excellent service.
2. Quality Management:
We are strictly adopting "On-Site Quanlity Control" meathod. Our cooling fans are 100% inspected by our experienced staffs and our advanced professional testing equipment, from material, production process, and also with the 3rd party certification when required.

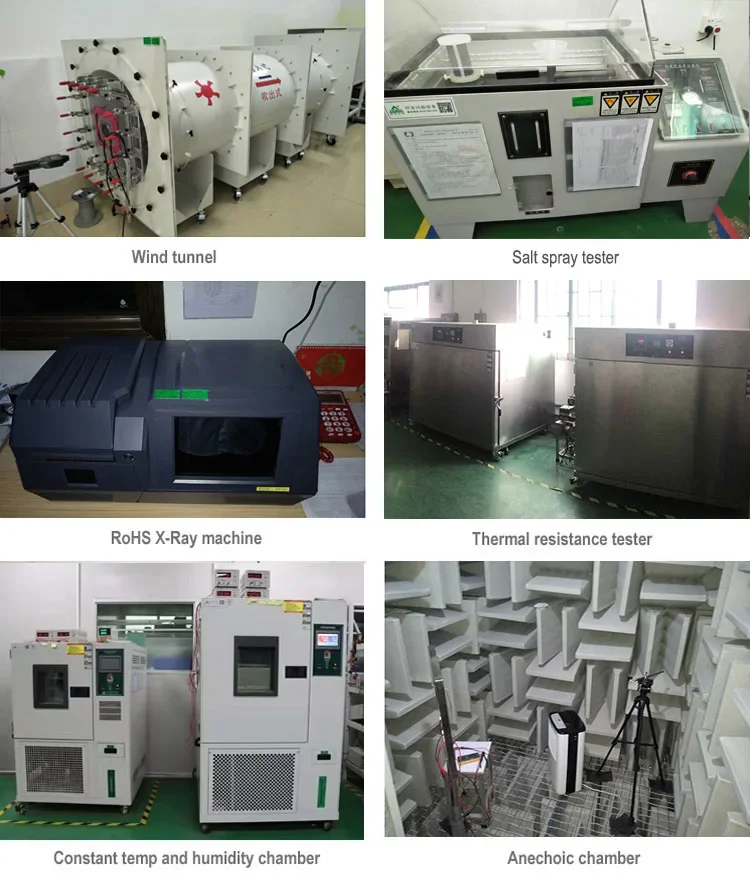

We installed the advanced testing equipment in Taiwan and Japan, like wind tunnel testing machine, pulse pressure machine, micro-computer balance testing machine, vibration testing, temperature and humidity chamber, package drop testing machine, Salt Fog Testing Machine, Noise Test Facility (Anechoic Chamber).
3. SUPERFAN R&D Center:
Our R&D team will make sure our cooling fans will comply with all safety certification at design stage. To make sure the fans is stable, reliable and safe. Also, we will proceed all kinds of test, to verify our fans will pass the requirement.
We are researching and developing several EC environmental fans.
We have invested the profession design software and hardware for designing to satisfy every customer's OEM or ODM demand.
For volume inquires, we are willing to design and manufacture special motors or fans to suit your requirements.
4. OEM And ODM:
OEM/ODM orders are welcome on our products. Our experienced engineering team is capable of walking through the design stage with our customers' design. We accept buyers' labels or logos. Our quality standards are available based on customers' demand.
1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. DC motor runs from the attract and repel of the permanent magnet inside the motor. It blows air along the axis of the fan, or parallel to the track of the blade axis to create changeable and not stable air-flow. Standard DC axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 140mm, 150mm, 172mm, 200mm and 254mm.
2. How to choose an DC fan?
You should consider the points of blow:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)

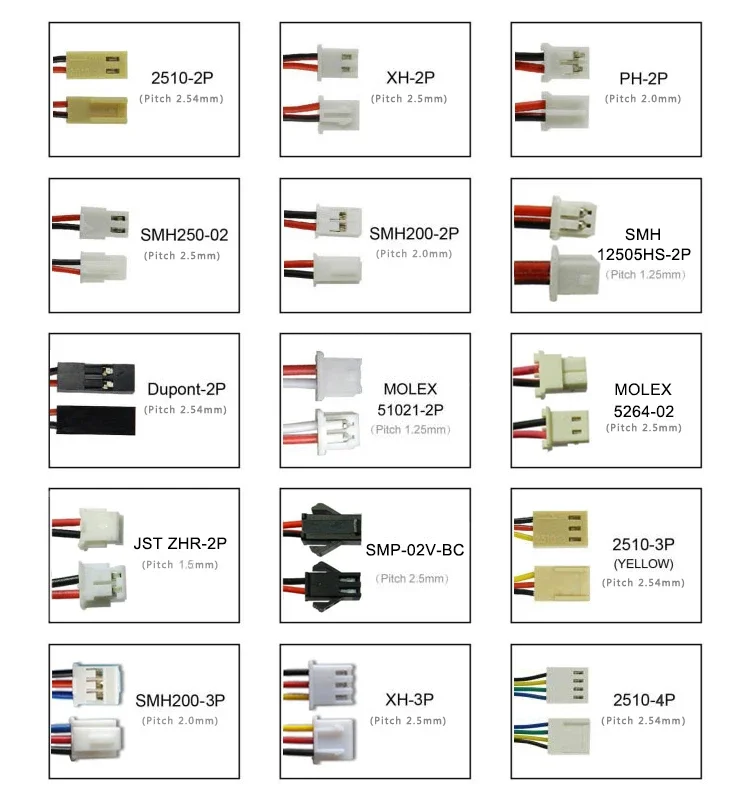

-Connector
-Lead wire:3pin, 3pin, 4pin, RD, FG, PWM, etc.
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
4. Are you a factory?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team membe: 15
-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL, TUV, CE, CCC, SGS, ISO:9001-2008.
5. What is the delivery time?
Sample lead time: 3~5 business days.
Mass production delivery lead time: 3~22 business days,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
6. Can you provide any sample? Is it free or extra?
Yes, we can offer the free samples for each model.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–999 piece: US $2.18 / piece
- 1000–4999 piece: US $2.08 / piece
- 5000–9999 piece: US $1.98 / piece
- 10000+ piece: US $1.89 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial fan be supplied for my local voltage?
The standard configuration is 110 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

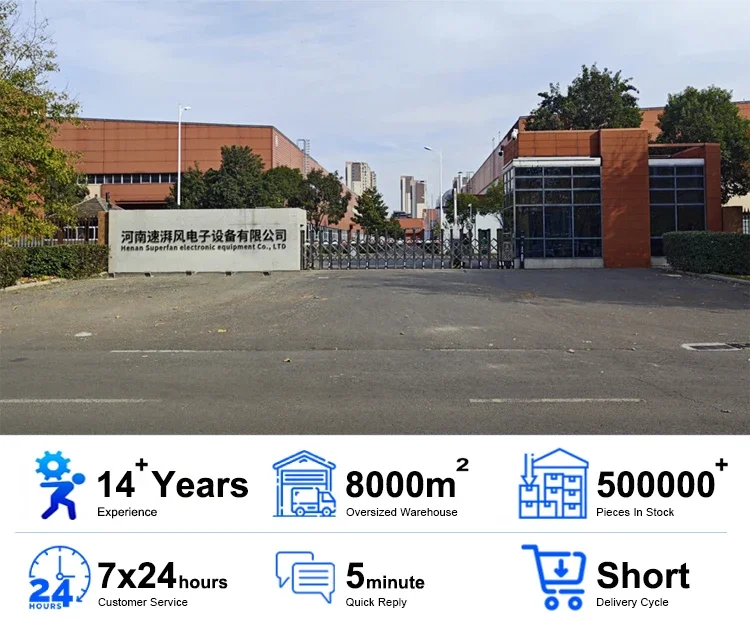

About the Manufacturer
This product is produced by Henan Superfan Electronic Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Superfan Electronic Equipment Co., Ltd. range on HVACR Nexus.
