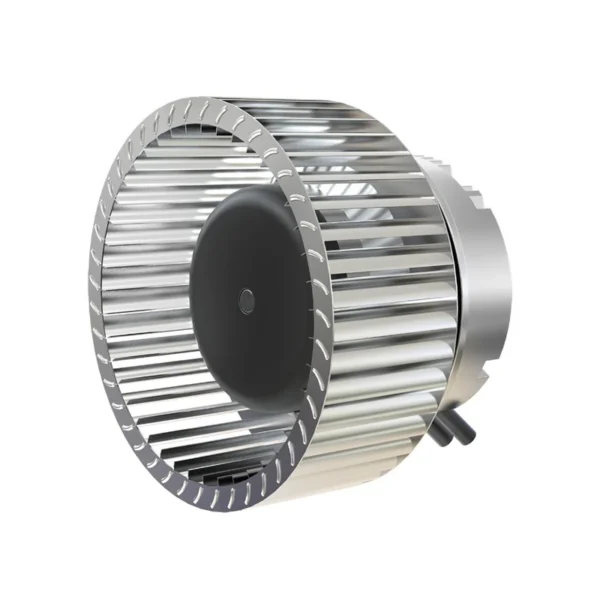

Centrifugal Blower, 160mm, 230V, IP55

Key specification for this centrifugal blower: 230 V, material Galvanised sheet steel. Everything below is reproduced from the factory data sheet. Made by Ningbo Canlian Technology Company Limited (2 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Centrifugal Blower

• Model Number: LWFE3G160-072NS-01
• Power Source Type: other
• Voltage: 230 V
• Material: Galvanised sheet steel
• Blade Material: Galvanised sheet steel
• Noise Level: 57-75dB(A)

Technical Specifications

Product Details

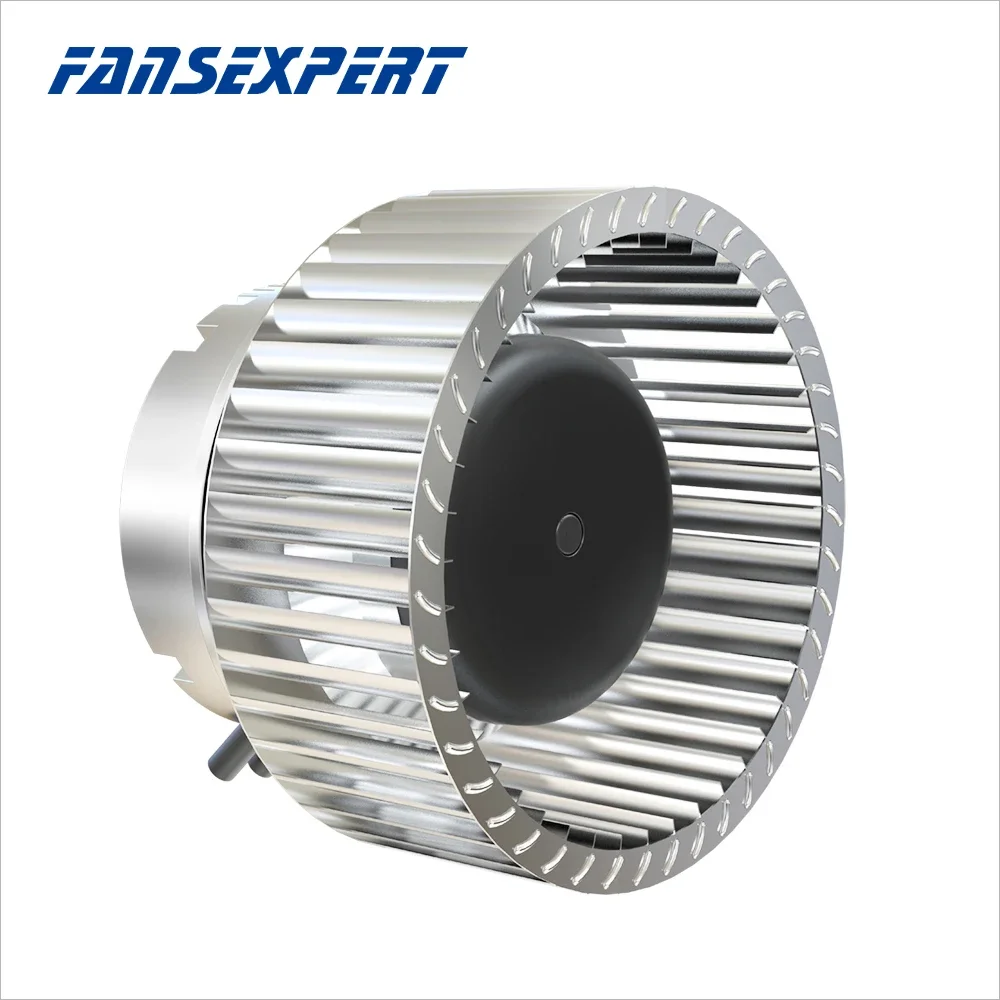

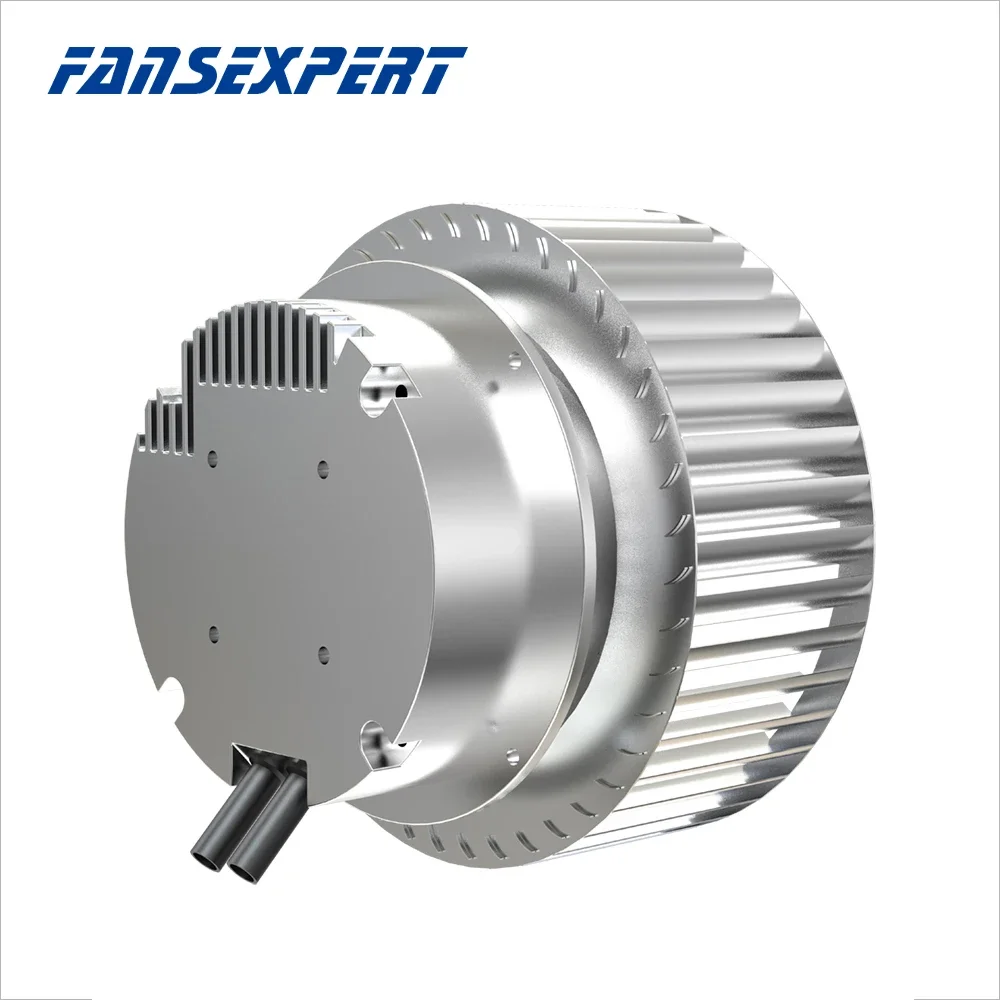

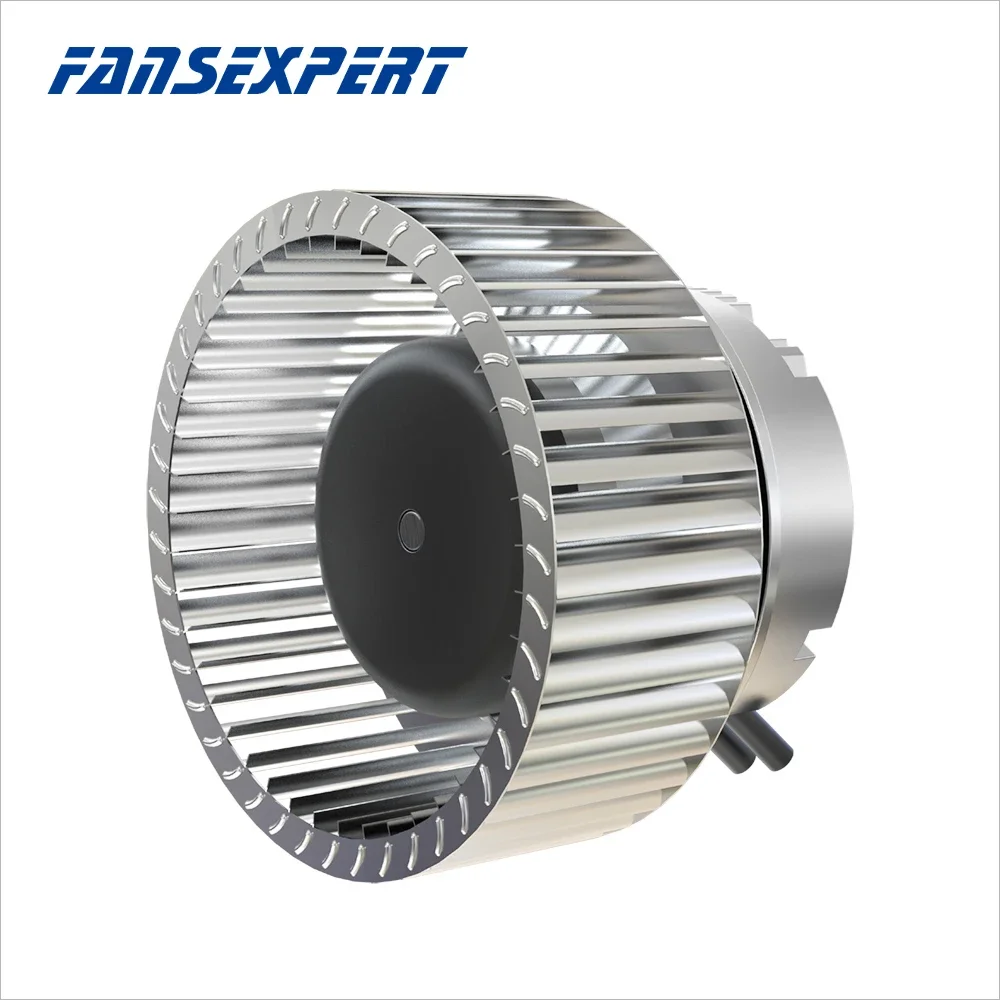

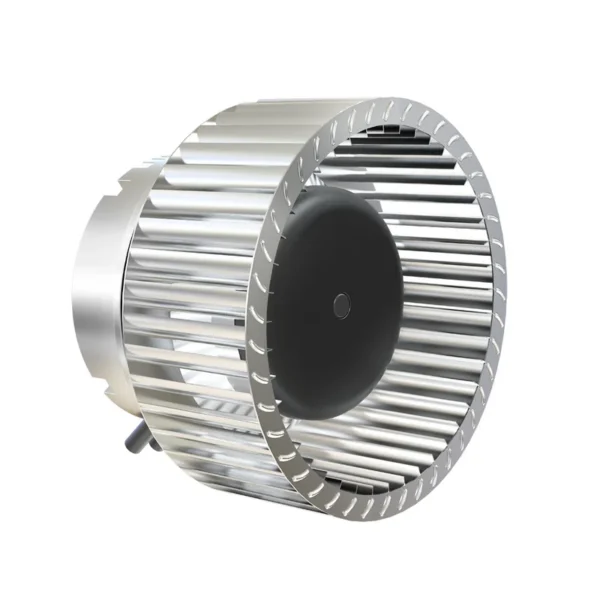

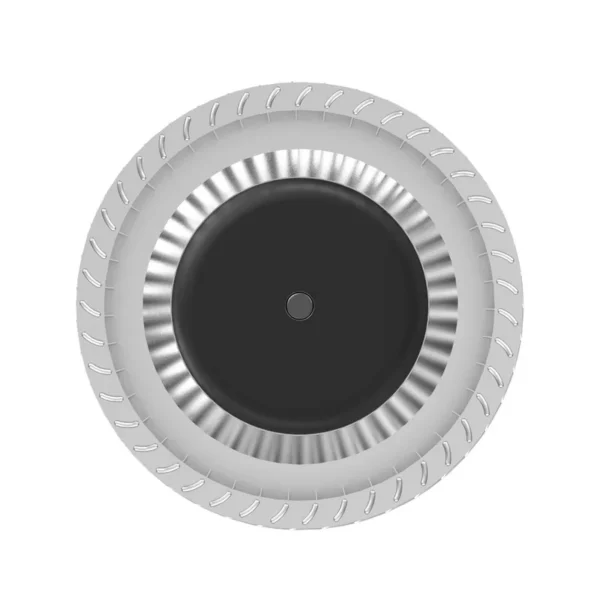

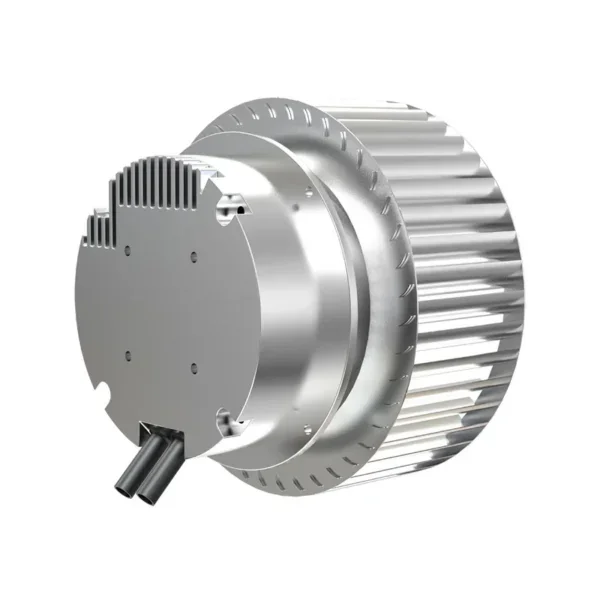

EC Forward Centrifugal Fan delivers energy-efficient airflow

* Energy-efficient EC Forward Centrifugal Fans provide intelligent, variable airflow with superior static pressure for optimal HVAC system performance; * Commercial Buildings | Data Centers | Industrial Applications | Public Facilities; * Power(W):70-230w,Voltage(V):230V,Frequency(Hz):50/60Hz; * Current(A):0.58-1.65A Speed(RPM):1800-3340RPM Air Flow(m³/h):330-803m³/h; * Material:Galvanised sheet steel Type of Protection:IP55 Operation Temperature:-30℃～+60℃;

	LWFE3G108-072NS-01	LWFE3G120-072NS-01	LWFE3G133-072NS-01	LWFE3G140-072NS-01
Voltage	230V
Frequency	50/60Hz
Power	82w	90w	85w	70w
Current	0.65W	0.67W	0.67A	0.58A
Speed	3340RPM	3230RPM	2290RPM	1910RPM
Air Flow	330m³/h	350m³/h	433m³/h	484m³/h
Air Pressure	330Pa	412Pa	288Pa	216Pa
Noise	57dB(A)	67dB(A)	63dB(A)	72dB(A)

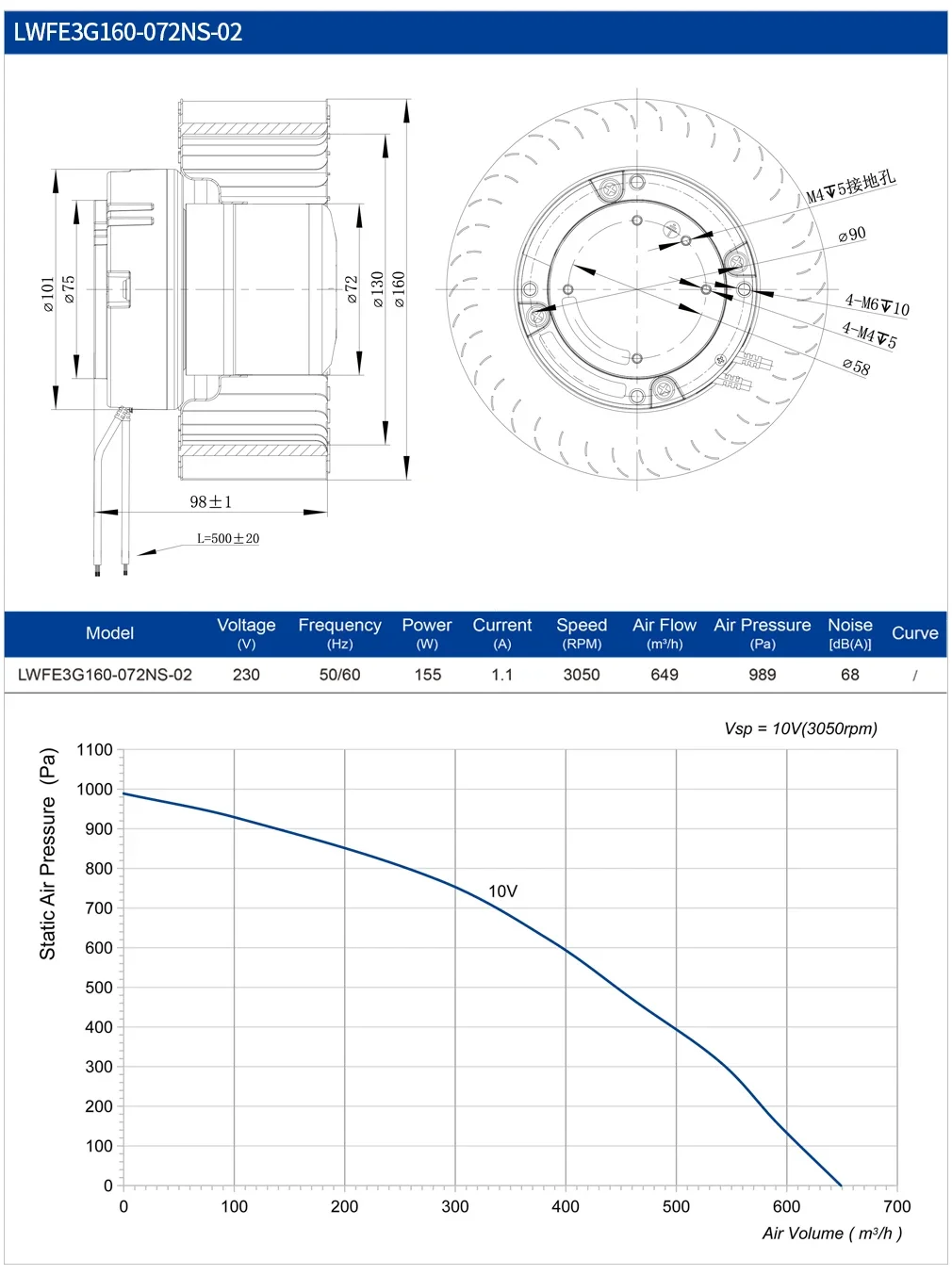

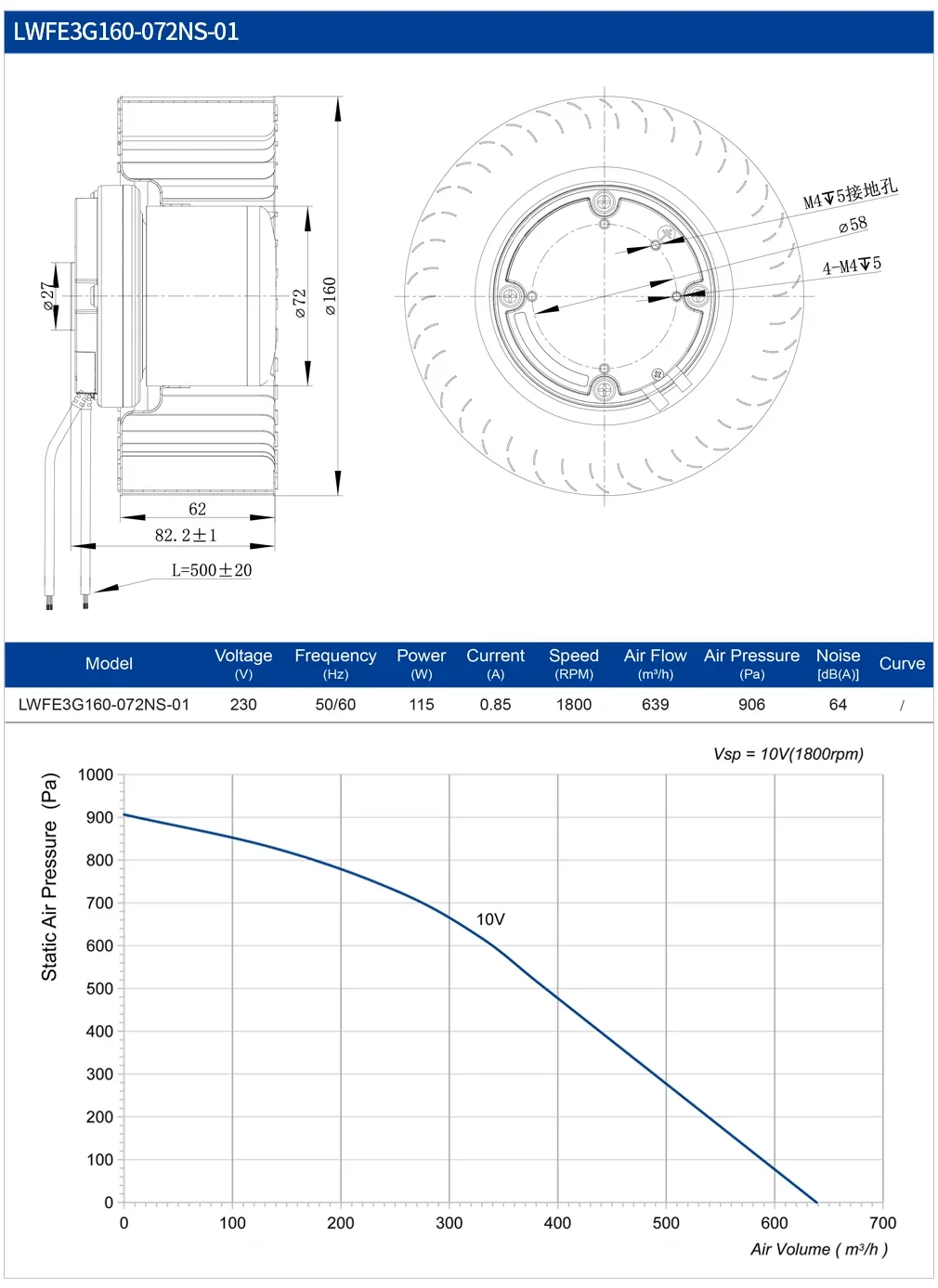

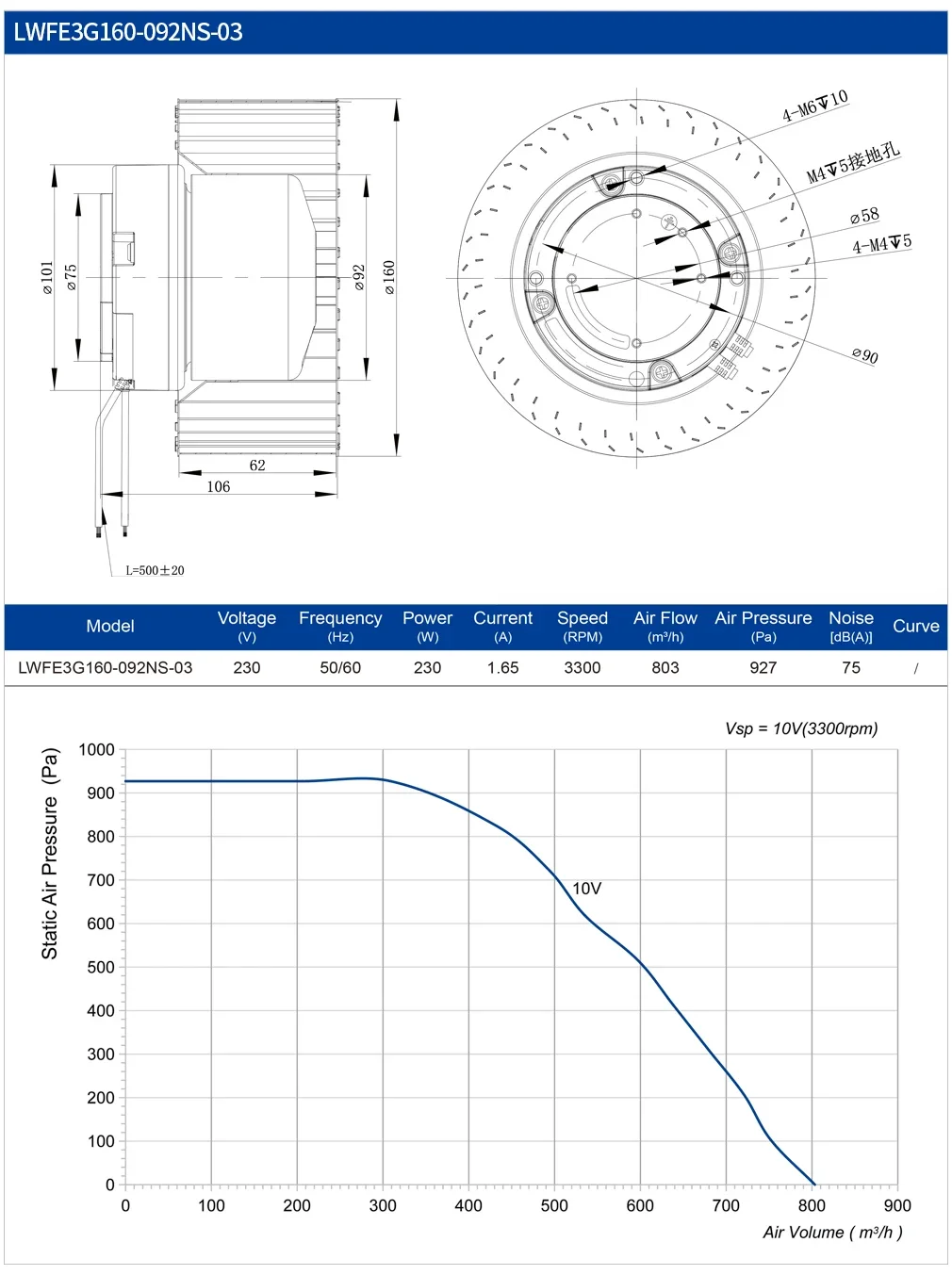

	LWFE3G140-072NS-02	LWFE3G160-072NS-01	LWFE3G160-072NS-02	LWFE3G160-092NS-03
Voltage	230V
Frequency	50/60Hz
Power	85w	70w	115w
Current	0.85A			1.1A	1.65A
Speed	2060RPM	1800RPM	3050RPM	3300RPM
Air Flow	494m³/h	639m³/h	649m³/h	803m³/h
Air Pressure	845Pa	906Pa	989Pa	927Pa
Noise	74dB(A)	64dB(A)	68dB(A)	75dB(A)

Specification

About this item – EC Forward Centrifugal Fan:

The EC Forward Centrifugal Fan is an energy-efficient and intelligent ventilation solution that combines advanced EC motor technology with an optimized design to deliver superior airflow while significantly reducing energy consumption and operational noise for HVAC and industrial applications.

Superior Energy Savings: Its EC motor technology delivers unmatched efficiency, reducing energy consumption by up to 40% and significantly lowering operating costs.

Precise & Intelligent Control: Integrated smart controls offer seamless variable speed adjustment and effortless integration with building management systems for optimized performance.

Unmatched Reliability: The robust, direct-drive EC motor design eliminates unnecessary moving parts, drastically reducing maintenance needs and enhancing long-term operational reliability.

Exceptional Airflow Performance: The aerodynamically optimized forward-curved centrifugal impeller generates high-pressure,efficient airflow ideal for complex ducted systems.

Future-Proof Sustainability: With inherently high efficiency and compliance with global ErP directives, this fan prepares your operation for evolving environmental regulations.

Recommend Products

What drives us?

Our product range includes:

1. EC/DC/AC Centrifugal Fans: We design and manufacture high-efficiency, low-energy consumption EC/DC/AC centrifugal fans widely used in industrial manufacturing, commercial buildings, medical facilities, and more. These fans utilize advanced electronically commutated (EC) motor technology to achieve precise airflow control and energy optimization, providing customers with high-quality air movement solutions.

2. EC/DC/AC Axial Fans: We provide high-performance, high-efficiency EC/DC/AC axial fans for ventilation, air conditioning, and refrigeration applications. These fans offer excellent airflow capacity and energy optimization, creating comfortable and healthy indoor environments.

3. Industrial Ventilation Fans: We offer a wide range of ventilation solutions for industrial applications, including exhaust fans, supply fans, and environmental control fans. These fans feature high efficiency, reliability, and durability, meeting the requirements of various industrial applications.

4. Commercial Building Fans: Our commercial building fans are suitable for office buildings, shopping malls, hotels, sports arenas, and other venues. These fans are characterized by low noise, high efficiency, and controllability, providing good indoor air quality and a comfortable environment.

5. Agricultural Fans: We provide professional fan solutions for agricultural production, including greenhouse ventilation fans,poultry and livestock ventilation fans, and agricultural irrigation fans. These fans effectively enhance crop growth conditions and animal comfort, contributing to increased productivity and efficiency in agriculture.

Why choose us ?

* High-end, Highly Customized
* High Performance,High-Efficiency Motor
* High Cost-Performance Ratio
* Global Leader in Fan & Motor Manufacturing
* OEM/ODM Global Fan Supplier
* Manufacturer and Provider of High-quality Ventilation Fans and HVACR Complete Machine Technology Solutions

FAQ

FAQ

Q1: Whats your advantages of your centrifugal fans?
1,high efficiency

2,long life span

3,easy installation
Q2: Are you a manufacturer or trading company?
Yes, we are manufacturers
Q3: whats your production capacity?
We are capable to produce over millions pcs fans and motors annually.
Q4: whats your main machines and capacity?
For the motors: We have owned CNC machines 18 units &4 auto-robots.

capacity :500k pcs annually.

winding machine 20 units,capacity 500kpcs annually

magnetization machine 6 : capacity 500kpcs annually

Balance machine 22 units :500k pcs annually boring
mill: 2 units high temp failure detection :3 chambers500k pcs annually

For the fan:

Injection machine : 12 units, capacity:2millions pcs annually

Welding machine:10units

Balance machines: 14 units
Q5: what your advantages of technologies in fans and motors?
we makes very quiet noise , and good air performances of fans . We are capable to do fans and motors matching and make them optimized to achieve best air performances and lowest noise with CFD simulation.
Q6: whats your quality and certificates?
For us, quality issues are more important than ever before we always focus on quality thing. 100% inspection before delivery makes almost zero complains. MTTF is less 500/million. LONGWELL products can pass CE,ETL UL certificates.
Q7: Where is our main market?
North America,Europe . some of longwell customers are the top 1 in their application.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Volume pricing:
  • 100+ piece: US $41.95 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 230 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Ningbo Canlian Technology Company Limited, based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Canlian Technology Company Limited range on HVACR Nexus.
