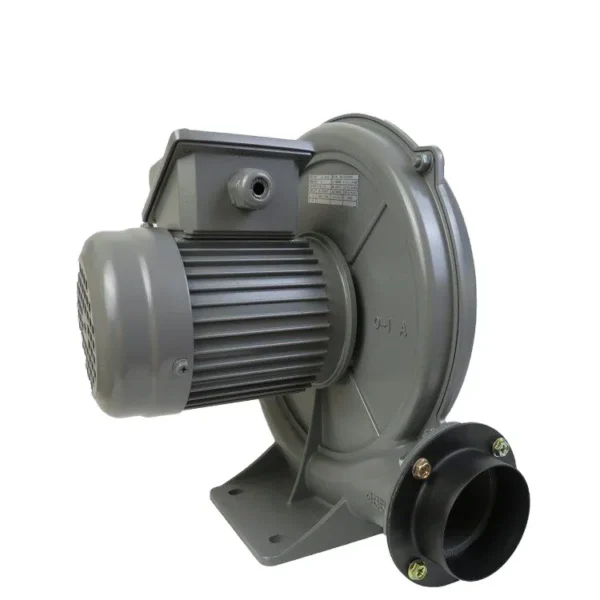

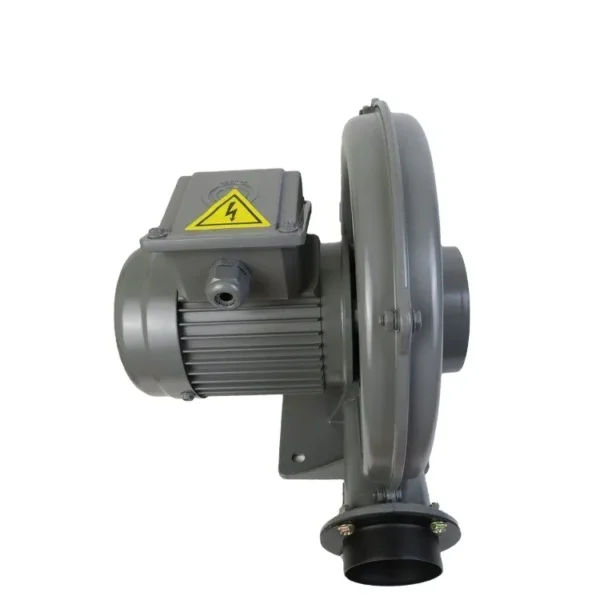

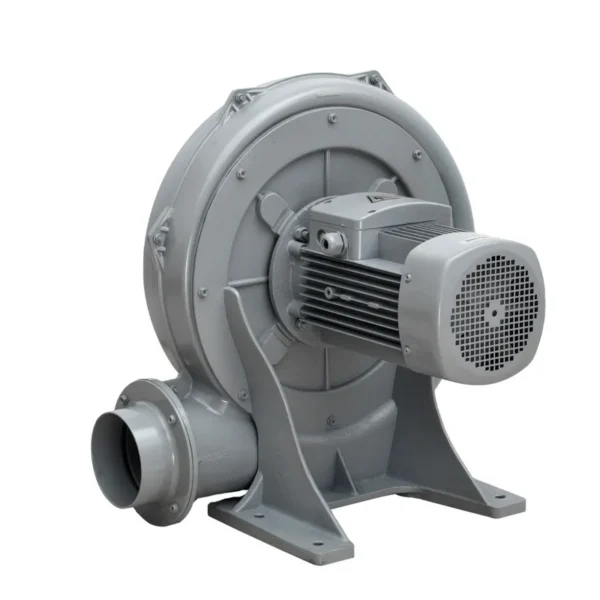

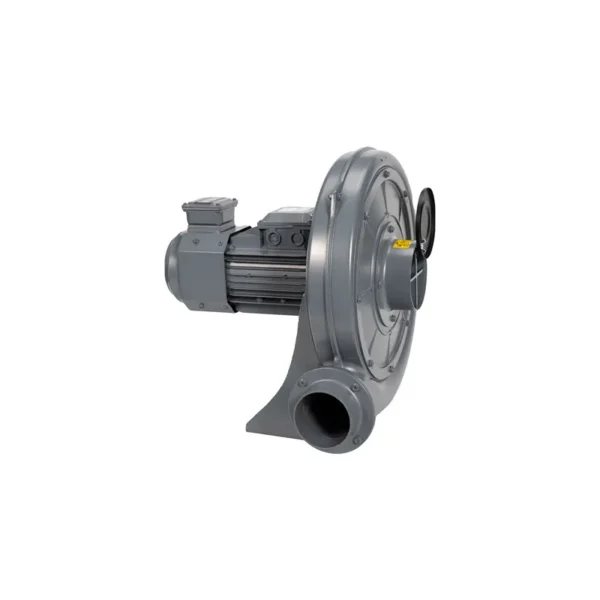

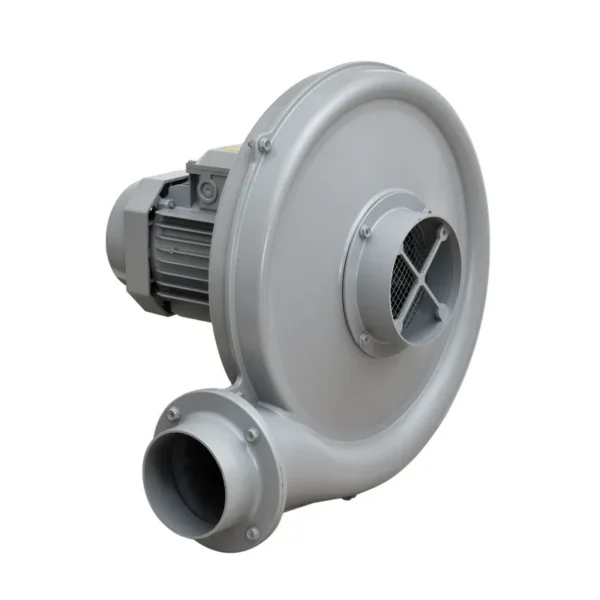

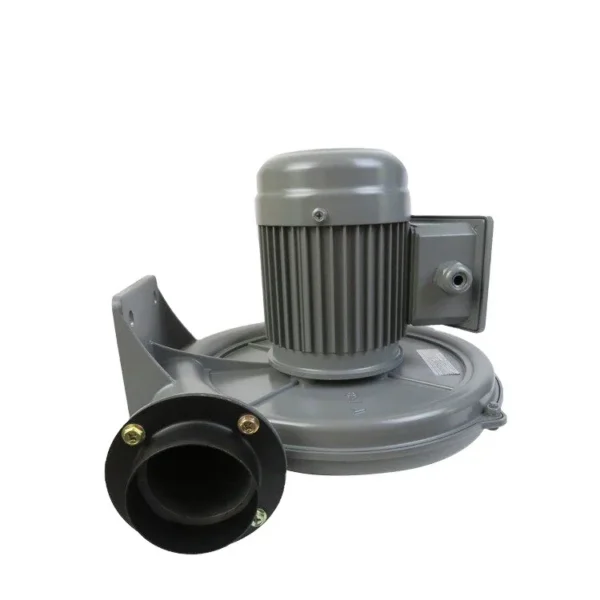

Centrifugal Blower, 220V, 32(m3, Stainless Steel

Key specification for this centrifugal blower: 220V/380V, airflow 32(m3/min). Everything below is reproduced from the factory data sheet. Made by Dongguan Mingkai Electromechanical Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Blower

• Model Number: CX-100A single phase
• Power Source: Electric
• Rated Voltage: 220V/380V
• Voltage: 220V single phase
• AirFlow: 32(m3/min)
• Blade Material: Stainless Steel

Technical Specifications

Product Details

Product Overview

Long working state 1.5KW industry medium pressure CX blower for conveying powder

The CX series medium-pressure blower developed by Manvac can reach 4.5m3/min air flow through 0.2KW Her strength has won her numerous reputation and conquered countless users all over the world. Manvac's cx series blower have also passed CCC/CE certification, so they can be used all over the world without any test.

FEATURES AT A GLANCE

Aluminum alloy material

Precision die casting process

Scientific structural design

100% oil free design,low shake,stable performance.A large number of installed instance proved their efficiency optimization, operation safety, widespread application and the best reliability.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Model	Phase	Weight     (KG)	Power    (KW)	Voltage      (V)	Max       air flow   (m3/min)	Max vacuum    (kpa)	Noise Leel       (db)
1phase
CX-65A	1	7	0.2	220-240	4.5	0.7	50
CX-75SA	1	11	0.4	220-240	7	1.1	56
CX-75A	1	14	0.75	200-240	13	1.7	64
CX-100A	1	28	1.5	220-240	20	2	74
3phase
CX-65A	3	7	0.2	220-380	5.3	1.1	62
CX-75SA	3	11	0.4	220-380	8	1.6	70
CX-75A	3	14	0.75	220-380	15	2.4	80
CX-100A	3	28	1.5	220-380	23	3	90
CX-125A	3	38	2.2	220-380	32	2.4	76
CX-150A	3	54	3.7	220-380	46	3.2	80

PRODUCT CONFIGURATION

Characteristic 1.

Steel ring and cast aluminium layer line inside of MV moforback coi/erbearing base

Characteristic 2.

Enlarge electric connection box, easy to operate. Nut and screw totally applied copper material. Increase diameter and length of connection terminal. Electrical conductivity better and stable.

Characteristic 3.

MV Ring blower, increased 10% the external diameter and thickness of rotor. Enlarge the motor shell,protect blower from overload

SALES AND SERVICE NETWORK

Professional service team

Dongguan Mingkai Electromechanical Co., Ltd.is located in Dongguan, a garden city with the reputation of "world factory". Established in July 2002, Factory space 6000m2. In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: side channel blower, high speed turbo blower, industrial air products with high efficiency motor, NSK and SKF bearings. More than 10 years, experience for industrial air products. Dia casting machine, CNC machining equipment, automa tic wire winding machine, electric test machine, rotor balancing machining machinejmpeller balancing testing and machining machine etc.

Successful Project

COLLECTION CHAMBER

COMBUSTION

WORK PIECE

Vacuum adsorption

FILTER

TREATMENT SYSTEM

SIMILAR PRODUCTS

HTB series

MS series

FMS series

Storage Delivery inspection Start loading. Safe delivery

Our Services

FAQ

1. What is the warranty of your machine?
R: 1 years, any product itself question,you can contact with us.
2. What is the material of your machine , is oil free?
R: our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free.
3. How to operate your machine?
R: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.
5. How to contact with you?
R: You can send messages to me directly by alibaba trade manager, or add me like below

Ordering and Pricing

• Minimum order quantity: 2 set
• Volume pricing:
  • 2–9 set: US $232 / set
  • 10+ set: US $227 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 12Months warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Dongguan Mingkai Electromechanical Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Dongguan Mingkai Electromechanical Co., Ltd. range on HVACR Nexus.

See more in Centrifugal Fans on HVACR Nexus.
